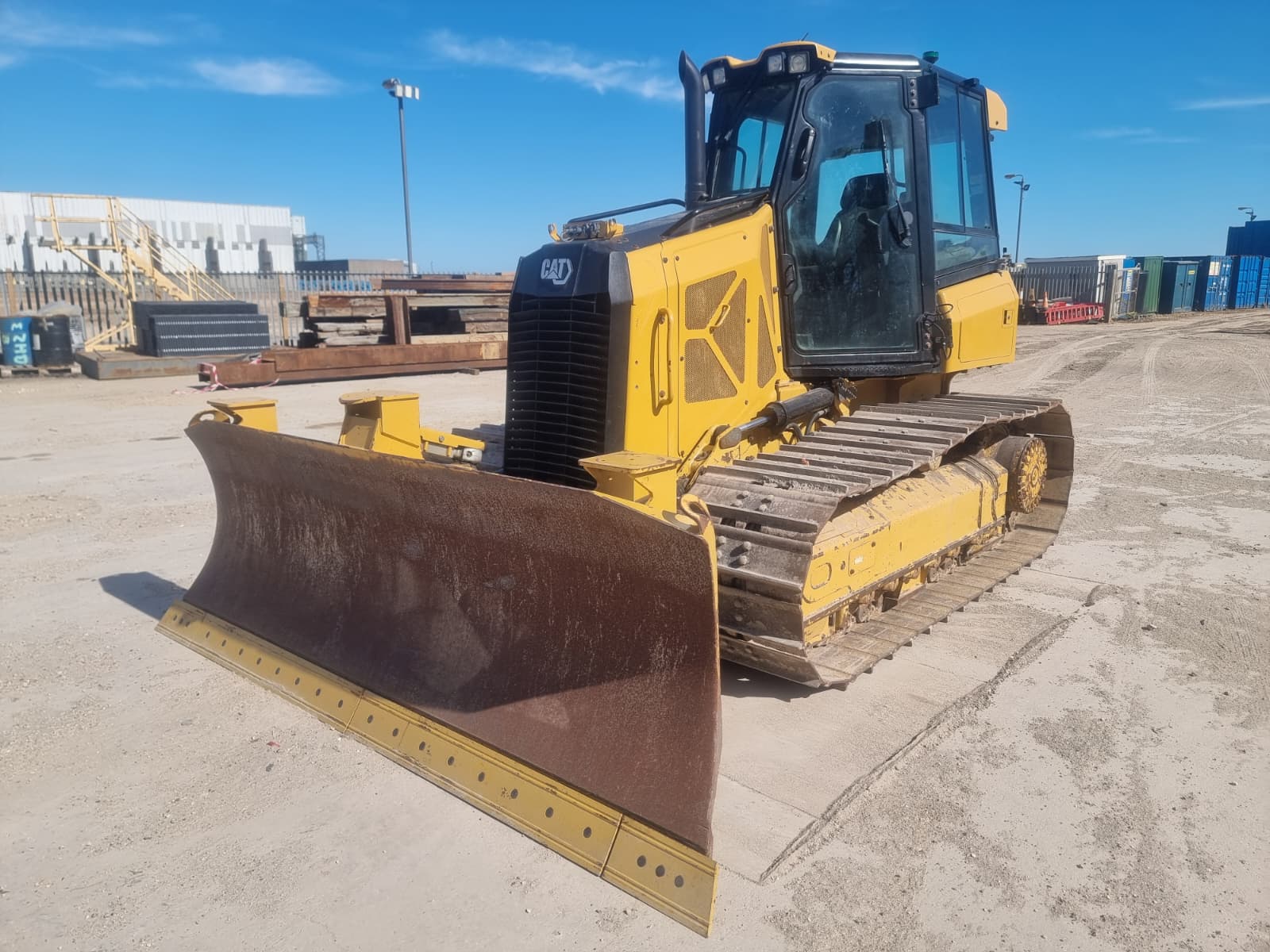

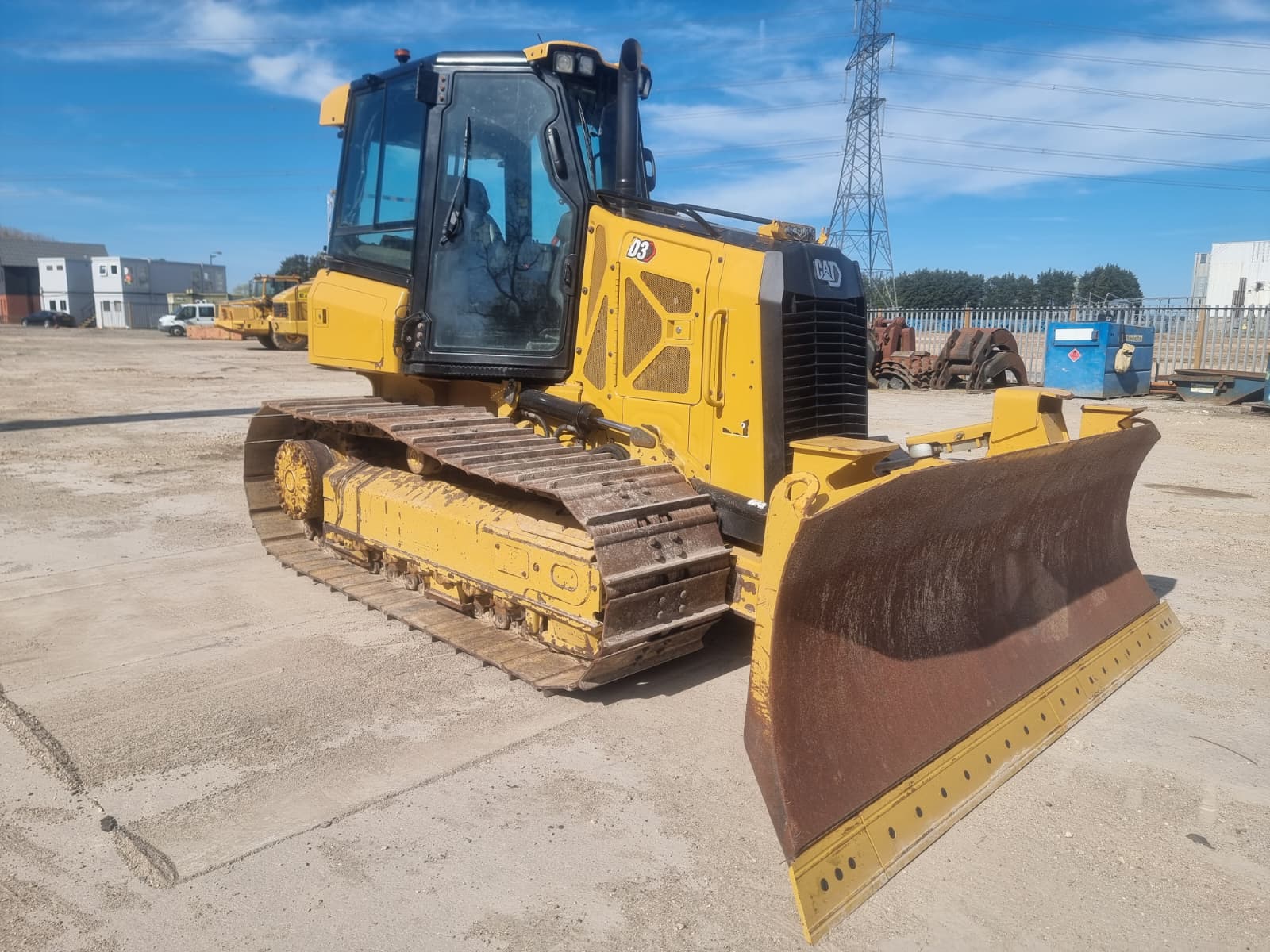

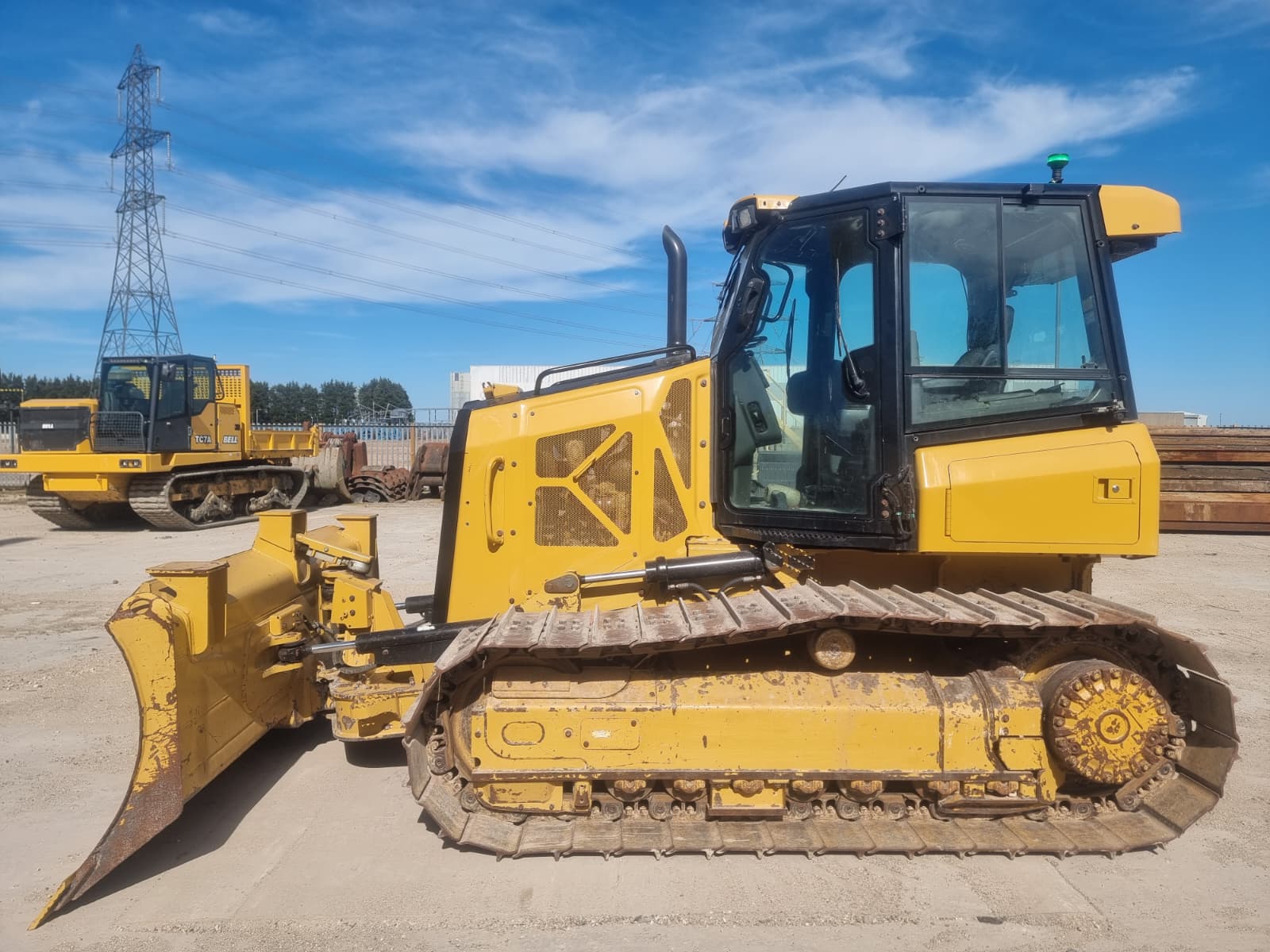

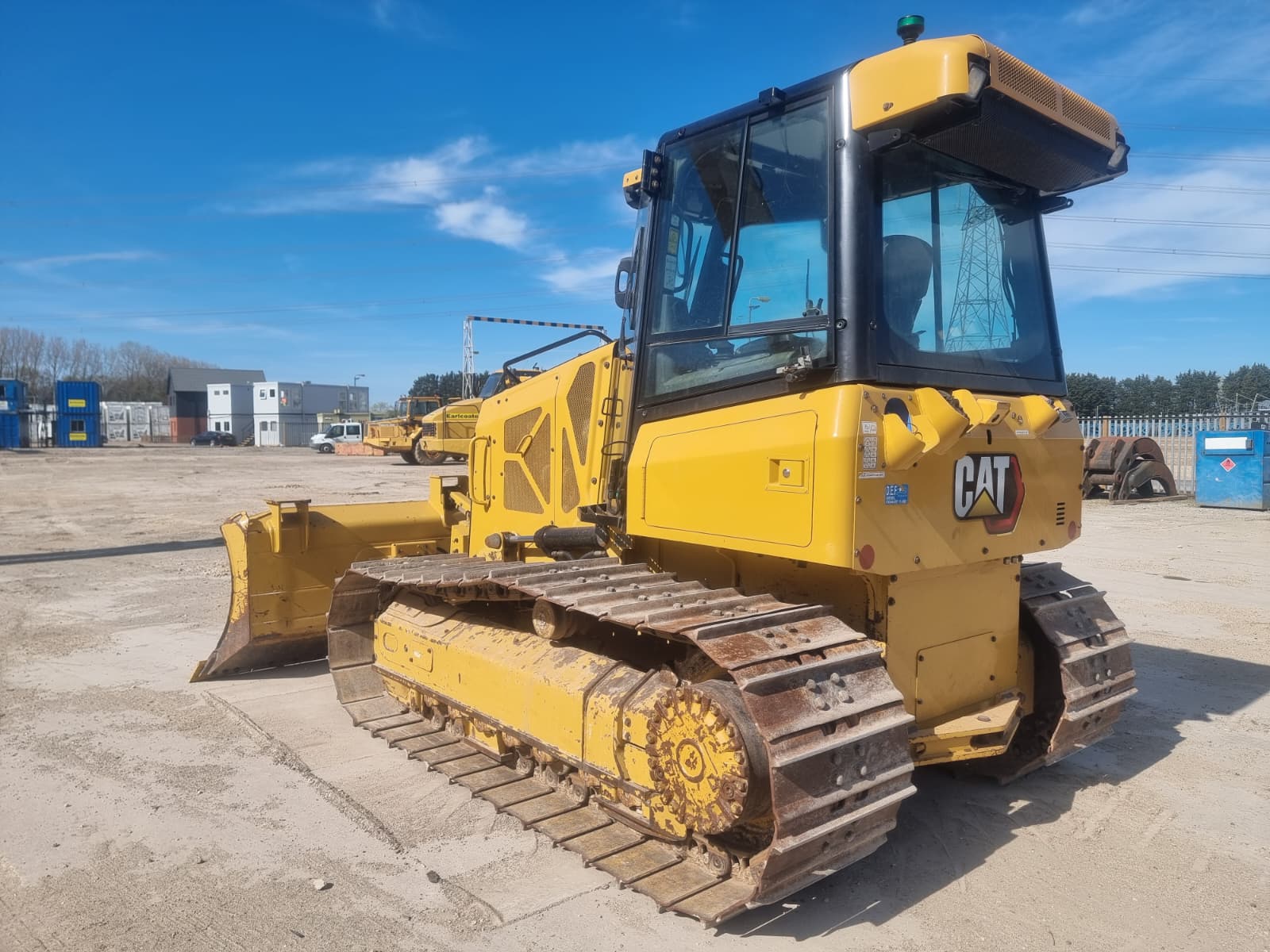

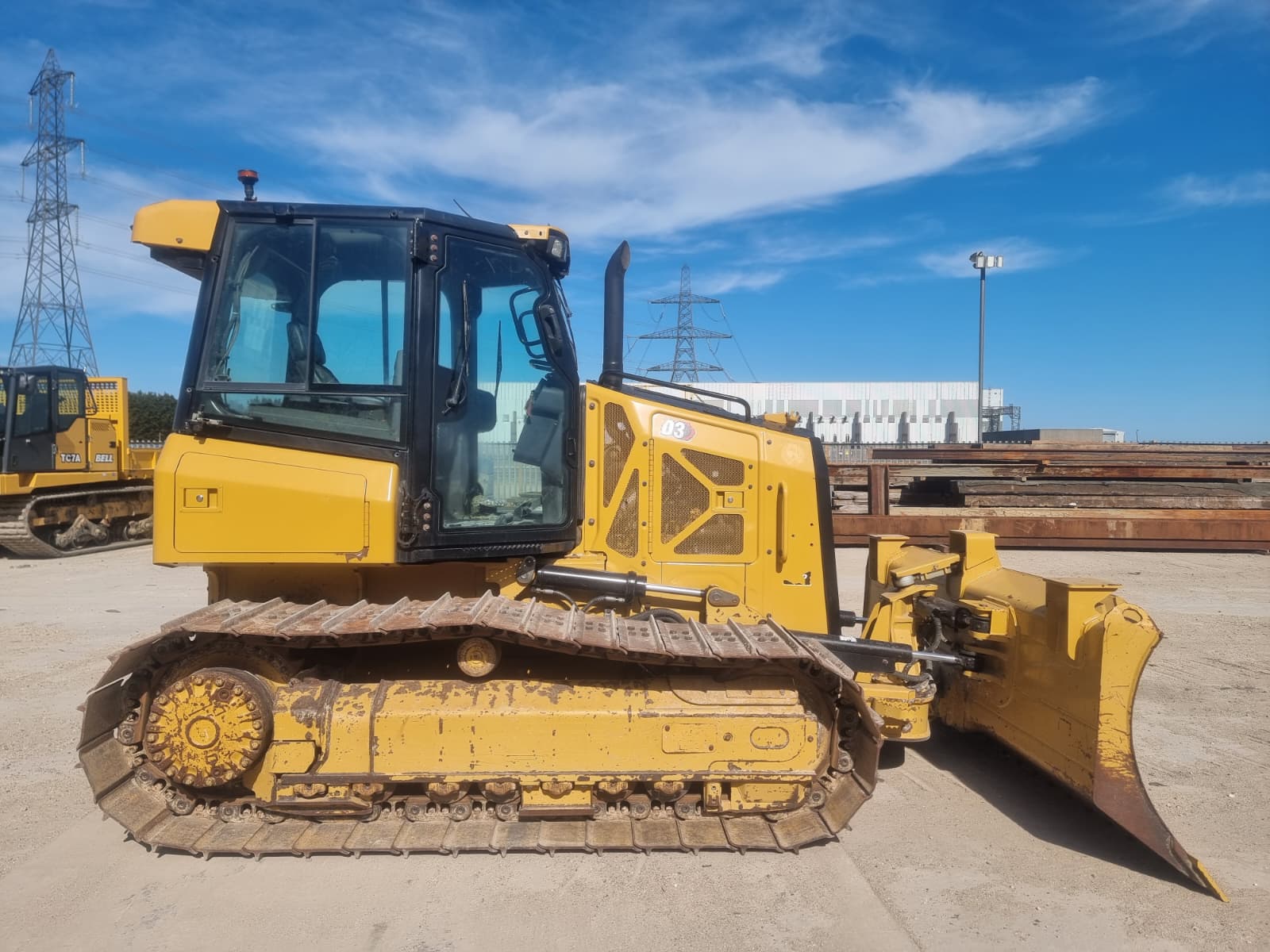

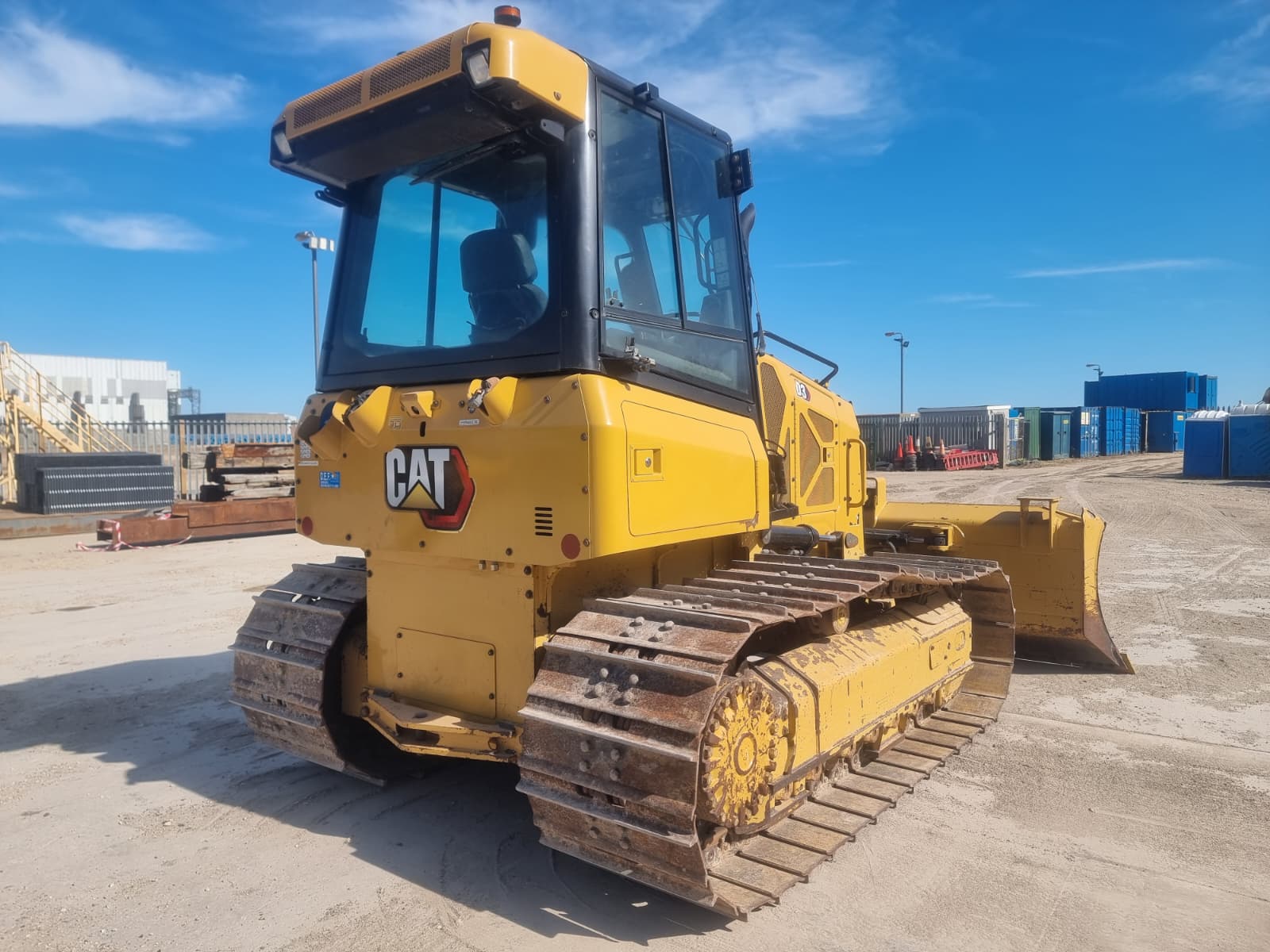

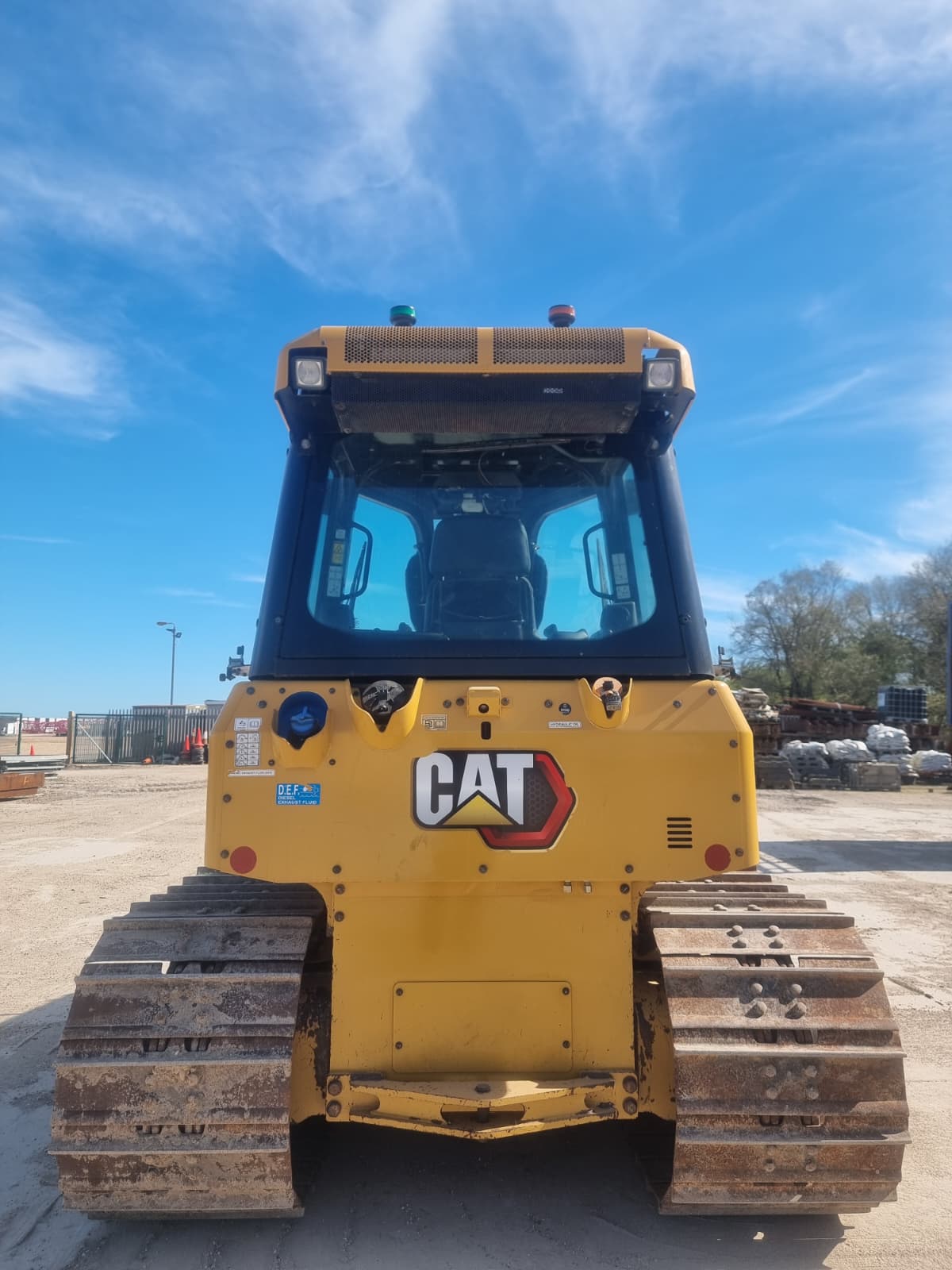

CAT D3 LGP

MACHINE KEY DETAILS

Make:

Caterpillar

Model:

D3 LGP

Stock No:

70962

Year:

2021

Hours:

4590

Location:

Southampton

Weight:

9693 KGS

HP:

104 HP

Enquire Online

Download inspection Report Download Images Download Brochure Get a shipping quote Compare Machine

View Full Inspection Report

ENGINE

Blow by

Minimal to none

Air filters

Clean, minimal dust

Any smoke

No smoke

Oil or fuel leaks

None visible

General running condition

Runs well

TRANSMISSION

Gear change

HST works well

Steering

Responsive steering

Oil leaks

None visible

Is the transmission noisy?

No

Controls

Good controls

General running condition

Moves well

UNDERCARRIAGE

Shoe width

660mm

Shoe height

35mm, 70%

Shoes - any wear in trailing edge?

Some wear in trailing edge

Rail height

112mm, 60%

Any signs of link failure

No

Average diameter of pins and bushings

56mm, 70%

Have pins been turned on chains

No

Sprockets

16mm tips, 75mm gape, 70%

Left side idler

50mm x 22mm, 70%

Right side idler

50mm x 22mm, 70%

Left side top roller

161mm x 162mm, 80%

Right side top roller

161mm x 161mm, 80%

BOTTOM ROLLERS - UNDERCARRIAGE

Roller 1

161mm x 162mm, 80%

Roller 2

162mm x 162mm, 80%

Roller 3

Visual only, 80%

Roller 4

163mm x 163, 80%

Roller 5

162mm x 163mm, 80%

Roller 6

Visual only, 80%

Roller 7

Visual only, 80%

CAB

Cab mounts - any wear?

Good mounts

Any wiring for laser system

Yes

Back up alarm

Loud and clear

Battery isolator switch

Manual fitted

Lights

Good

Wipers

Good

Heater

Good heat

A/C

Good A/C

Seat condition

Good shape

Cladding condition

Good cladding condition

Floor mat condition

No wear of tears

Seat belt

Working as should

Mirrors

Rear view only

Horn

Loud and clear

Cab glass condition

Good, minimal scuffs

Cab glass have any cracks?

No cracks

Any perspex fitted

None fitted

Steps and grab handles secure?

All fitted and straight

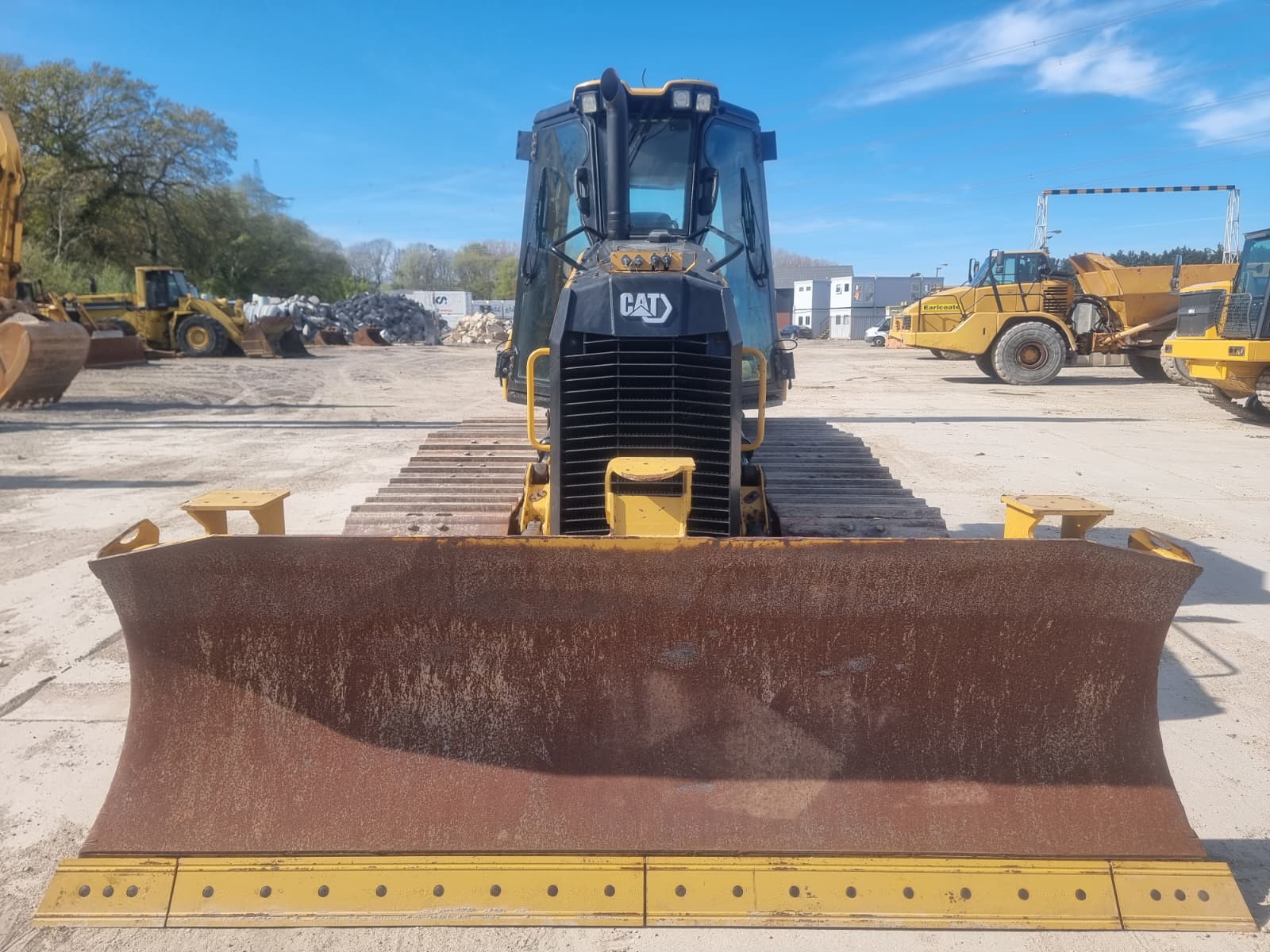

BLADE

Blade type

PAT

Blade width

3180mm

Blade height

1000mm

Face / Moldboard

Good face and moldboard

Cutting edge condition

New

Have cutting edges been turned

No

PAINT & DECALS

Paint condition

Good condition

Any areas repainted

No

Any rust patches

No

Condition of decals

Good

DIMENSIONS

Length

Width

Height

Measurements with blade straight

4260mm

3180mm

3000mm

Measurements with blade turned

4840mm

2770mm

3000mm

Measurements from outside to outside of tracks

2410mm

Measurements with blade straight

Length: 4260mm

Width: 3180mm

Height: 3000mm

Measurements with blade turned

Length: 4840mm

Width: 2770mm

Height: 3000mm

Measurements from outside to outside of tracks

Length:

Width: 2410mm

Height:
