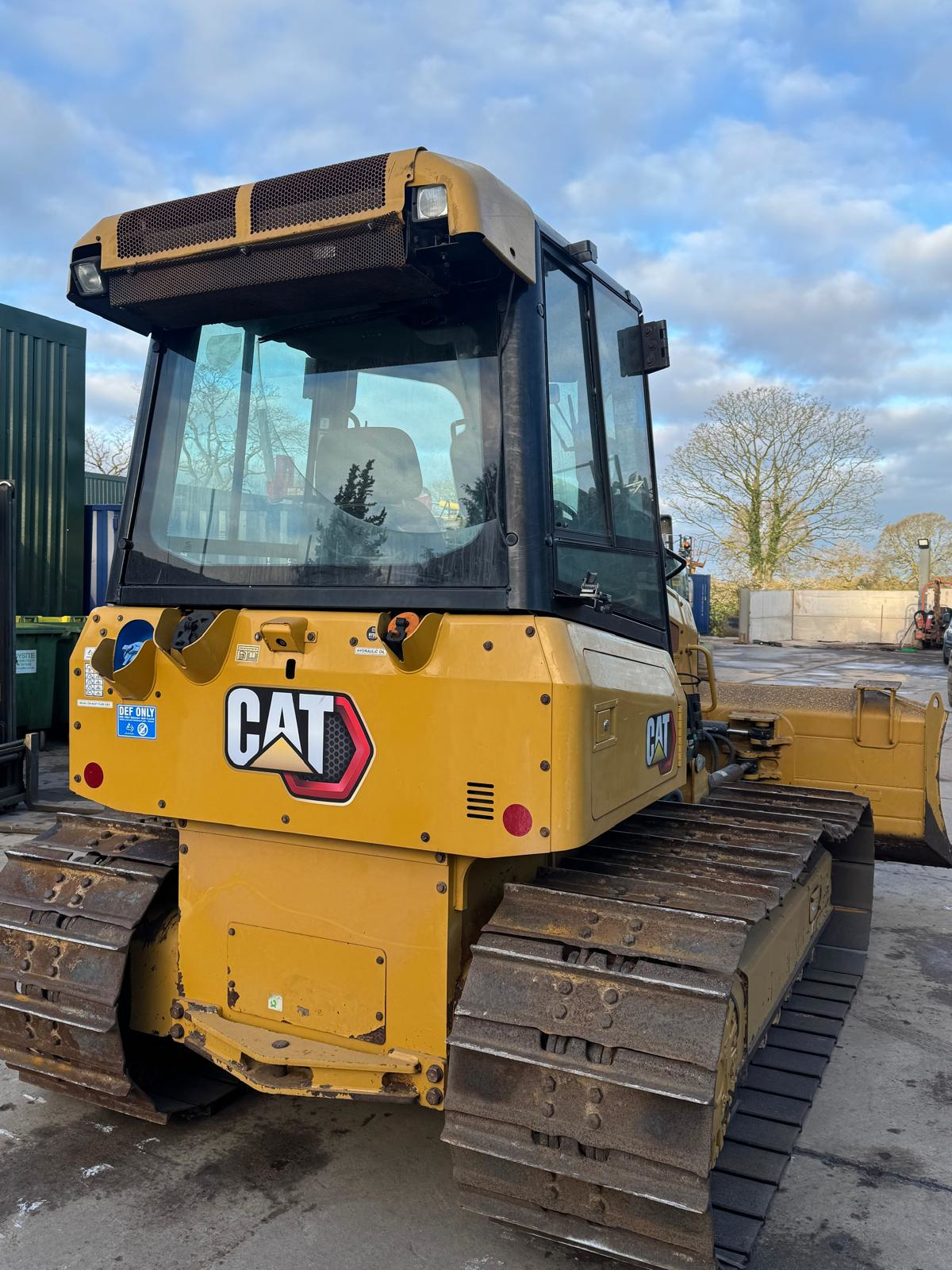

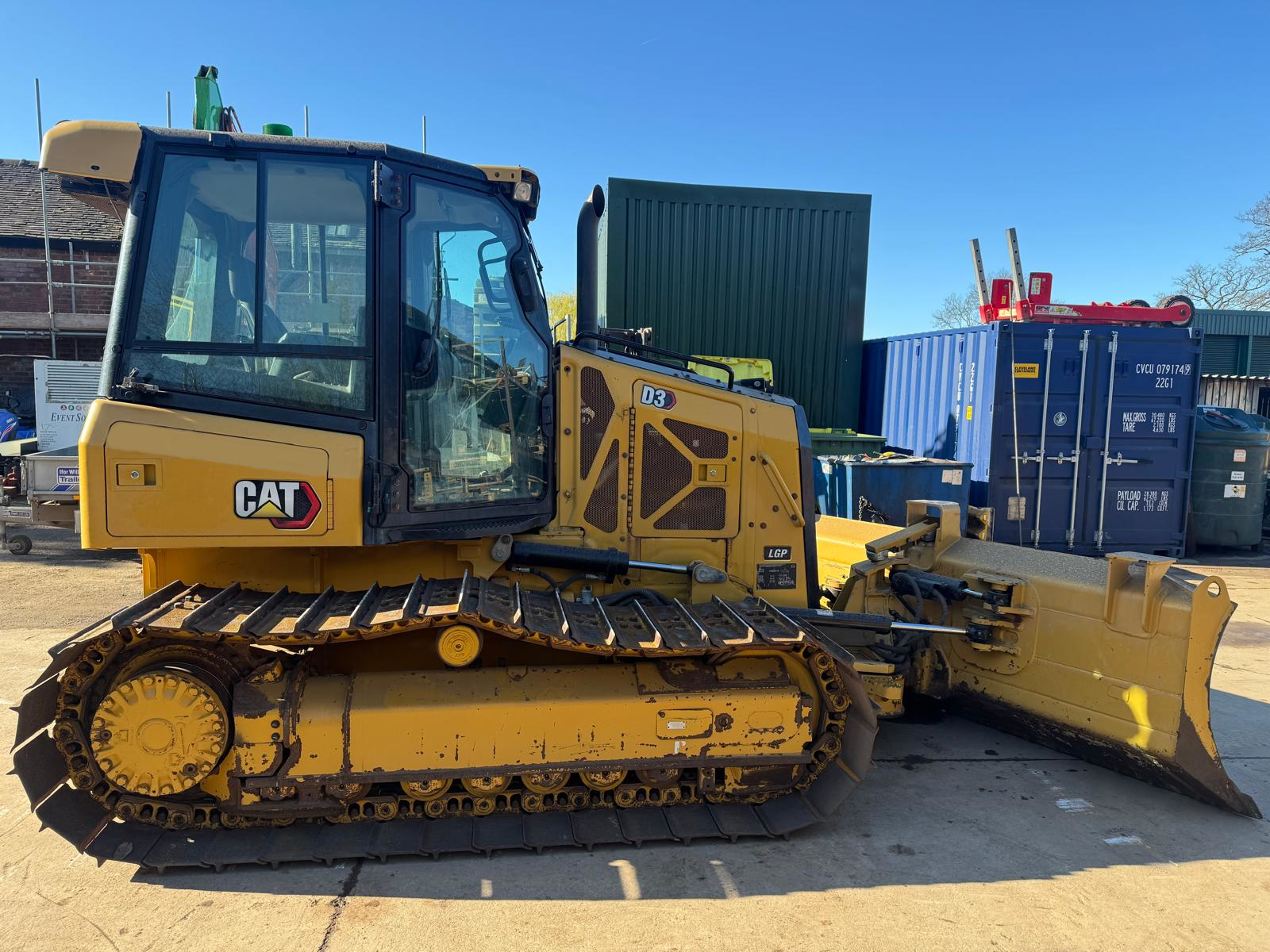

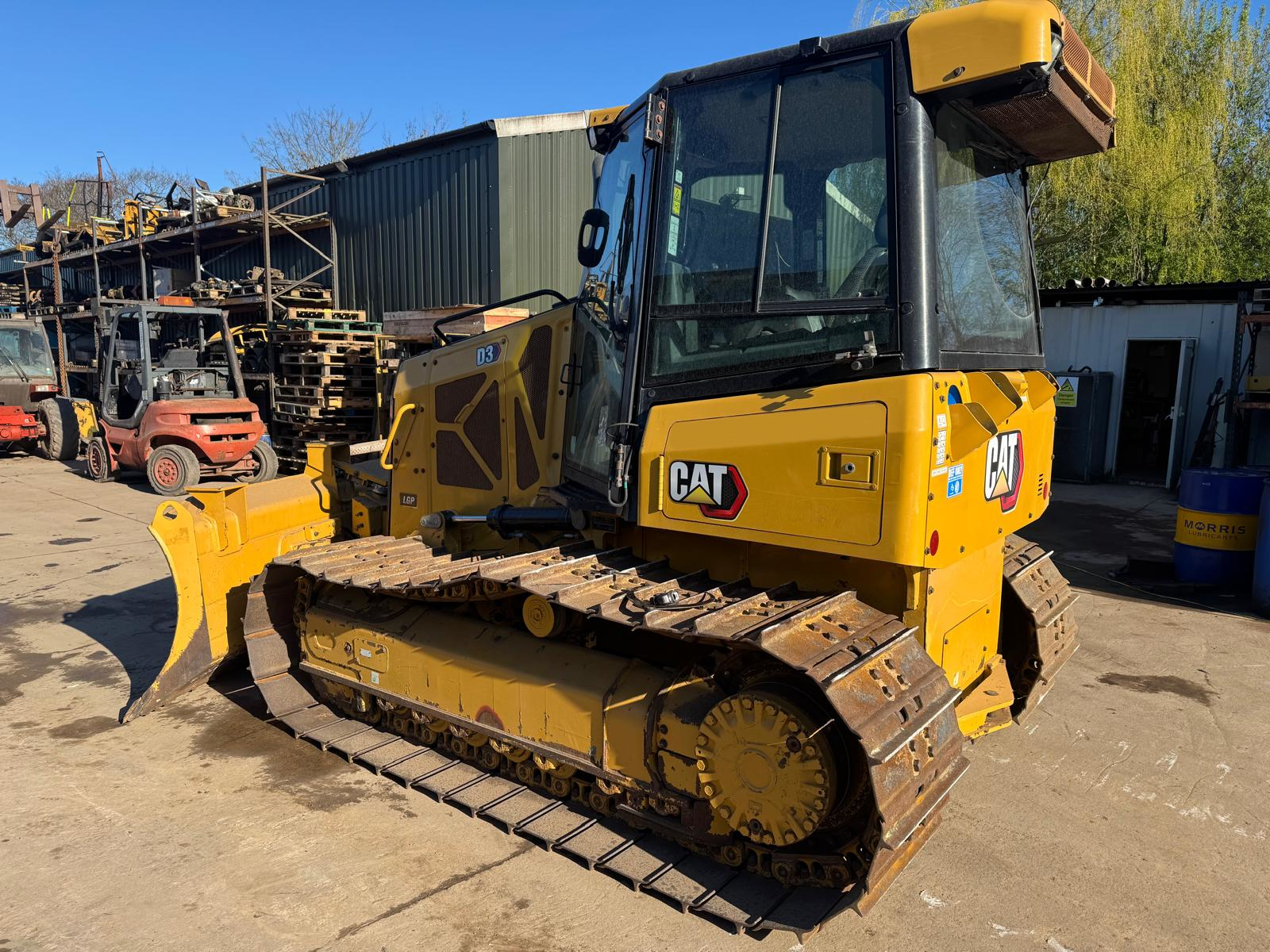

CAT D3 LGP

Video Gallery

Video Thumbnail

MACHINE KEY DETAILS

Make:

Caterpillar

Model:

D3 LGP

Stock No:

70965

Year:

2021

Hours:

6046

Location:

Congleton

Weight:

9,693 KGS

HP:

104 HP

Enquire Online

Download inspection Report Download Images Download Brochure Get a shipping quote Compare Machine

Wired for TRIMBLE EARTHWORKS.
Rippers available at an additional cost

View Full Inspection Report

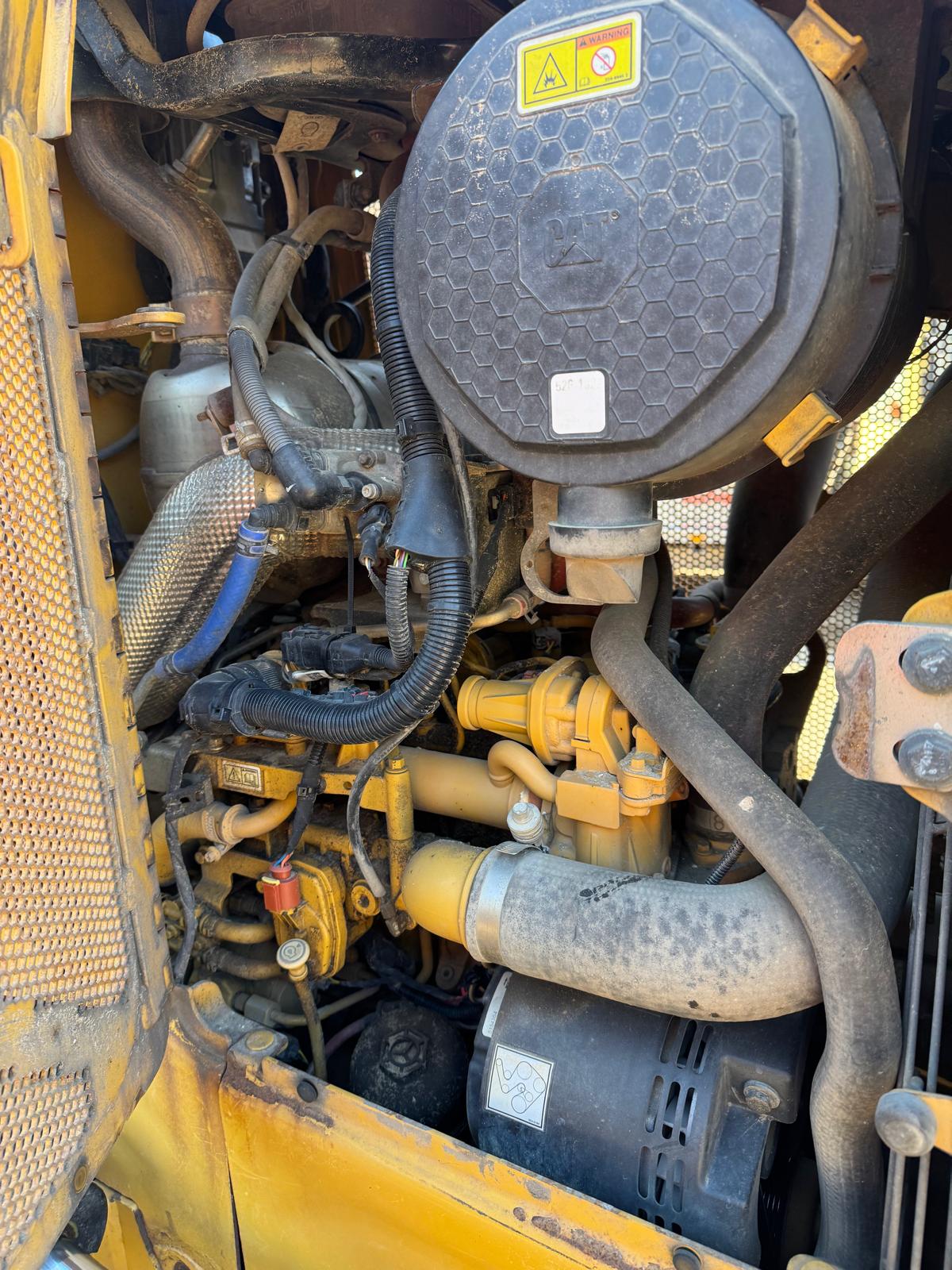

ENGINE

Blow by

None

Knocking

None

Air cleaners

Good

Any smoke

No

Oil or fuel leaks

None

General running condition

Good

TRANSMISSION

Gear change

Good

Steering

Good

Oil leaks

No

Is the transmission noisy?

No

Torque converter

Good

Controls

Good

General running condition

Runs well

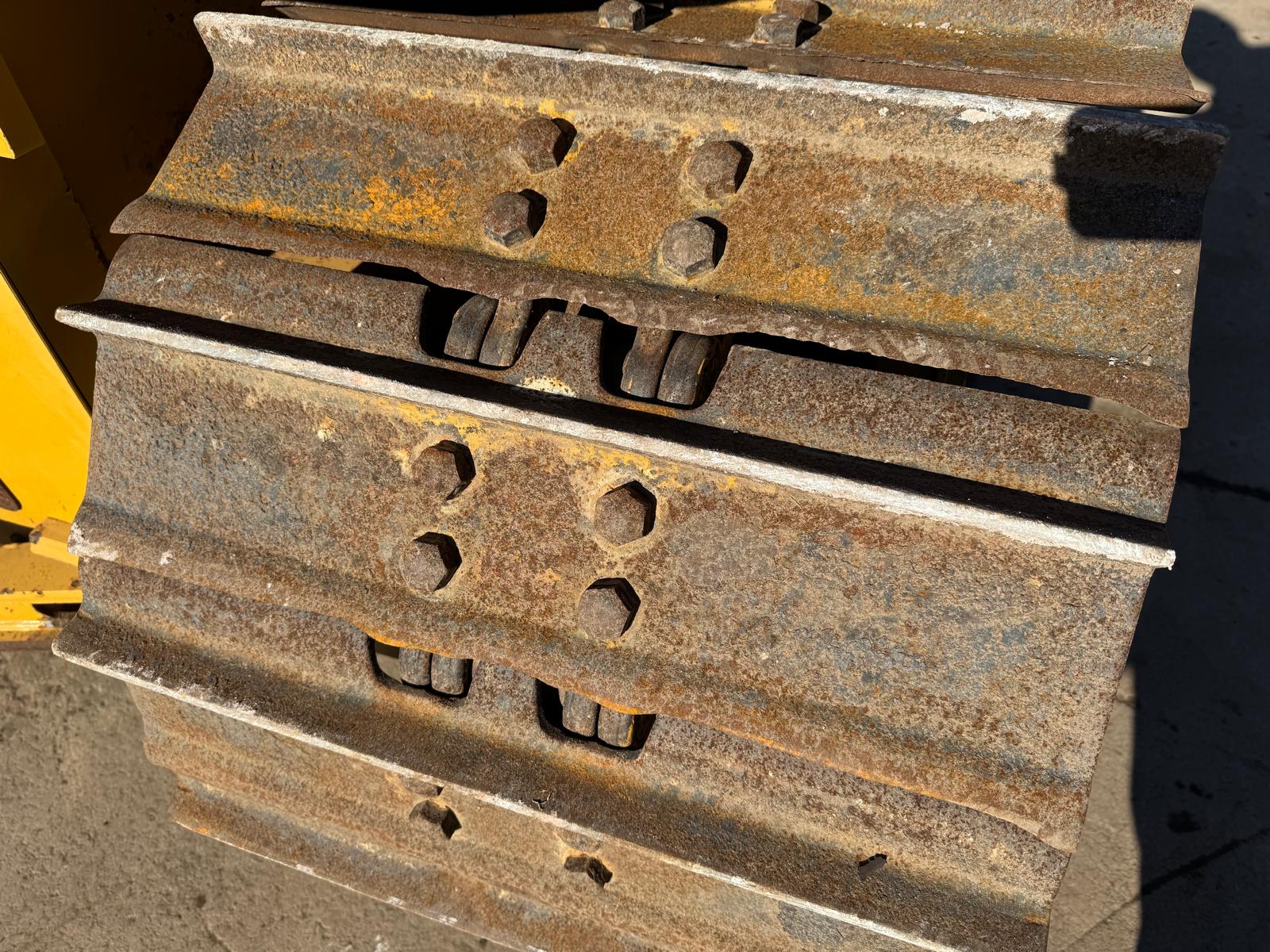

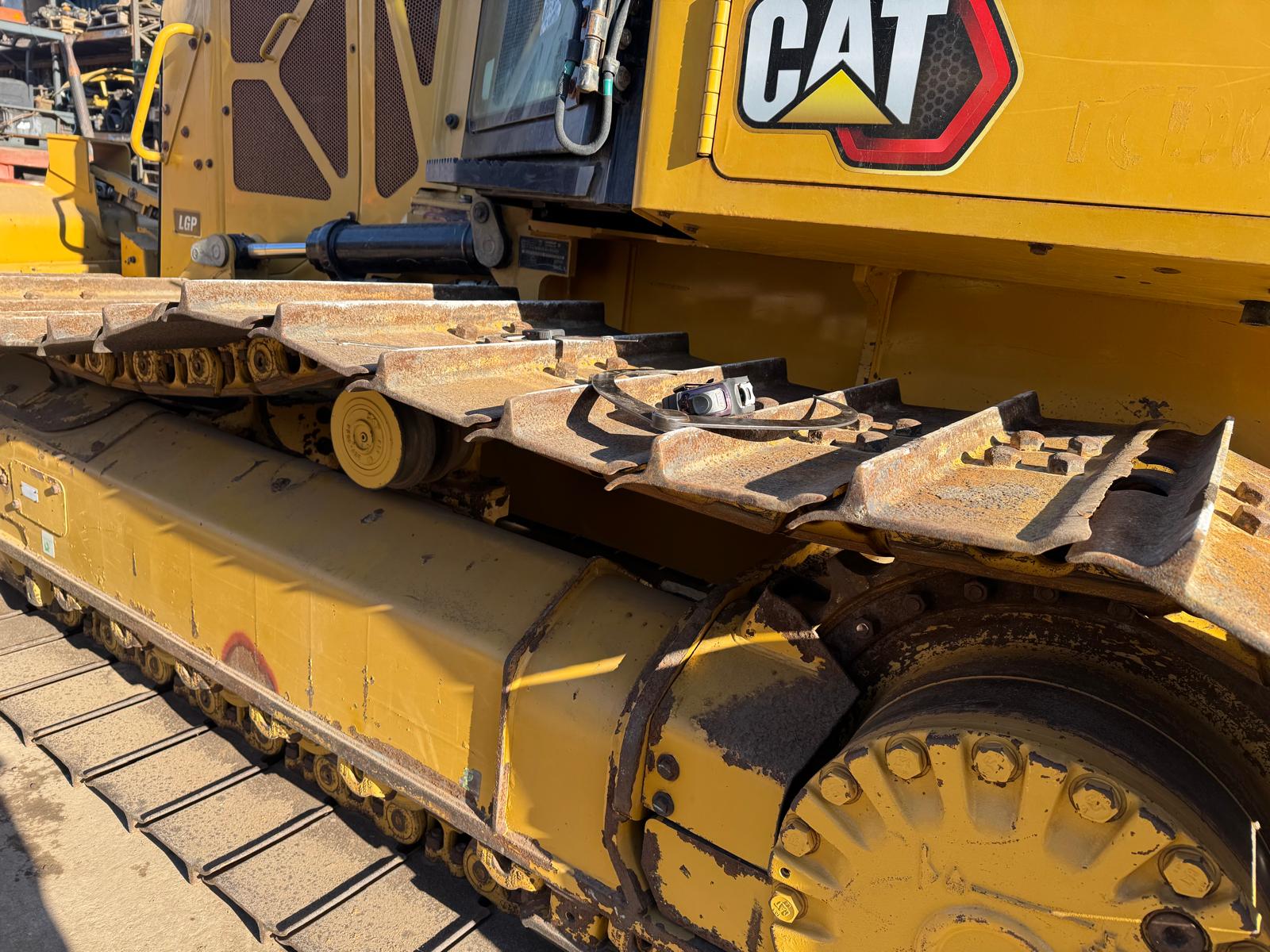

UNDERCARRIAGE

Shoe width

660mm 26"

Shoe height

40mm

Rail height

103mm

Any signs of link failure

No

Average diameter of pins and bushings

57.5mm

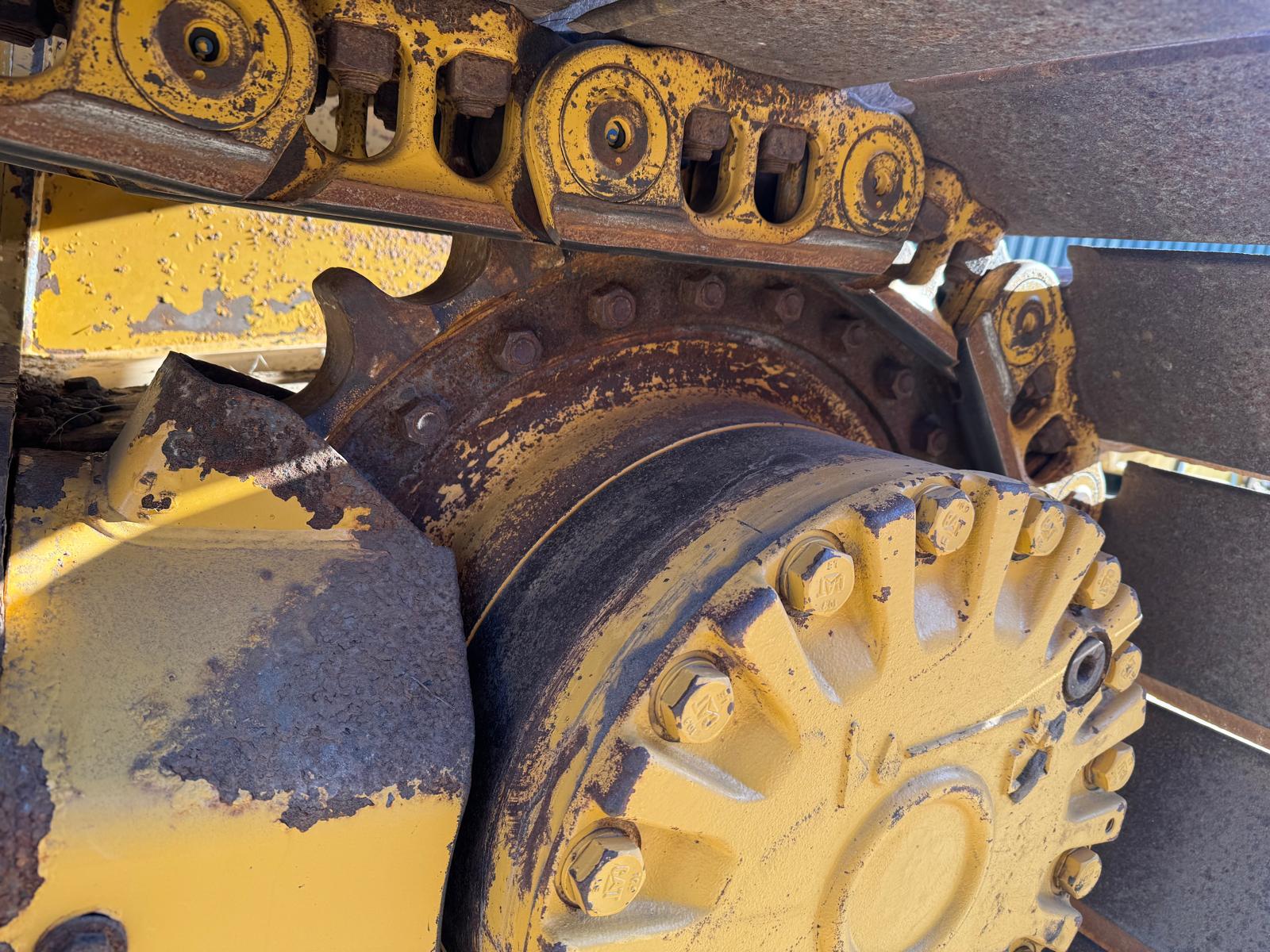

Sprockets

Good

Idlers

Good, System 1

Top rollers

155mm

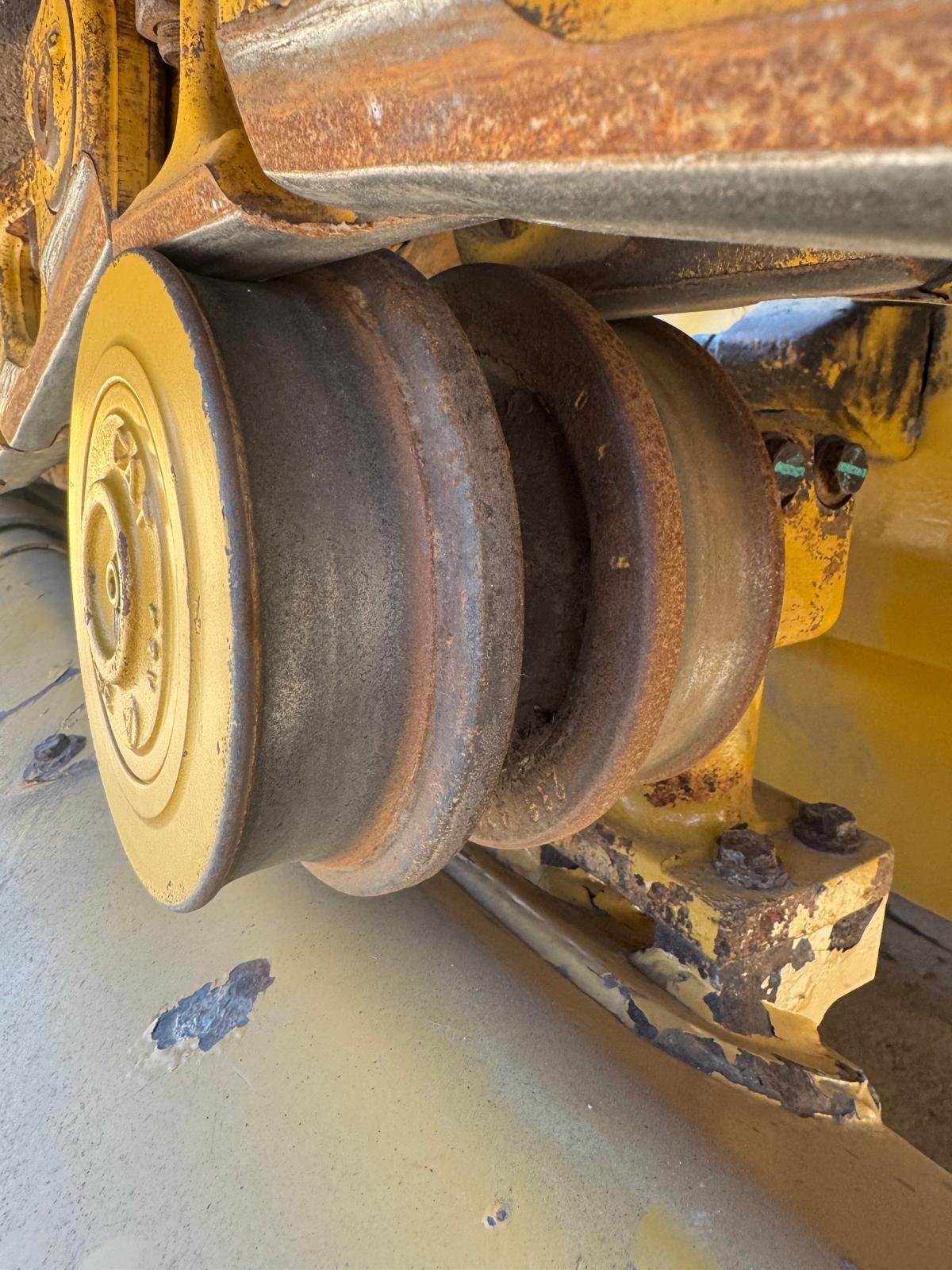

BOTTOM ROLLERS - UNDERCARRIAGE

Roller 1

160mm x 160mm

Roller 2

165mm x 164mm

Roller 3

165mm x 165mm

Roller 4

165mm x 165mm

Roller 5

165mm x 165mm

Roller 6

165mm x 165mm

Roller 7

160mm x 162mm

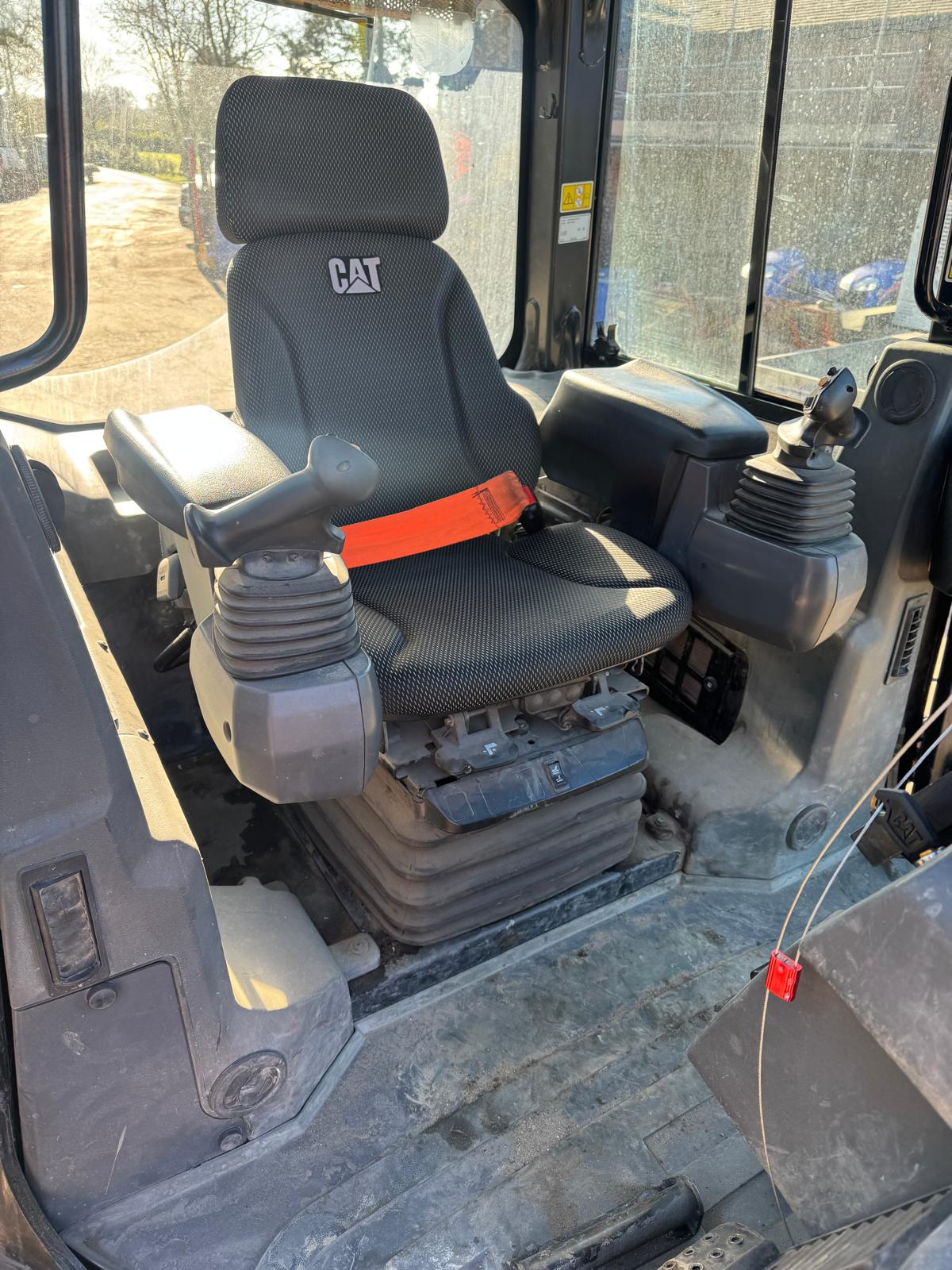

CAB

Cab mounts - any wear?

No

Back up alarm

loud and clear

Battery isolator switch

Working

Lights

All working

Wipers

All wipers and washers working

Heater

Good

A/C

Cold

Seat condition

Ok

Cladding condition

Ok

Floor mat condition

Ok

Beacons

Working

Seat belt

Working

Mirrors

Good

Horn

Loud and clear

Cab mounts

Good

Cab glass condition

Good, no damage

Any perspex fitted?

No

Steps and grab handles secure?

Yes

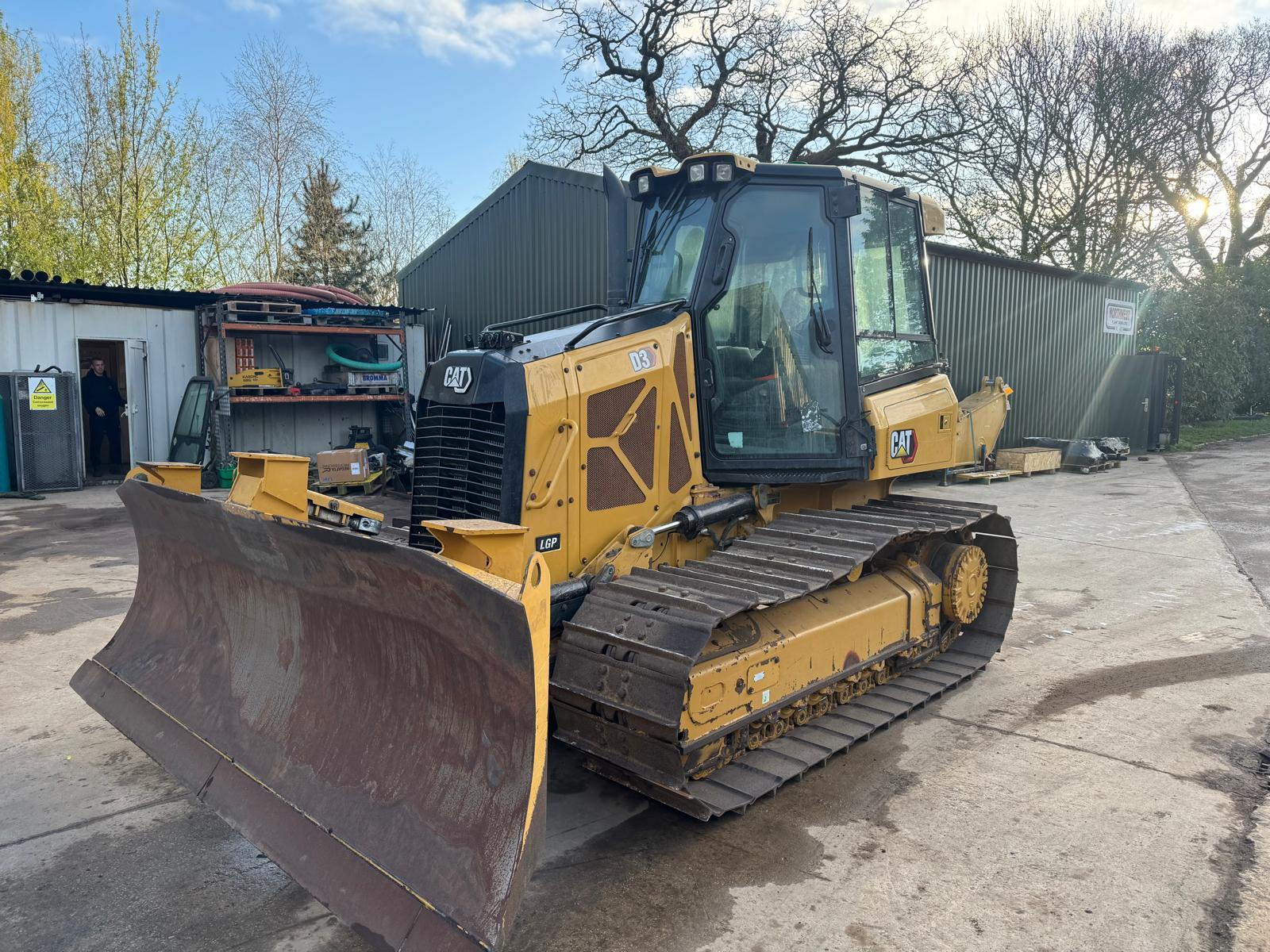

BLADE

Blade type

PAT

Blade width

3200mm

Blade height

1010mm

Main lift rams, wear in pins

Good

Swivel rams, wear in pins

Good

Tilt ram, wear

Good

Ball joint wear

Good

Trunions wear & shims

Good

Tilt ram

Good

C frame (PAT blades)

Good

Centre pin (PAT blade)

Good

General blade condition

Edges worn

PAINT & PANELS

Any damage to panels

R/H hood panel, cab rear

Paint condition

Good

Any rust patches

A few minor patches

DIMENSIONS

Length

Width

Height

Measurements with blade straight

4250mm

3100mm

2800mm

Measurements with blade turned

4900mm

2810mm

2800mm

Measurement from outside to outside of tracks

2410mm

Measurements with blade straight

Length: 4250mm

Width: 3100mm

Height: 2800mm

Measurements with blade turned

Length: 4900mm

Width: 2810mm

Height: 2800mm

Measurement from outside to outside of tracks

Length:

Width: 2410mm

Height:
