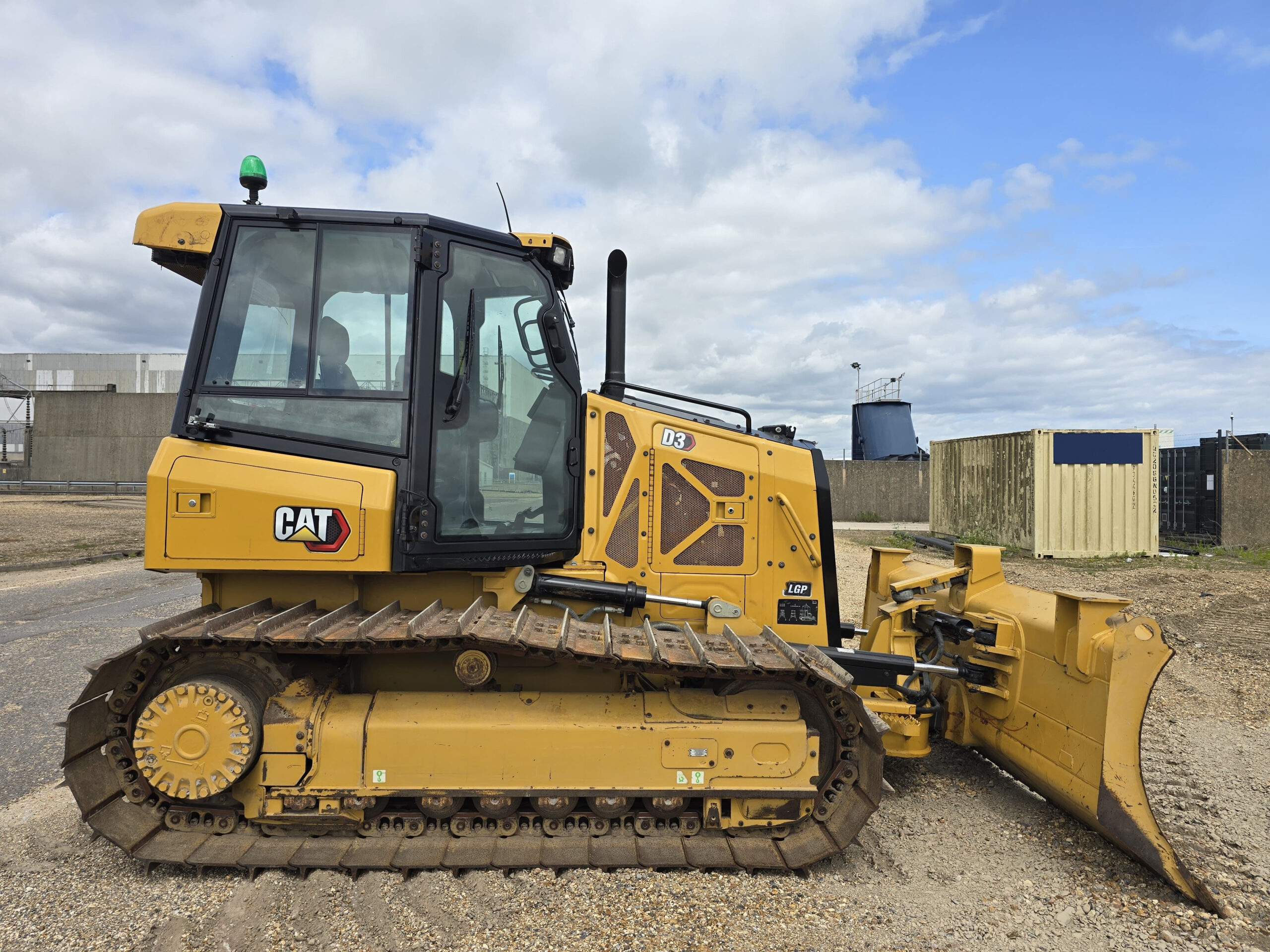

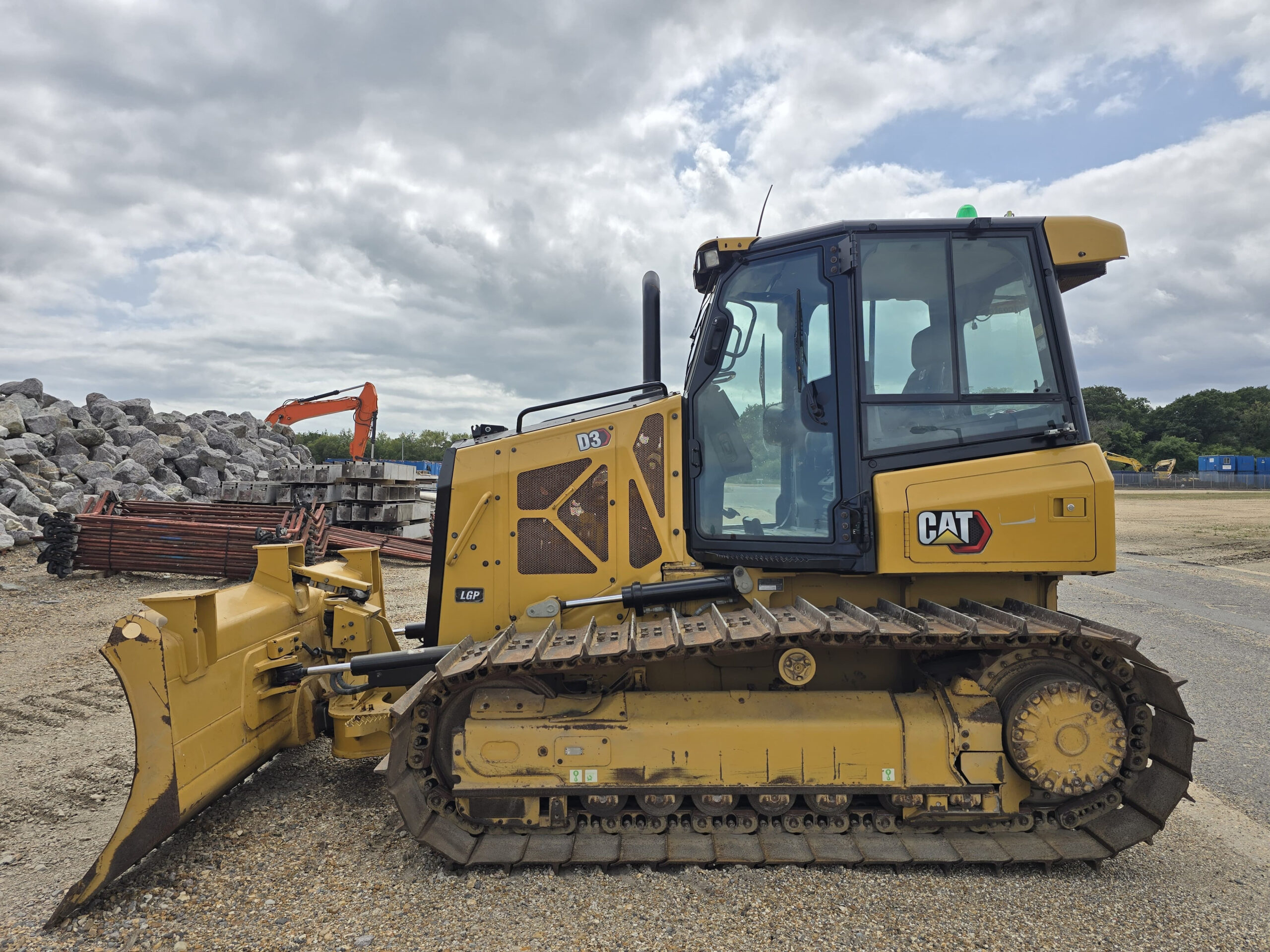

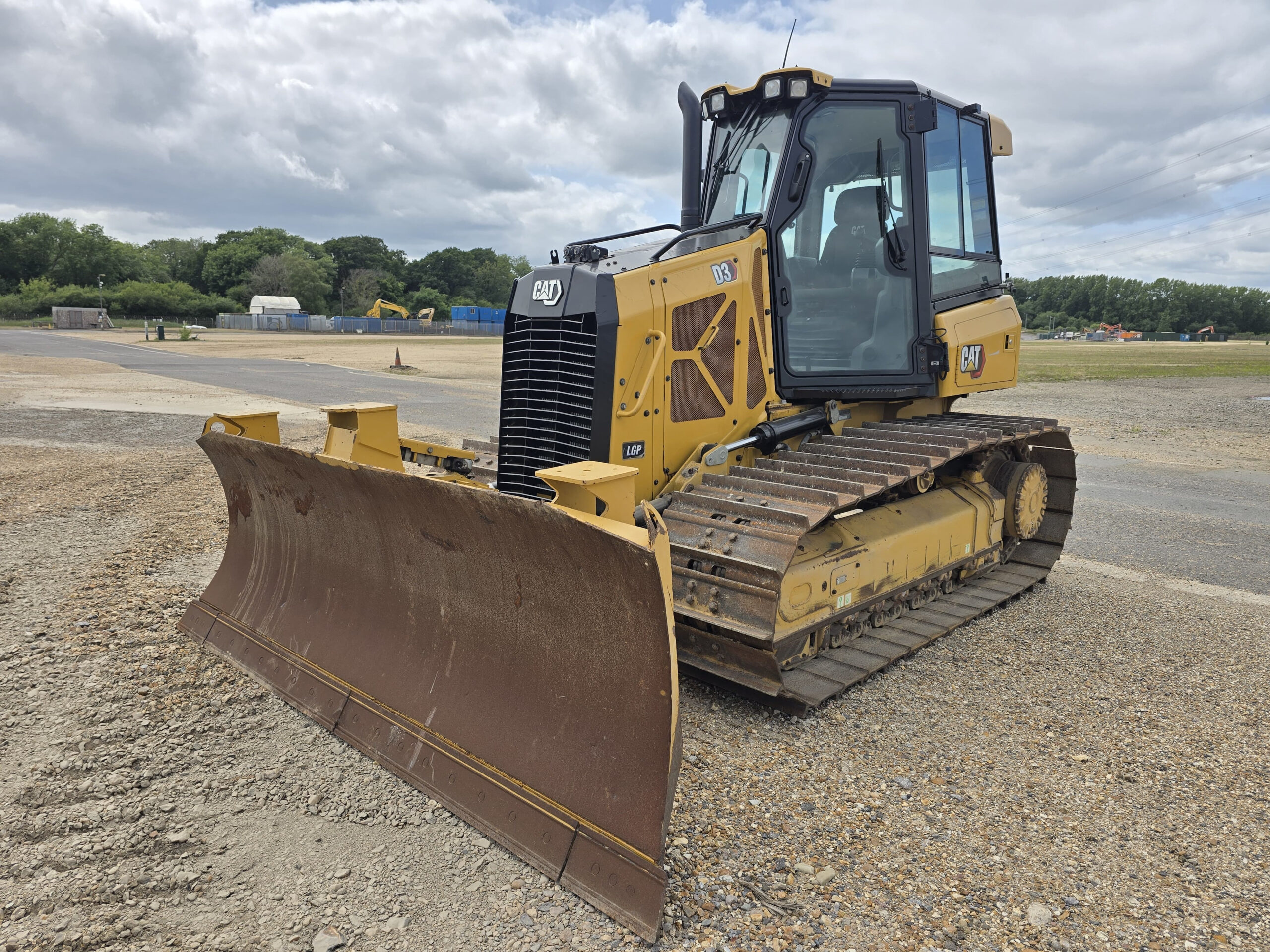

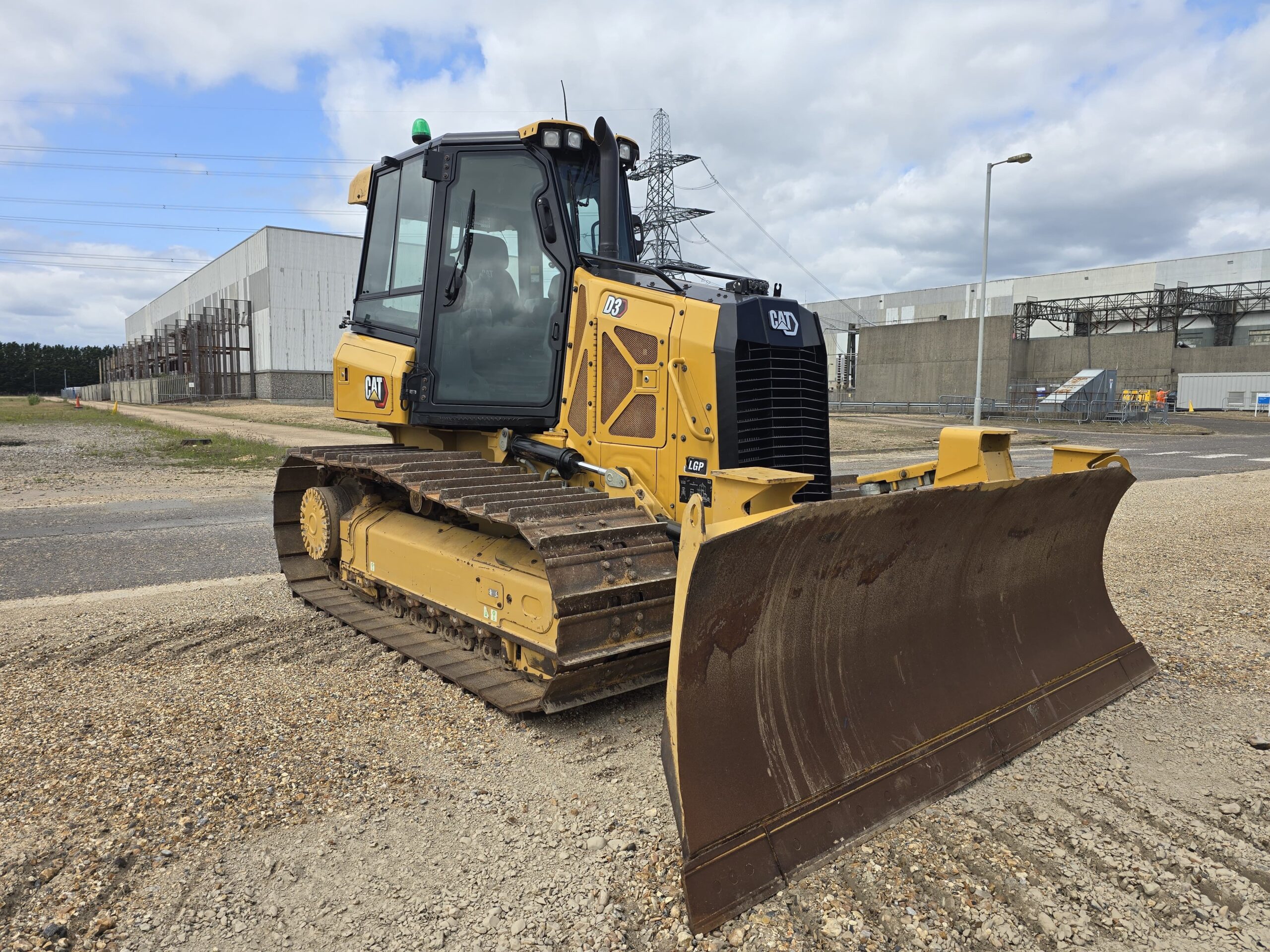

CAT D3 LGP

"

MACHINE KEY DETAILS

Make:
Caterpillar
Model:
D3 LGP
Stock No:
70885
Year:
2022
Hours:
2506
Location:
Southampton, UK
Weight:
9,693 KGS
HP:
104 HP
Enquire Online
Download inspection Report Download Images Get a shipping quote Compare Machine

View Full Inspection Report

ENGINE
Blow By
Minimal
Knocking
no knocking
Air cleaners
Good
Any smoke
No smoke
Oil or fuel leaks
No leaks
General running condition
Runs well
TRANSMISSION
Gear change
HST works well
Steering
Responsive steering
Oil leaks
No leaks
Is the transmission noisy?
No
Controls
Good controls
General running condition
Moves well
UNDERCARRIAGE
Shoe width
660mm
Shoe height
55mm, 95%
Shoes - any wear in trailing edge
Minimal
Rail height
100mm, 75%
Any signs of link failure?
No
Average diameter of pins and bushings
56mm, 75%
Have pins been turned on chains?
No
Sprockets
80mm gape, 15 - 16mm tips
IDLERS - UNDERCARRIAGE
Left side front idler
50mm x 20mm, 75%
Right side front idler
50mm x 20mm, 75%
TOP ROLLERS - UNDERCARRIAGES
Left side top roller
153mm x 153mm, 90%
Right side top roller
143mm x 143mm, 60%
BOTTOM ROLLERS - UNDERCARRIAGE
Roller 1
157mm x 161mm, 60%
Roller 2
161mm x 162mm, 60%
Roller 3
161mm x 165mm, 60%
Roller 4
161mm x 163mm, 60%
Roller 5
161mm x 162mm, 60%
Roller 6
Visual only, 60%
Roller 7
Visual only, 60%
CAB
Cab mounts - any wear?
Good mounts
Any wiring for laser system
Yes
Back up alarm
Loud and clear
Battery isolator switch
Manual fitted
Lights
All working
Wipers
All working
Heater
Good heat
Seat condition
Good condition

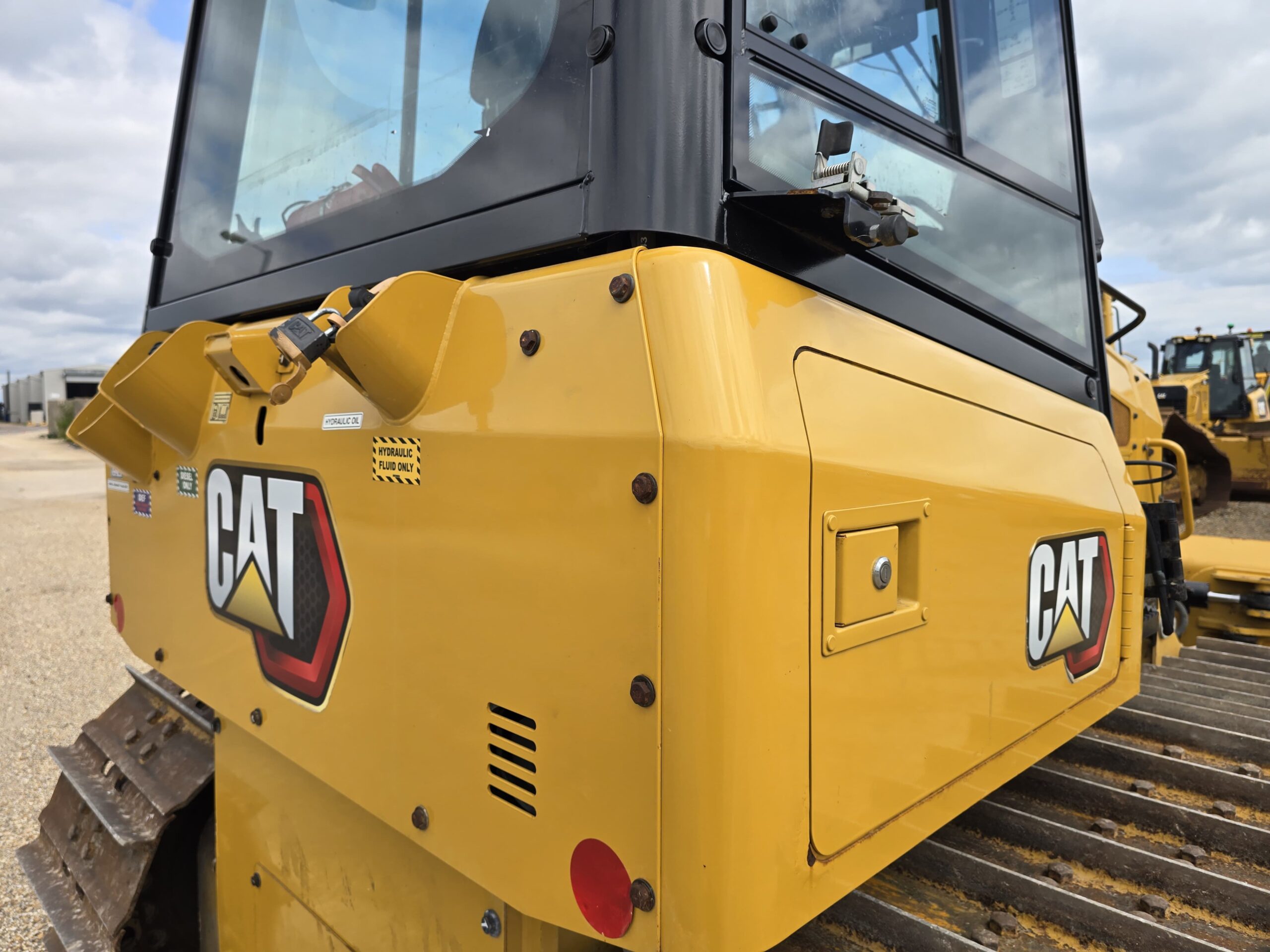

Cladding condition
Good condition
Floor mat condition
No wear or tears
Seat belt
Working as should
Mirrors
Rear view only
Horn
Loud and clear
Cab mounts
Good mounts
Cab glass condition
Some wiper scuffs
Cab glass, any cracks?
No cracks
Any perspex fitted
None fitted
Steps and grab handles secure?
All fitted, undamaged

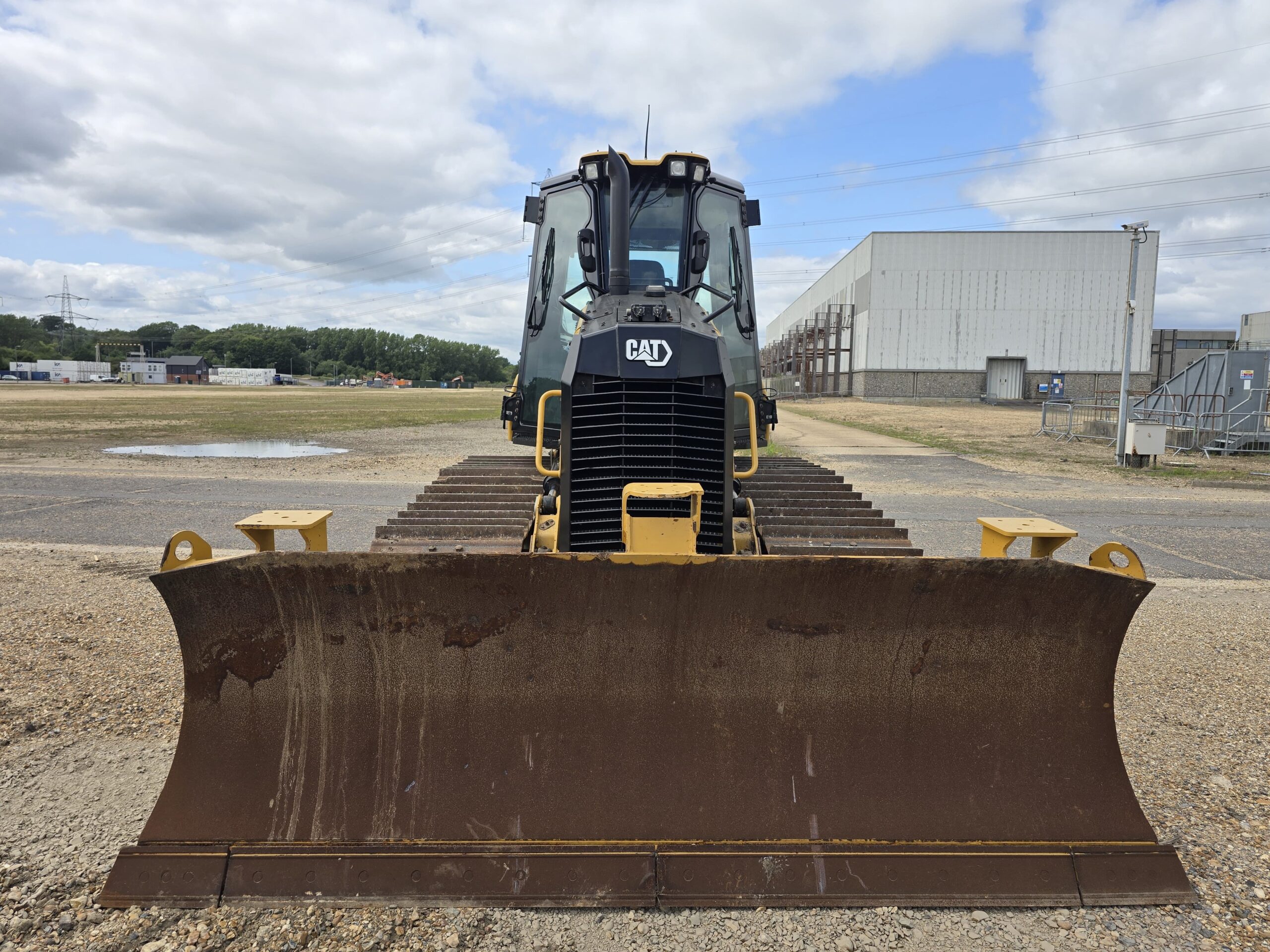

BLADE
Blade type
PAT blade
Blade width
3215mm
Blade height
1030mm
Main lift rams, wear
L/H: 1mm x 1mm, R/H: 1mm x 1mm
Pitch rams, wear
L/H: 1mm x 1mm, R/H: 2mm x 5mm
Tilt ram, wear
3mm
Link ram, wear
2mm x 2mm
Ball joint, wear
Trunion and bearings to be replaced
C Frame, wear
2mm x 2mm
Face / moldboard
Decent, couple dents
Cutting edge condition
50mm
Have cutting edges been turned
No
PAINT & DECALS
Any damage to panels
No panel damage
Paint condition
Fair
Any areas repainted
No
Any rust patches
Starting on edges
Condition of decals
Fair
DIMENSIONS
Length
Width
Height
Measurements with blade straight
4250mm
3215mm
2900mm
Measurements with blade turned
4890mm
2900mm
2900mm
Measurement from outside to outside of tracks
2415mm
Measurements with blade straight
Length: 4250mm
Width: 3215mm
Height: 2900mm
Measurements with blade turned
Length: 4890mm
Width: 2900mm
Height: 2900mm
Measurement from outside to outside of tracks
Length:
Width: 2415mm
Height:
