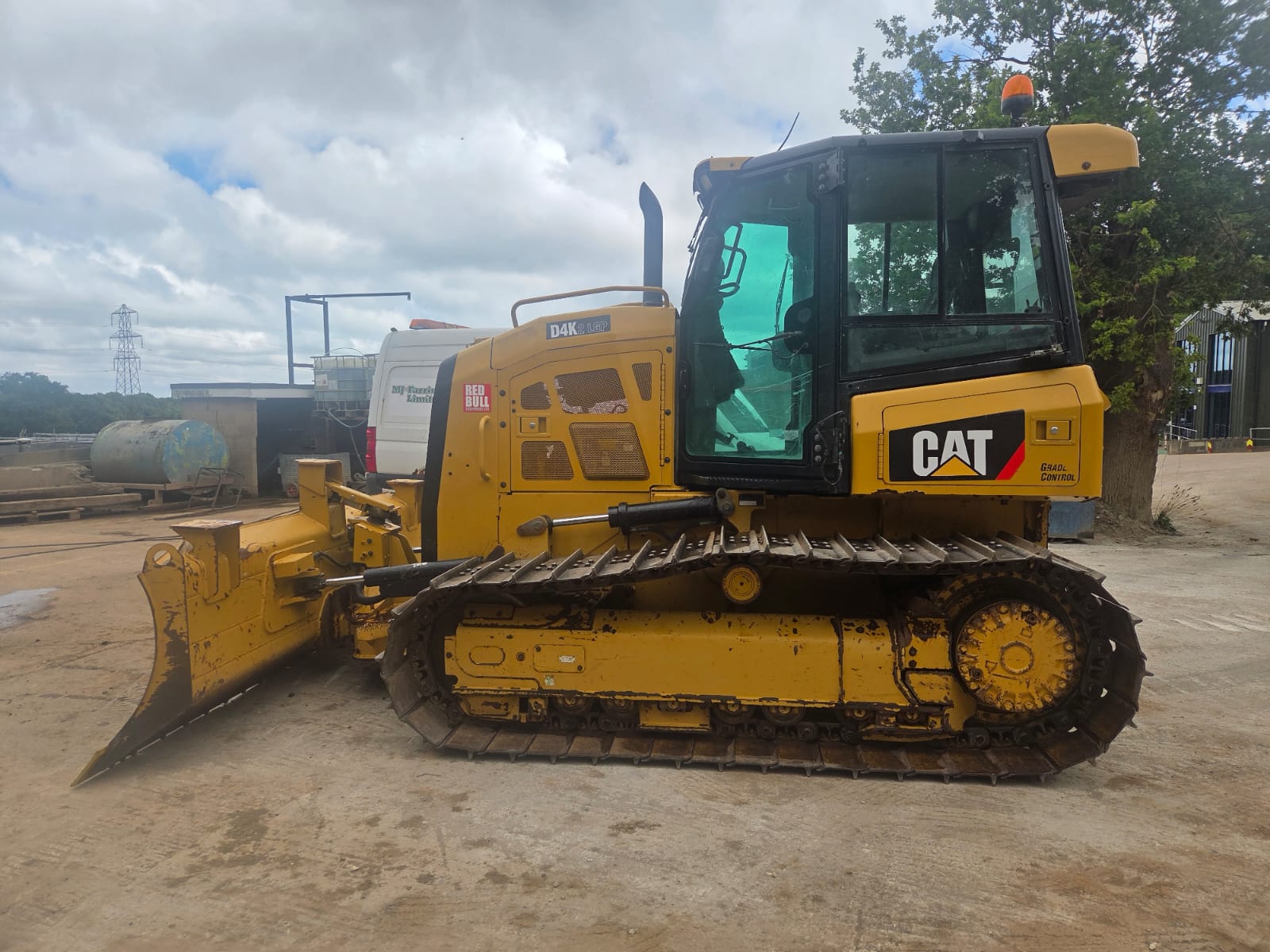

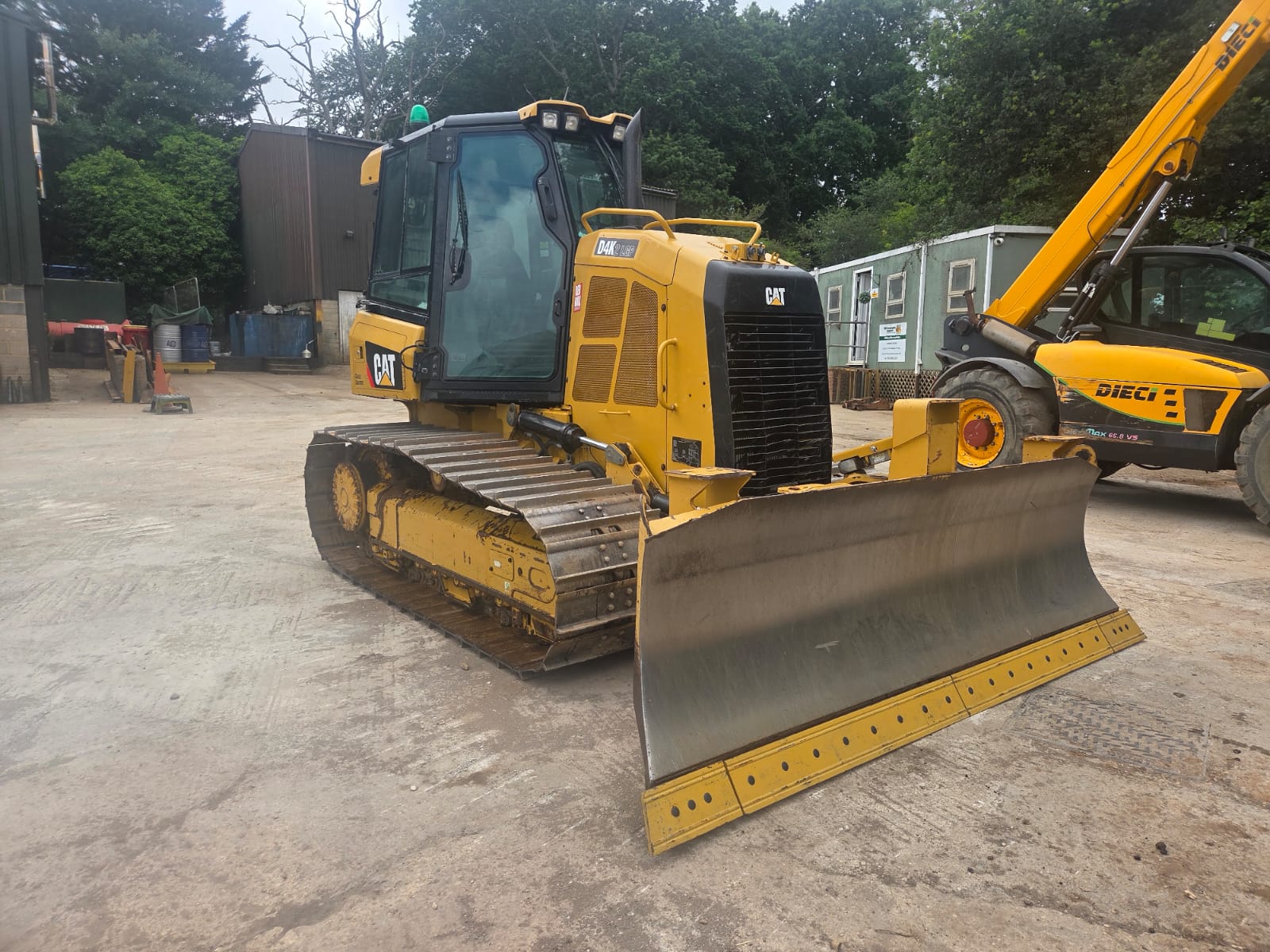

CAT D4K2 LGP

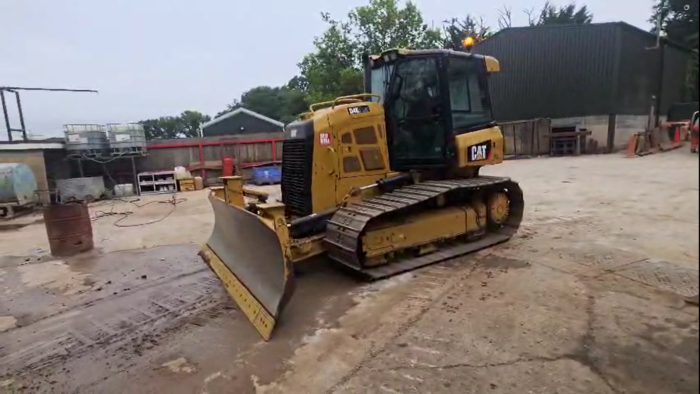

Video Gallery

Video Thumbnail

Video Thumbnail

MACHINE KEY DETAILS

Make:

Caterpillar

Model:

D4K2 LGP

Stock No:

70828

Year:

2019

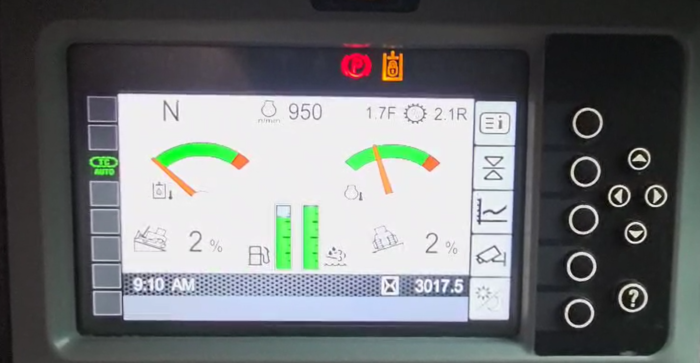

Hours:

2958

Location:

Southampton

Weight:

8,510 KGS

HP:

92 HP

Enquire Online

Download inspection Report Download Images Download Brochure Get a shipping quote Compare Machine

Rippers available at an additional cost.

View Full Inspection Report

ENGINE

Blow by

Good

Knocking

No knocking

Air filters

Good

Any smoke

No

Oil or fuel leaks

No leaks

General running condition

Very good

TRANSMISSION

Gear change

Good

Steering

Good

Oil leaks

No leaks

Is the transmission noisy?

No

Torque converter

Good

Controls

Good controls

General running condition

Very good

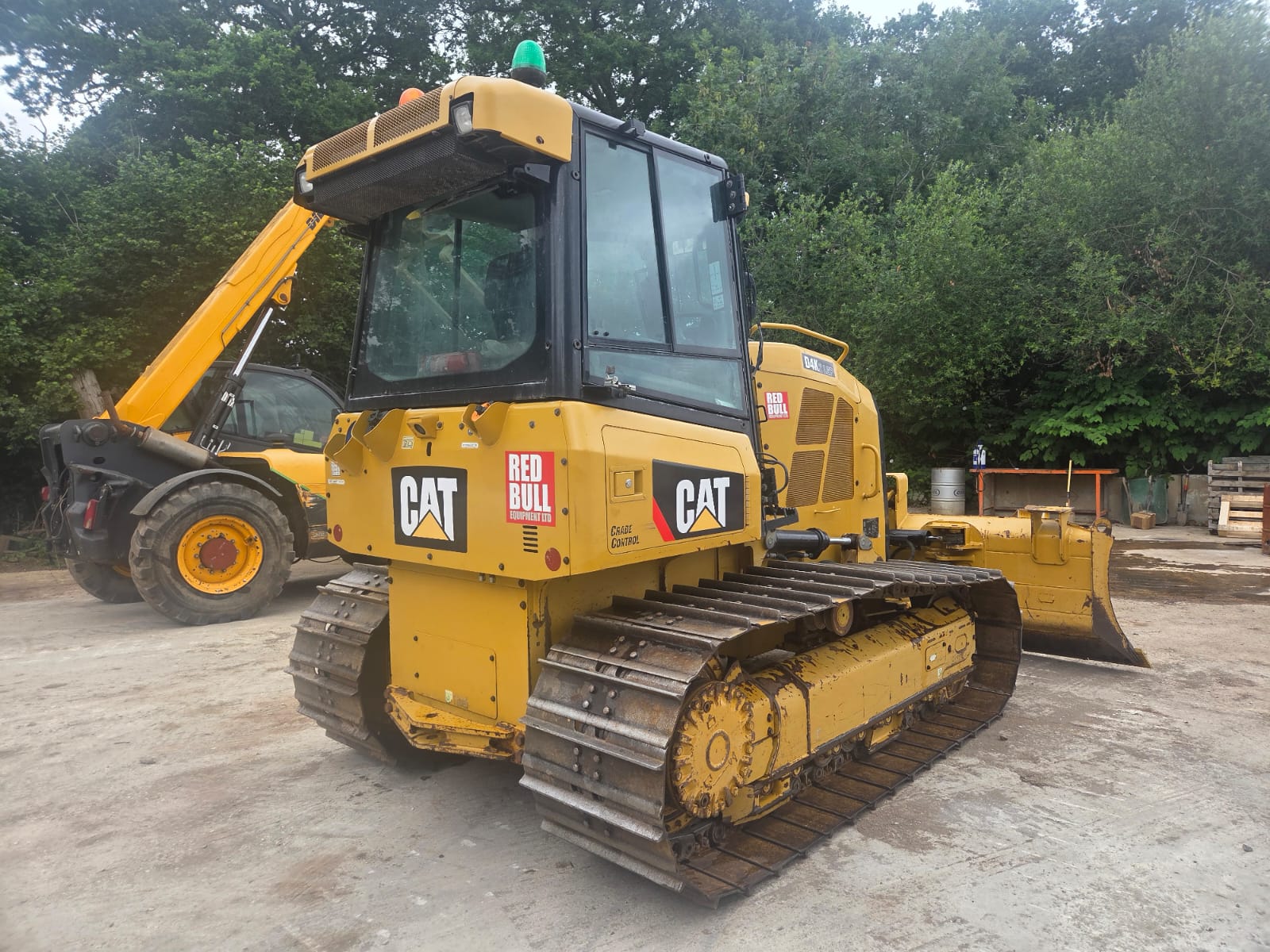

UNDERCARRIAGE

Shoes - any wear on trailing edge?

Slight wear

Rail height

50mm, 80%

Average diameter of pins and bushings

54mm, 90%

Have pins been turned on chains?

No

Sprockets

Really good, 90%

IDLERS - UNDERCARRIAGE

Left side front idler

25mm, 75%

Right side front idler

25mm, 75%

TOP ROLLERS

Left side roller

152mm, 75%

Right side roller

154mm, 75%

BOTTOM ROLLERS - UNDERCARRIAGE

Roller 1

160mm x 160mm, 70%

Roller 2

162mm x 160mm, 70%

Roller 3

163mm x 166mm, 75%

Roller 4

162mm x 168mm, 75%

Roller 5

168mm x 168mm, 75%

Roller 6

162mm x 163mm, 70%

Roller 7

168mm x 166mm, 75%

CAB

Cab mounts - any wear?

Good

Any wiring for laser system

Yes

Battery isolator switch

Good

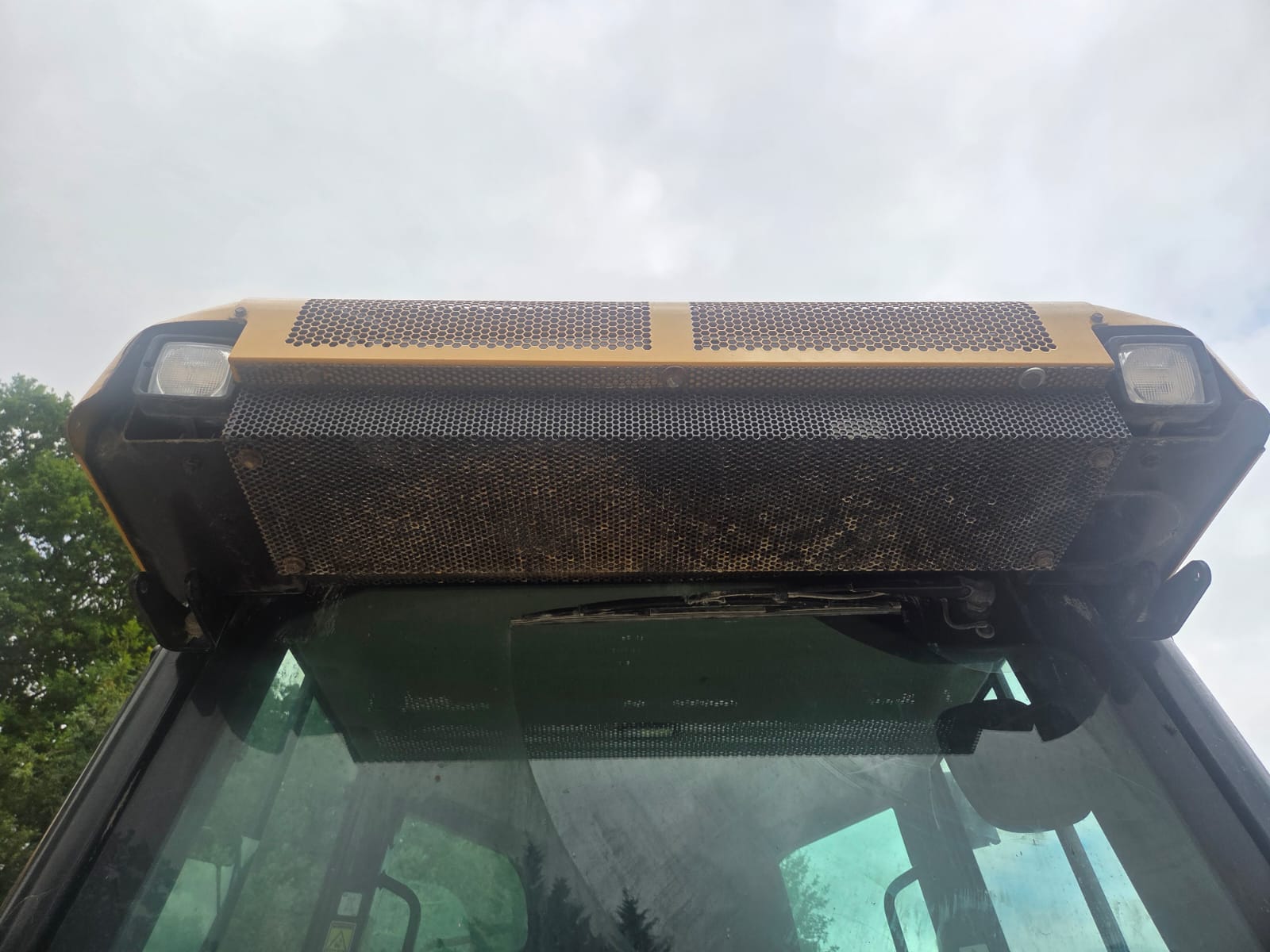

Lights

All working

Wipers

All working

Heater

All works

A/C

Working

Seat condition

Good

Cladding condition

Good

Floor mat condition

Clean

Seat belt

Works

Mirrors

Good, no cracks

Horn

Loud and clear

Any perspex fitted

none

Steps and grab handles secure?

All safe

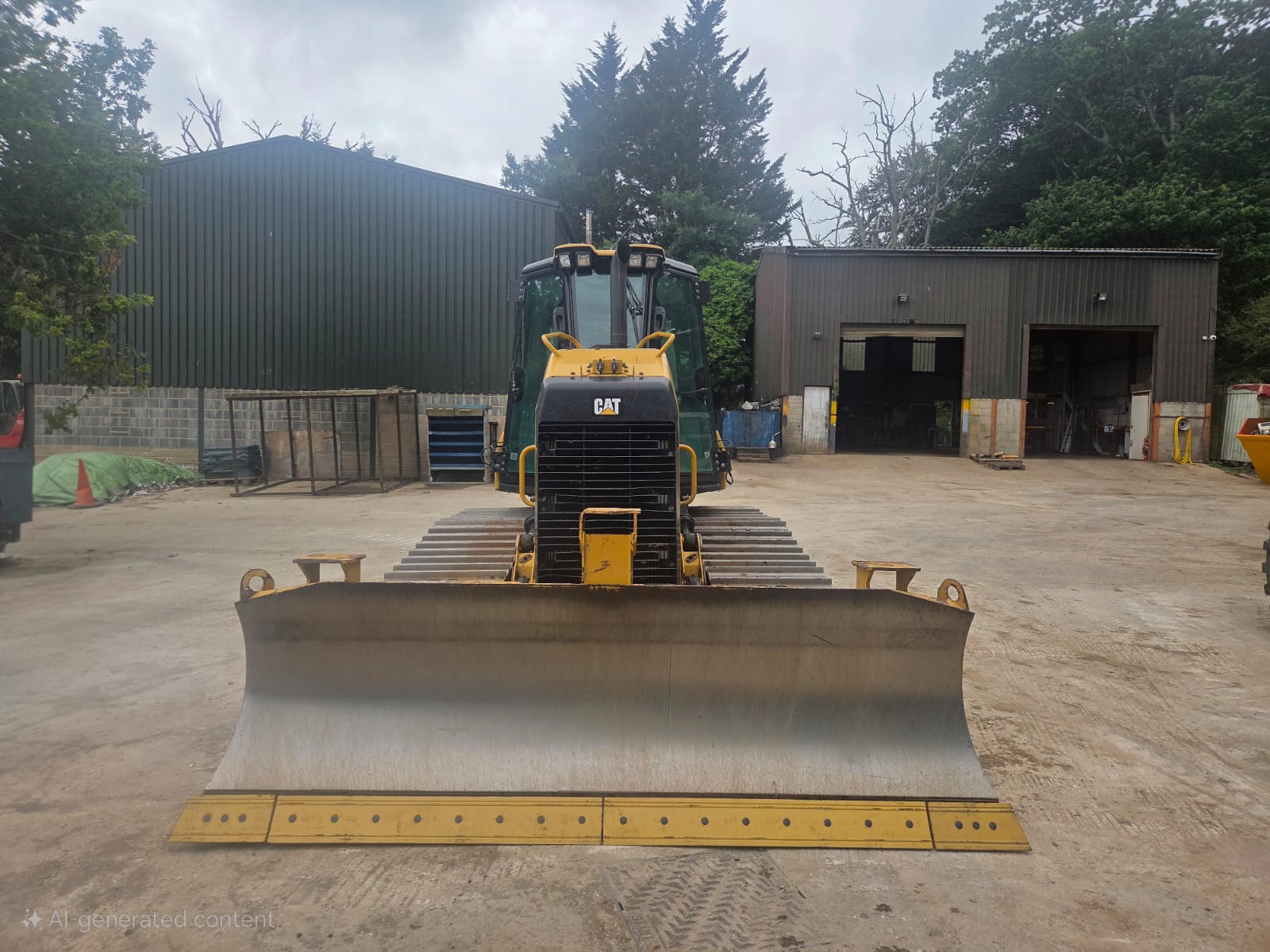

BLADE

Blade type

PAT

Blade width

3150mm

Blade height

940mm

Main lift rams, wear in pins

Slight wear, side movement

Swivel rams, wear in pins

Slight wear

Tilt ram, wear?

Slight wear

Ball joint wear

None

Tilt ram

Good

C Frame

Good

Centre pin

Good

Face / moldboard

Good

Cutting edges condition

Good, like new

Have cutting edges been turned?

No

General blade condition

Good

PAINT & DECALS

Paint condition

Good, some scratches

Any rust patches

Usual areas

Condtion of decals

New

DIMENSIONS

Length

Width

Height

Measurements with blade straight

430mm

315mm

310mm

Measurements with blade straight

Length: 430mm

Width: 315mm

Height: 310mm
