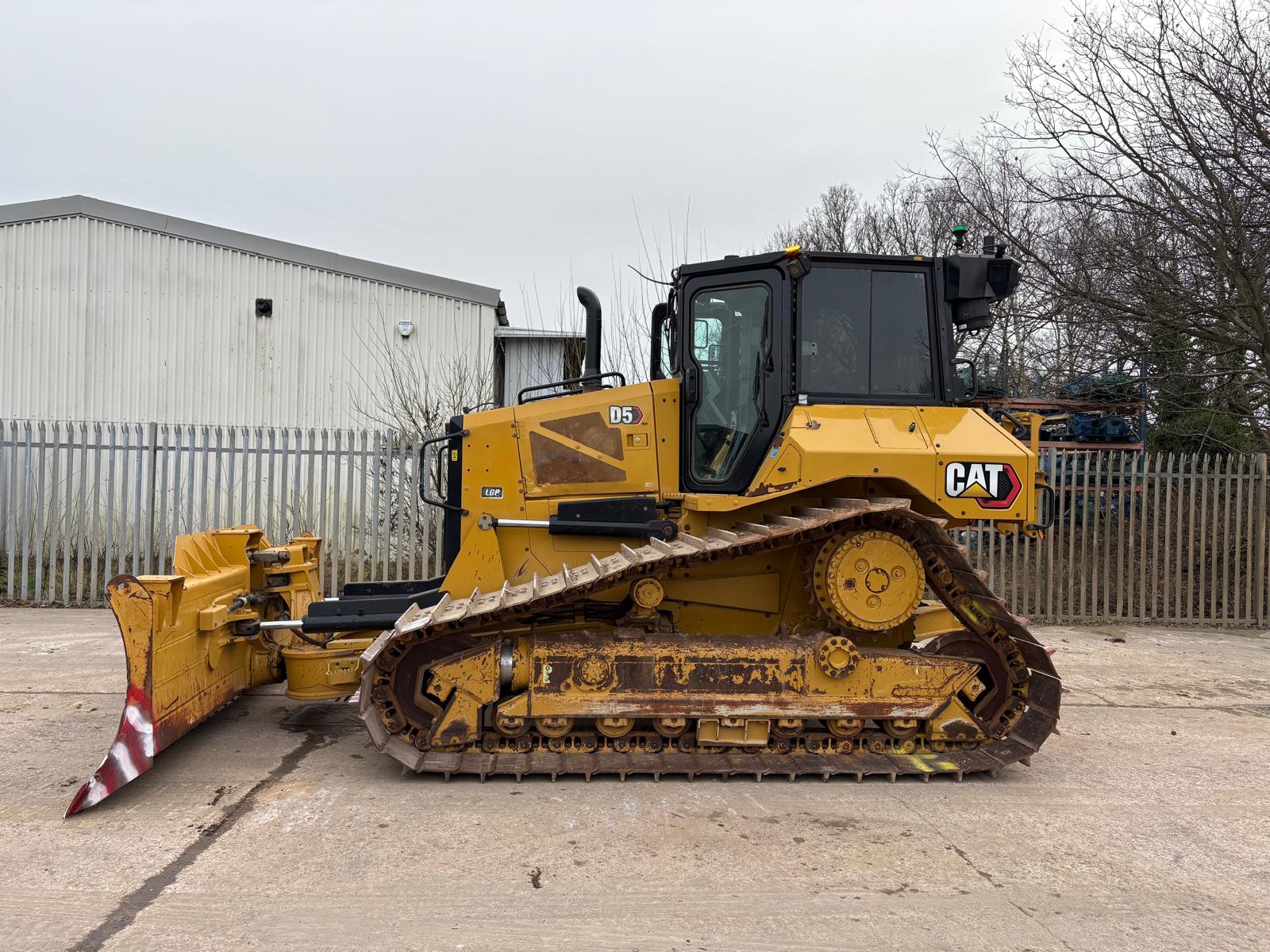

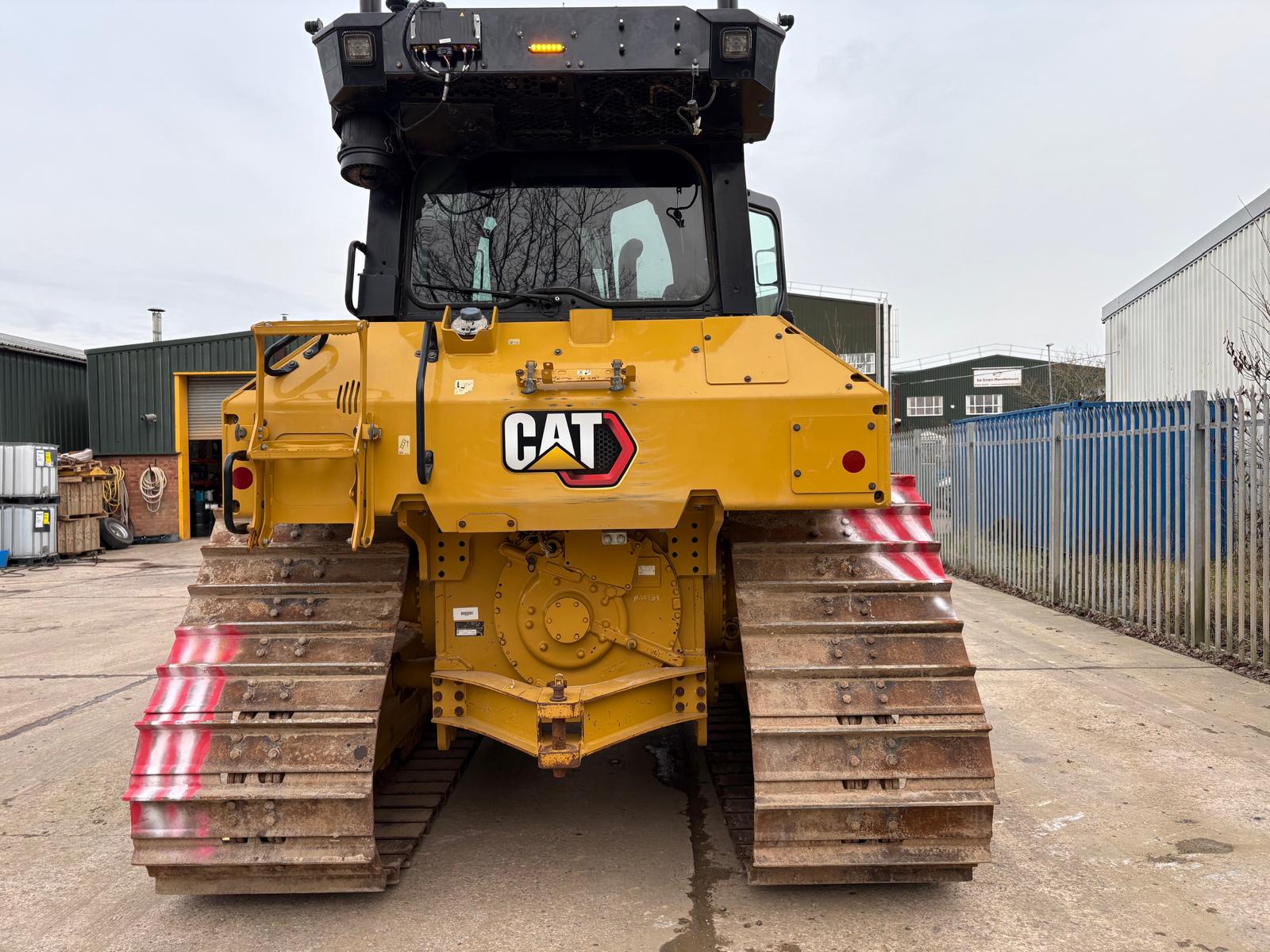

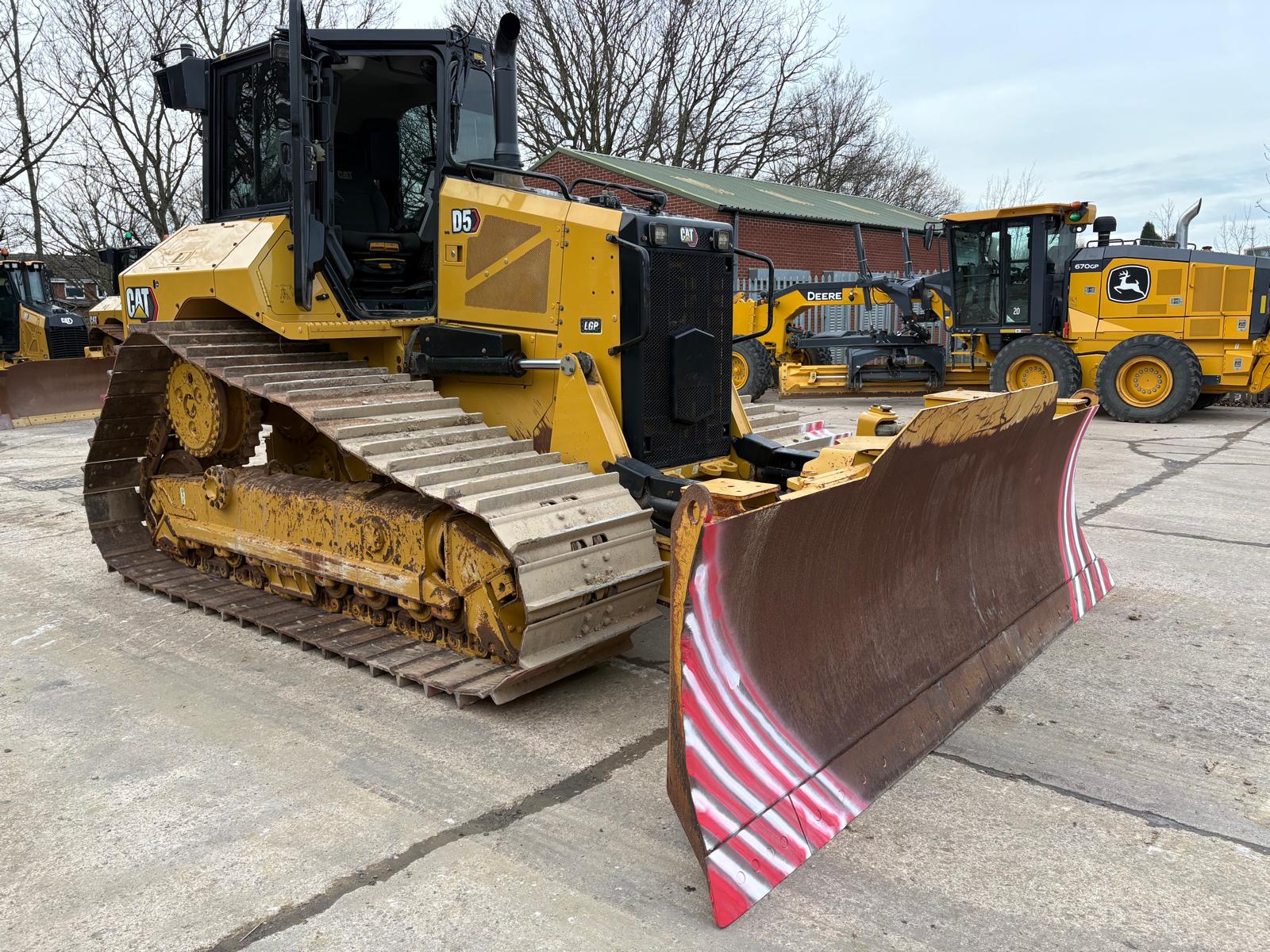

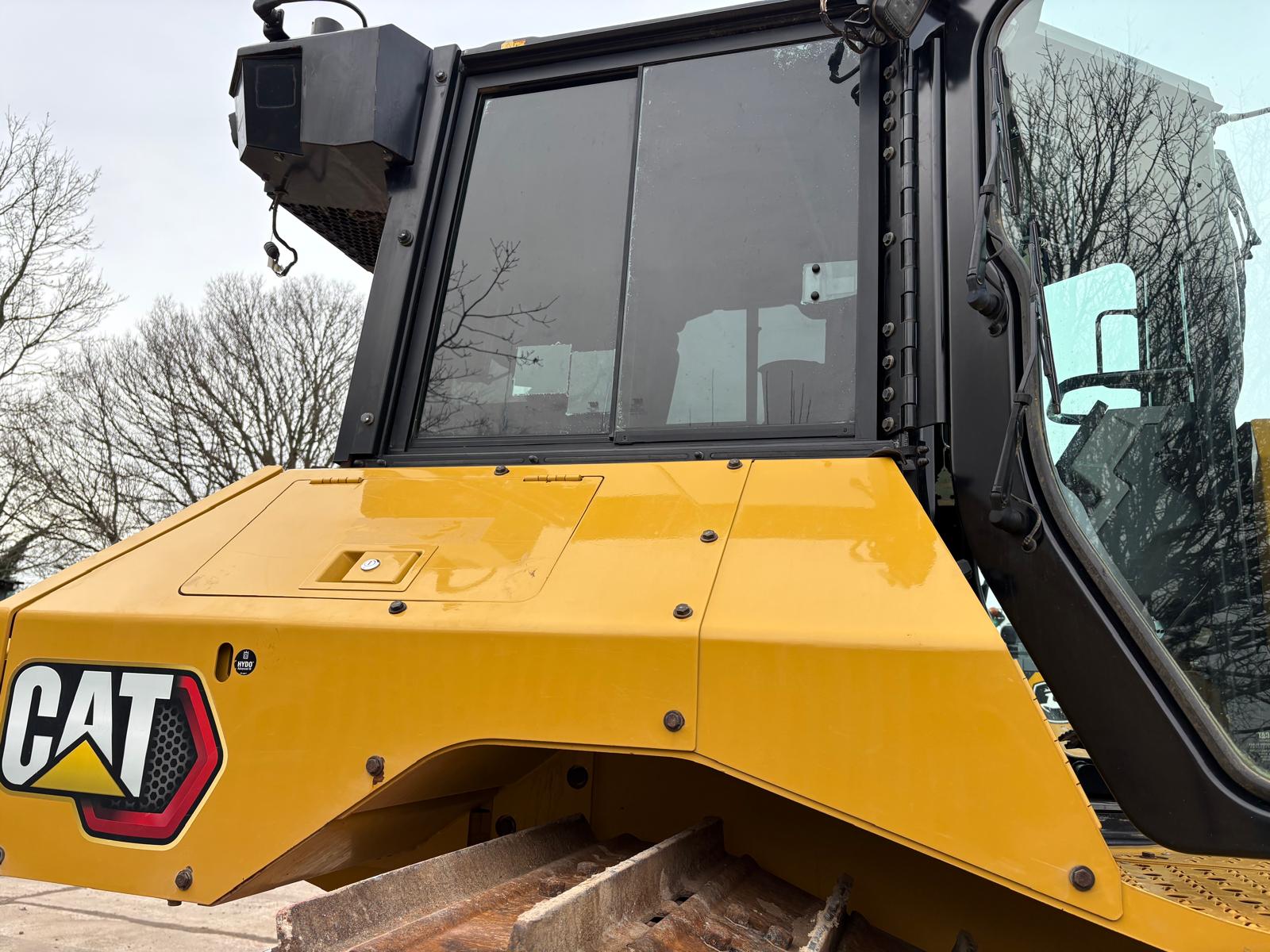

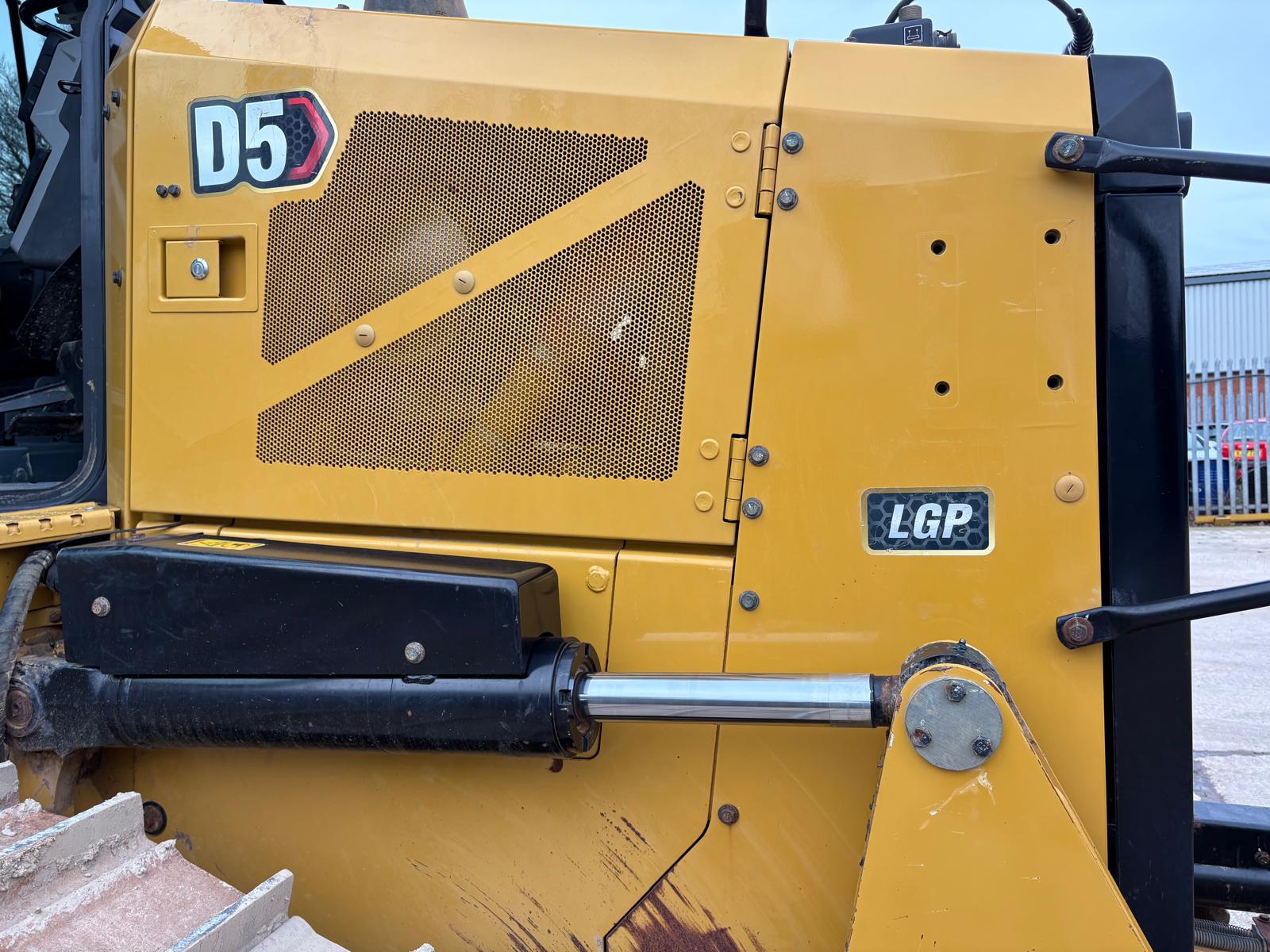

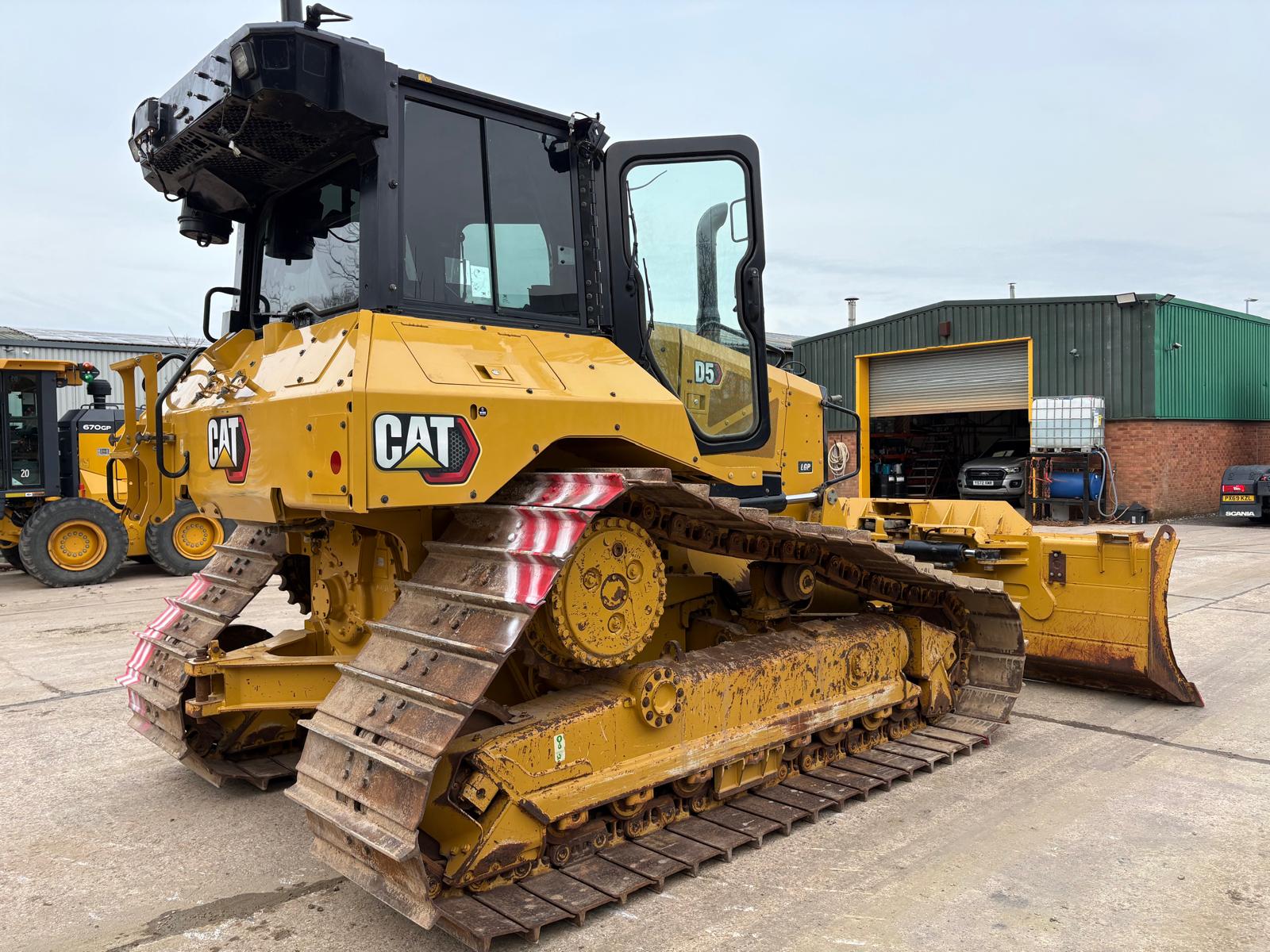

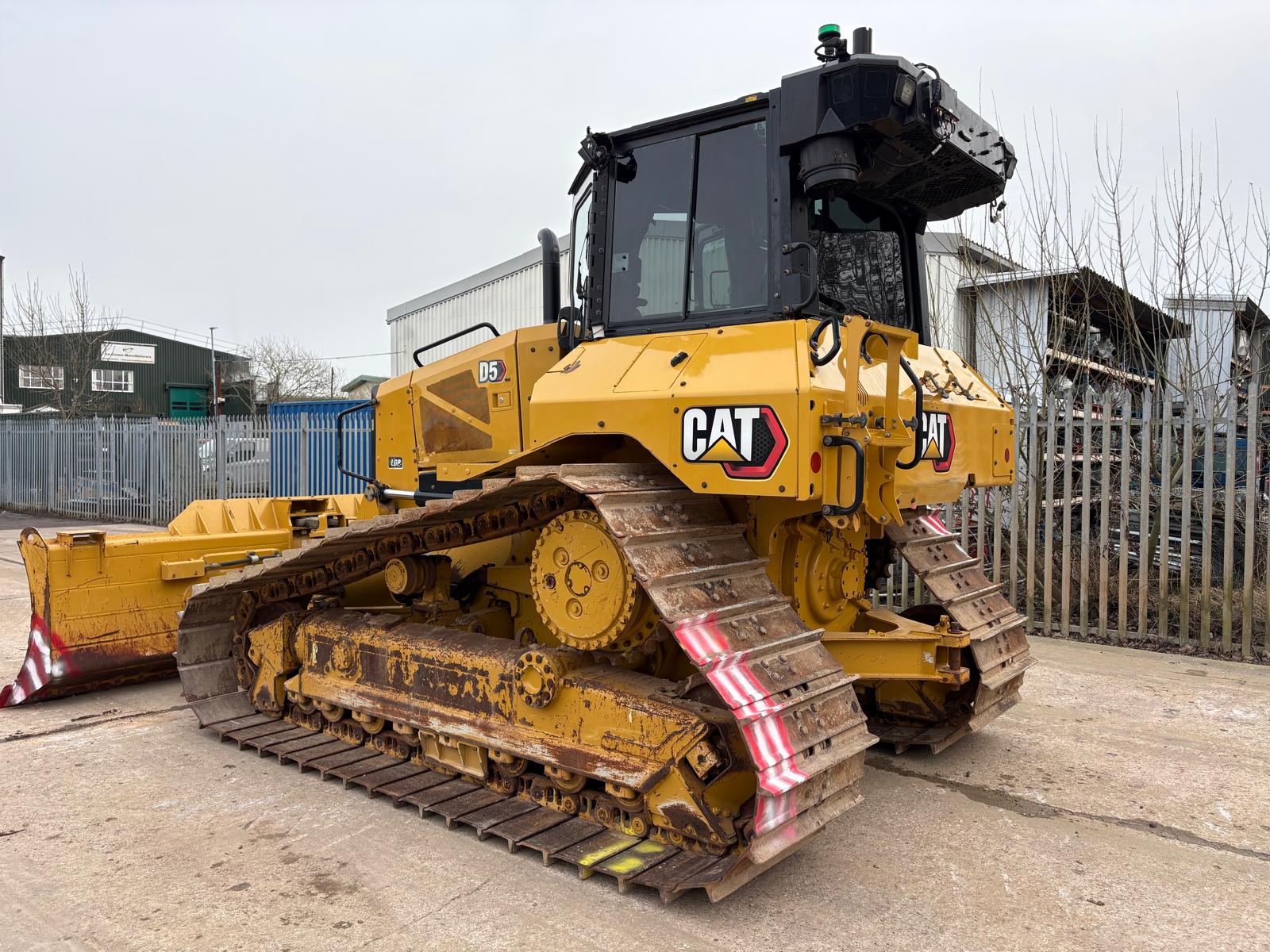

Cat D5 LGP

MACHINE KEY DETAILS

Make:

Caterpillar

Model:

D5 LGP

Stock No:

70941

Year:

2021

Hours:

4283

Location:

Southampton

Weight:

19,170 KGS

HP:

172 HP

Enquire Online

Download inspection Report Download Images Download Brochure Get a shipping quote Compare Machine

View Full Inspection Report

ENGINE

Blow by

Minimal

Knocking

No knocking

Air cleaners

New

Any smoke

Minimal to none

Oil or fuel leaks

None visible

General running condition

Runs well

TRANSMISSION

Gear change

Changes well

Steering

Responsive steering

Oil leaks

None visible

Is the transmission noisy?

No noise

Torque converter

No noise or juddering

Controls

Good tight controls

General running condition

Moves well

UNDERCARRIAGE

Shoe width

55mm 90%

Shoe height

55mm 90%

Shoes - any wear in trailing edge

Minimal

Rail height

117mm 80%

Any signs of link failure?

No

Average diameter of pins and bushings

64mm 80%

Have pins been turned on chains

No

Sprockets

75mm gape, 18mm tips. 80%

IDLERS - UNDERCARRIAGE

Left side front idler

55mm x 25mm, 90%

Left side rear idler

55mm x 25mm, 90%

Right side rear idler

55mm x 25mm, 90%

Right side front idler

5mm x 25mm, 90%

TOP ROLLERS - UNDERCARRIAGE

Left side top roller

181mm x 182mm, 100%

Right side top roller

164mm x 165mm, 85%

BOTTOM ROLLERS - UNDERCARRIAGE

Roller 1

195mm x 195mm, 95%

Roller 2

195mm x 195mm, 95%

Roller 3

195mm x 195mm, 95%

Roller 4

Visual only, 95%

Roller 5

195mm x 195mm, 95%

Roller 6

195mm x 195mm, 95%

Roller 7

195mm x 196mm, 95%

Roller 8

196mm x 196mm, 95%

CAB

Cab mounts - any wear?

No wear

Any wiring for laser system

Yes

Back up alarm

Loud and clear

Battery isolator switch

Manual

Lights

All lights working

Wipers

All working

Heater

Good heat

A/C

Nice and cold

Seat condition

Good condition

Cladding condition

Dusty

Floor mat condition

Dusty, no wear or tears

Seat belt

Working as should

Mirrors

Rear view only

Horn

Loud and clear

Cab mounts

Good mounts

Cab glass condition

Good condition

Cab glass have any cracks

No damage

Any perspex fitted

None fitted

BLADE

Blade type

PAT

Blade width

4020mm

Blade height

1260mm

Pitch ram wear

L/H: 1mm x 1mm, R/H: 1mm x 2mm

Lift ram wear

L/H: 1mm x 2mm, R/H: 1mm x 1mm

Tilt ram wear

1mm x 0mm

Ball wear

5mm

Link ram wear

2mm x 2mm

C Frame wear

L/H: 3-4mm x 3-4mm

Equaliser bar wear

4mm x 4mm x 4mm

Face / Moldboard

Good condition

Cutting edge condition

40mm left

Have cutting edges been turned

No

General blade condition

Decent shape all around

PAINT & DECALS

Paint condition

Good

Condition of decals

To be replaced

DIMENSIONS

Length

Width

Height

Measurements with blade straight

4220mm

4020mm

3085mm

Measurements with blade turned

3680mm

3085mm

Measurement from outside to outside of tracks

3012

Measurements with blade straight

Length: 4220mm

Width: 4020mm

Height: 3085mm

Measurements with blade turned

Length:

Width: 3680mm

Height: 3085mm

Measurement from outside to outside of tracks

Length:

Width: 3012

Height:
