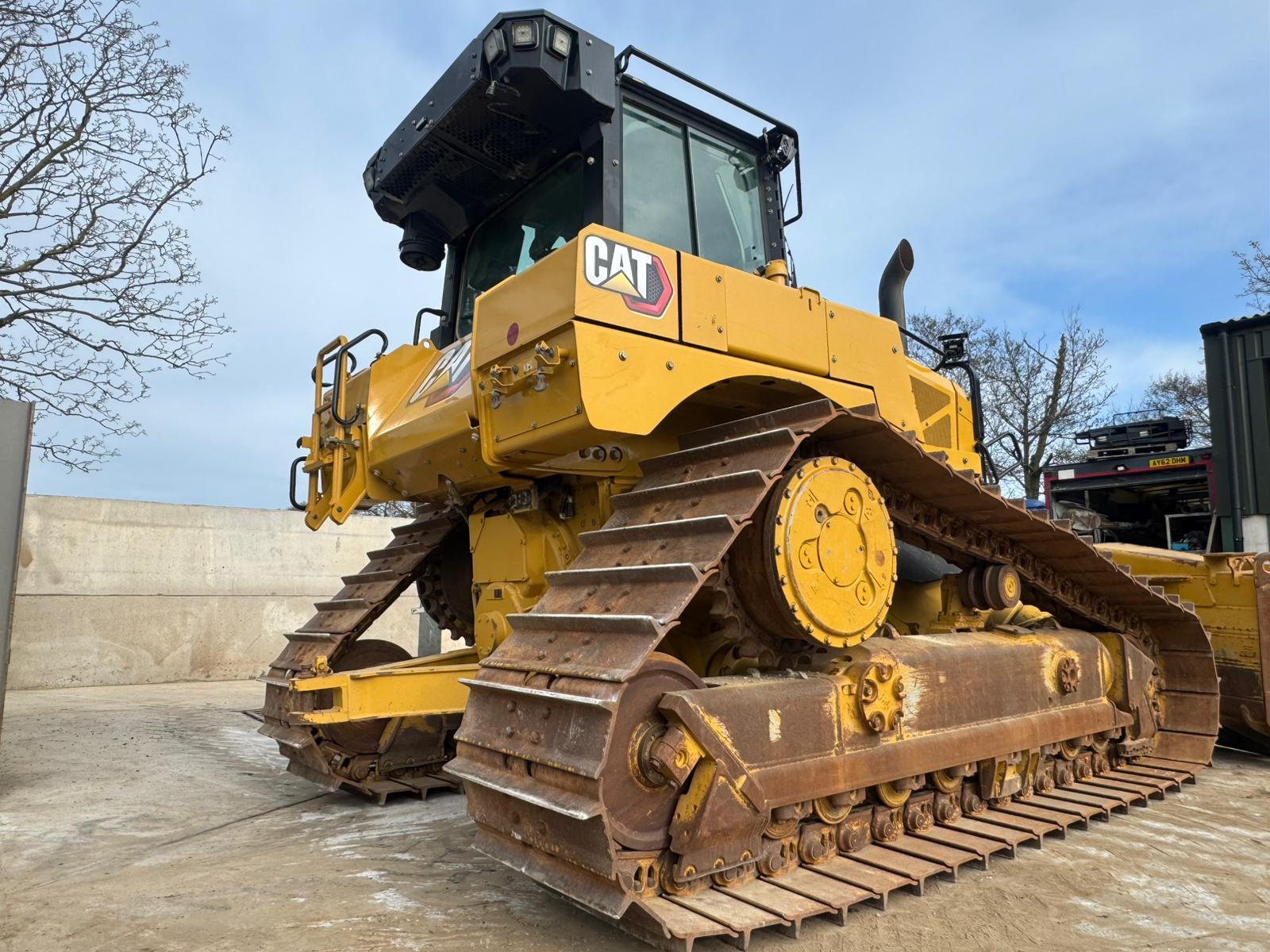

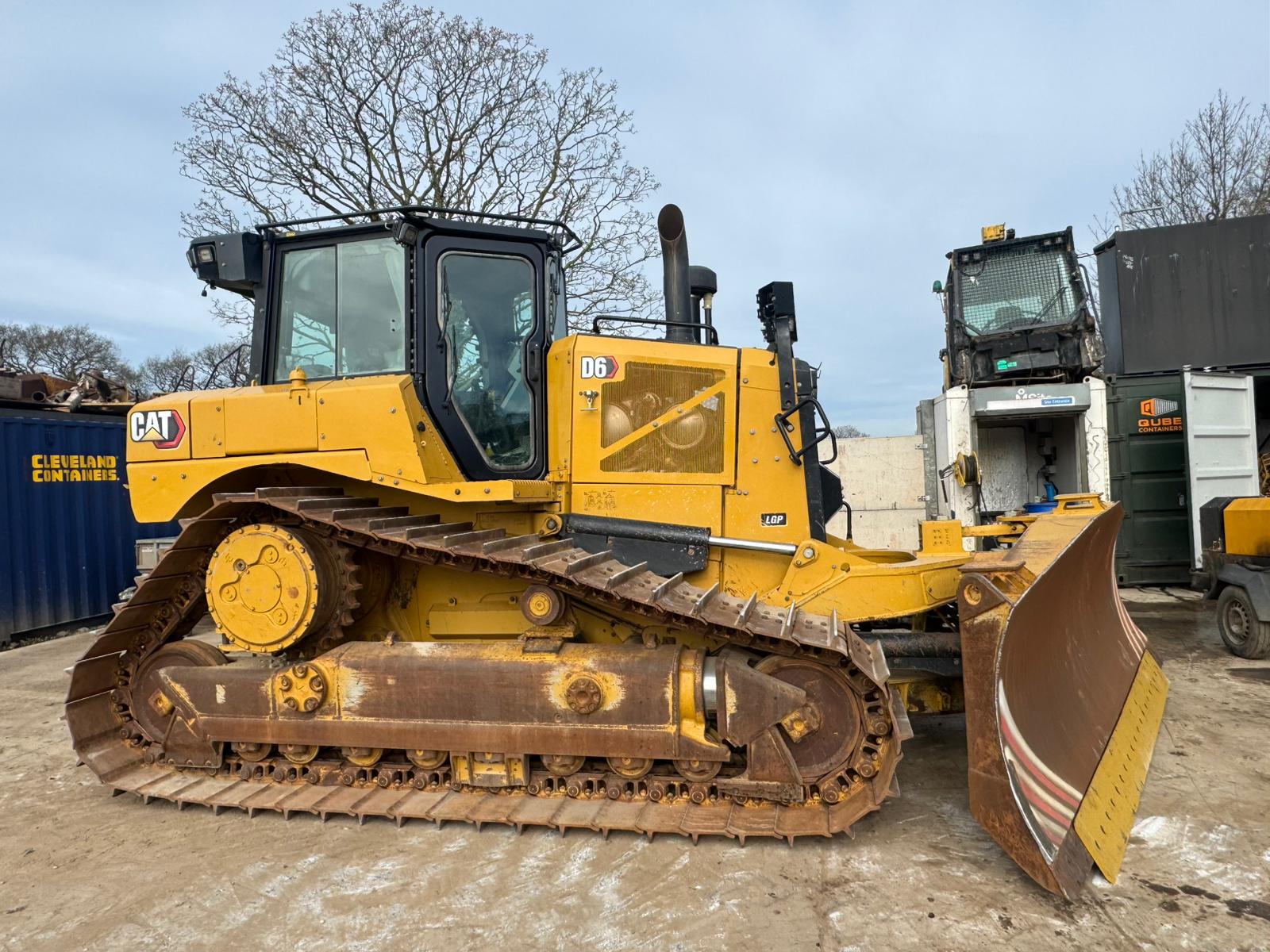

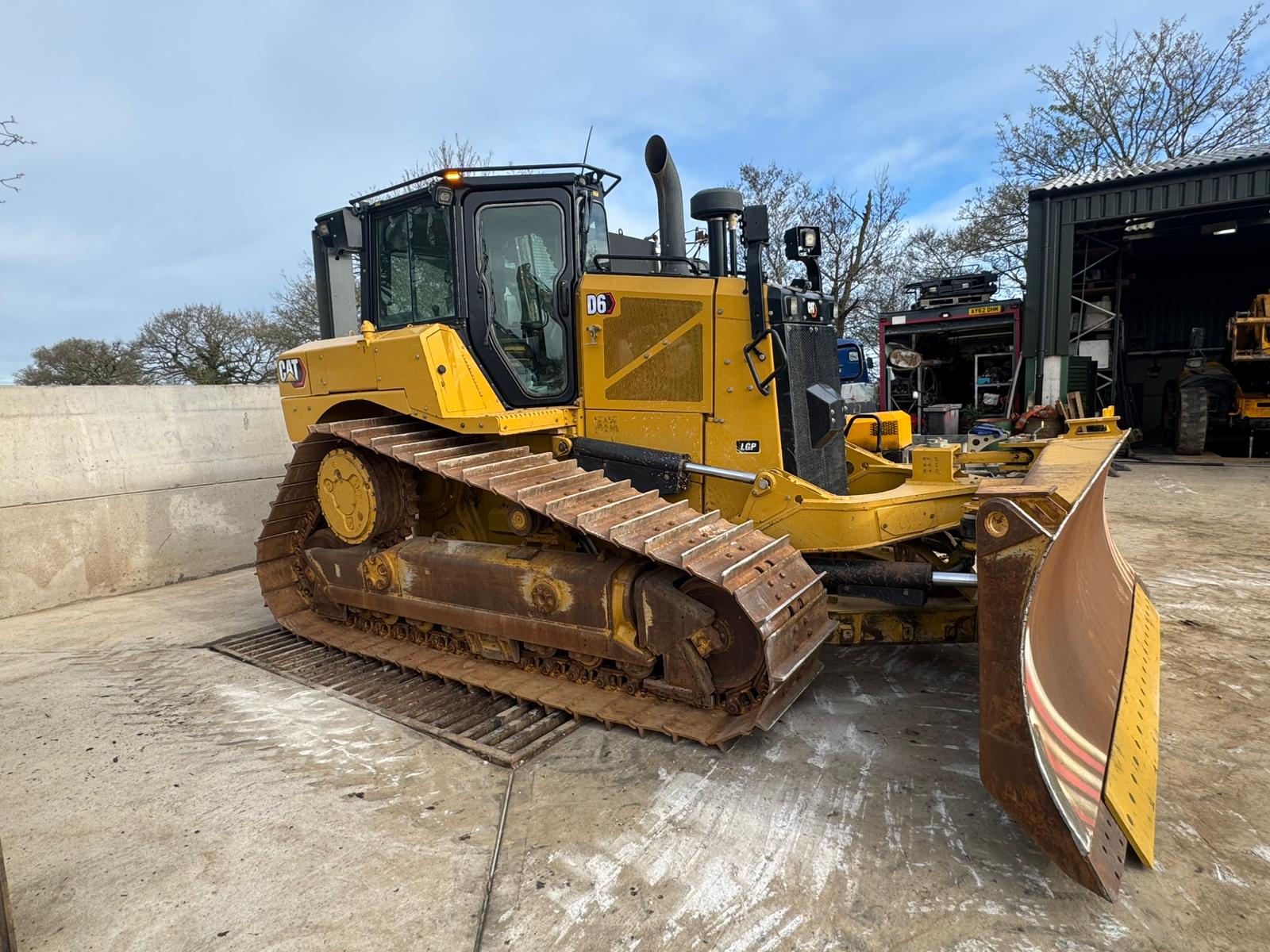

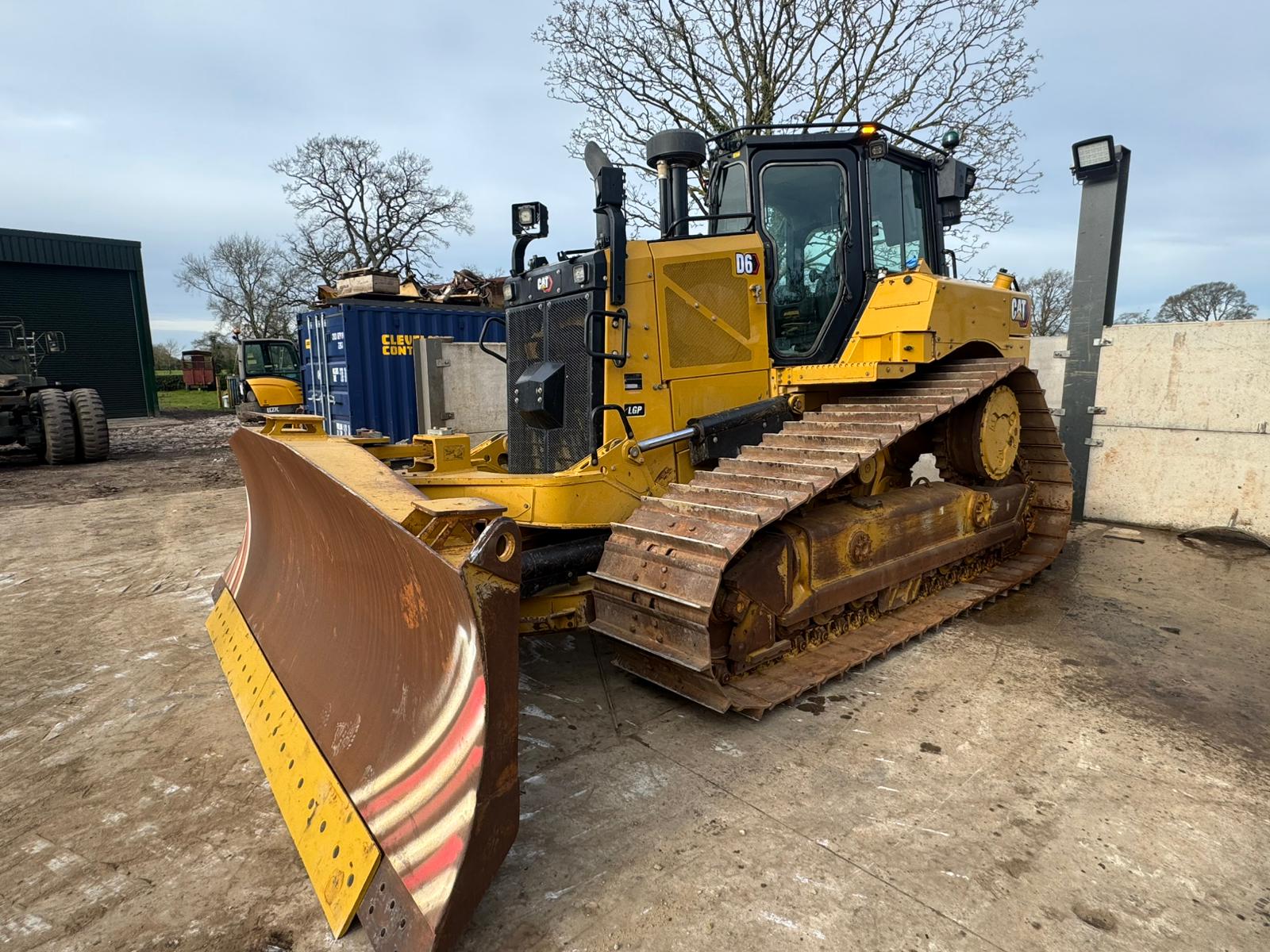

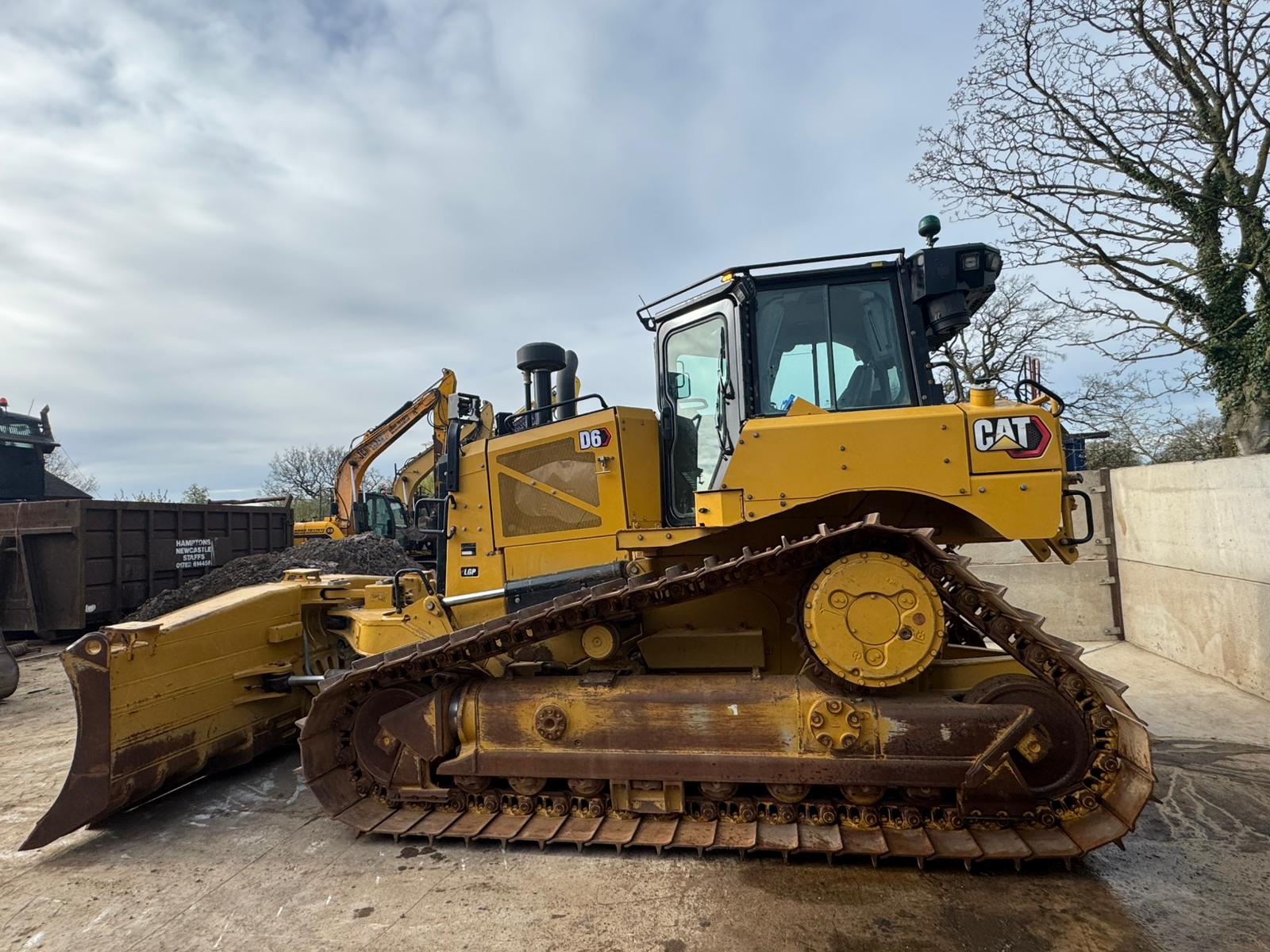

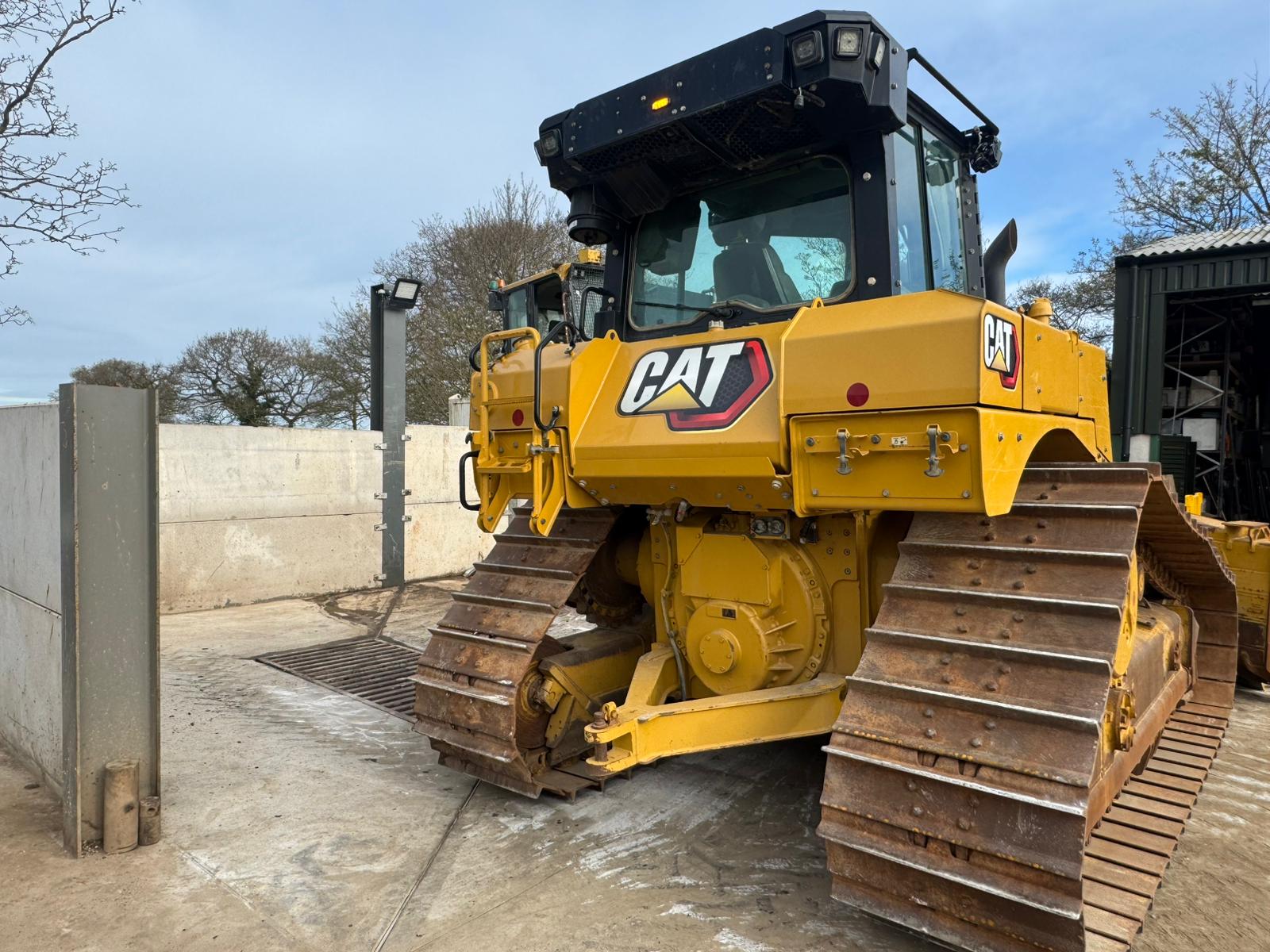

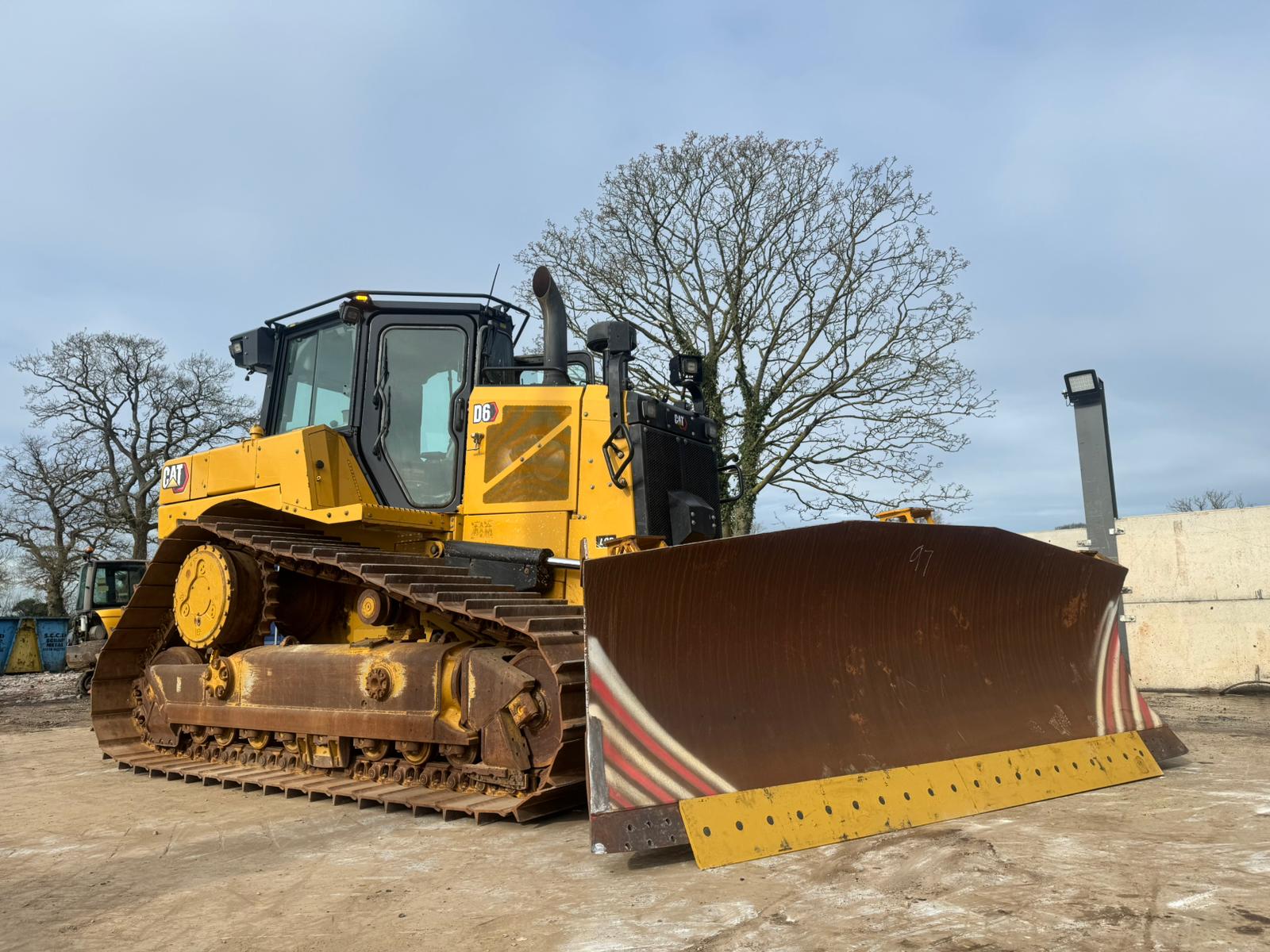

CAT D6 LGP

Video Gallery

Video Thumbnail

MACHINE KEY DETAILS

Make:

Caterpillar

Model:

D6 LGP

Stock No:

70963

Year:

2020

Hours:

7040

Location:

Congleton

Weight:

23,012 KGS

HP:

215 HP

Enquire Online

Download inspection Report Download Images Download Brochure Get a shipping quote Compare Machine

CAT Spade Shovel Fitted. Rippers available at an additional cost

View Full Inspection Report

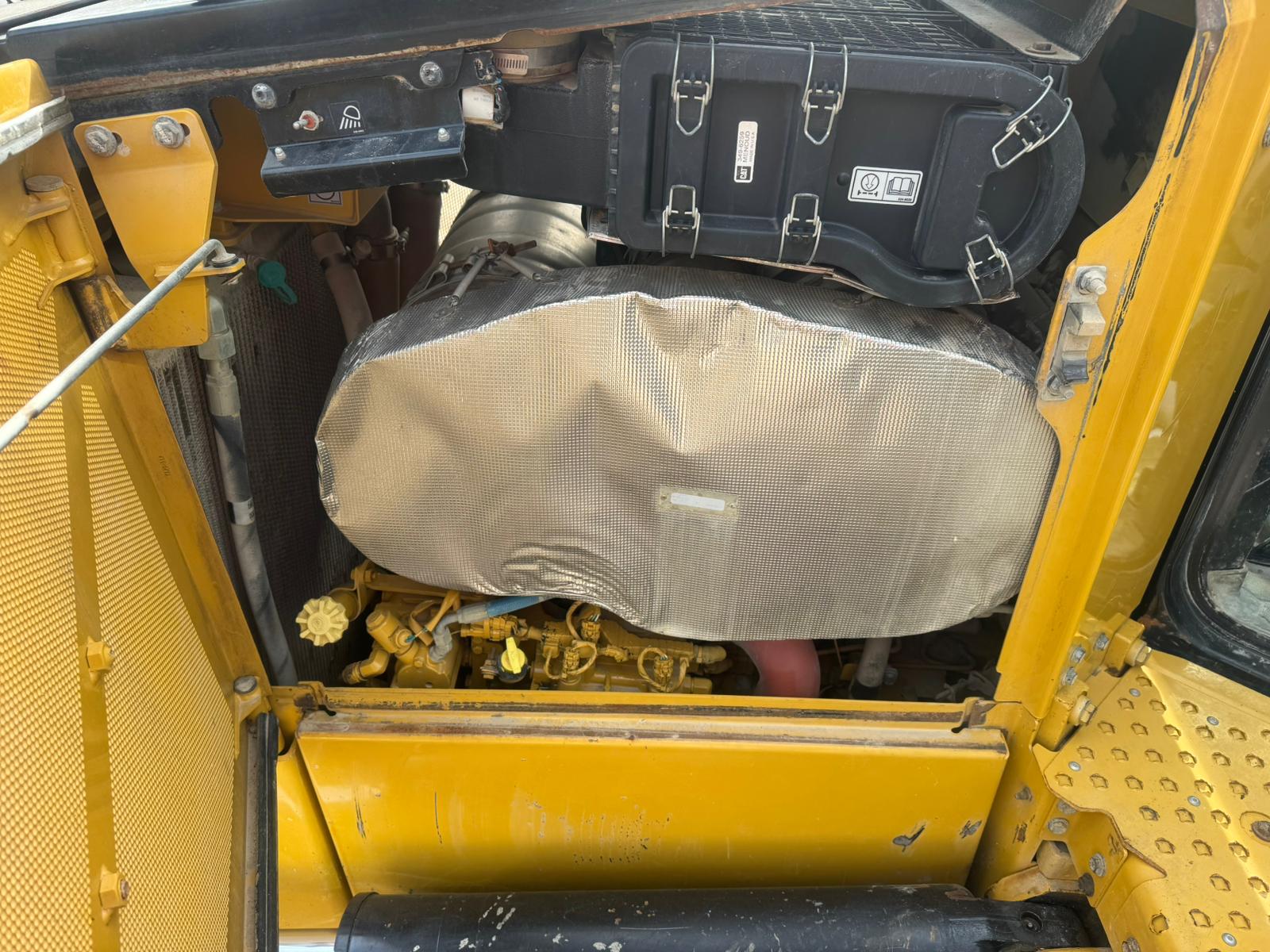

ENGINE

Blow by

Good

Knocking

None

Air cleaners

Good

Any smoke

None

Oil or fuel leaks

None

General running condition

Good

TRANSMISSION

Gear change

Smooth

Steering

Good

Is the transmission noisy?

No

Torque converter

Good

Controls

Good

General running condition

Good

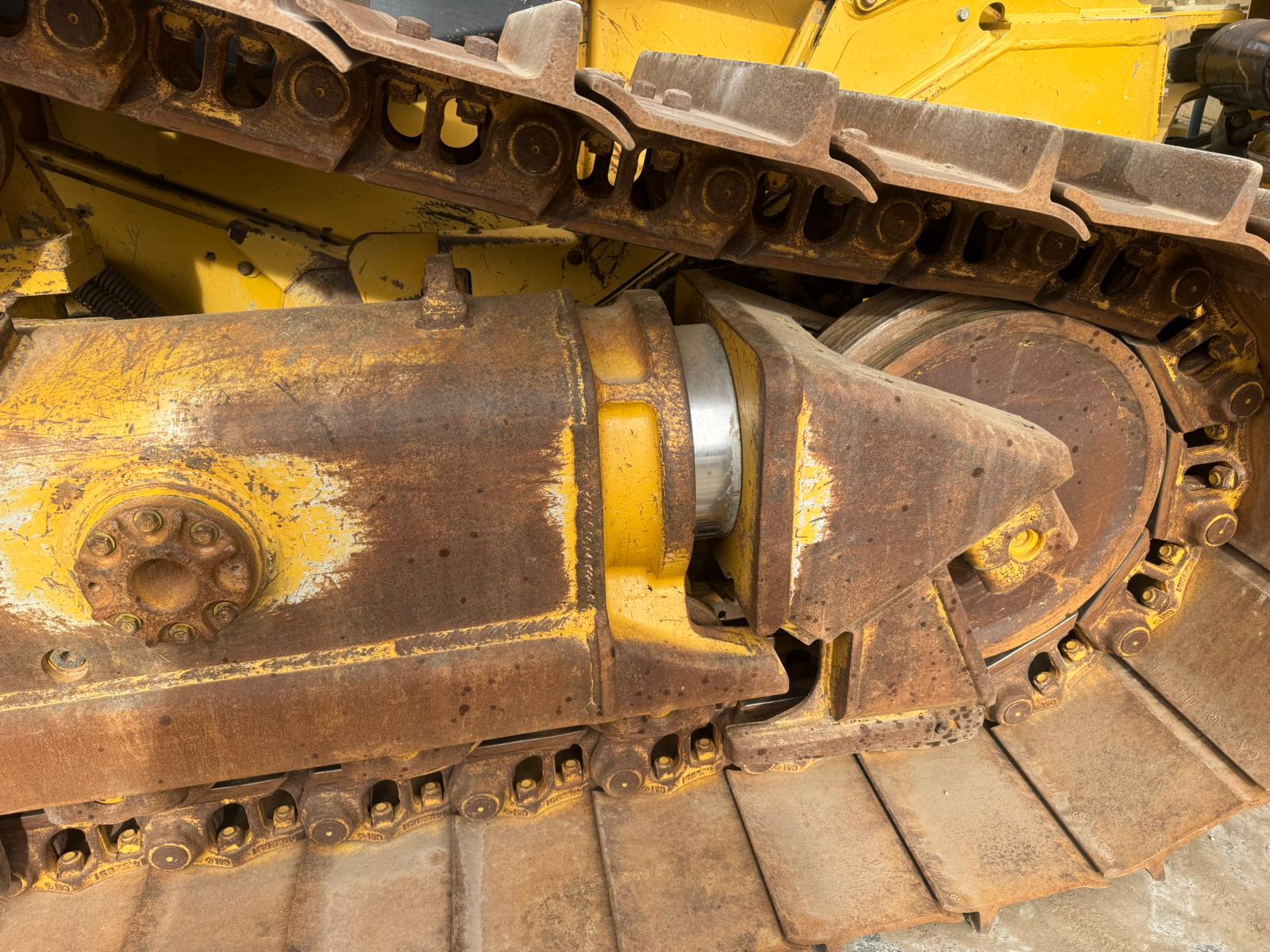

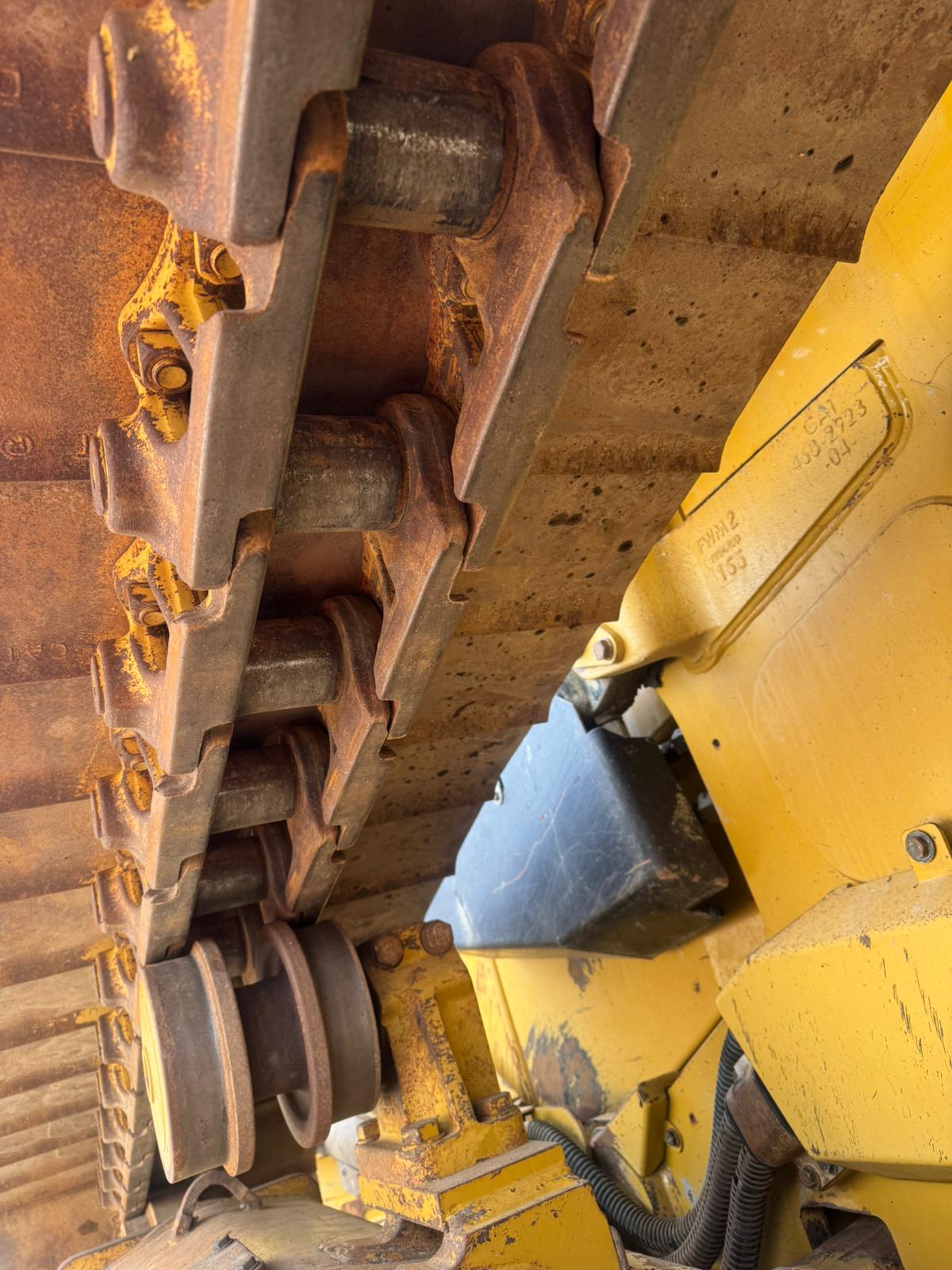

UNDERCARRIAGE

Shoe width

760mm

Shoe height

60mm

Shoes - any wear in the trailing edge

No

Rail height

130mm

Any signs of link failure

No

Average diameter of pins and bushings

72mm

Have pins been turned on chains?

No

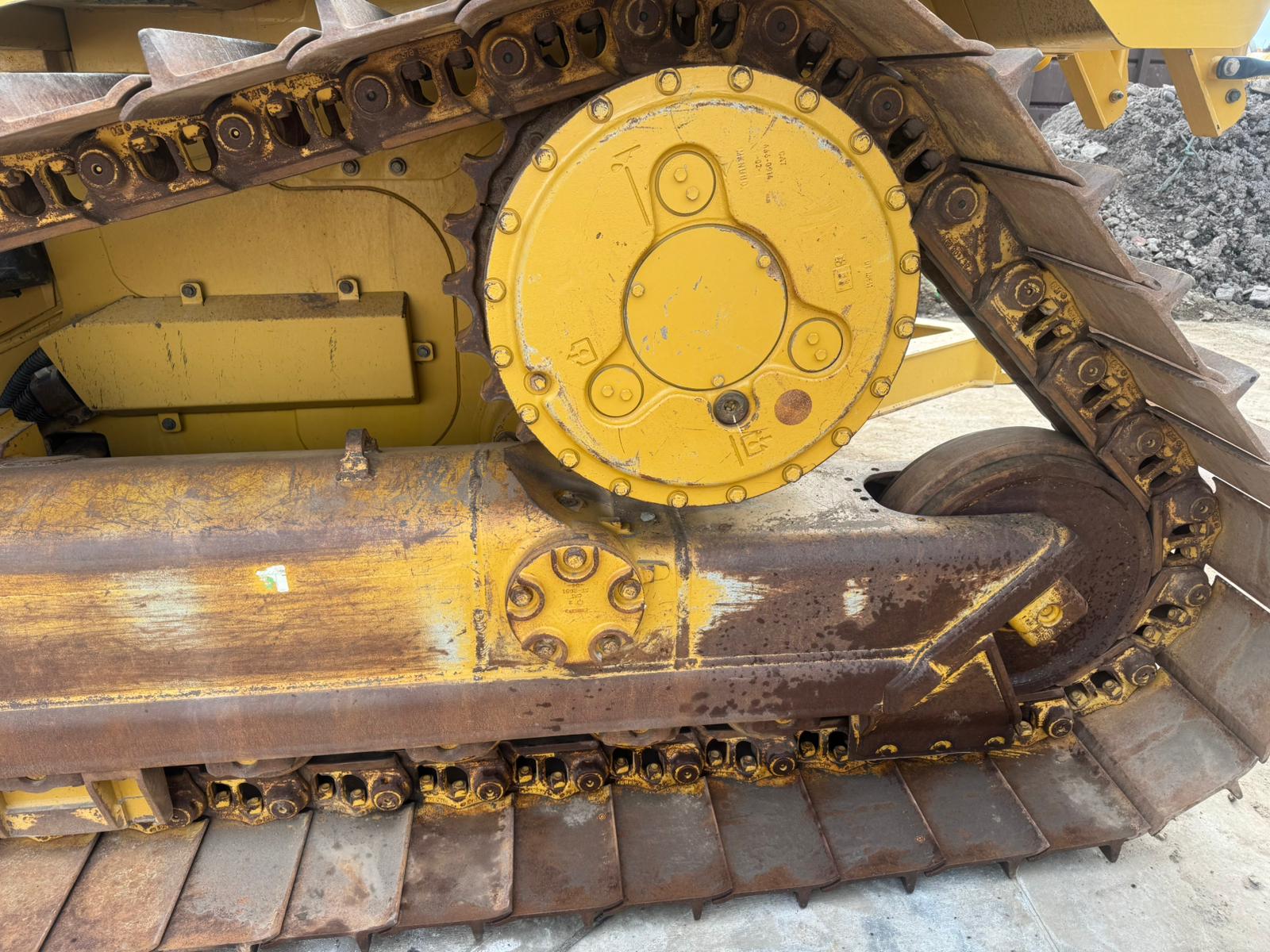

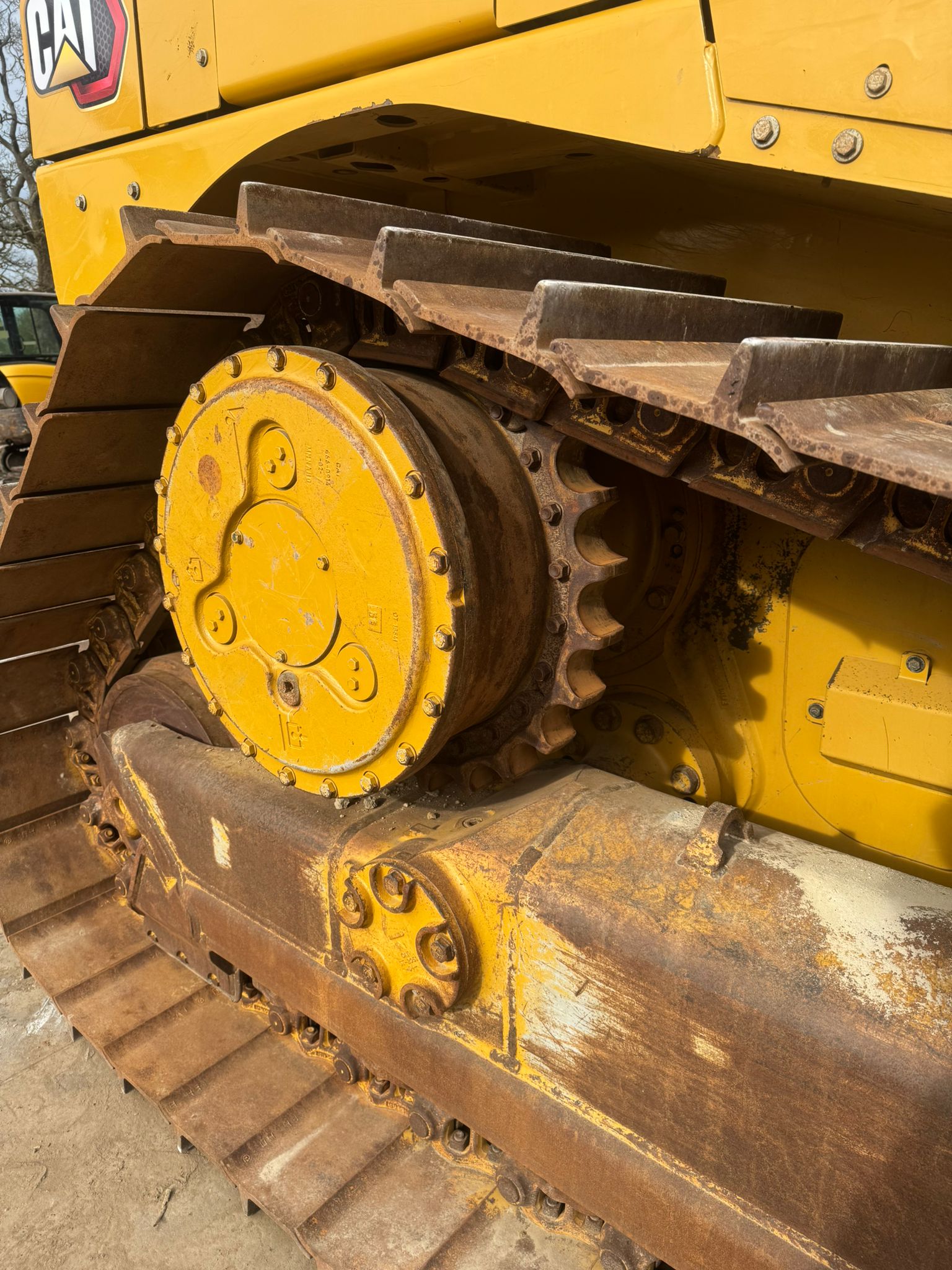

Sprockets

Good

Top rollers

188mm

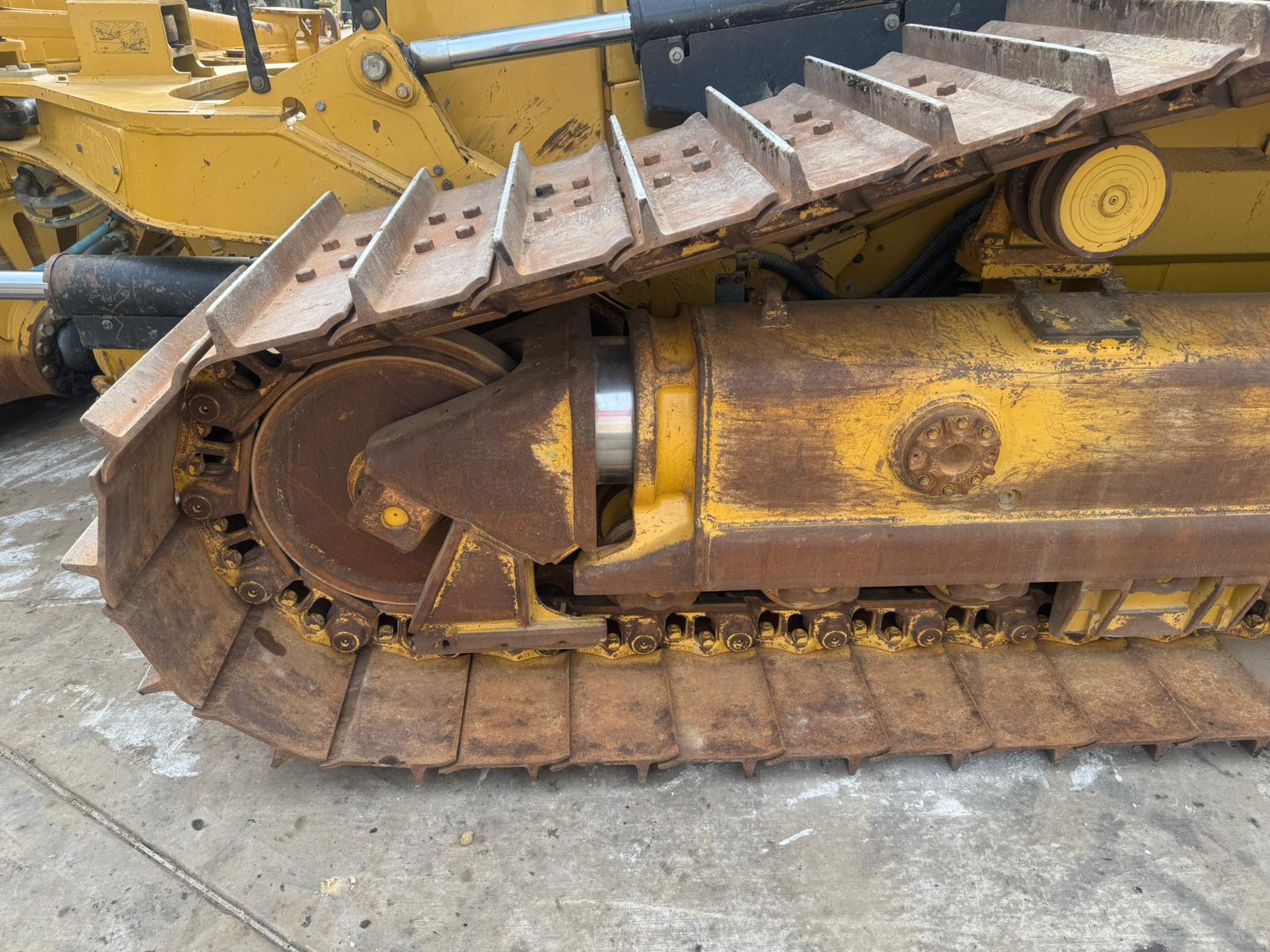

IDLERS - UNDERCARRIAGE

Left side front idler

24mm

Left side rear idler

25mm

Right side rear idler

25mm

Right side front idler

24mm

BOTTOM ROLLERS - UNDERCARRIAGE

Roller 1

206mm x 206mm

Roller 2

208mm x 209mm

Roller 3

207mm x 208mm

Roller 4

208mm x 208mm

Roller 5

208mm x 207mm

Roller 6

207mm x 207mm

Roller 7

207mm x 208mm

Roller 8

205mm x 206mm

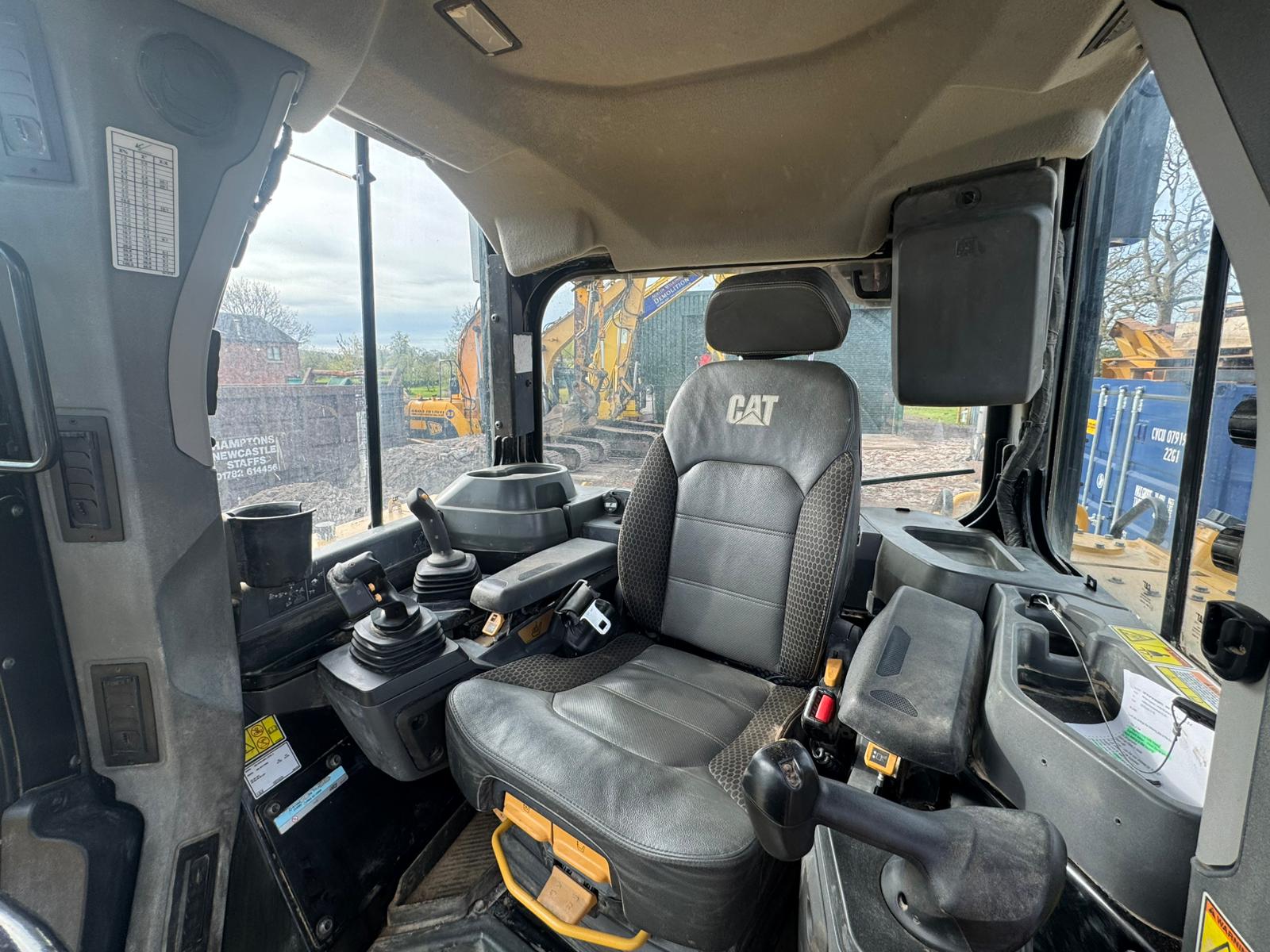

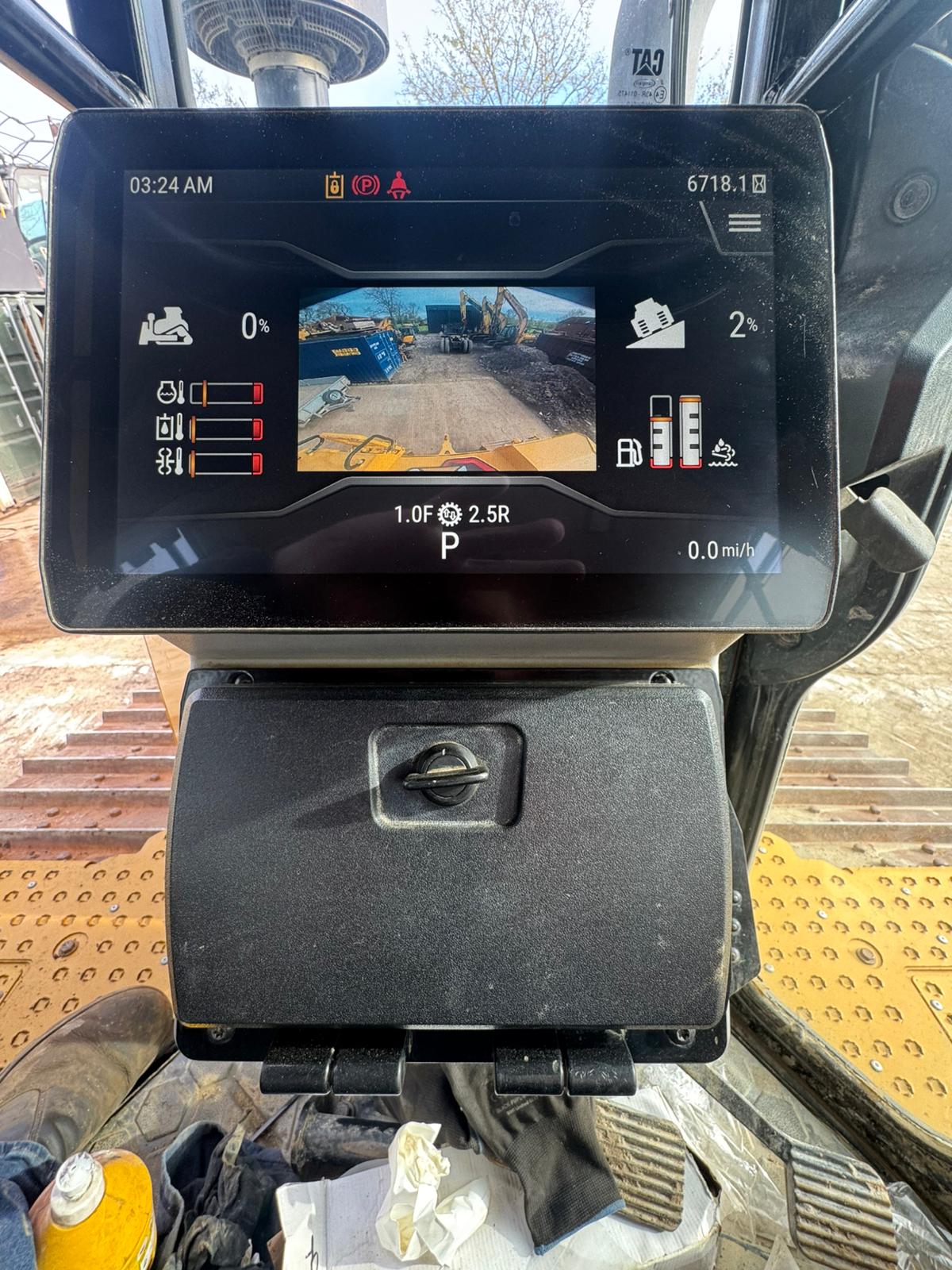

CAB

Cab mounts - any wear?

No

Back up alarm

Good

Battery isolator switch

Working

Lights

All operational

Wipers

All operational

Heater

Good

A/C

Good

Seat condition

Good

Floor mat condition

Ok

Seat belt

Ok

Mirrors

Good

Horn

Good

Cab mounts

Good

Cab glass condition

Good

Cab glass - any cracks?

No

Any perspex fitted

No

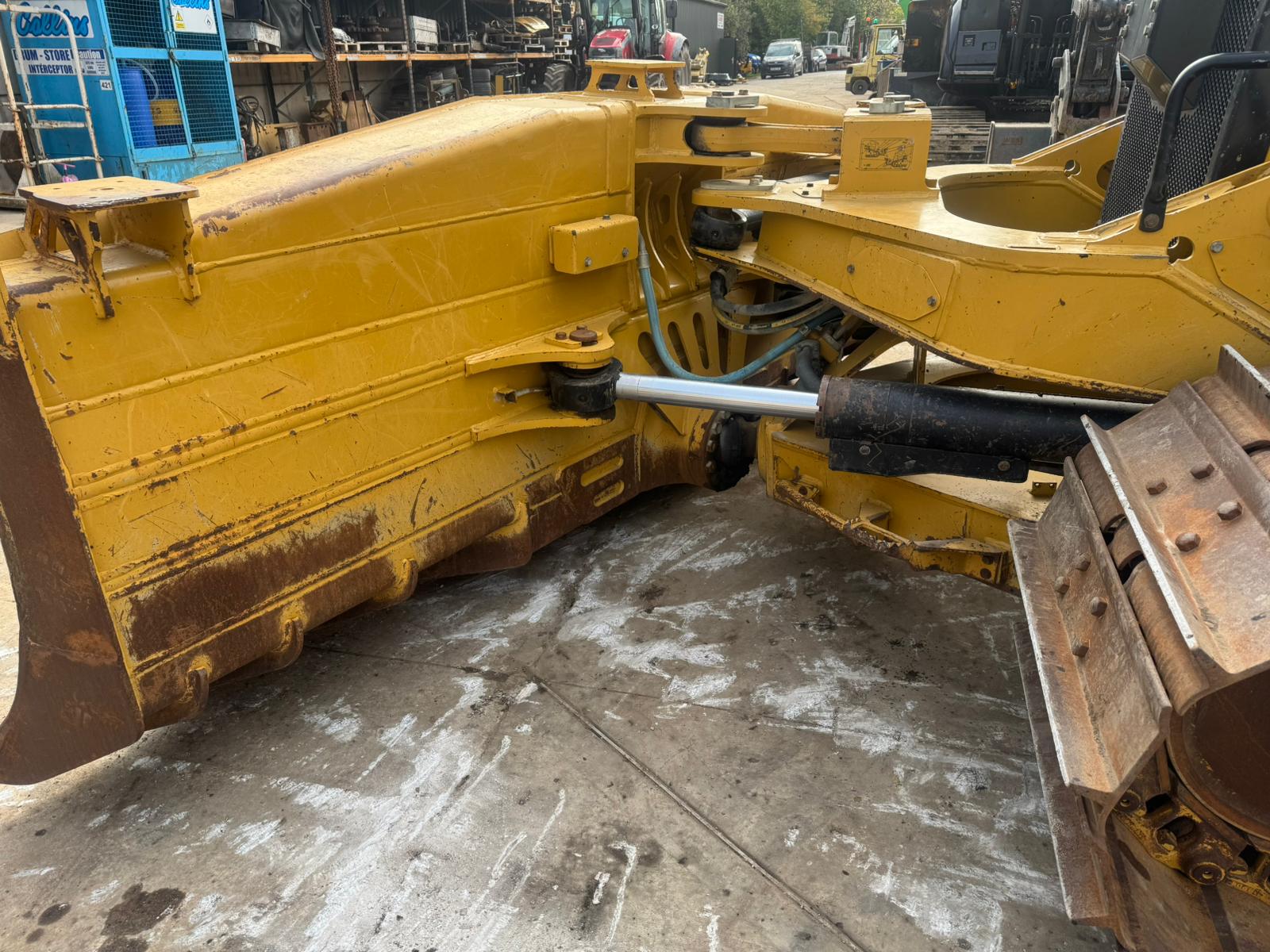

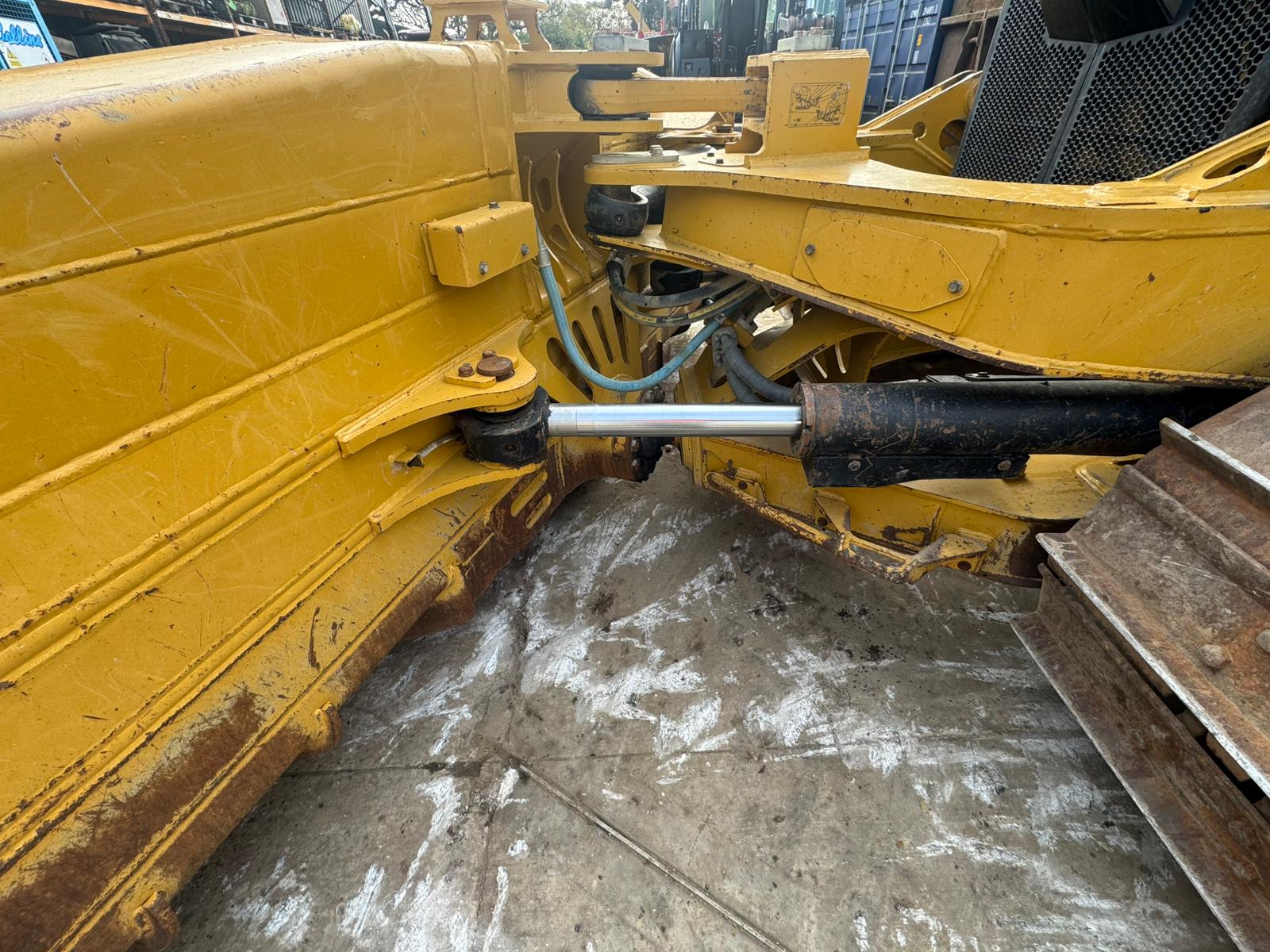

BLADE

Blade type

PAT

Blade width

3900mm

Blade height

1300mm

Main lift rams, wear in pins?

Good

Swivel rams, wear in pins?

Good

Ball joint, wear?

minimal

Trunions wear & shims

Good

Tilt ram

Good

C Frame

Good

Centre pin

Good

General blade condition

Ok

PAINT & DECALS

Paint condition

Ok

Any areas repainted

No

Any rust patches

Minimal

Condition of decals

To be replaced

DIMENSIONS

Length

Width

Height

MEASUREMENTS WITH BLADE STRAIGHT

6000mm

3900mm

3250mm

MEASUREMENTS WITH BLADE TURNED

6600mm

3800mm

3250mm

MEASUREMENT FROM OUTSIDE TO OUTSIDE OF TRACKS

3040mm

MEASUREMENTS WITH BLADE STRAIGHT

Length: 6000mm

Width: 3900mm

Height: 3250mm

MEASUREMENTS WITH BLADE TURNED

Length: 6600mm

Width: 3800mm

Height: 3250mm

MEASUREMENT FROM OUTSIDE TO OUTSIDE OF TRACKS

Length:

Width: 3040mm

Height:
