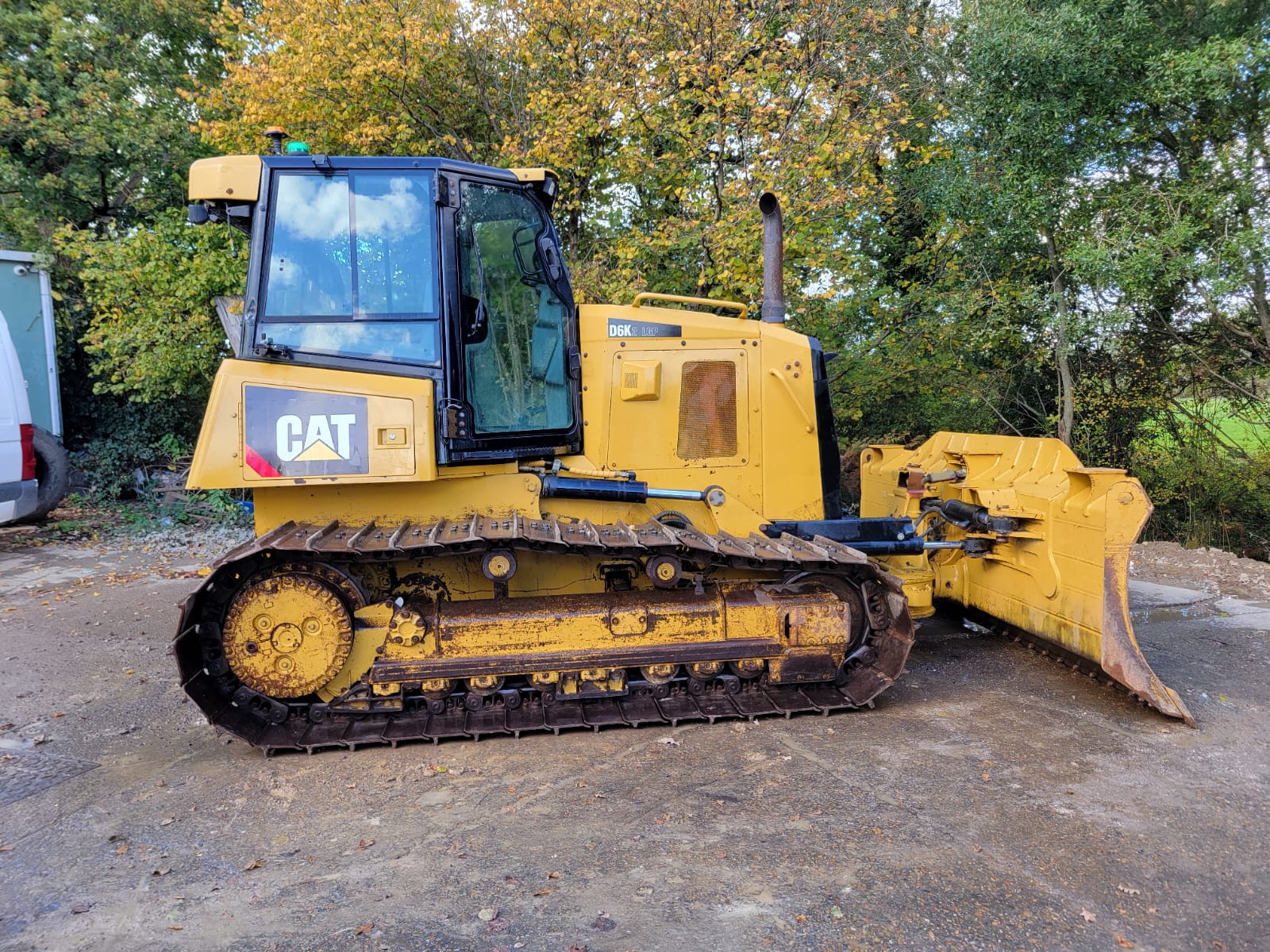

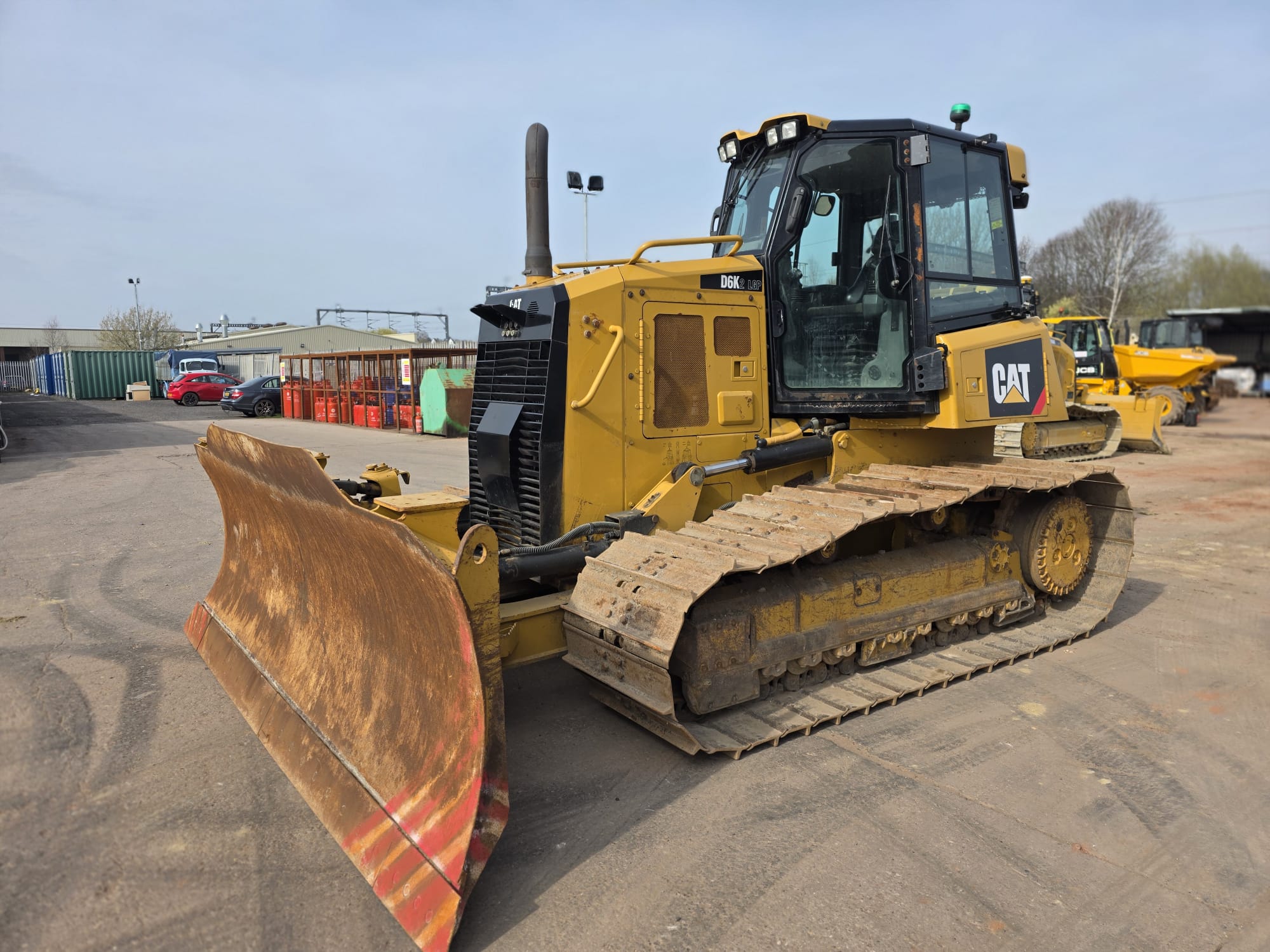

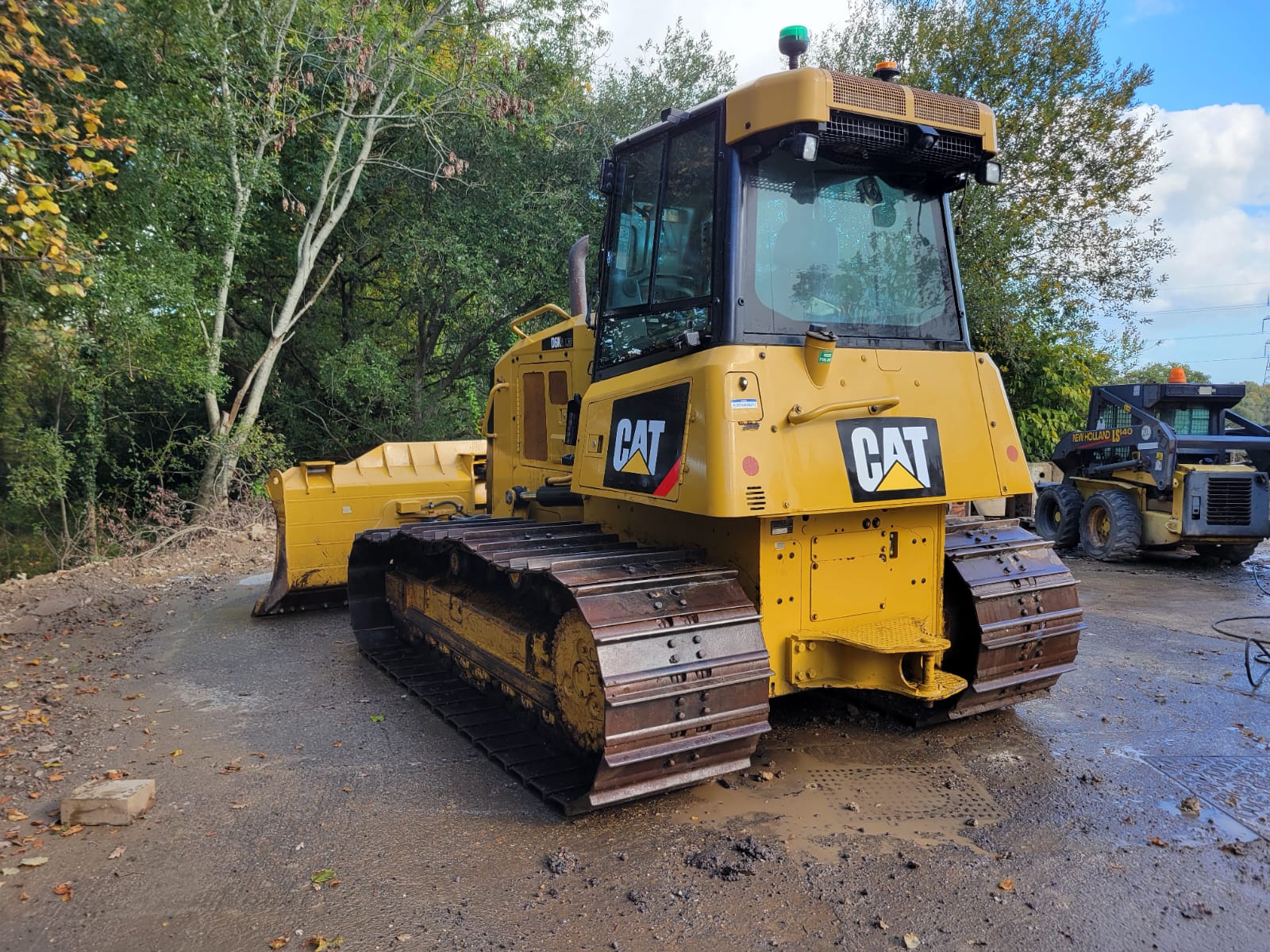

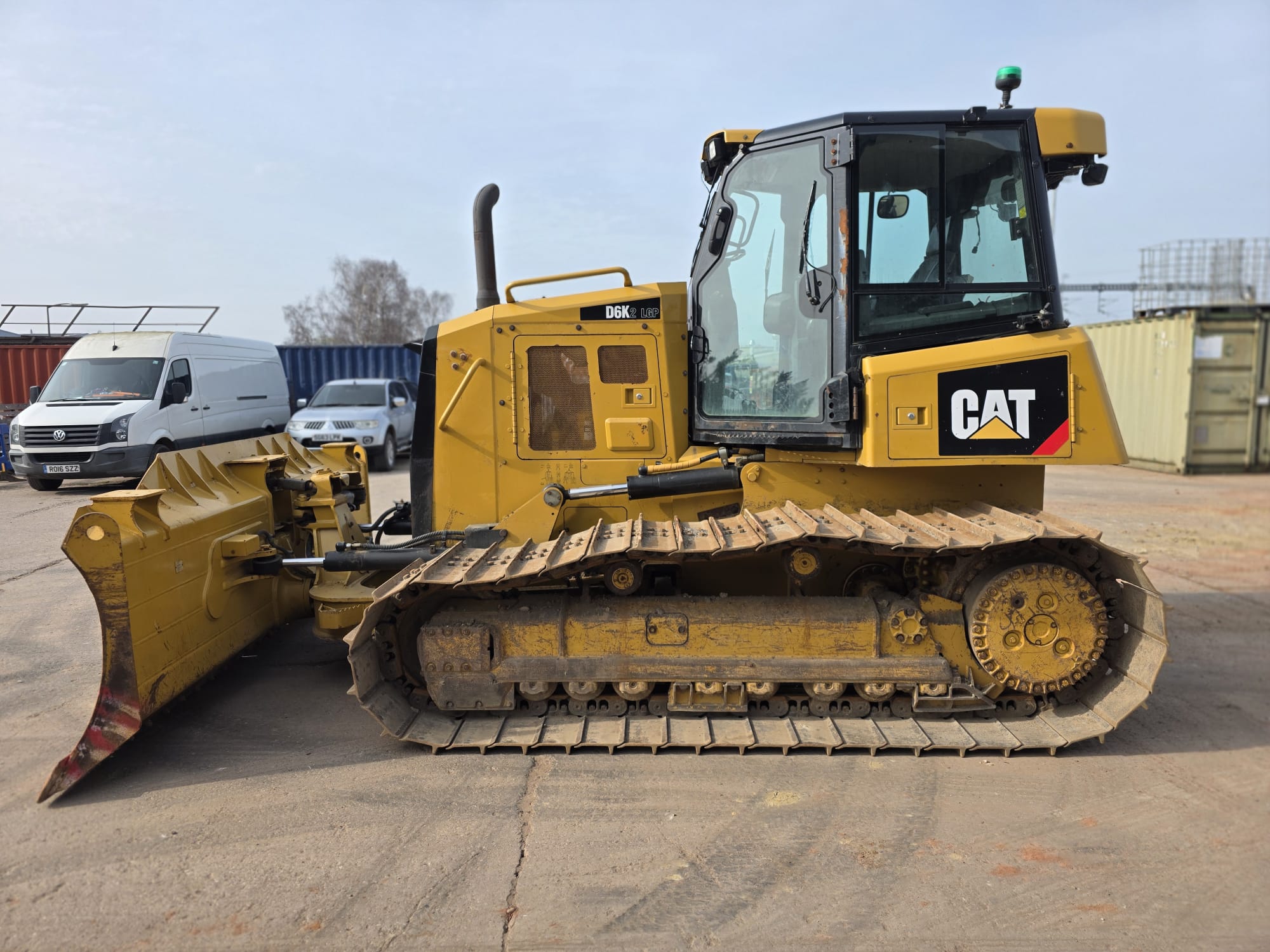

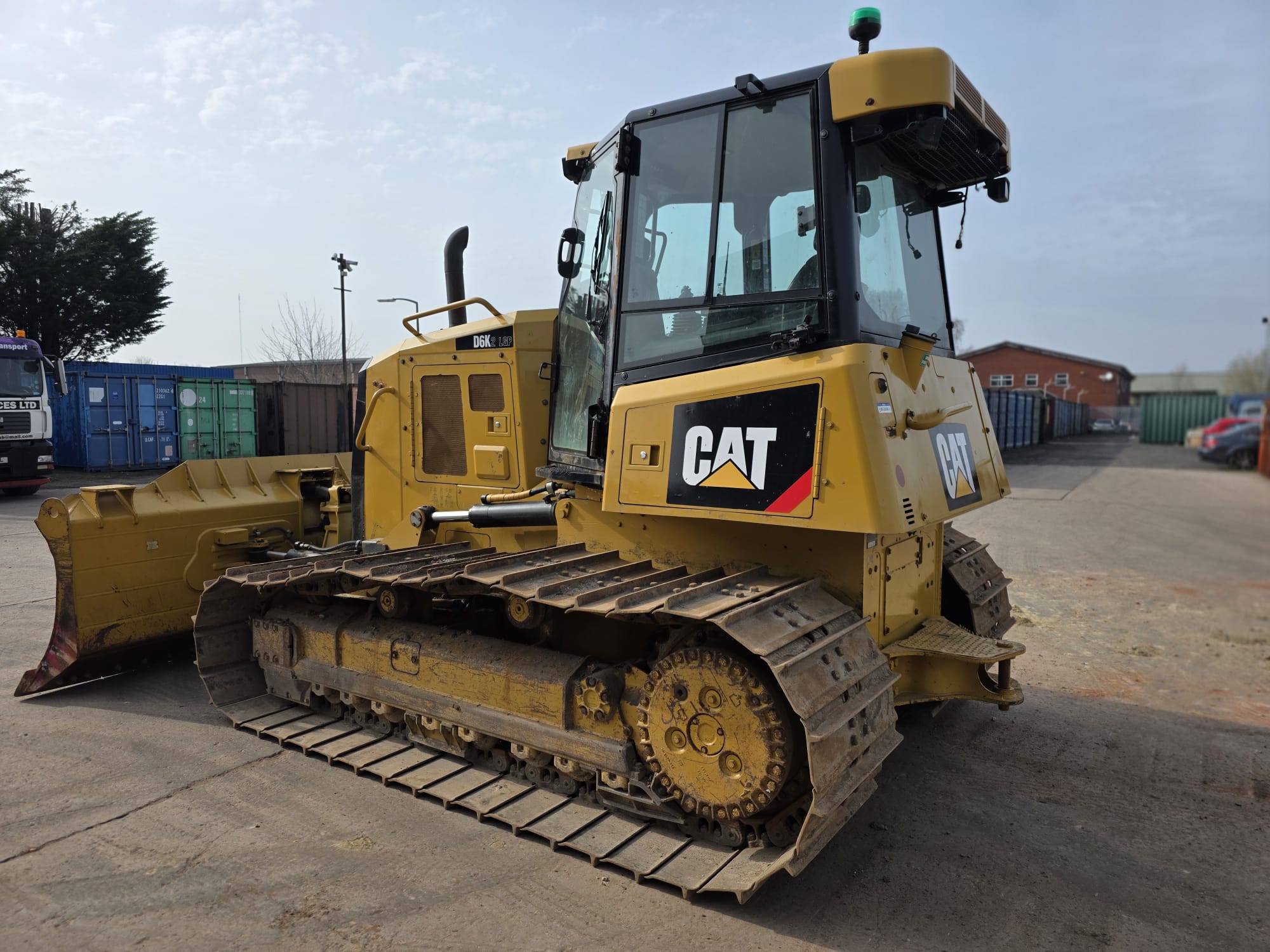

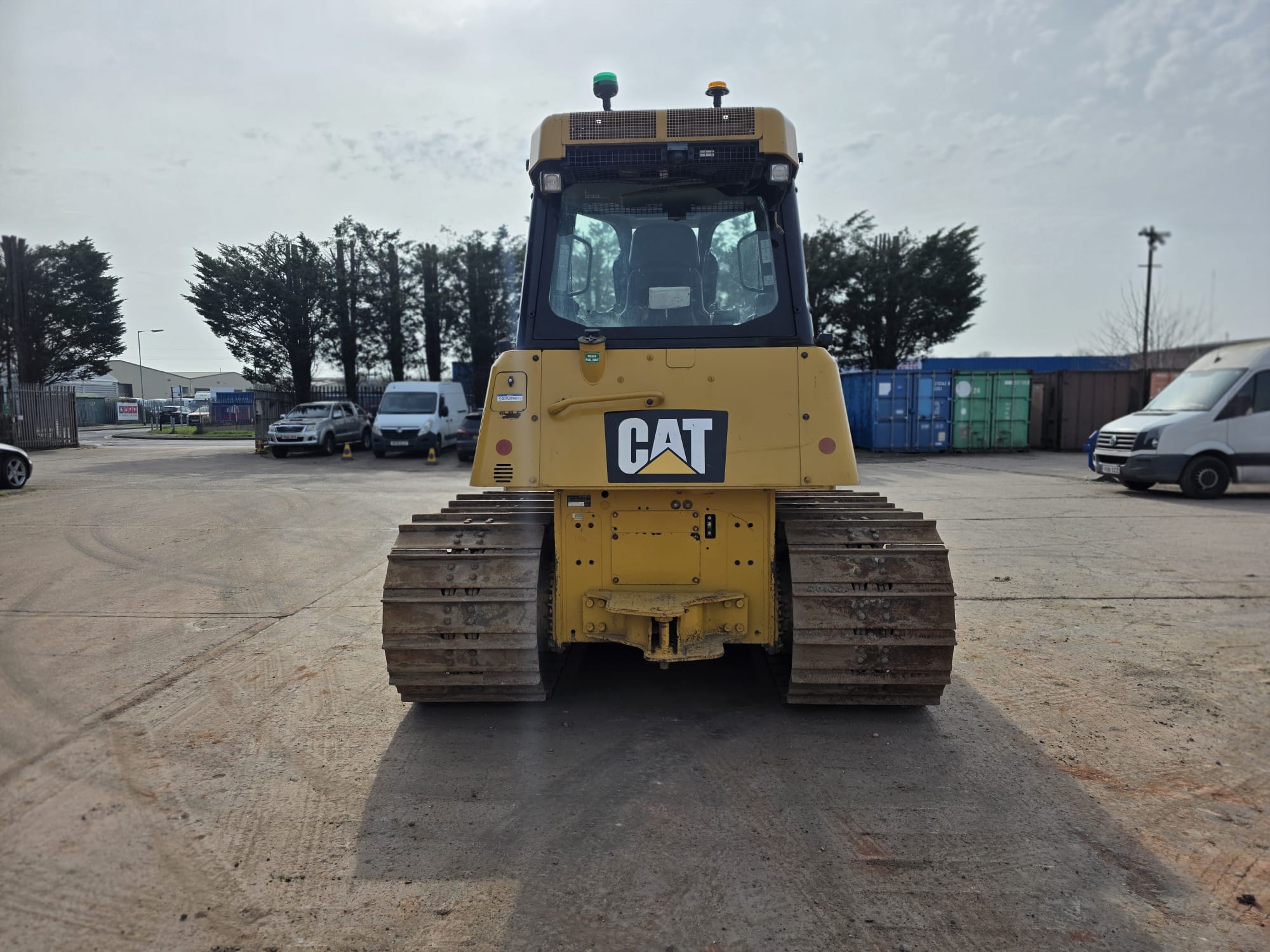

CAT D6K2 LGP

"

MACHINE KEY DETAILS

Make:
Caterpillar
Model:
D6K2 LGP
Stock No:
70797
Year:
2018
Hours:
4483
Location:
Southampton
Weight:
13,948 KGS
HP:
158 HP
Enquire Online

A/C, Rear View Camera, Hydrostatic Drive, PAT Blade, 76 cm Single Grouser Track Shoes, Drawbar

View Full Inspection Report

ENGINE
Blow by
Minimal to none
Air cleaners
Good
Any smoke
Minimal to none
Oil or fuel leaks
none visible
General running condition
Runs well
TRANSMISSION
Gear change
HST changes well
Steering
Responsive
Oil leaks
None visible
is the transmission noisy?
No
Controls
Good, responsive controls
General running condition
Moves and steers well

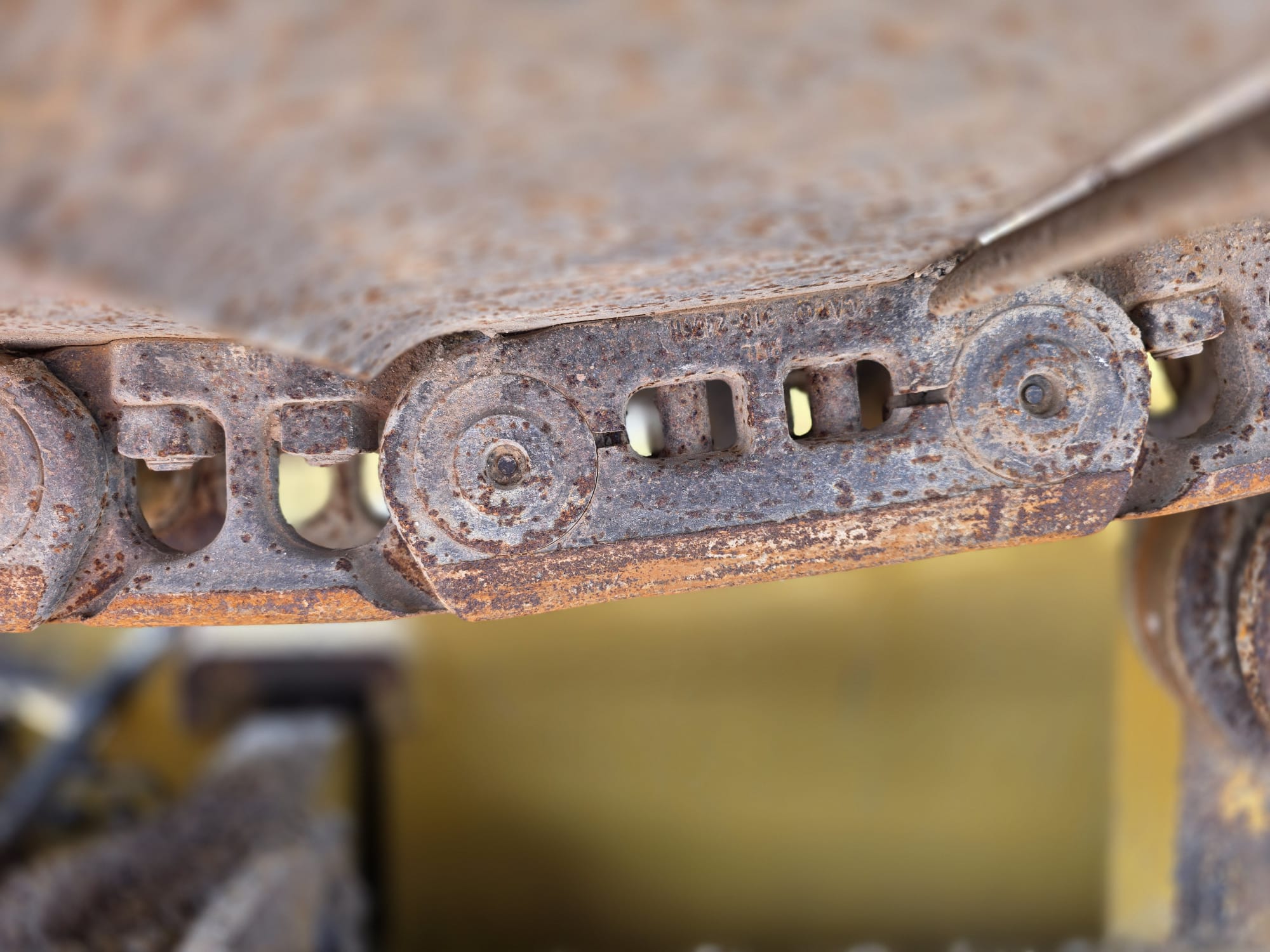

UNDERCARRIAGE
Shoe width
758mm
Shoe height
45mm, 80%
Shoes - any wear in trailing edge
Minimal
Rail height
103mm, 50%

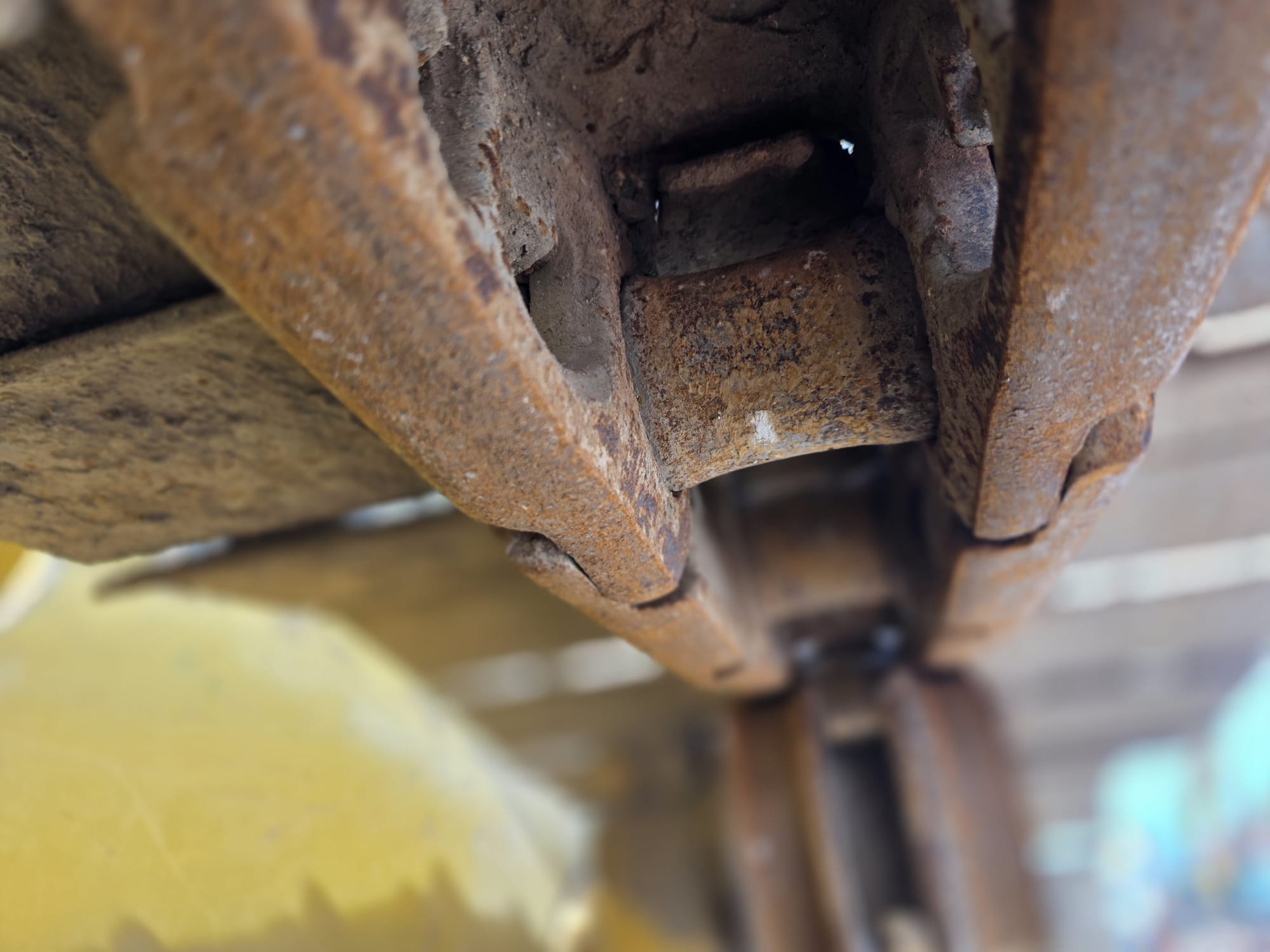

Average diameter of pins and bushings
55mm, 50%

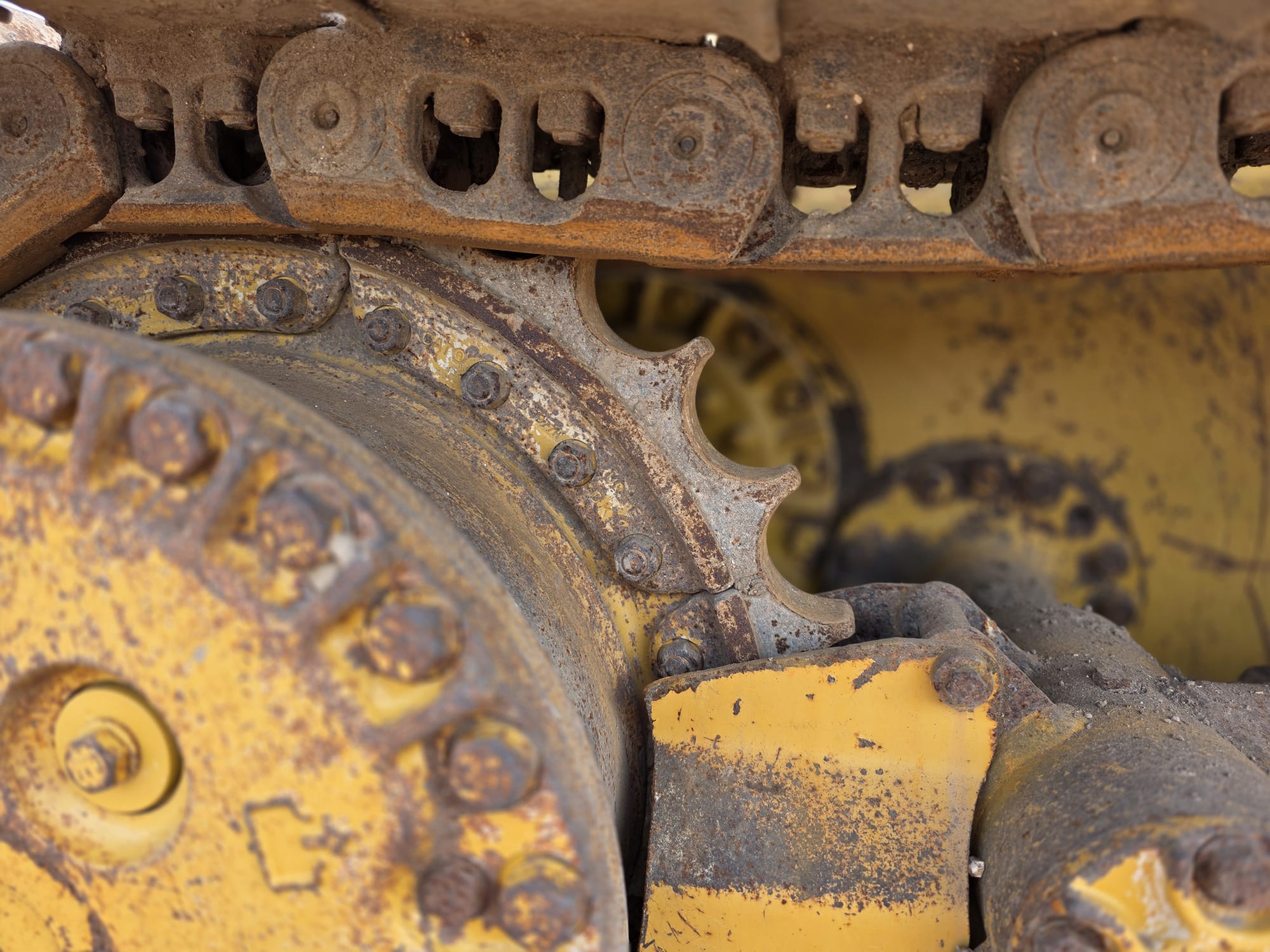

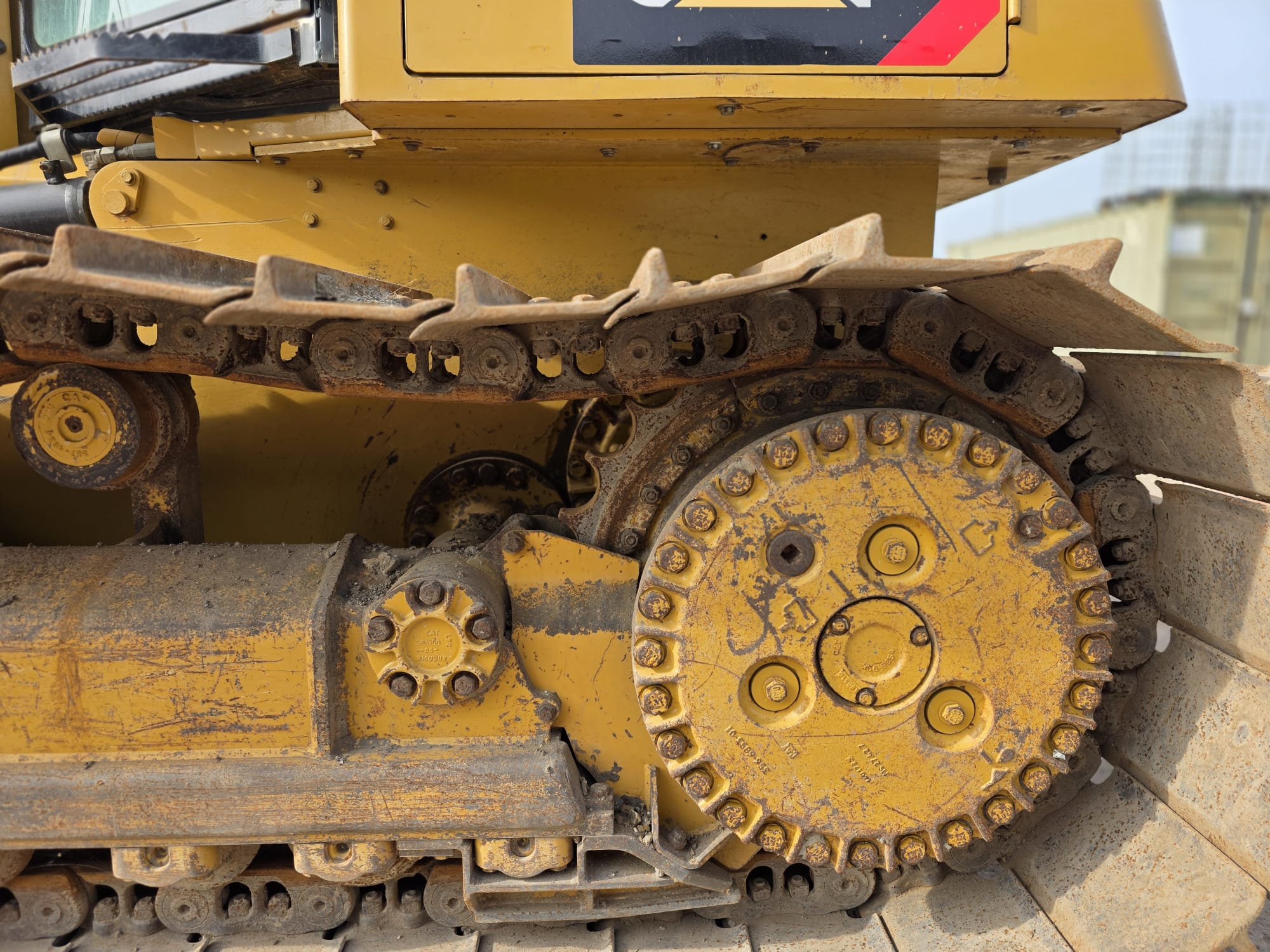

Sprockets
87mm gape, 9mm tips, 45%

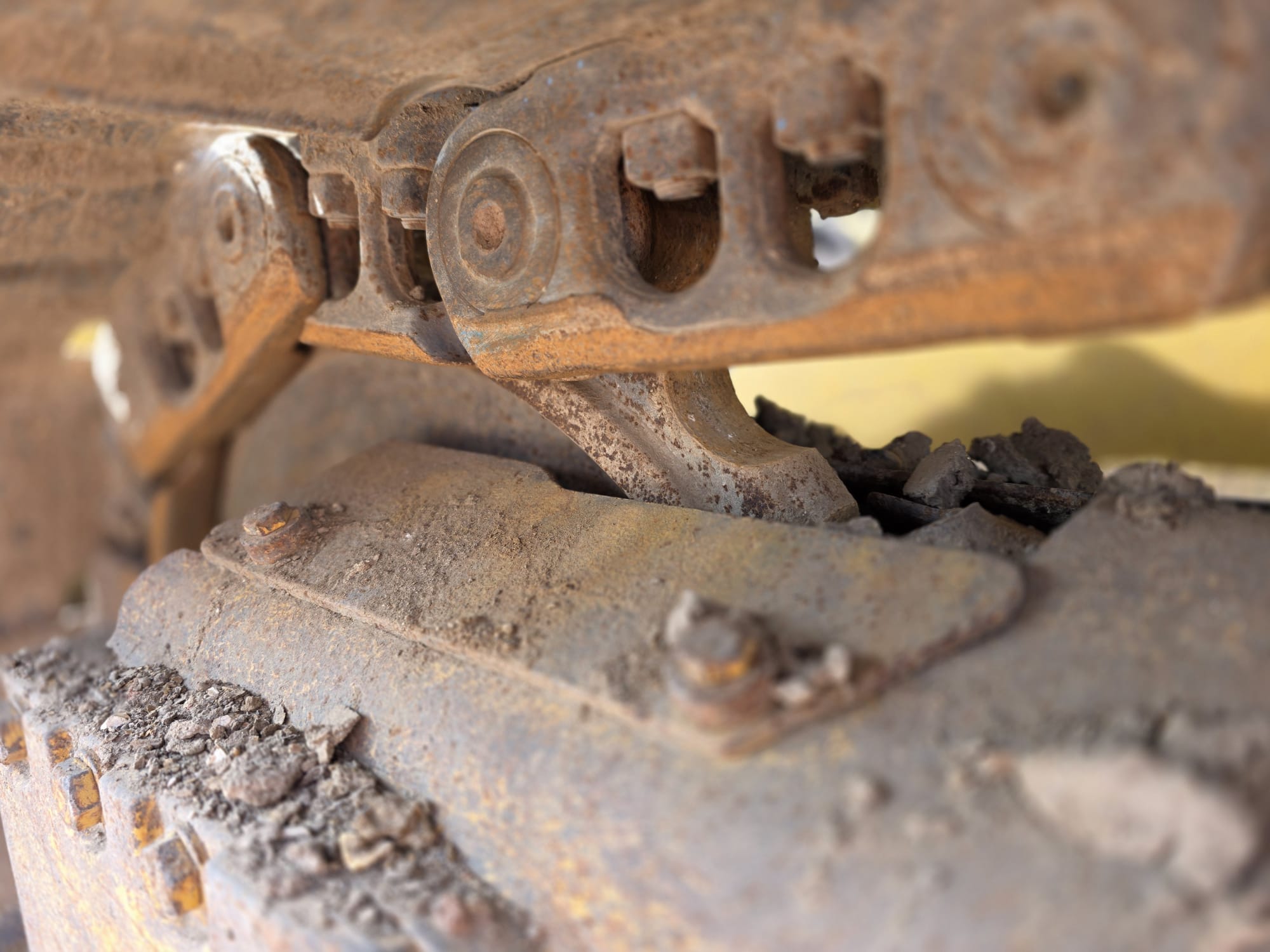

Left side front idler
30%
Right side front idler
30%

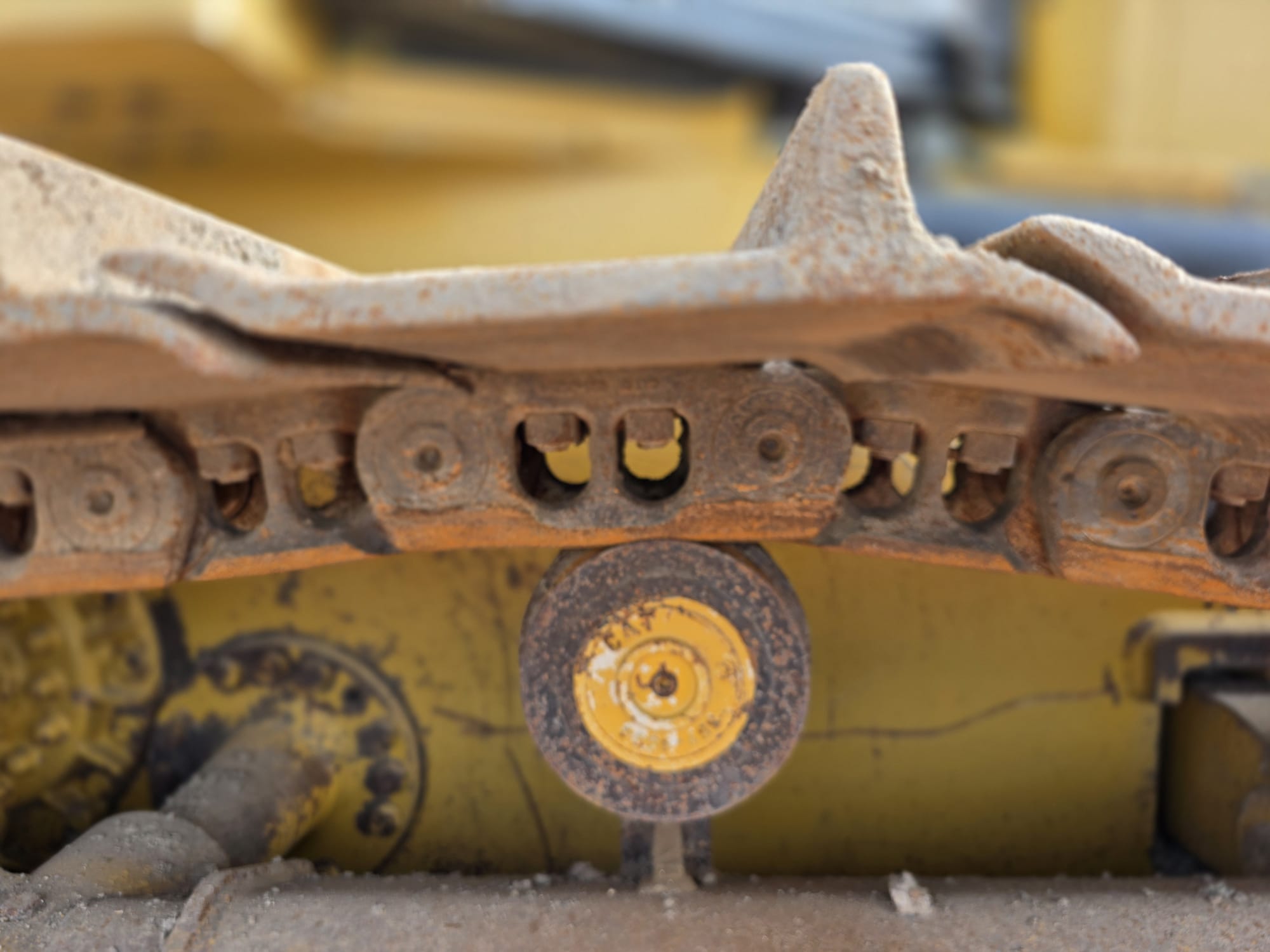

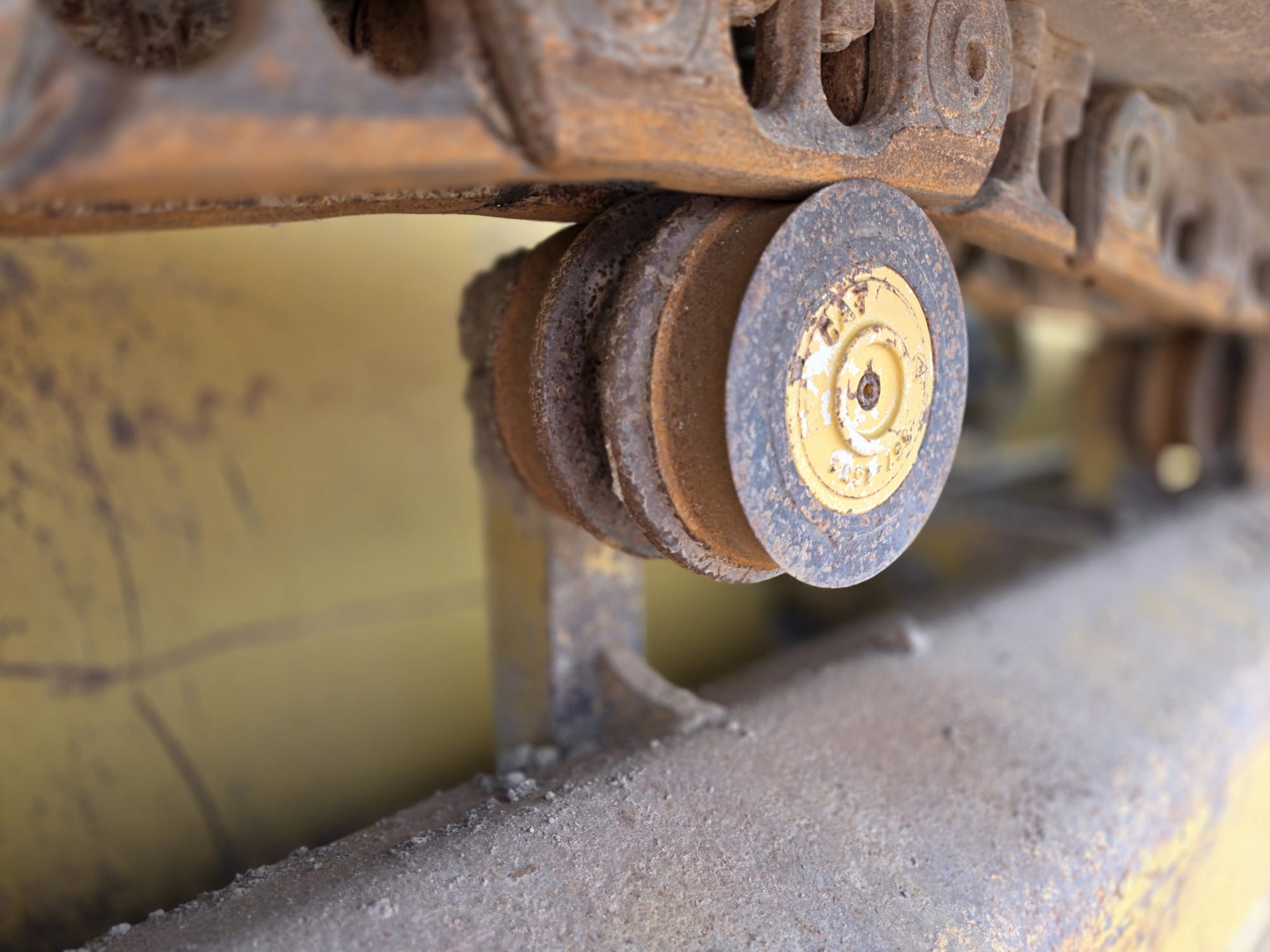

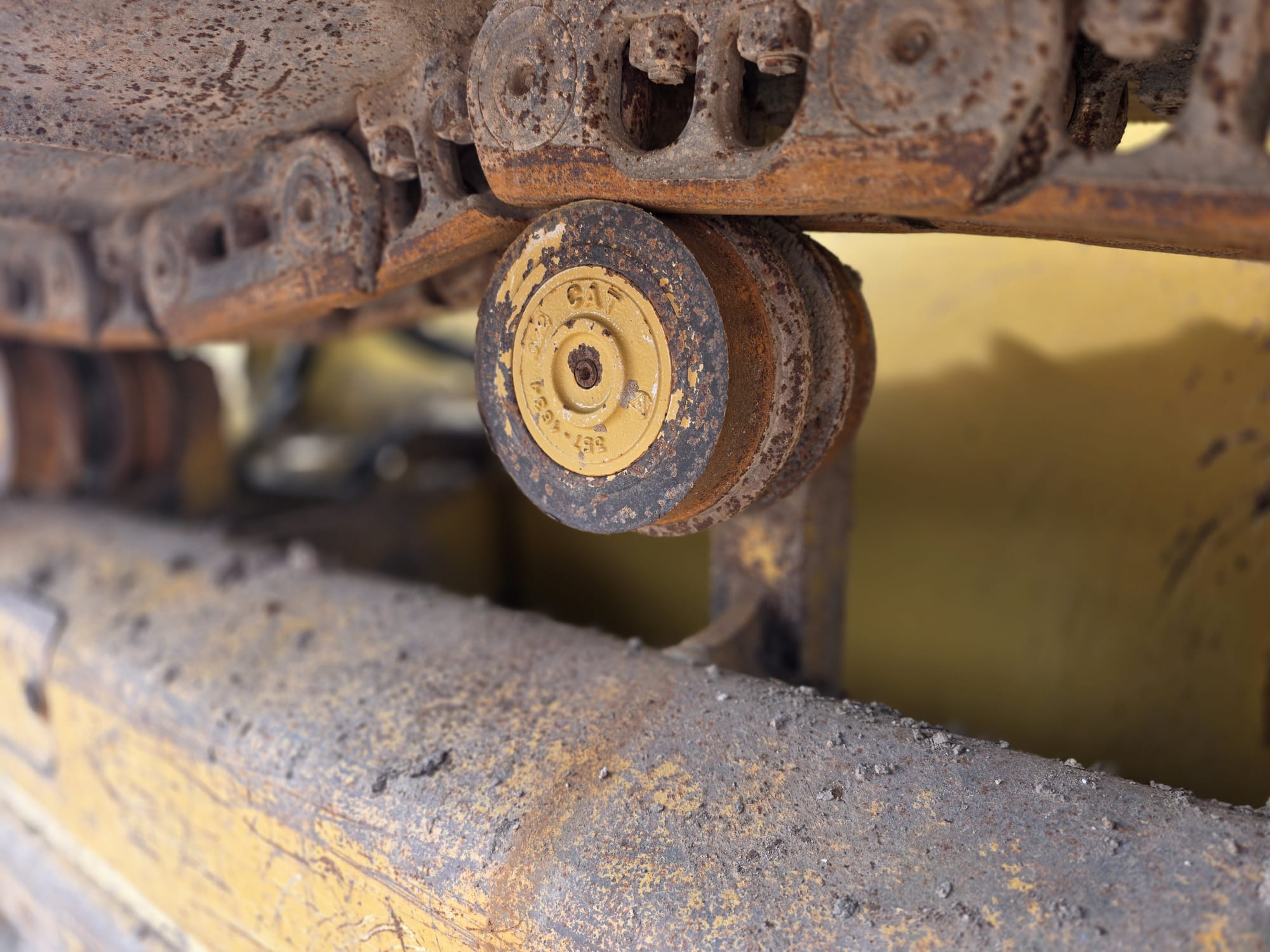

TOP ROLLERS
Left side 1st roller
155mm & 154mm, 50%
Left side 2nd roller
156mm & 154mm, 50%
Right side 1st roller
153mm & 155mm, 50%
Right side 2nd roller
155mm & 156mm, 50%
BOTTOM ROLLERS
Roller 1
Visual only, 50%
Roller 2
170mm & 169mm, 50%
Roller 3
167mm & 167mm, 50%
Roller 4
Visual only, 50%
Roller 5
168mm & 168mm, 50%
Roller 6
167mm & 168mm, 50%
Roller 7
170mm & 168mm, 50%
Roller 8
Visual only, 50%
CAB
Cab mounts any wear
Minimal
Any wiring for laser system
Yes
Back up alarm
Loud and clear
Battery isolator switch
Manual fitted
Lights
All working
Wipers
All working
Heater
Good heat
A/C
Nice and cold
Seat condition
Good condition
Cladding condition
Good condition
Floor mat condition
no wear or tears
Seat belt
Working, undamaged
Mirrors
Rear view only, undamaged
Horn
Loud and clear
Cab glass condition
Minor scuffs
Cab glass - any cracks
No
Steps and grab handles secure
All fitted and undamaged

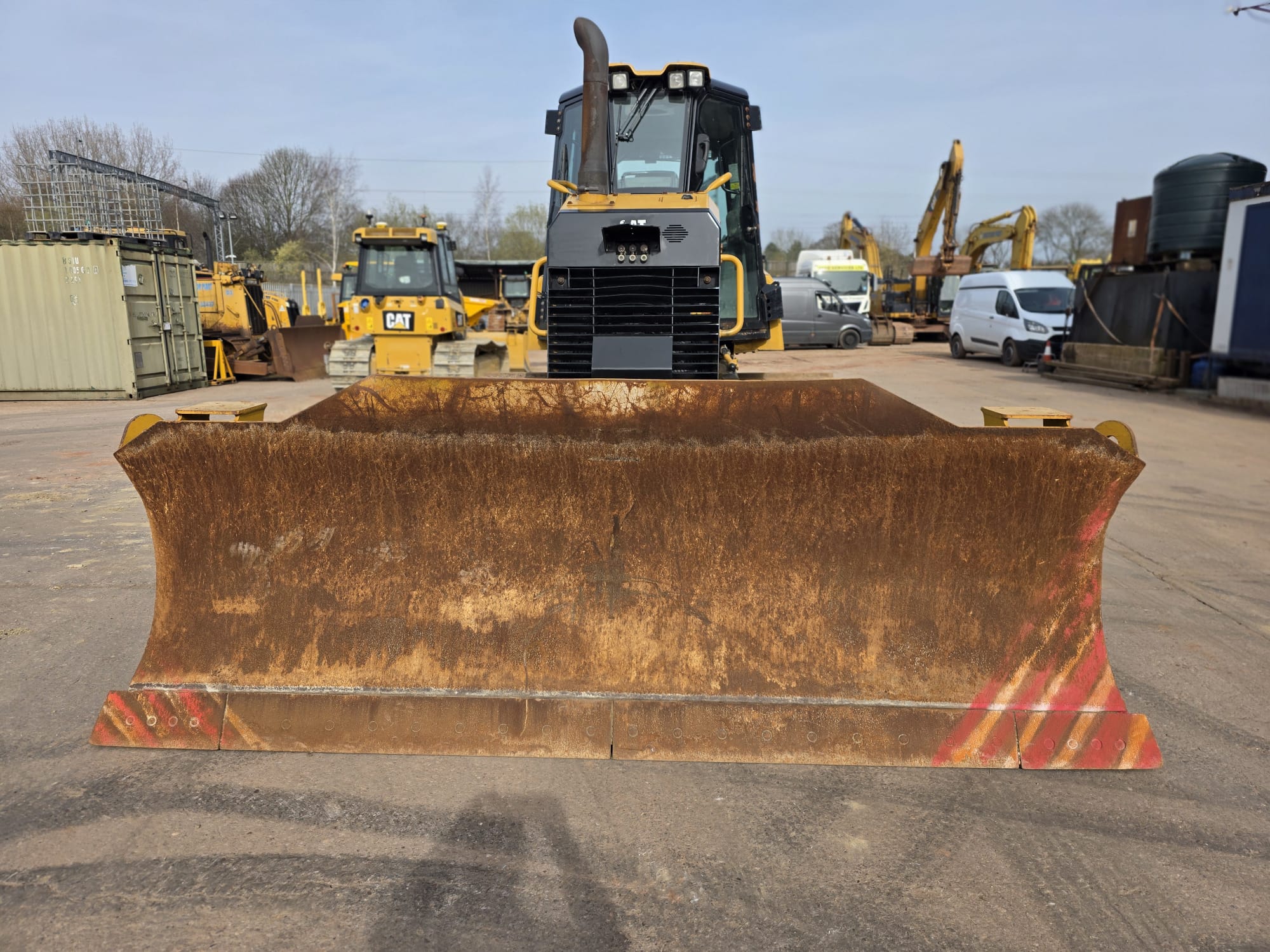

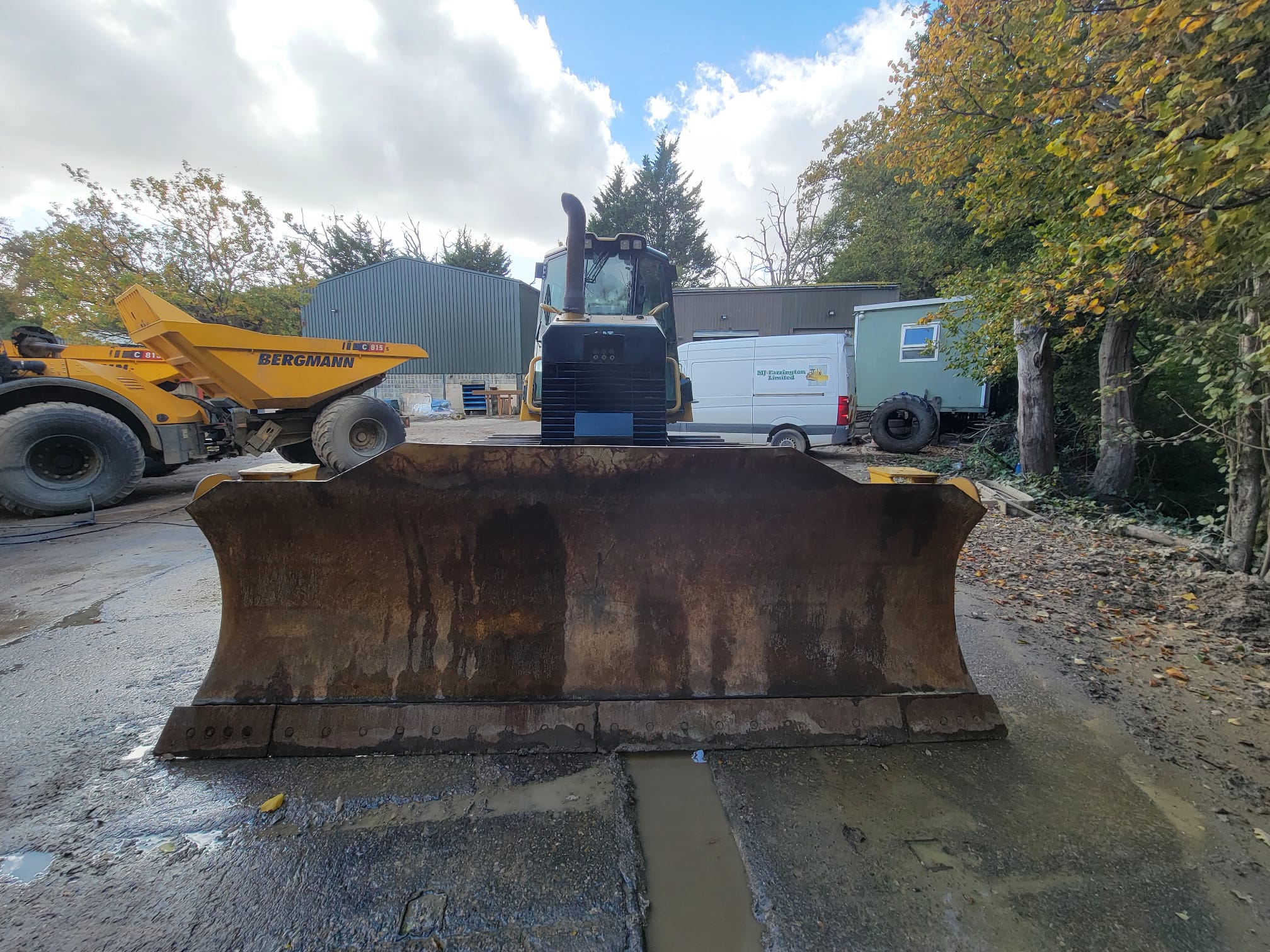

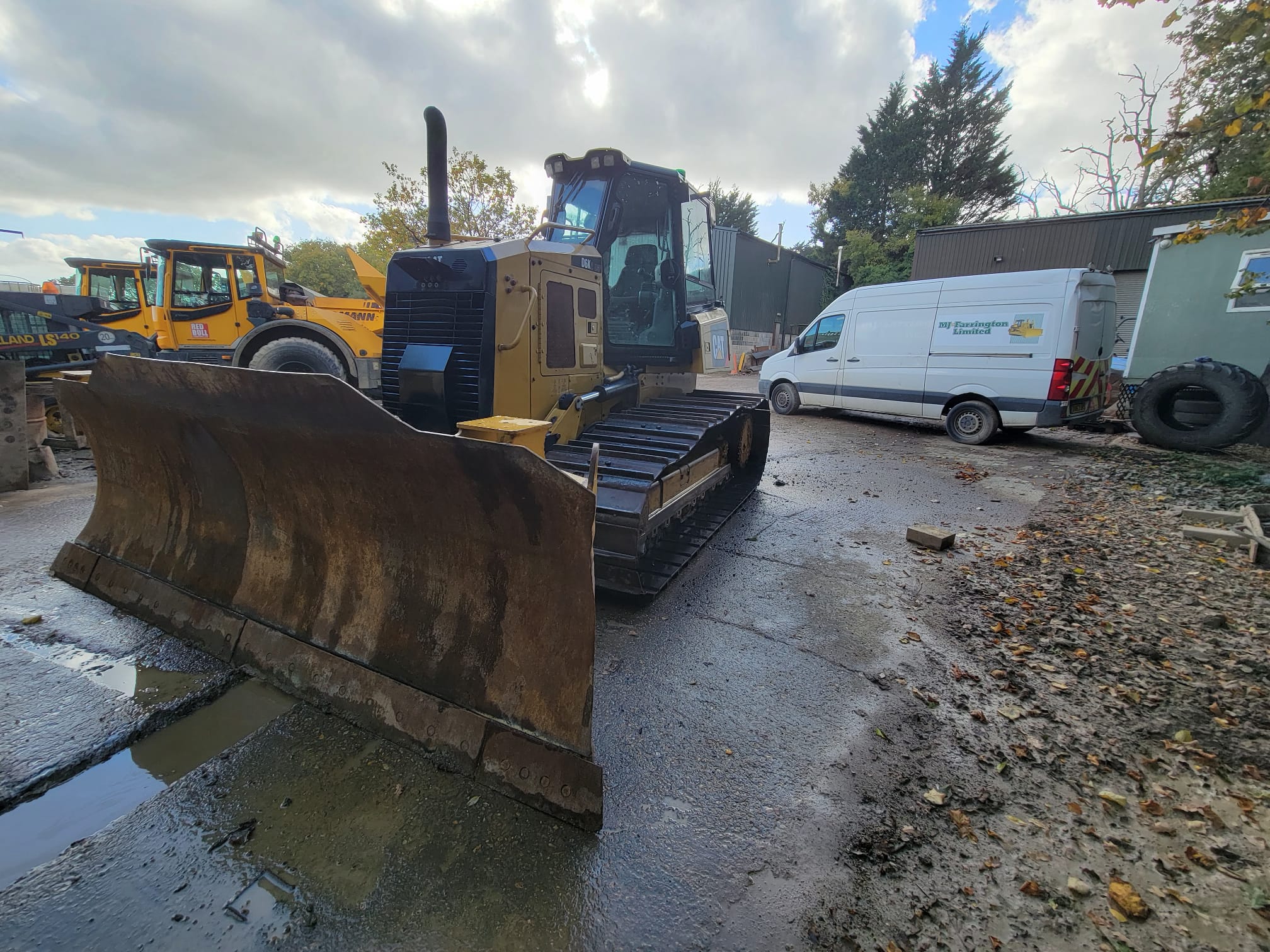

BLADE
Blade type
PAT
Blade width
3615mm
Blade height
1270mm
Main lift rams wear
L/H: 3mm, 2mm. R/H: 2mm, 2mm
Pitch rams wear
L/H: 1-2mm, 5mm. R/H: 2mm, 4mm
Link ram wear
L/H: 3mm, R/H: 3mm
Tilt ram wear
L/H: 3-4mm, R/H: 2-3mm
Ball joint wear
5-7mm
C frame wear
L/H: 5mm, R/H: 4mm
Equaliser bar wear
L/H: 3-4mm, R/H: 3mm, Mid: 3mm
Face / Moldboard
Good shape, good thickness
Spill rack condition
Few minor dents
General blade condition
Good
PAINT & DECALS
Paint condition
Fair, slightly faded
Any rust patches
Minimal
Condition of decals
To be replaced
DIMENSIONS
Length
Width
Height
Measurements with blade straight
4900mm
3615mm
3100mm
Measurements with blade turned
5700mm
3200mm
3100mm
Measurement from outside to outside of tracks
2765mm
Measurements with blade straight
Length: 4900mm
Width: 3615mm
Height: 3100mm
Measurements with blade turned
Length: 5700mm
Width: 3200mm
Height: 3100mm
Measurement from outside to outside of tracks
Length:
Width: 2765mm
Height:
