CAT D6N LGP

MACHINE KEY DETAILS

Make:

Caterpillar

Model:

D6N LGP

Stock No:

70826

Year:

2019

Hours:

5518

Location:

Southampton

Weight:

17,380 KGS

HP:

170 HP

Enquire Online

Download inspection Report Download Images Get a shipping quote Compare Machine

VPAT Blade, Drawbar fitted, Ripper valve, Rippers available at an additional cost.

View Full Inspection Report

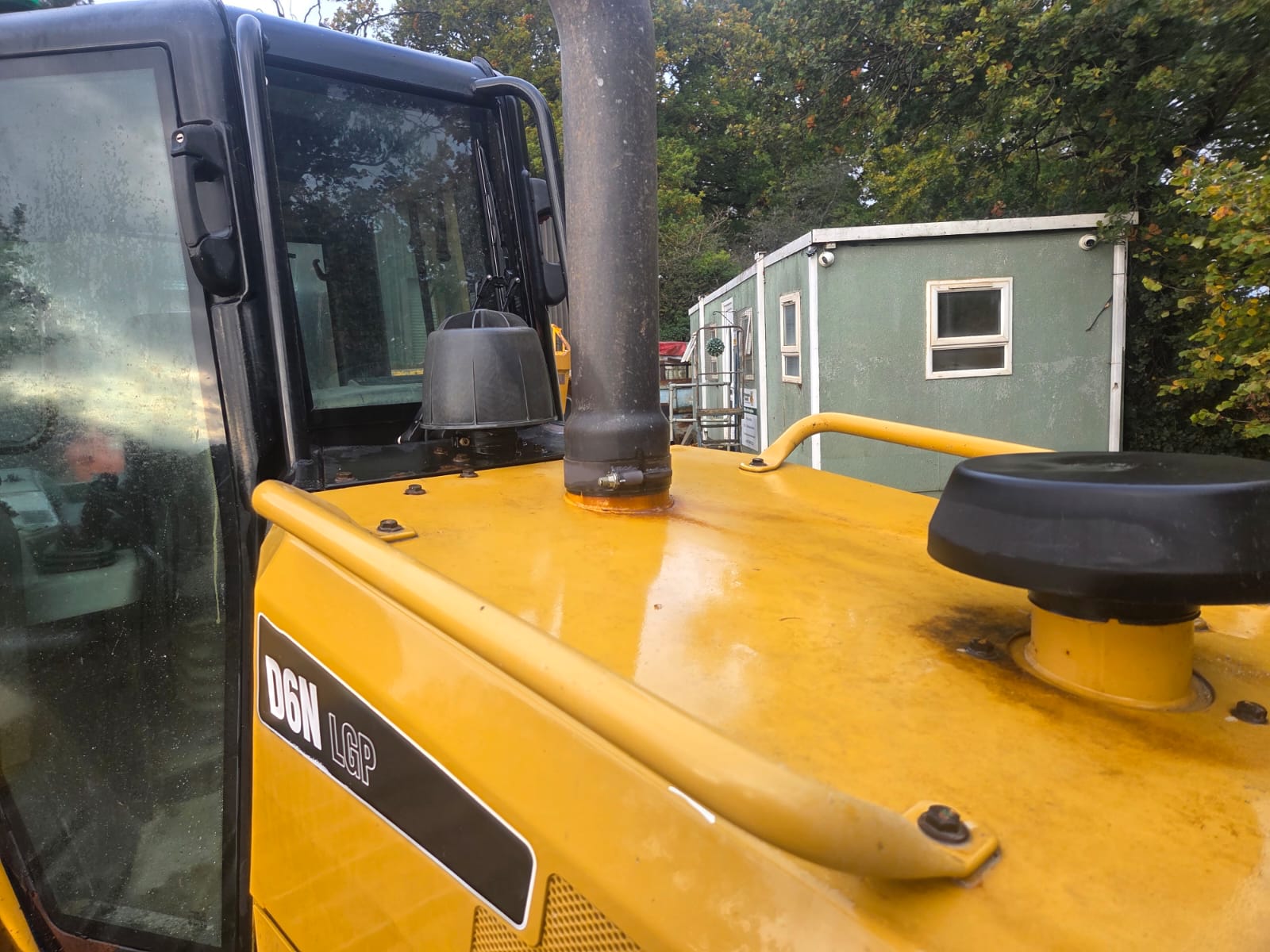

ENGINE

Blow by

Minimal to none

Knocking

No engine knocking

Air cleaners

Good as new

Any smoke

No smoke

Oil or fuel leaks

None visible

General running condition

Runs well

TRANSMISSION

Gear change

Good change, no sharpness

Steering

Responsive

Oil leaks

None visible

Is the transmission noisy?

No

Torque converter

Damper feels good

Controls

Good controls

General running condition

Moves well

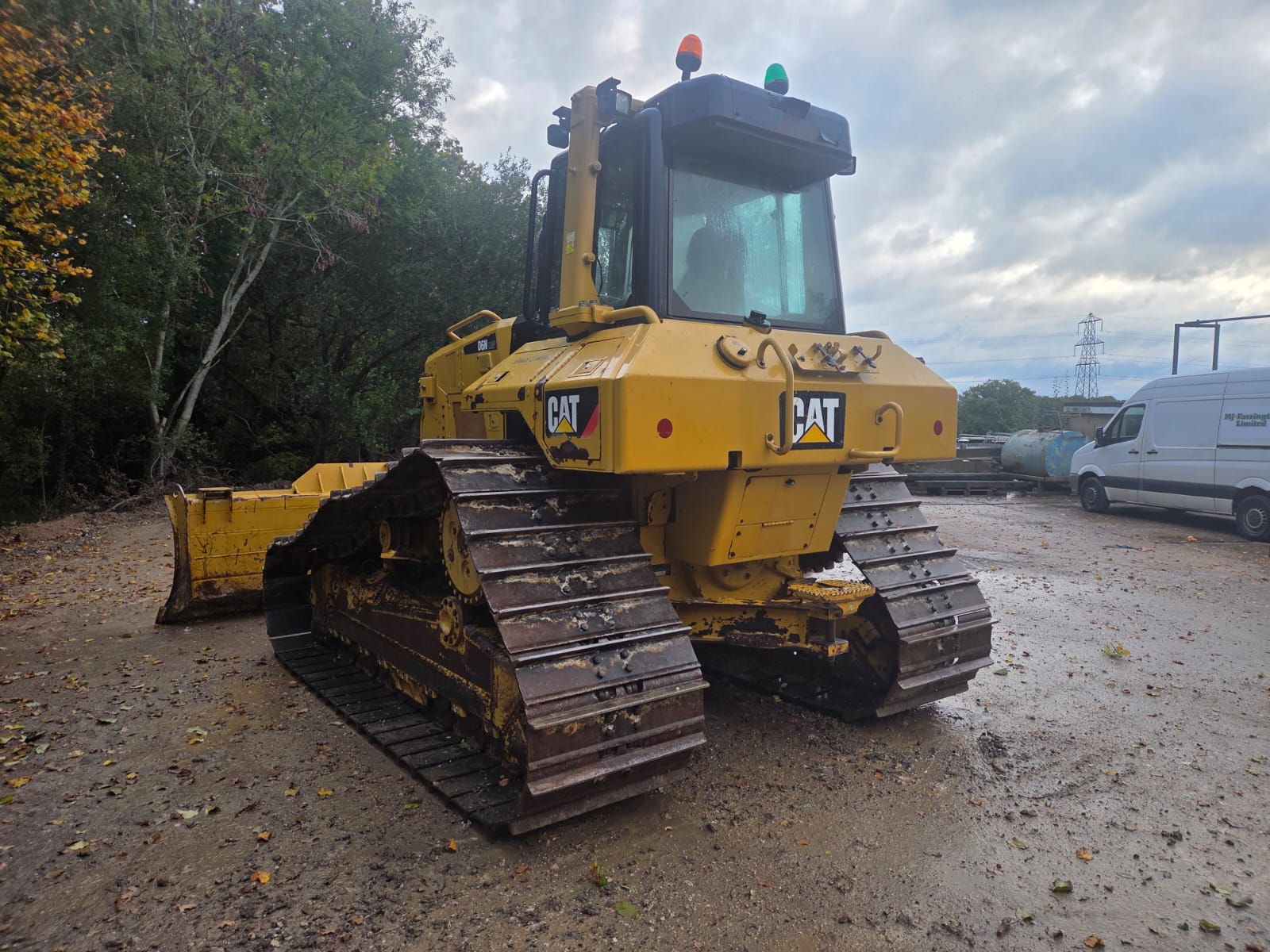

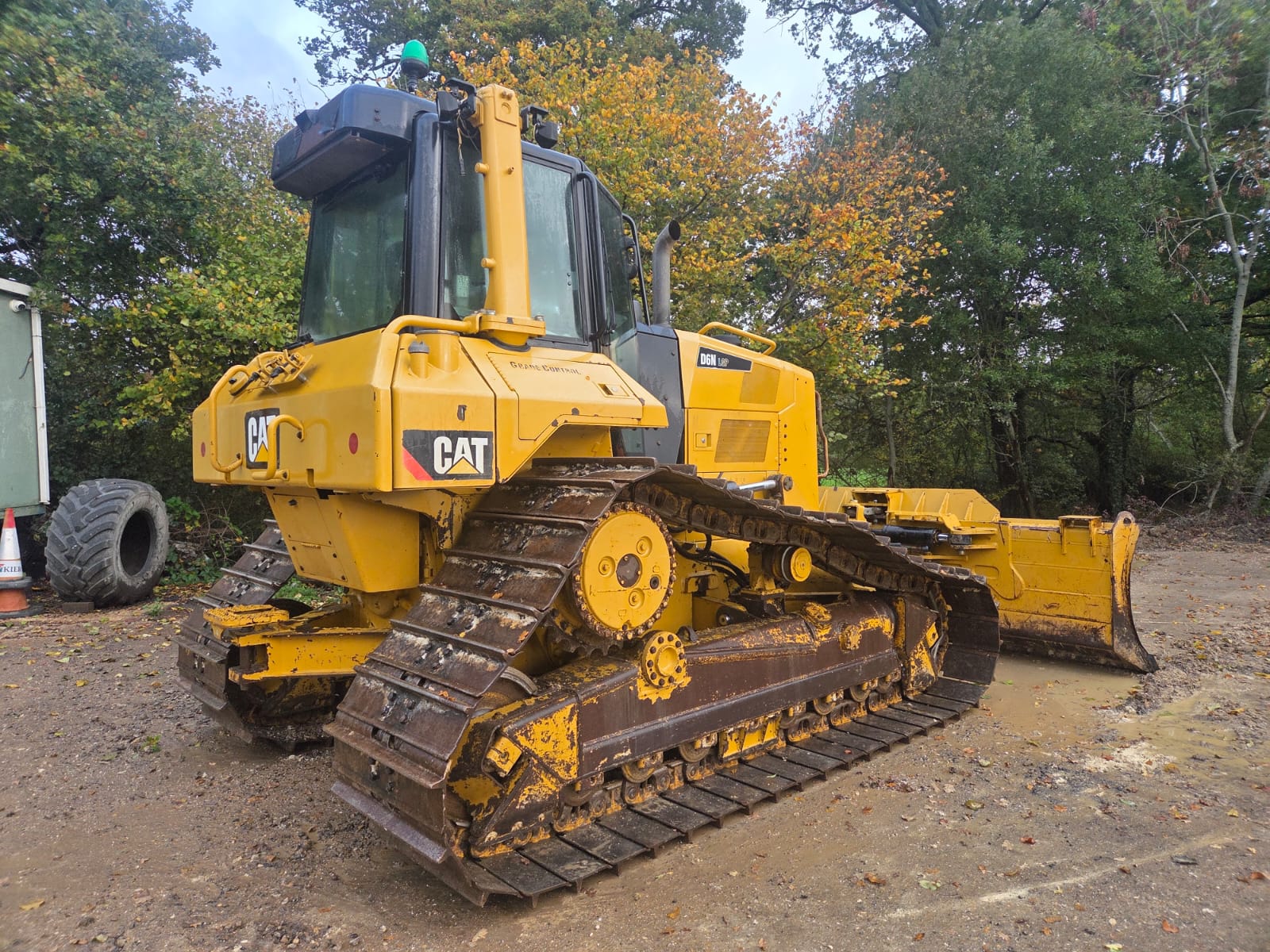

UNDERCARRIAGE

Shoe width

835mm

Shoe height

58mm, 90%

Shoes any wear in trailing edge

90%, Wear minimal

Rail height

118mm, 70%

Any signs of link failure

No

Average diameter of pins and bushings

59mm, 70%

Have pins been turned on chains

Yes

Sprockets

22mm tips, 72mm Gape, 80%

UNDERCARRIAGE - IDLERS

Left side idler

Good as new, 99%

Right side idler

Good as new, 99%

UNDERCARRIAGE - TOP ROLLERS

Left side top roller

180mm x 180mm, 99%

Right side top roller

180mm x 180mm, 99%

UNDERCARRIAGE - BOTTOM ROLLERS

Roller 1

197mm x 197mm 99%

Roller 2

197mm x 197mm 99%

Roller 3

197mm x 197mm 99%

Roller 4

197mm x 197mm 99%

Roller 6

197mm x 197mm 99%

Roller 7

197mm x 197mm 99%

Roller 8

197mm x 197mm 99%

CAB

Cab Mounts - any wear?

No wear

Any wiring for laser system?

Yes

Back up alarm

Loud and clear

Battery isolator switch

Manual and electric

Lights

All working

Wipers

All working

Heater

Good heat

A/C

Cold

Seat condition

Good condition, works as should

Cladding condition

Average condition

Floor matt condition

No wear or tears

Seat belt

Undamaged, working

Mirrors

Rear view only, undamaged

Horn

Loud and clear

Cab glass condition

No cracks or chips

Any perspex fitted

None

Steps and grab handles secure

All secure and fitted

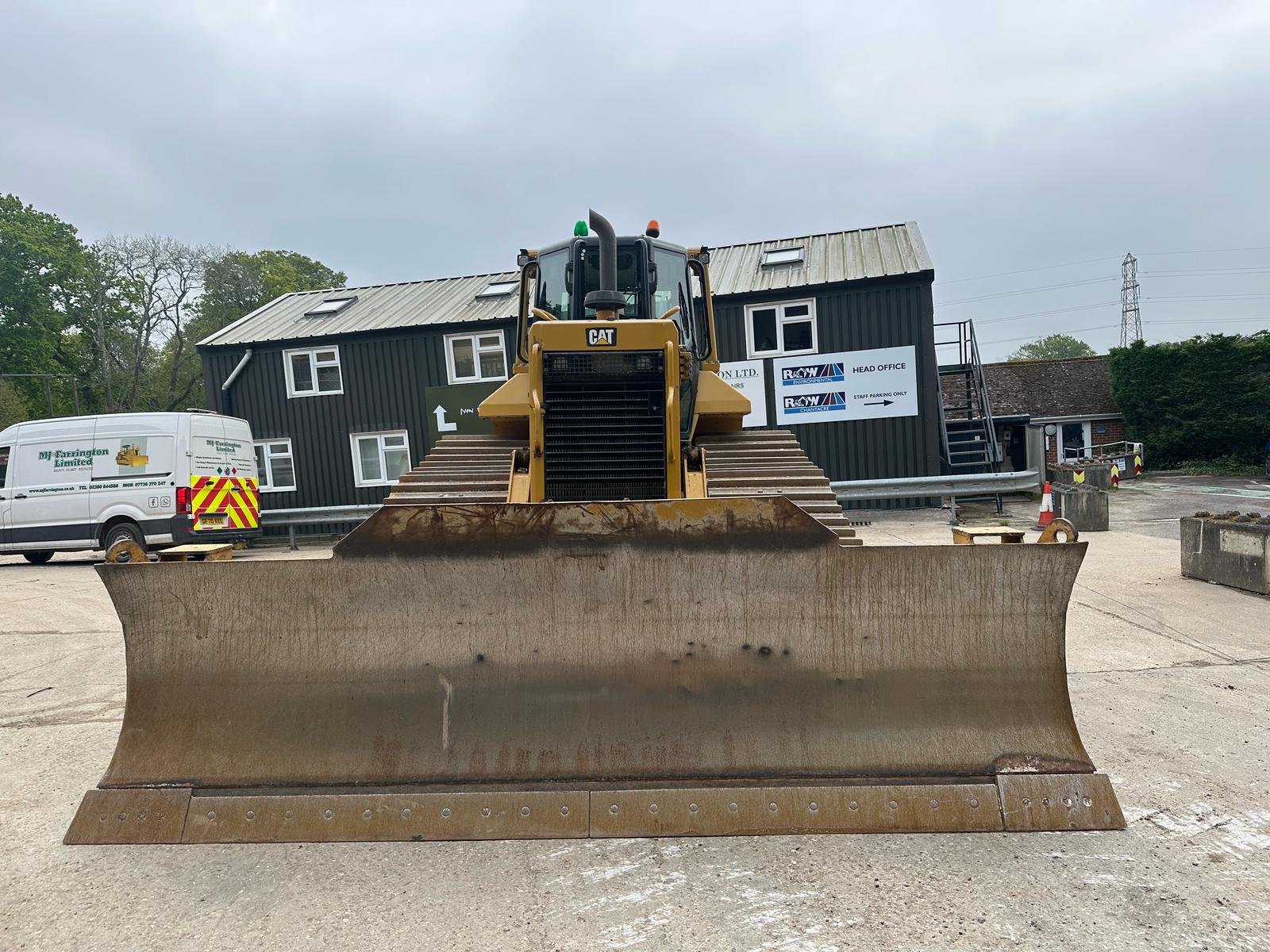

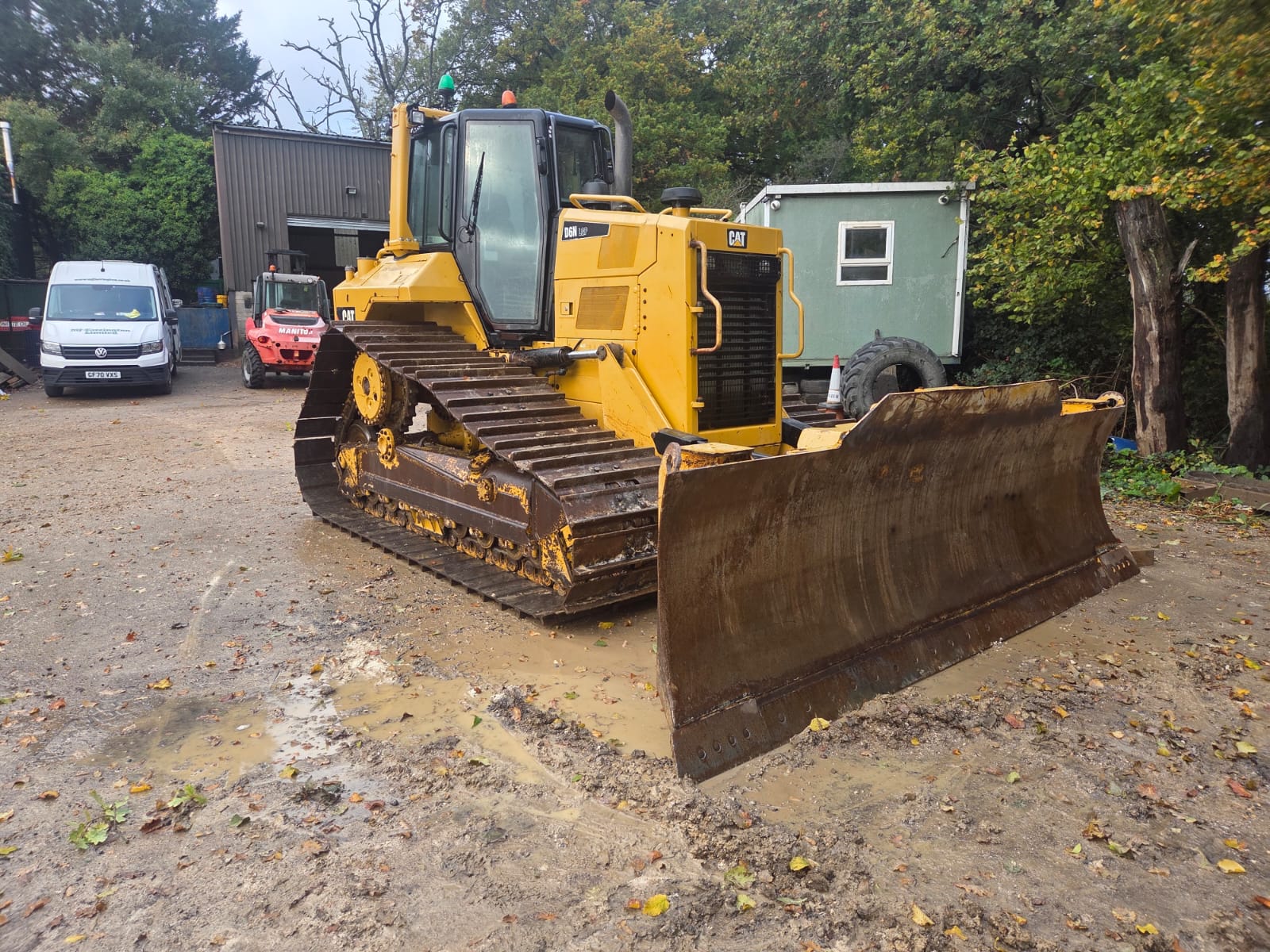

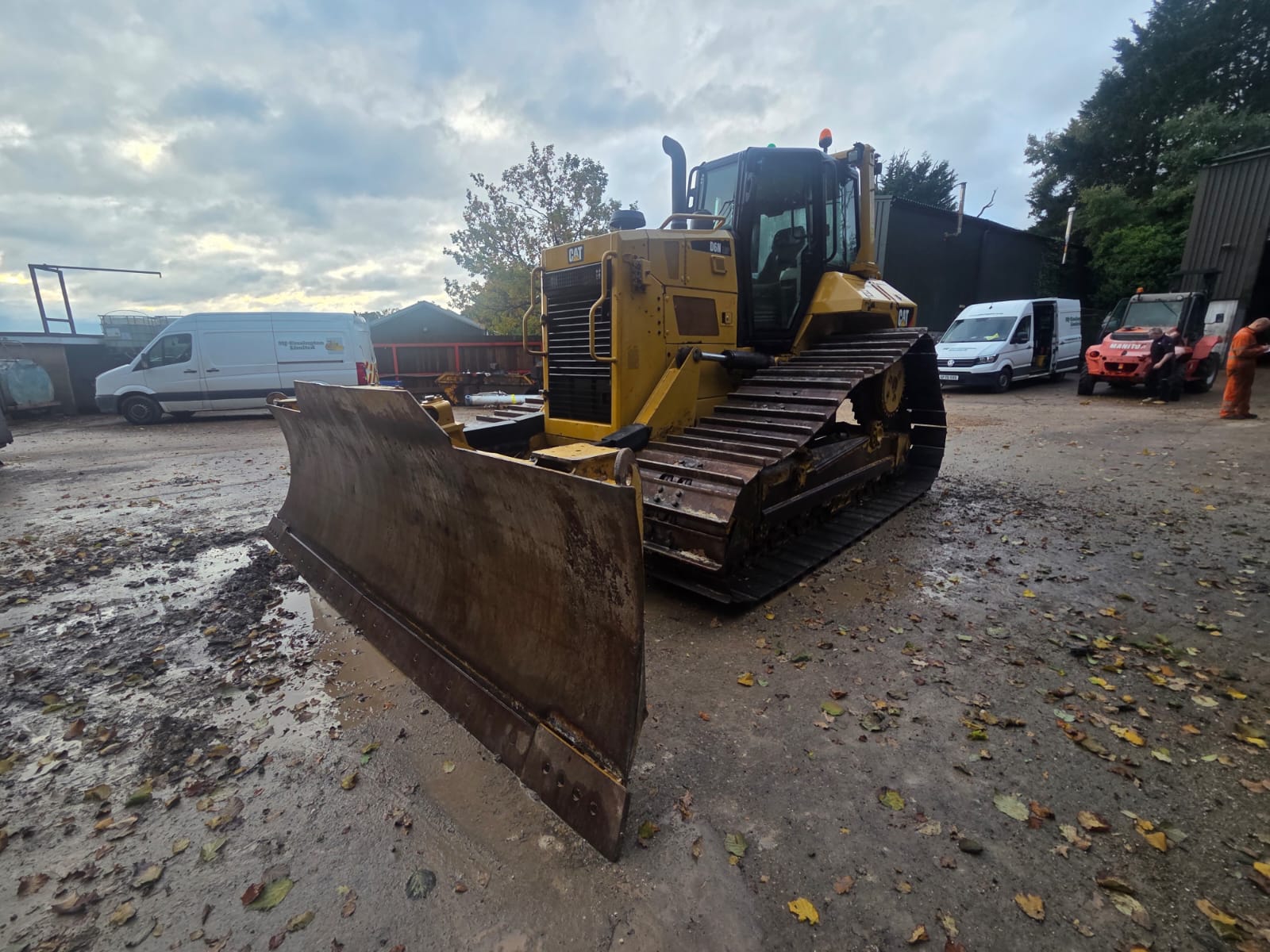

BLADE

Blade type

PAT

Blade width

4080mm

Blade height

1280mm

Main lift rams wear

L/H: 1mm x 2mm, R/H: 2mm x 2-3mm

Pitch ram wear

L/H: 3mm x 5mm, R/H: 3mm x 4mm

Tilt ram wear

L/H: 1mm R/H:1mm

Link bar wear

L/H: 2mm R/H:2mm

C Frame wear

L/H: 2mm, R/H: 3mm

Ball joint wear

12mm

Equaliser bar wear

L/H: 3mm, Mid: 1mm, R/H: 4-5mm

Face / Moldboard

Good thickness, no dents

Spill rack condition

Straight

Cutting edges condition

Good as new, 100%

Have cutting edges been turned?

No

General blade condition

Very decent blade

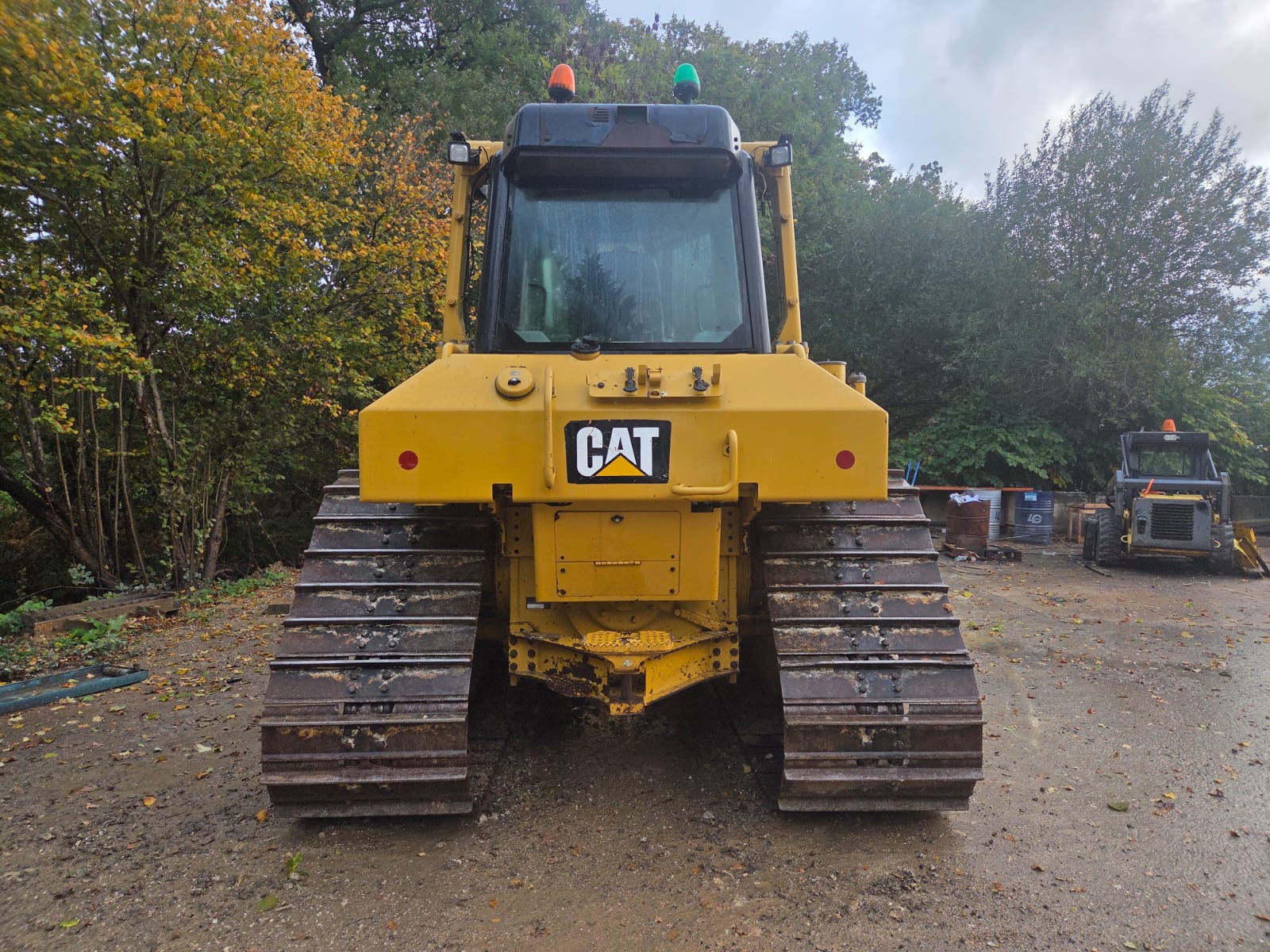

RIPPER

Ripper valve fitted?

Yes

PAINT & DECALS

Any damage to panels

No damage to panels

Paint condition

Good

Condition of decals

To be replaced

DIMENSIONS

Length

Width

Height

Measurements with blade straight

5350mm

4080mm

3350mm

Measurements with blade turned

6210mm

3620mm

3350mm

Measurement from outside to outside of tracks

3000mm

Measurements with blade straight

Length: 5350mm

Width: 4080mm

Height: 3350mm

Measurements with blade turned

Length: 6210mm

Width: 3620mm

Height: 3350mm

Measurement from outside to outside of tracks

Length:

Width: 3000mm

Height:
