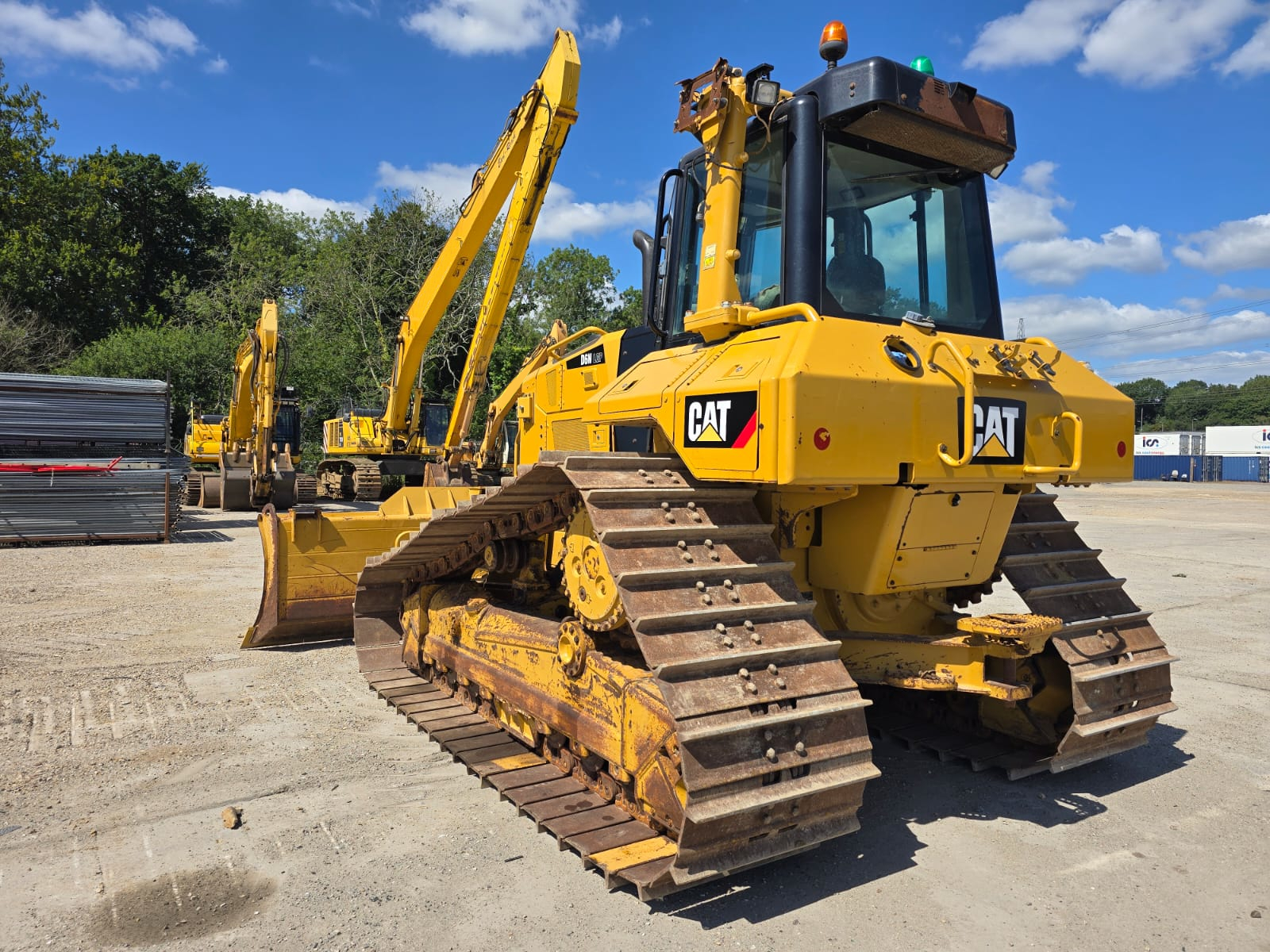

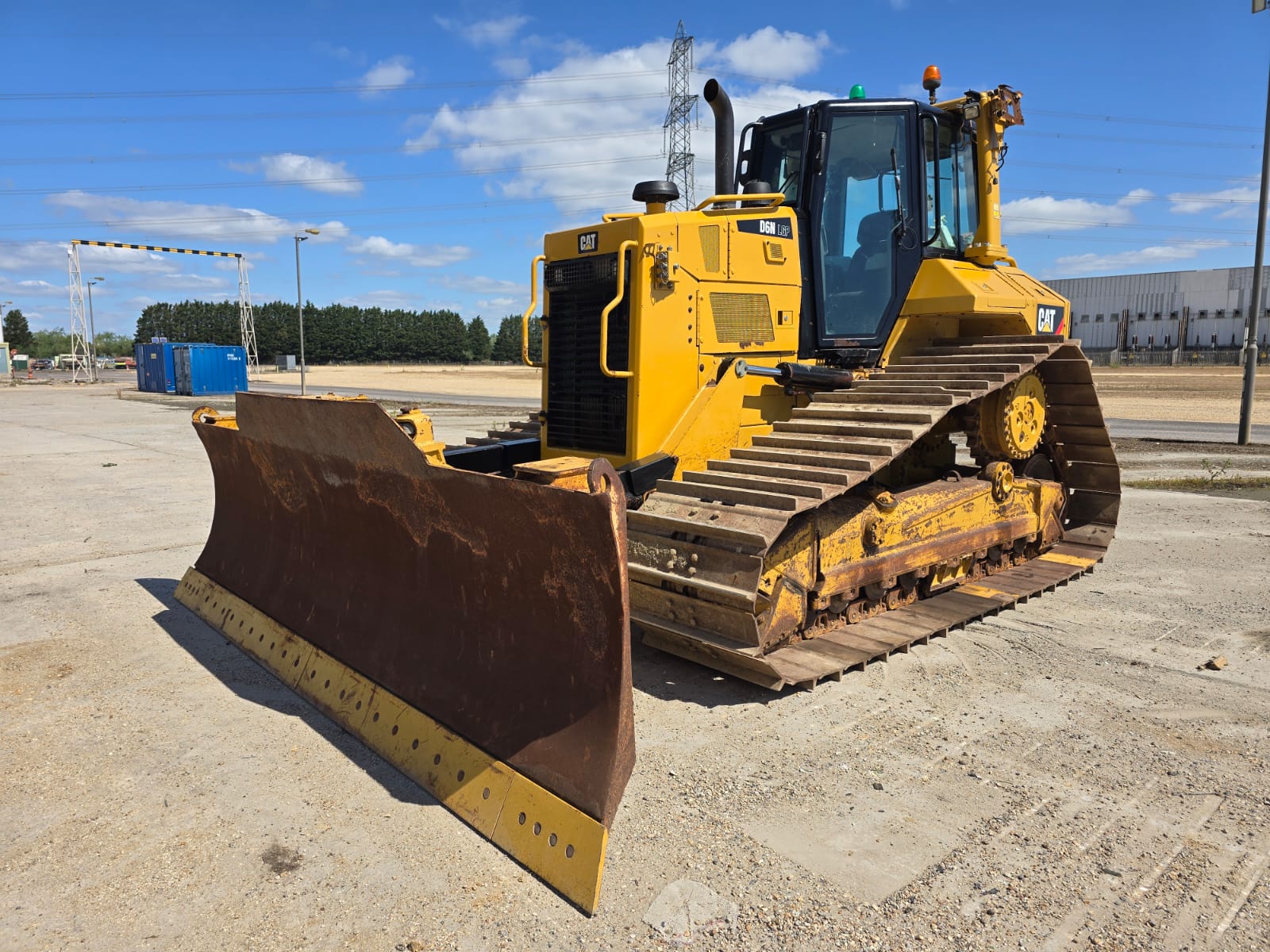

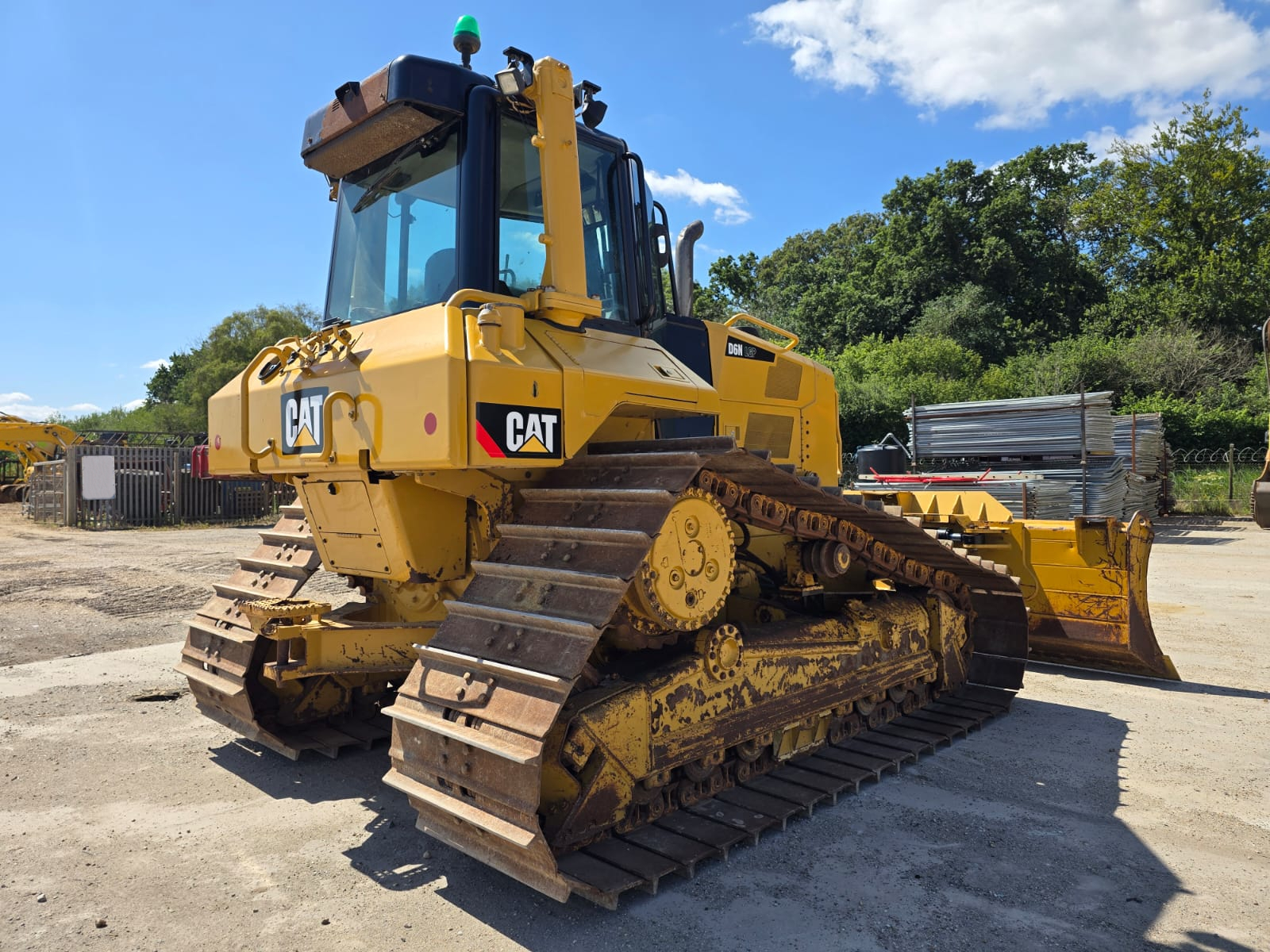

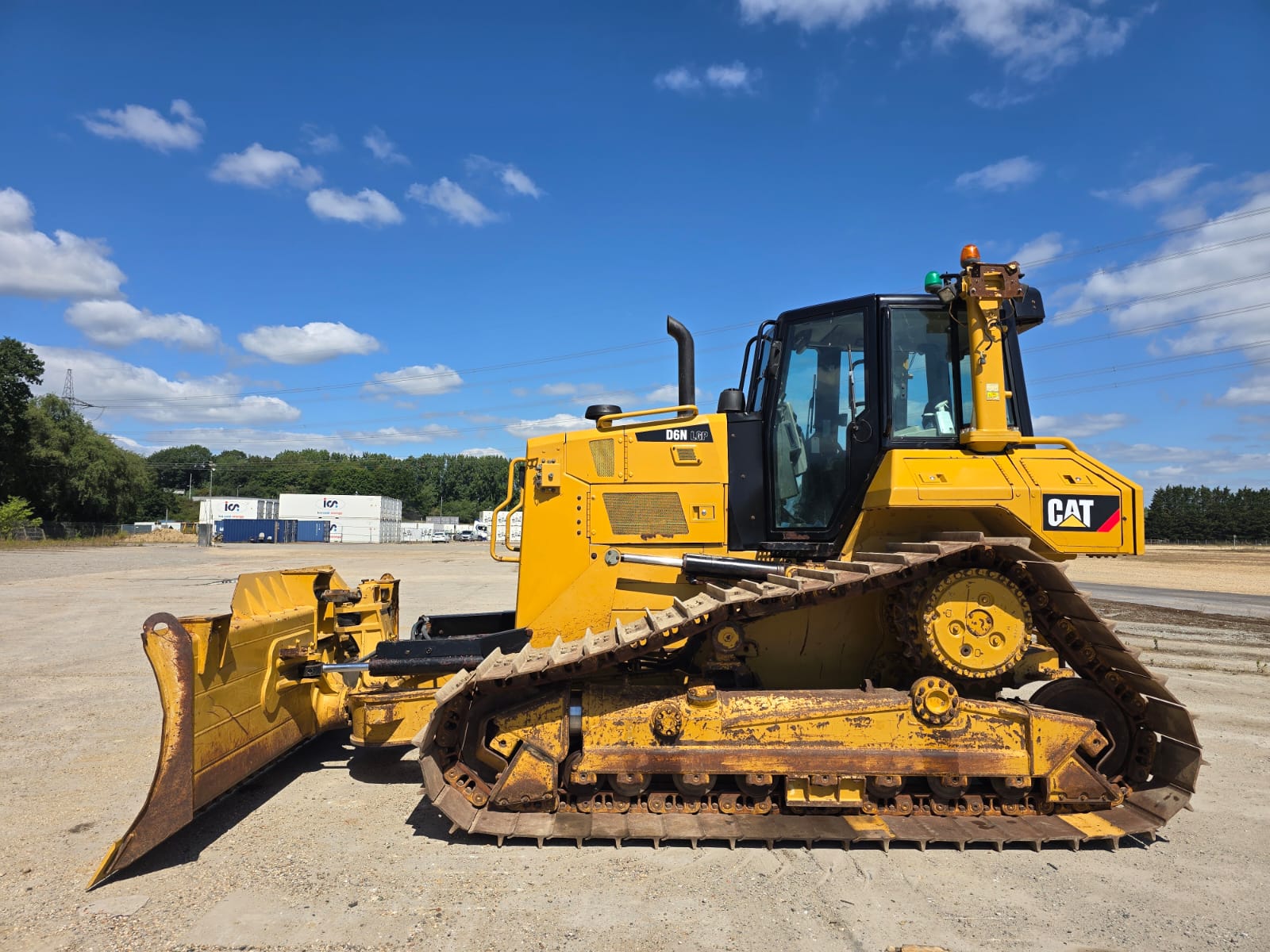

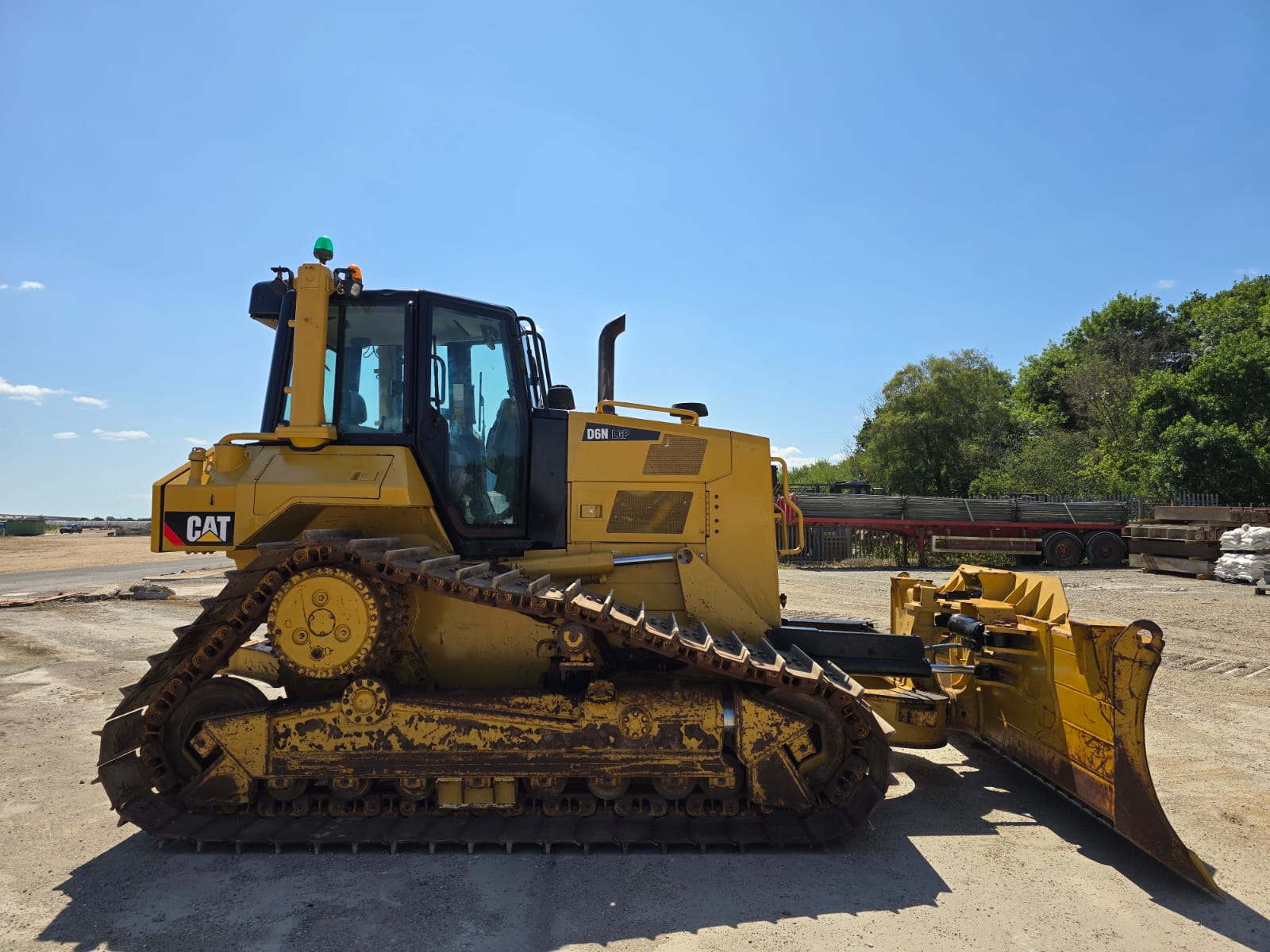

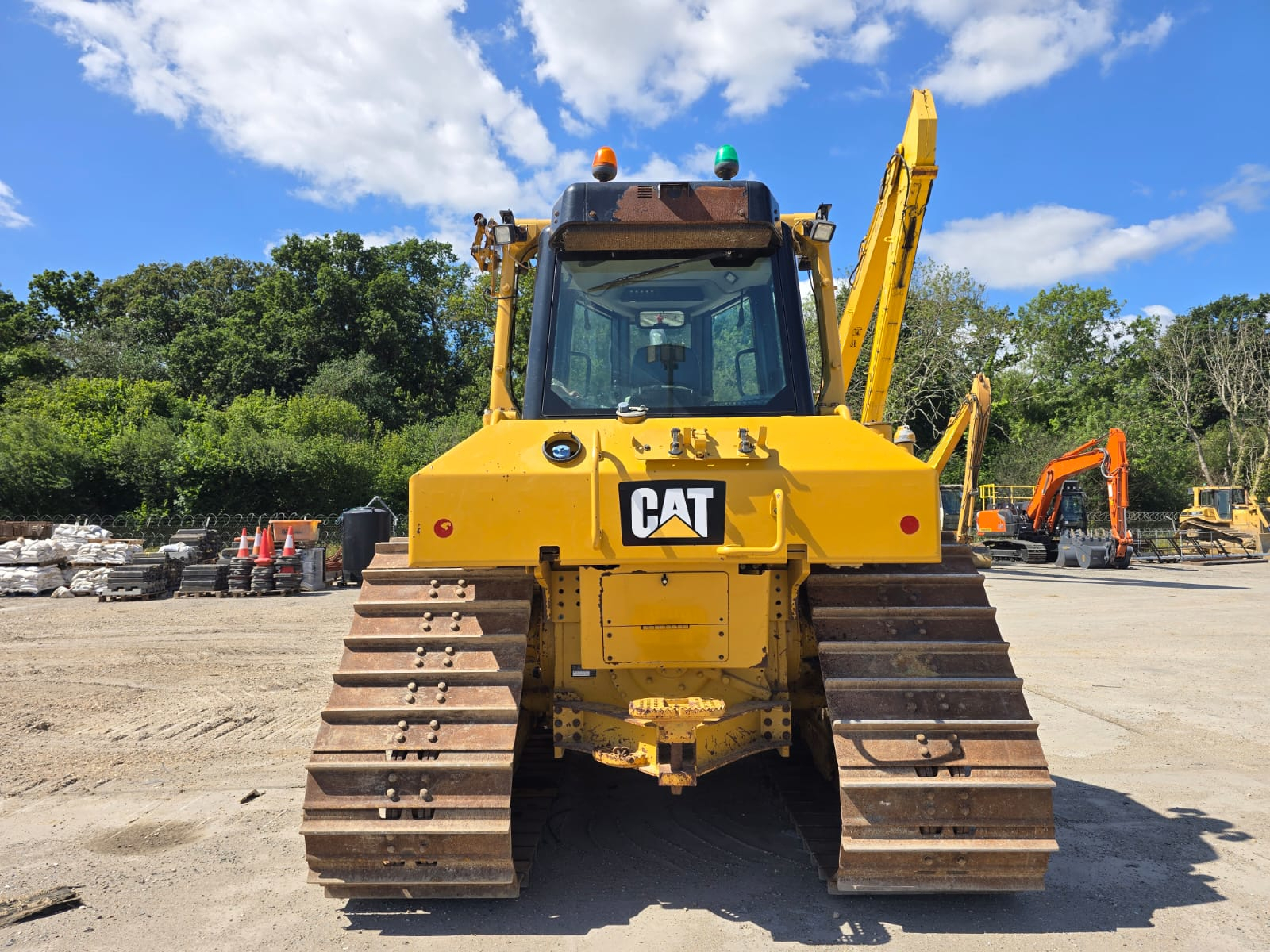

CAT D6N LGP

"

MACHINE KEY DETAILS

Make:
Caterpillar
Model:
D6N LGP
Stock No:
70889
Year:
2018
Hours:
4907
Location:
Southampton
Weight:
17,380 KGS
HP:
170 HP
Enquire Online
Download inspection Report Download Images Download Brochure Get a shipping quote Compare Machine

View Full Inspection Report

ENGINE
Blow by
Minimal to none
Knocking
No knocking
Air cleaners
New
Any smoke
Minimal to none
Any fuel leaks
None visible
General running condition
Runs well, no unwanted noises
TRANSMISSION
Gear change
Good change
Steering
Good steering
Oil leaks
None visible
Is the transmission noisy?
No
Torque converter
No juddering, excess vibration
Controls
Good controls
General running condition
Moves well
UNDERCARRIAGE
Shoe width
840mm
Shoe height
50mm, 90%
Shoes - any wear in trailing edge
Minimal
Rail height
120mm, 95%
Any signs of link failure
No
Average diameter of pins and bushings
64mm, 95%
Have pins been turned on chains?
No
Sprockets
74mm Gape, 20mm Tips, 90%
IDLERS - UNDERCARRIAGE
Left side front idler
50mm x 25mm, 70%
Left side rear idler
55mm x 25mm, 80%
Right side rear idler
55mm x 25mm, 80%
Right side front idler
50mm x 25mm, 70%
TOP ROLLERS - UNDERCARRIAGE
Left side roller
169mm x 168mm, 75%
Right side roller
161mm x 163mm, 50%
BOTTOM ROLLERS - UNDERCARRIAGE
Roller 1
180mm x 18mm, 70%
Roller 2
184mm x 186mm, 70%
Roller 3
184mm x 184mm, 70%
Roller 4
184mm x 184mm, 70%
Roller 5
Visual only, 70%
Roller 6
185mm x 184mm, 70%
Roller 7
185mm x 185mm, 70%
Roller 8
Visual only, 70%
CAB
Cab mounts - any wear?
No
Any wiring for laser system?
Yes
Back up alarm
Loud and clear
Battery isolator switch
Manual fitted
Lights
All working
Wipers
All working
Heater
Good heat
A/C
Nice and cold
Seat condition
Good
Cladding condition
Average
Floor mat condition
Average
Mirrors
Rear view only
Horn
Loud and clear
Cab mounts
Good
Cab glass condition
Good condition
Cab glass have any cracks
No damage / cracks
Any perspex fitted
None fitted
Steps and grab handles
All secure
Blade
Blade type
PAT
Blade width
4060mm
Blade height
1270mm including spill rack

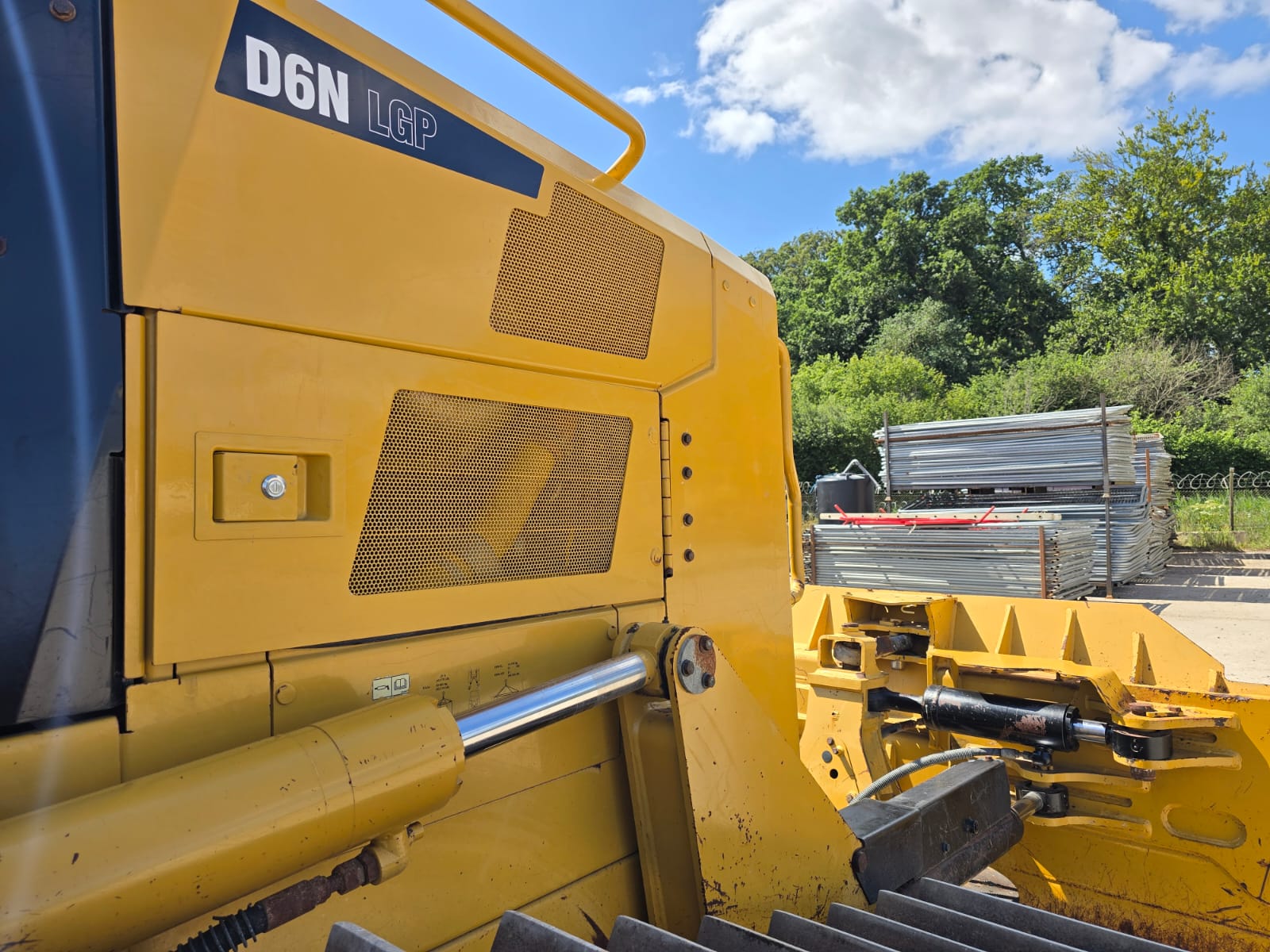

Main lift rams, wear
L/H: 2mm x 2mm, R/H: 1mm x 0mm
Pitch ram, wear
L/H: 2mm x 1mm, R/H: 2mm x 1mm
Tilt ram, wear
2mm play
Link ram, wear
2mm x 2mm
Ball joint, wear
6-7mm play
C Frame wear
15mm x 15mm
Equaliser bar, wear
4mm x 5-7mm x 4mm
Face / Moldboard
In good shape
Spill rack condition
Undamaged
Cutting edges condition
New
Have cutting edges been turned
New
General blade condition
Decent blade
PAINT & DECALS
Any damage to panels
Engine side panel
Paint condition
Average
Condition of decals
To Be Replaced.
DIMENSIONS
Length
Width
Height
Measurements with blade straight
5460mm
4060mm
3246mm
Measurements with blade turned
6210mm
3650mm
3246mm
Measurement from outside to outside of tracks
30005mm
Measurements with blade straight
Length: 5460mm
Width: 4060mm
Height: 3246mm
Measurements with blade turned
Length: 6210mm
Width: 3650mm
Height: 3246mm
Measurement from outside to outside of tracks
Length:
Width: 30005mm
Height:
