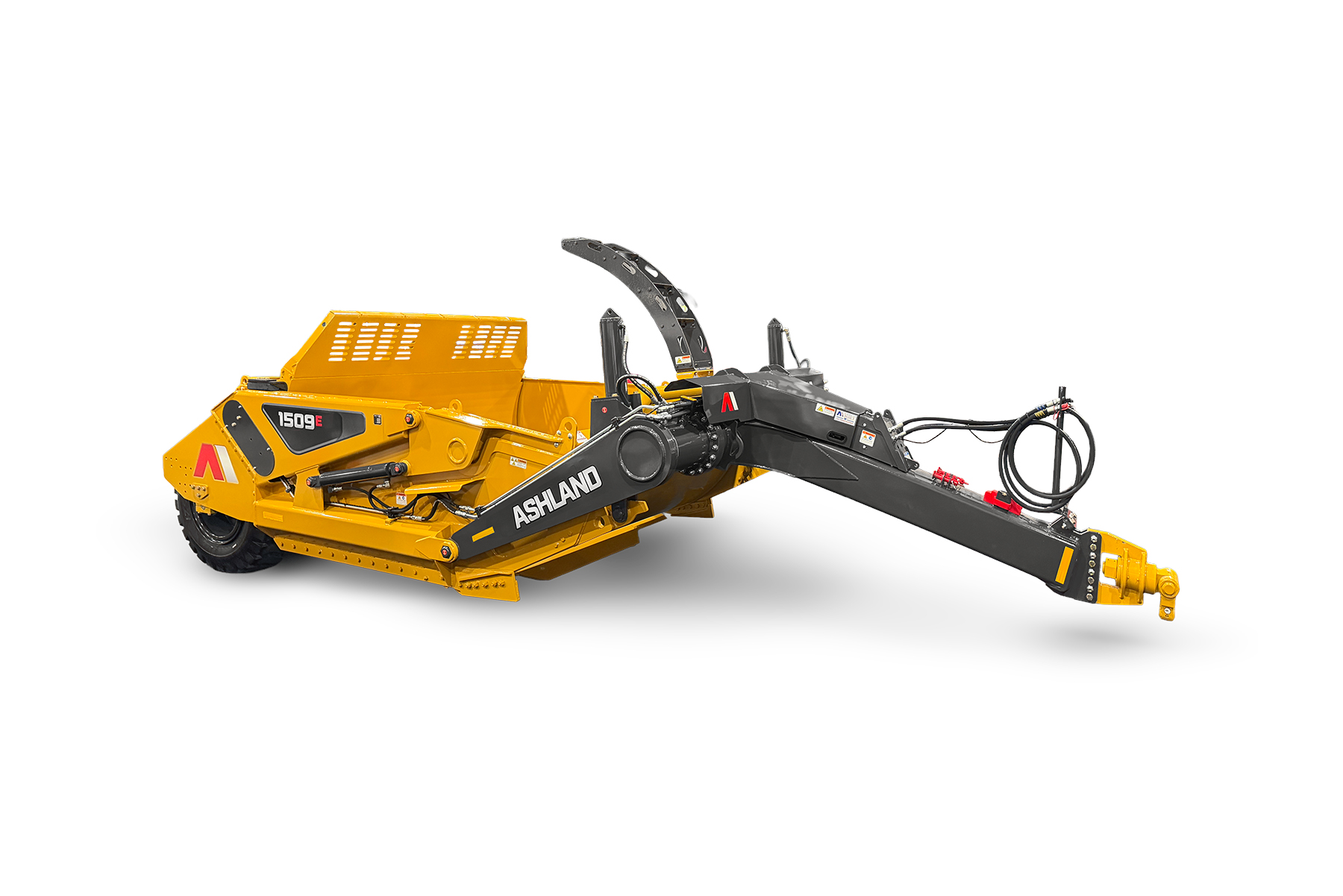

The Ashland 1509E is our next-generation scraper delivering proven performance in a versatile, transport friendly package. As the largest scraper available on a direct-mount ag hitch, it provides exceptional capacity and strength while also providing ease of use. Multiple tire, blade, and hitch configurations allow the 1509E to match a wide range of tractors and applications, with an ideal width for building and cleaning field ditches. Whether used seasonally or put to work every day, it’s a scraper designed to handle more and last longer.
| Heaped Capacity (ISO) | 11.6 m3 |
| Recommended Power Unit | 250 - 525 HP |
| Width of Cut | 274.3 cm |
| Gate Opening | 175.3 cm |
| Ground Clearance | 49.5 cm |
| Depth of Cut | 22.6 cm |
| Ejector Cylinder (1) | 12.7 cm x 152.4 cm |
| Gate Cylinder (2) | 10.2 cm x 53.3 cm |
| Lift Cylinder (2) | 12.7 cm x 51.4 cm |
| Tires Standard Rear (2) | 23.5 R25 Radial (2) |
| Weight Transfer | 26% Tractor - 74% Scraper |
| Lighting System | Standard |
| Laser/GPS Mount | Standard |
| Push Bumper | Standard |
