Hitch System:
The direct mount scraper 360-degree swivel hitch is closely coupled to the specialized tractor drawbar, which provides better weight distribution between the tractor front and rear axles.
!["](https://ik.imagekit.io/rc123/redbull/wp-content/uploads/2021/06/2411E-1.jpg")
Production Cycles
25.57 Average haul road speeds (KPH)
75 Loading and unloading times in seconds (Average)
1000 Total distance of travel in metres (Round trip)
90% Load factor efficiency
90% Availability Factor
Operating Results
16.51 Cubic metres per cycle
3.60 Cycle time in minutes
16.69 Cycles per hour
248.0 Cubic metres per tach hour
446,430 Cubic metres per year
Production - times can vary based on the materials and conditions

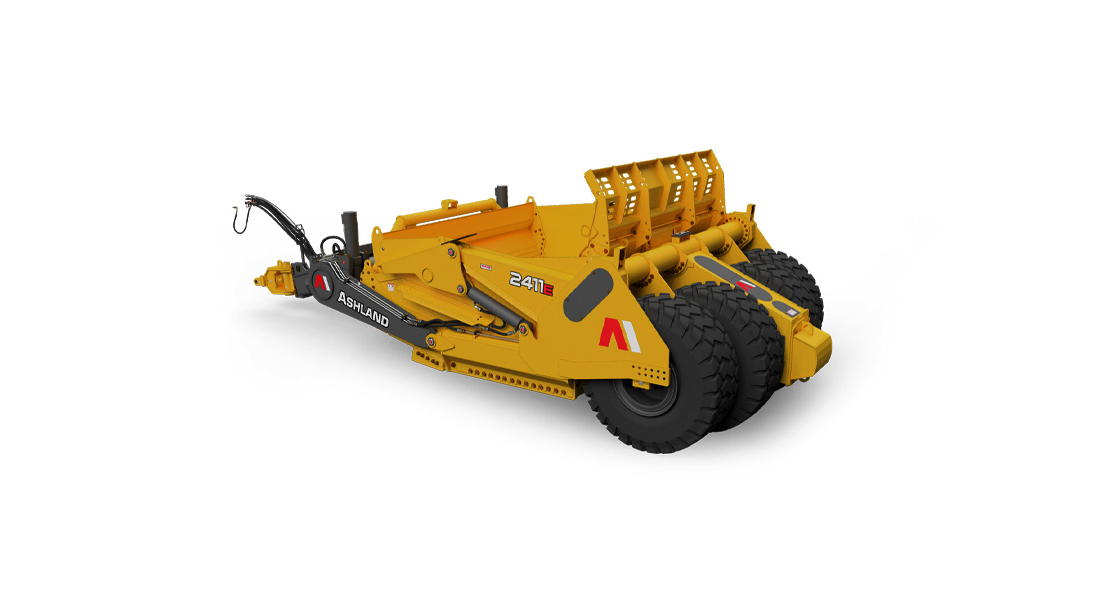

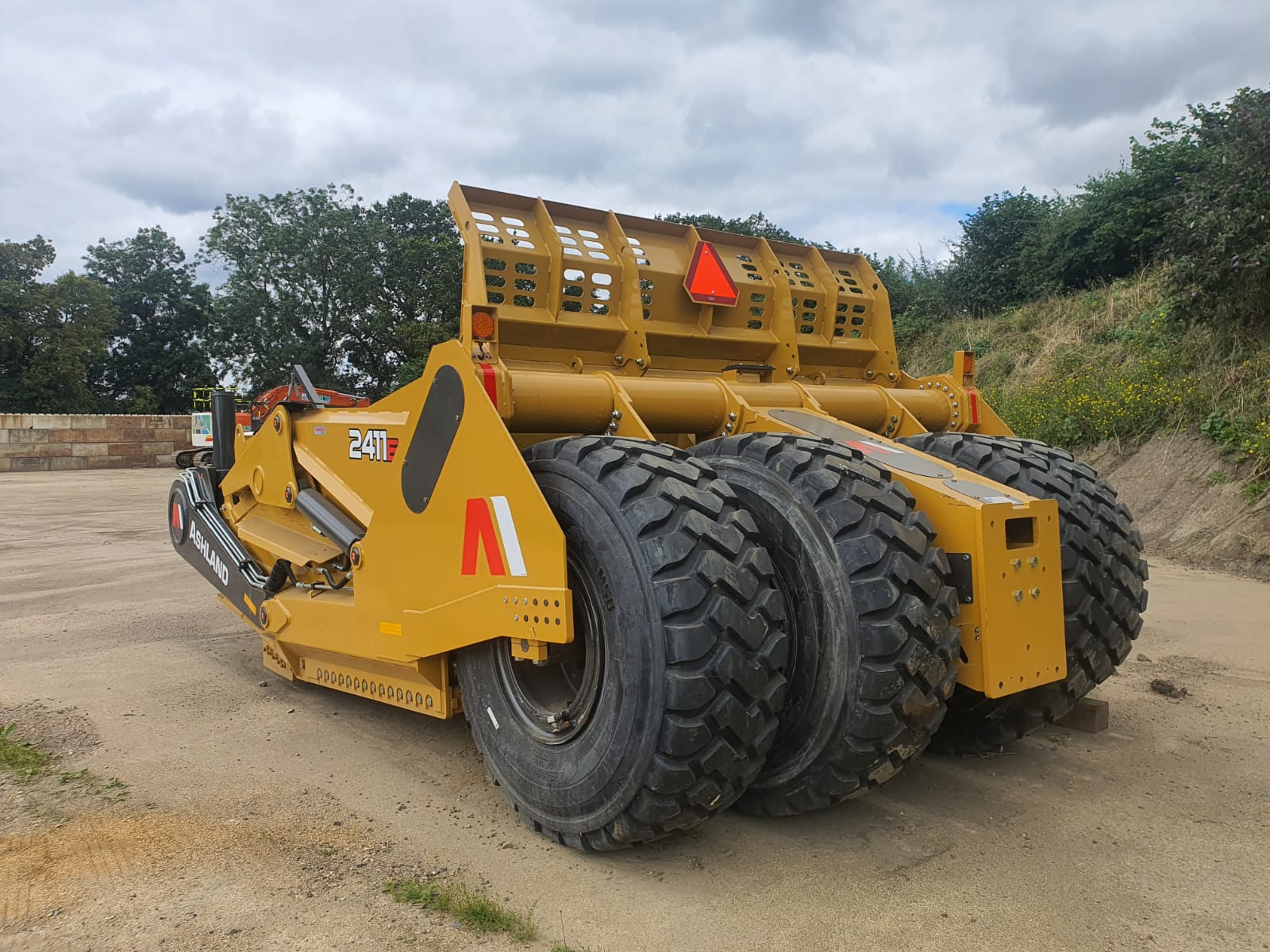

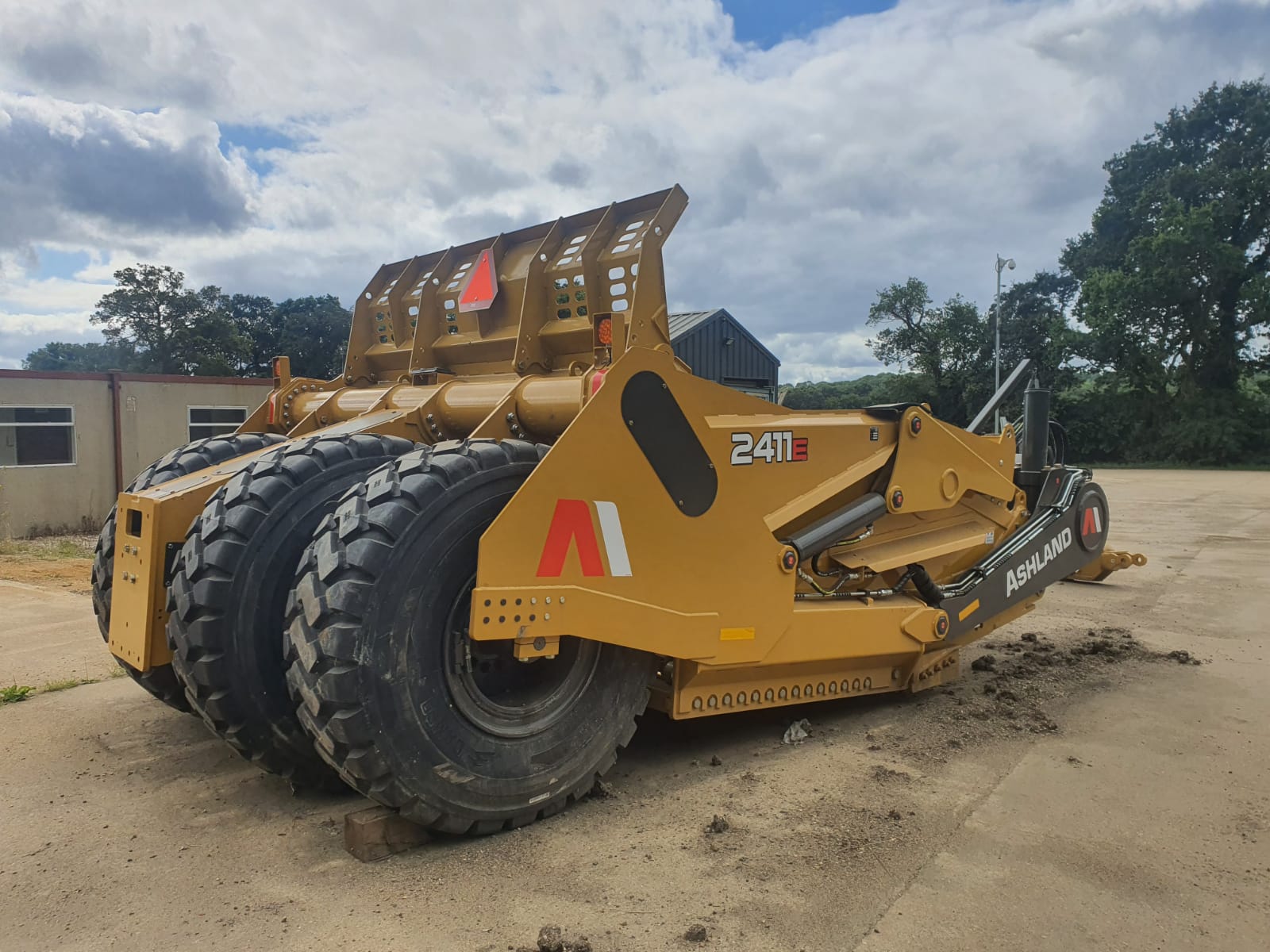

THE 2411E UNDER 12FT. ROAD TRANSPORT

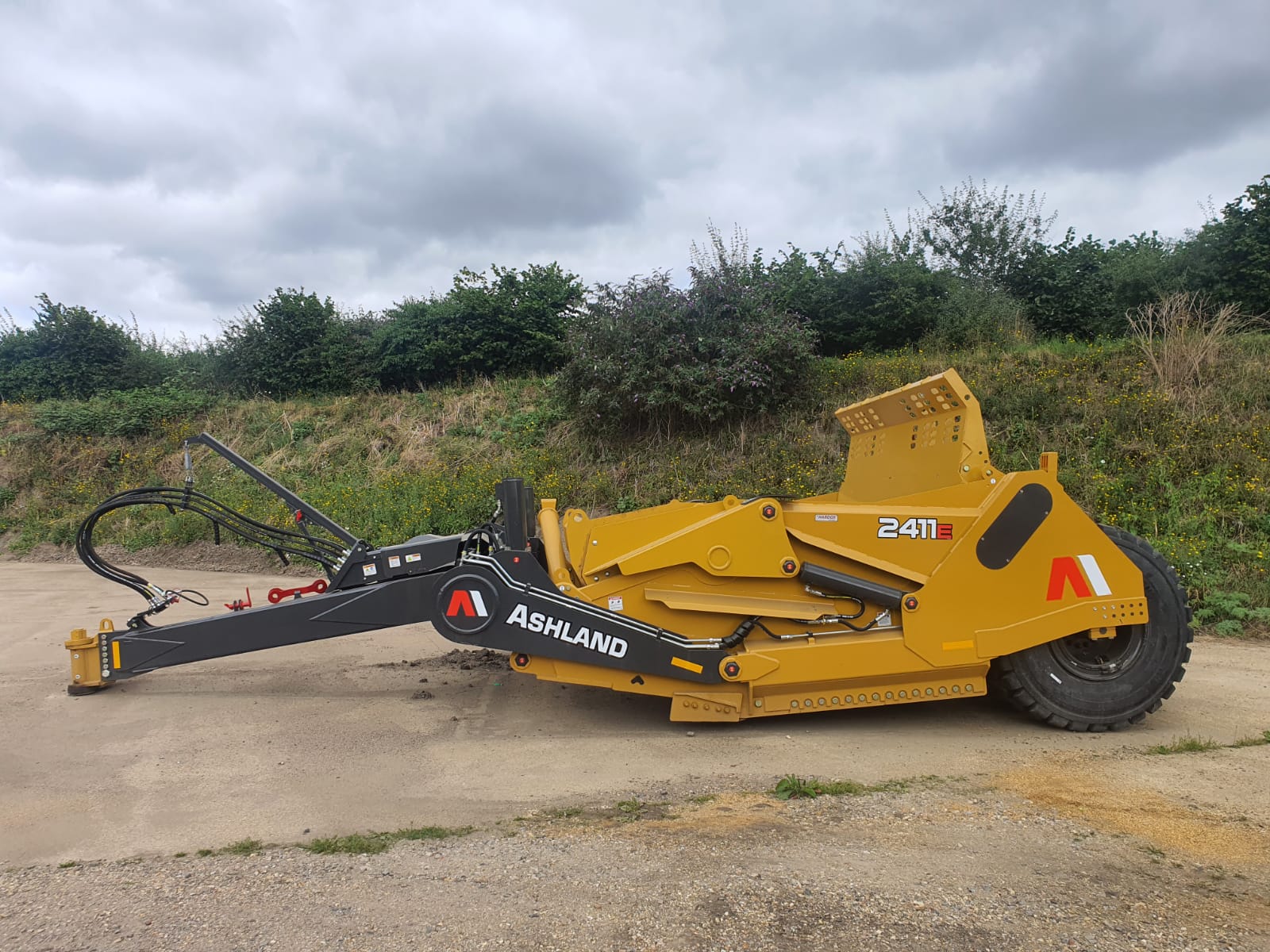

The 2411E is the smallest model available in the large format next generation scraper. This unit has the same genetic DNA as the larger models in a 24 cu.yd. format. – it was built by engineers and skilled craftsman who have spent their lives working in the dirt searching for solutions to allow you to Do More. The 2411E is ideal for customers who work in high density areas where trucking over width loads is very costly. The 2411E is under 12ft. road transport reducing your mobilization cost from costly escorts or permits.
The direct mount scraper 360-degree swivel hitch is closely coupled to the specialized tractor drawbar, which provides better weight distribution between the tractor front and rear axles.

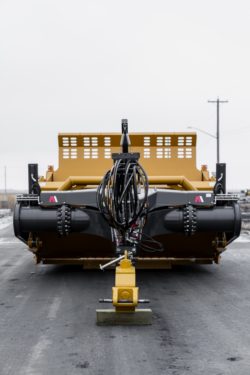

The weight of 3/4″ front hydraulic connecting hoses is supported by a spring-loaded hose carrier, providing an ideal coupler connection between the tractor and the scraper. This reduces premature coupler wear and accidental coupler “pop-out” from hose weight or binding while operating.
A thick rubber pad keeps the couples off the ground when the scraper is not in use.

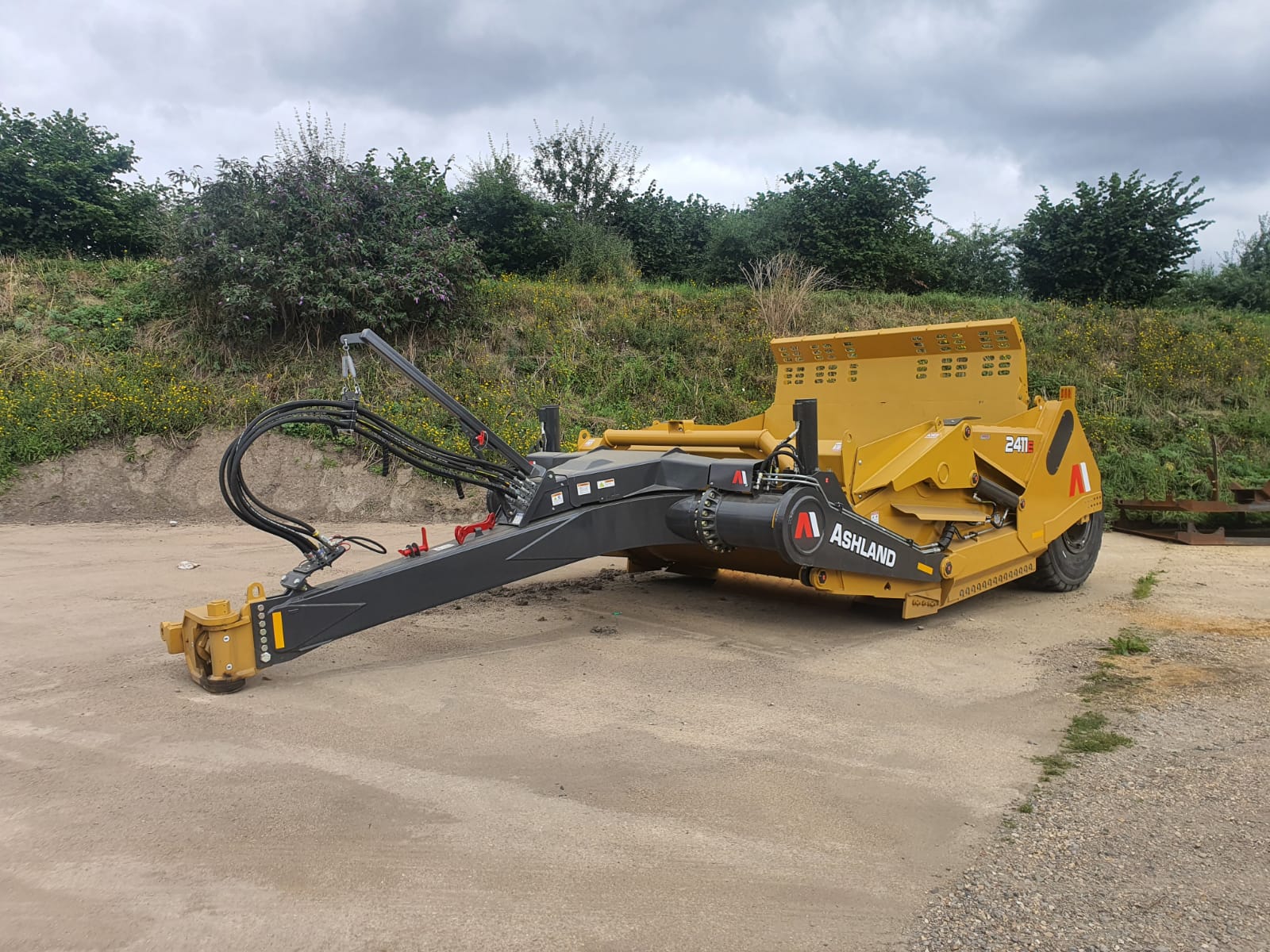

The backbone of the front section begins the heavy wall 16″ pipe. This robust front section pipe reduces the high stresses experienced while loading, transporting, and lifting fully loaded scrapers. Large cast steel flanges are applied to the middle of the front section pipe provide commonality of parts between multiple models. This offers more flexibility and increased efficiencies at the factory; more importantly, it gives the end-user excellent value for the dollar.
The combination of 2411E spacious 74.25″ front opening and the 24.69″ ground clearance, the material can exit the scraper unobstructed, which reduces double ejecting thicker material. Allowing the operator to place material exactly where it is needed, which increases your daily production.
We lowered the connecting point of the front section trailing arms to the scraper bowl down near the blade to provide easier pull while reducing the duck-walking while loading. Allowing the operator to maintain a higher loading speed, more constant tractor RPM, which translates to larger payloads.
The 2411E requires three hydraulic remotes to operate the machine. One circuit controls the lift cylinders. The second circuit controls the apron and the third circuit operated the ejector system. This allows the operator full control of all the functions independently. If you order 2411E front unit for tandem scraper operation the tractor will need six hydraulic remotes.

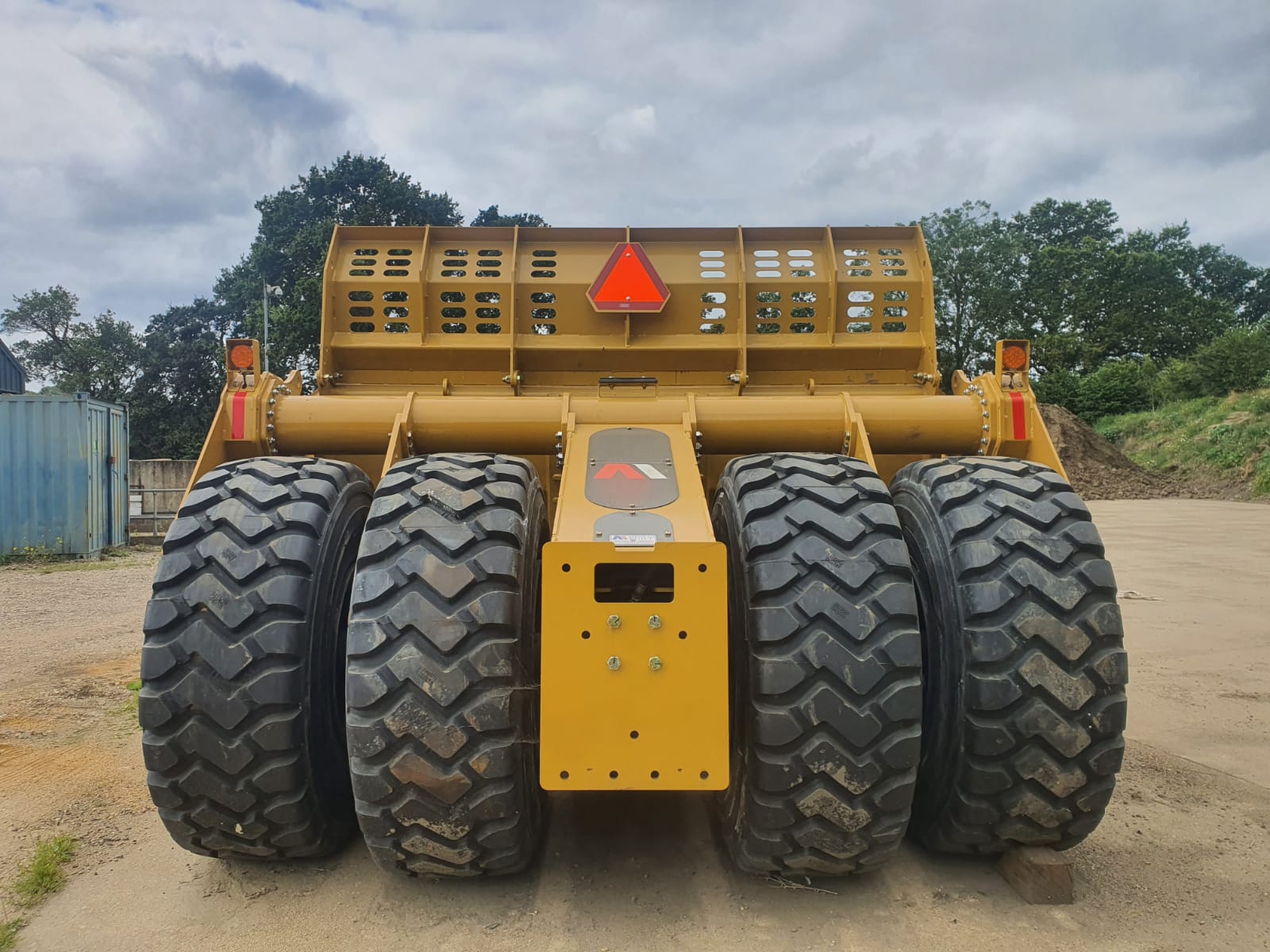

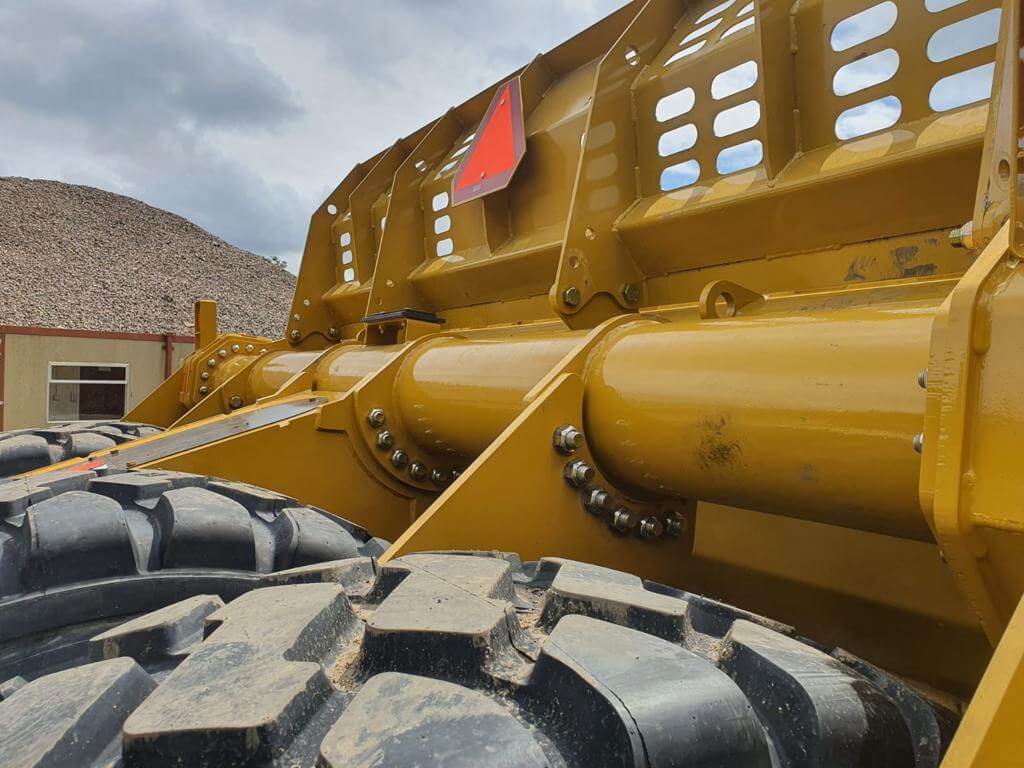

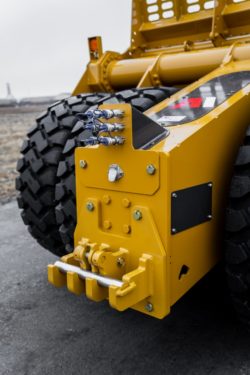

The multiple holes within the rear frame enable the operator to position rear axles in numerous positions. Select to place all the tires to be “in-line” for increased compaction or “offset” for better floatation and less mud build-up. So, regardless of your soil condition, there is a tire package available to keep you floating on the soil and moving forward.

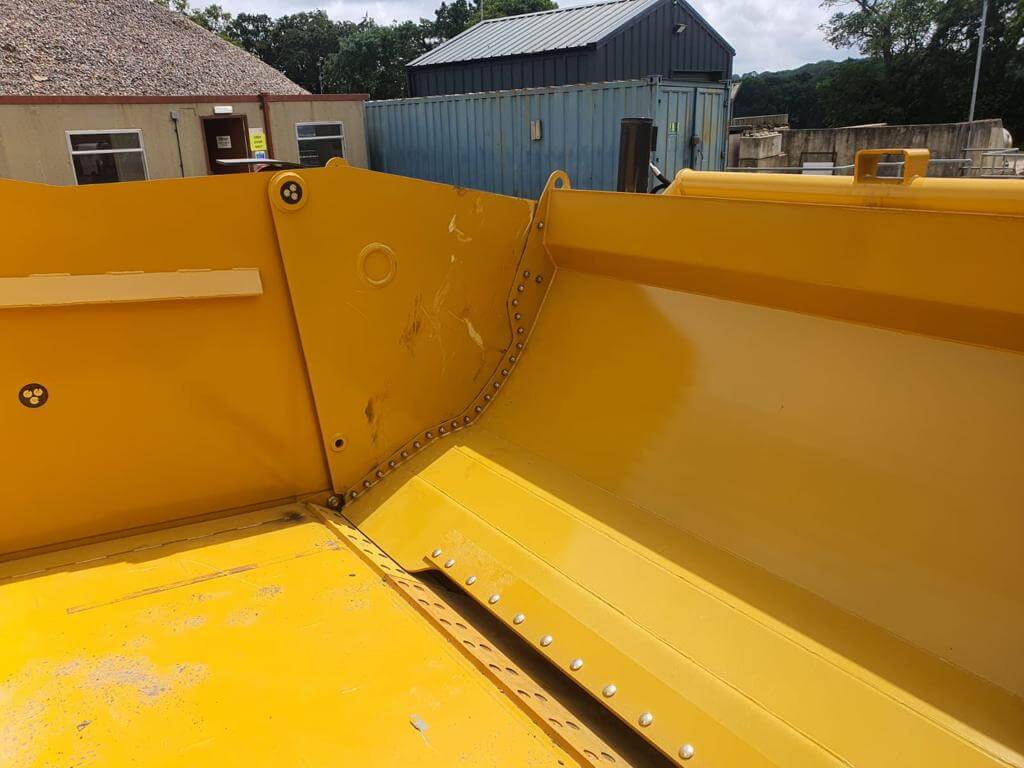

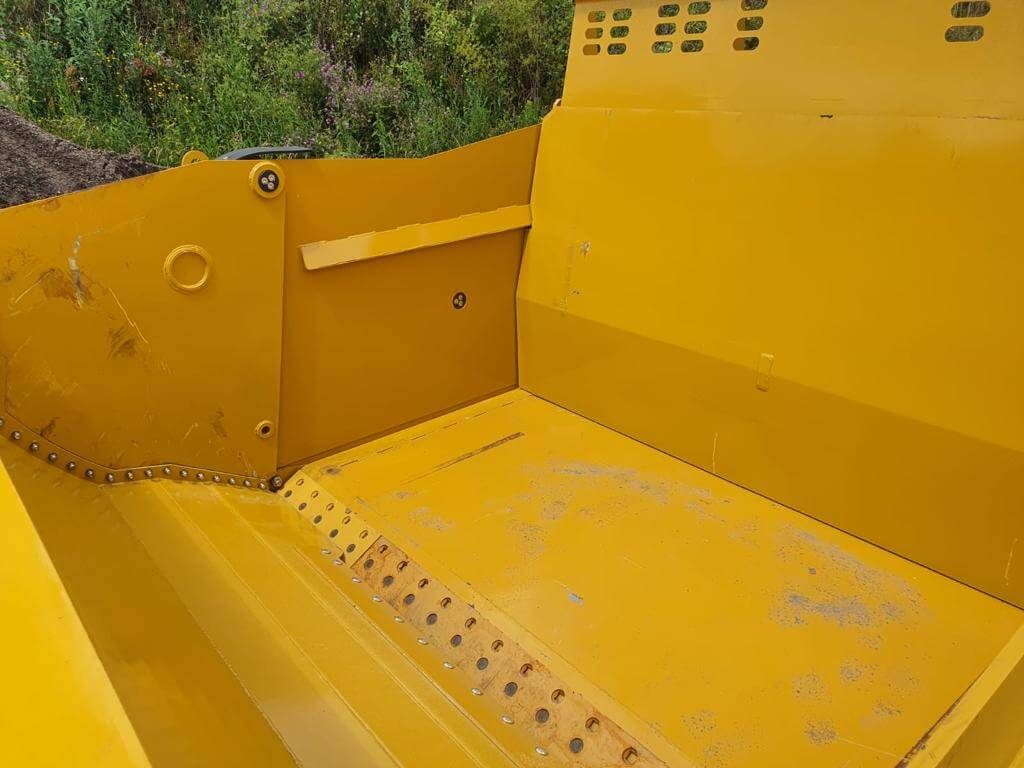

Daily maintenance is short work, whereas there is only six daily grease points located on the front hitch. The ejector wall is guided with large plastic blocks, and all the pivot joints, cylinder pins, and floor rollers utilize oversized pins with self-lubricating bushings.
CAPACITY, HEAPED: (ISO 6485) 24.8 CU. YD. / 19 M3
CAPACITY STRUCK: (ISO 6485) 15.7 CU. YD. / 12M3
REQUIRED HP AG TRACTOR: 450+
REQUIRED HP DOZER: 225+
WIDTH OF CUT: 11 FT 0.25” / 3.36 M
APRON CLEARANCE: 6 FT 2.25” / 1.89 M
DEPTH OF CUT: 7.61” / 19.3 CM
DEPTH OF SPREAD: 0 – 24.69” / 0-62.7 CM
GROUND CLEARANCE AT BLADE: 24.69” / 62.7 CM
PUSHOFF CYLINDER (1): 5.5” X 54.5” / 14 X 138.4 CM
APRON CYLINDER (2): 5” X 22” / 12.7 X 55.9 CM
LIFT CYLINDER (2): 6” X 24.5” / 15.2 X 62.2 CM
TIRES: (STD. REAR (4) 23.5 X 25 RADIAL
OVERALL WIDTH: 11 FT 11” / 3.65 M
OVERALL LENGTH: 31 FT 6″ / 9.6 M (W/O PUSHBAR OR HITCH)
ADD 12″ / 30 CM FOR PUSHBAR – ADD 9.5″ / 24 CM FOR QUICK HITCH
OVERALL HEIGHT: 9 FT 3” / 2.82 M
WEIGHT: 15.7 TONS / 14,283 KGS
LIGHTING SYSTEM: STANDARD
LASER/GPS BRACKET: STANDARD
TANDEM CONFIGURATION: OPTIONAL
PUSHBAR EXTENSION: OPTIONAL
