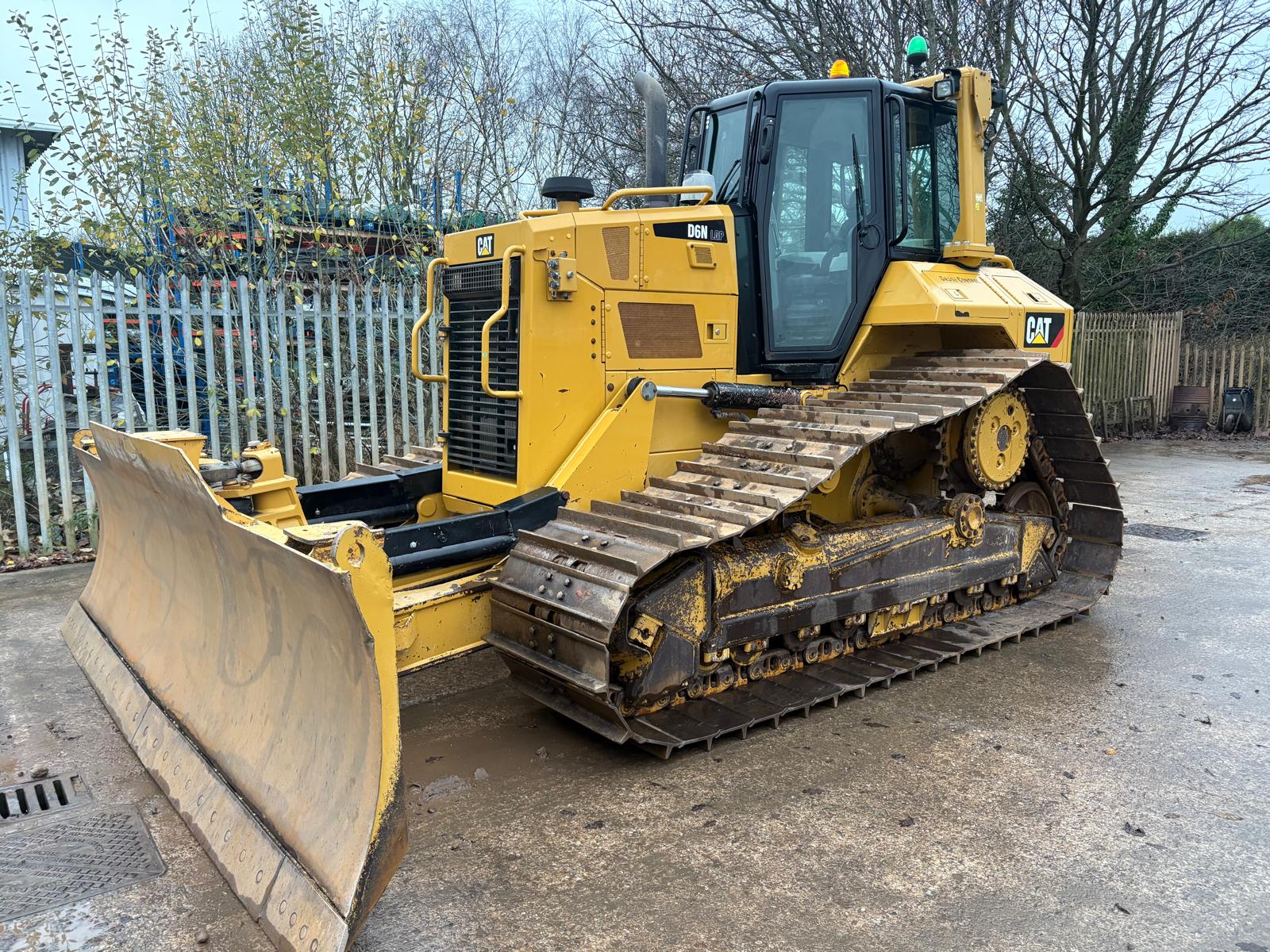

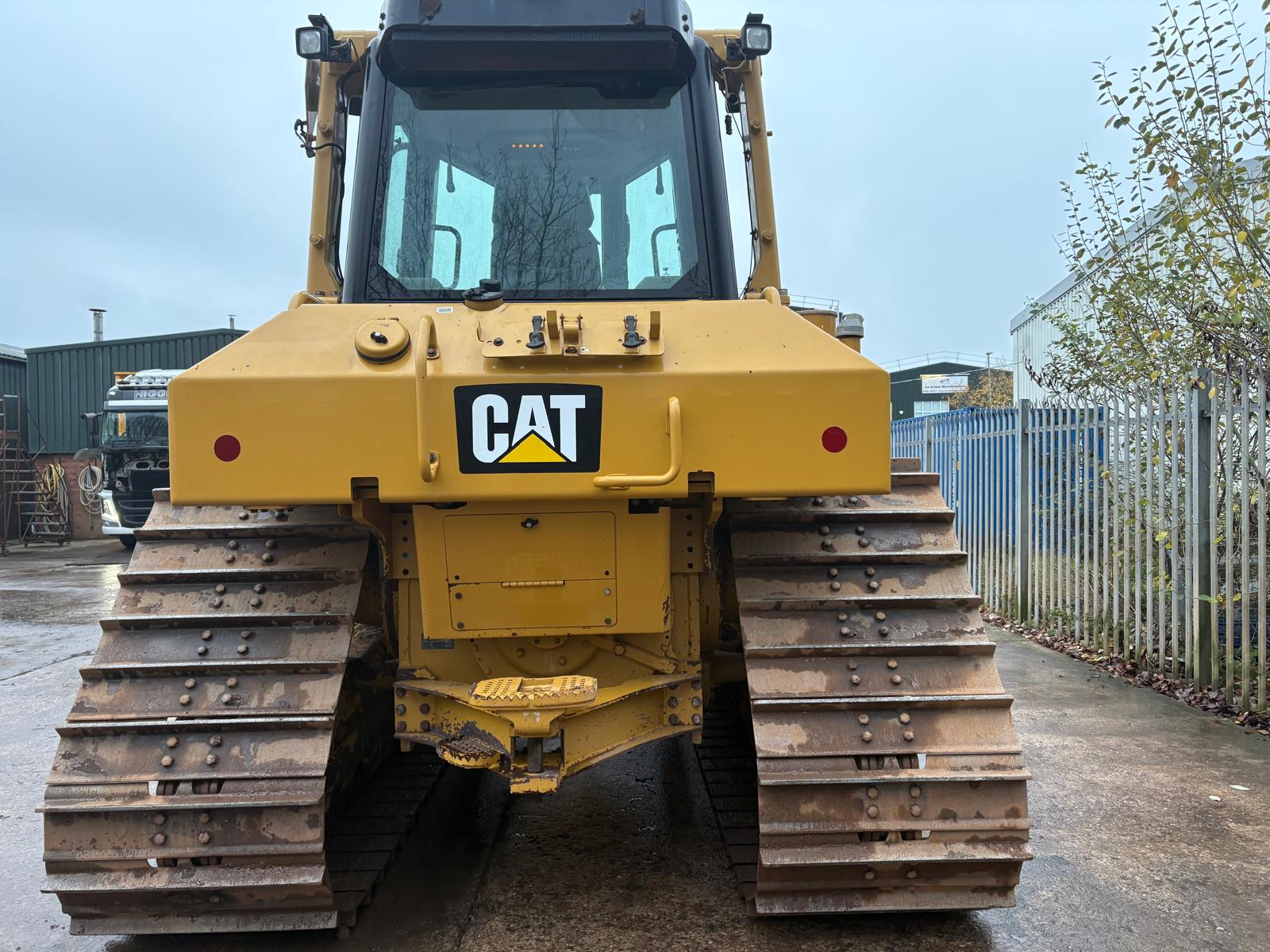

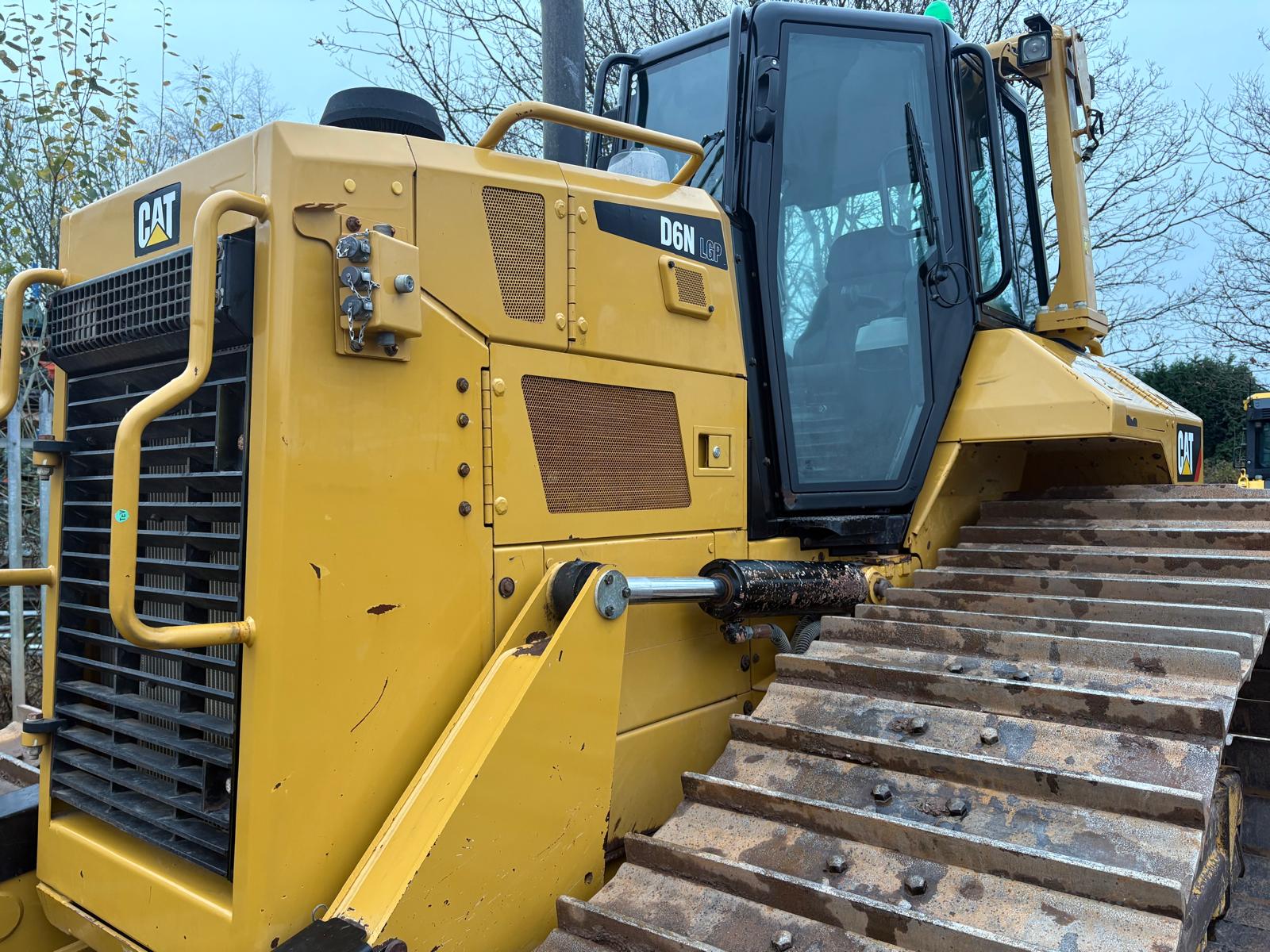

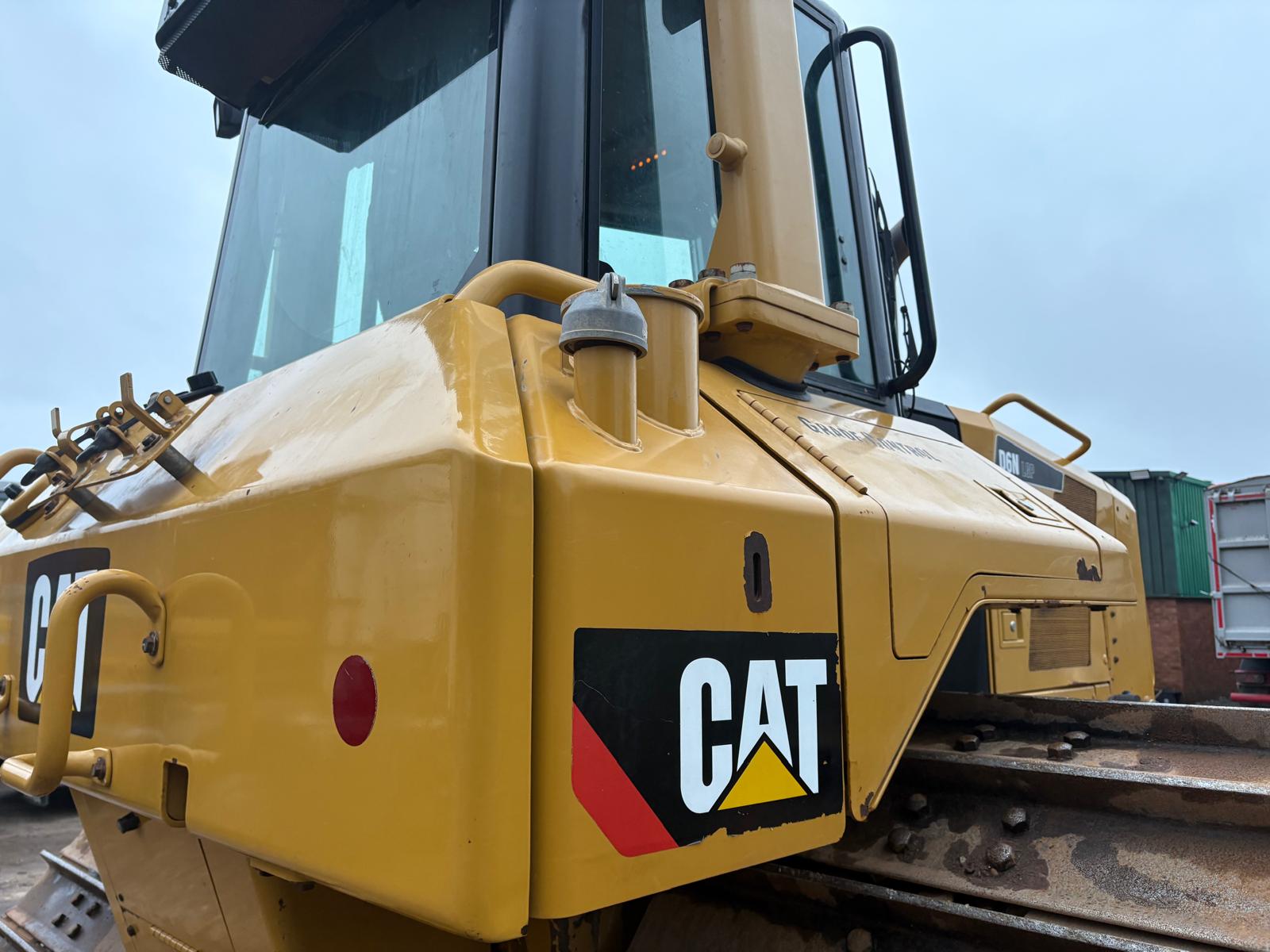

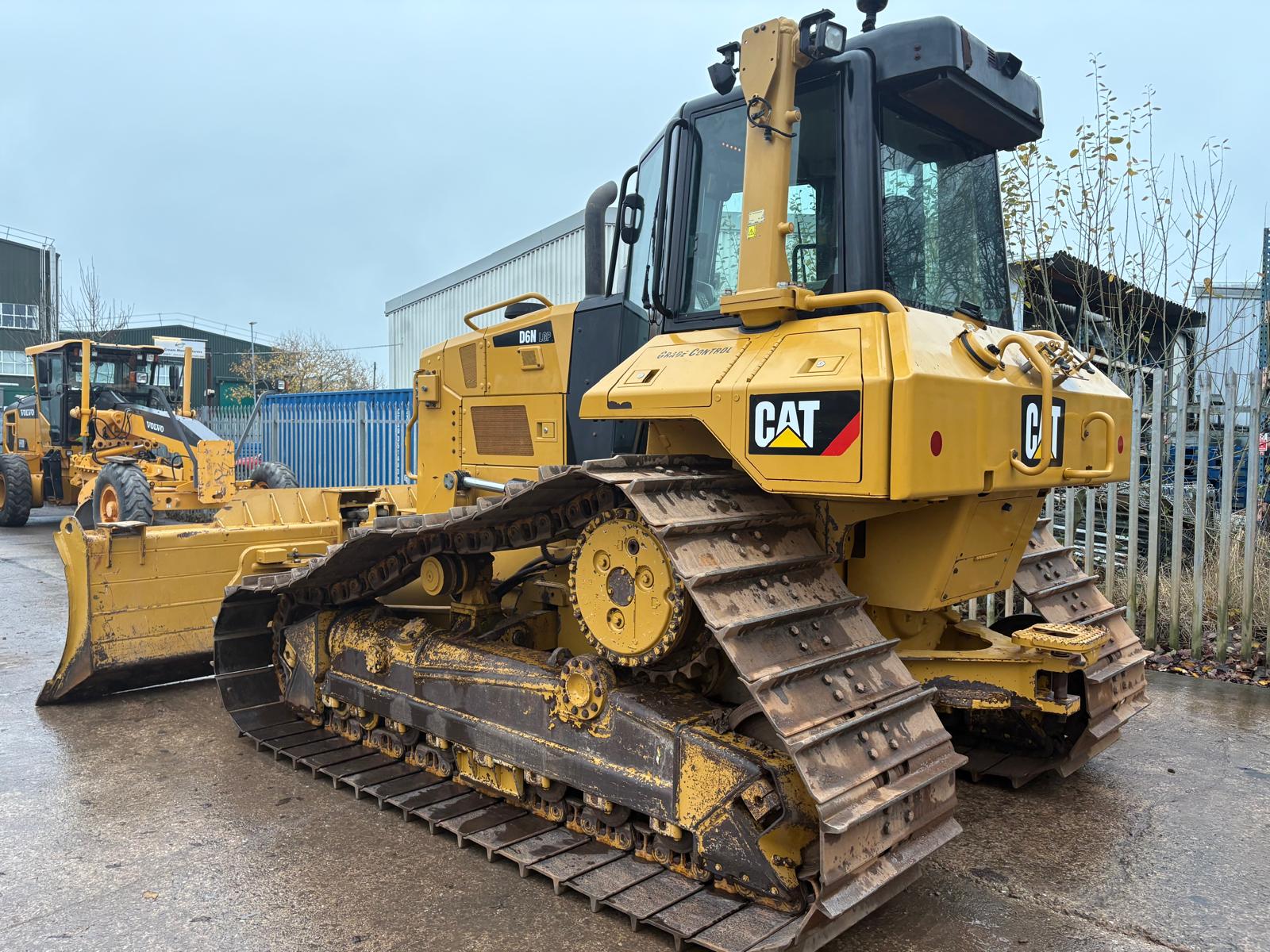

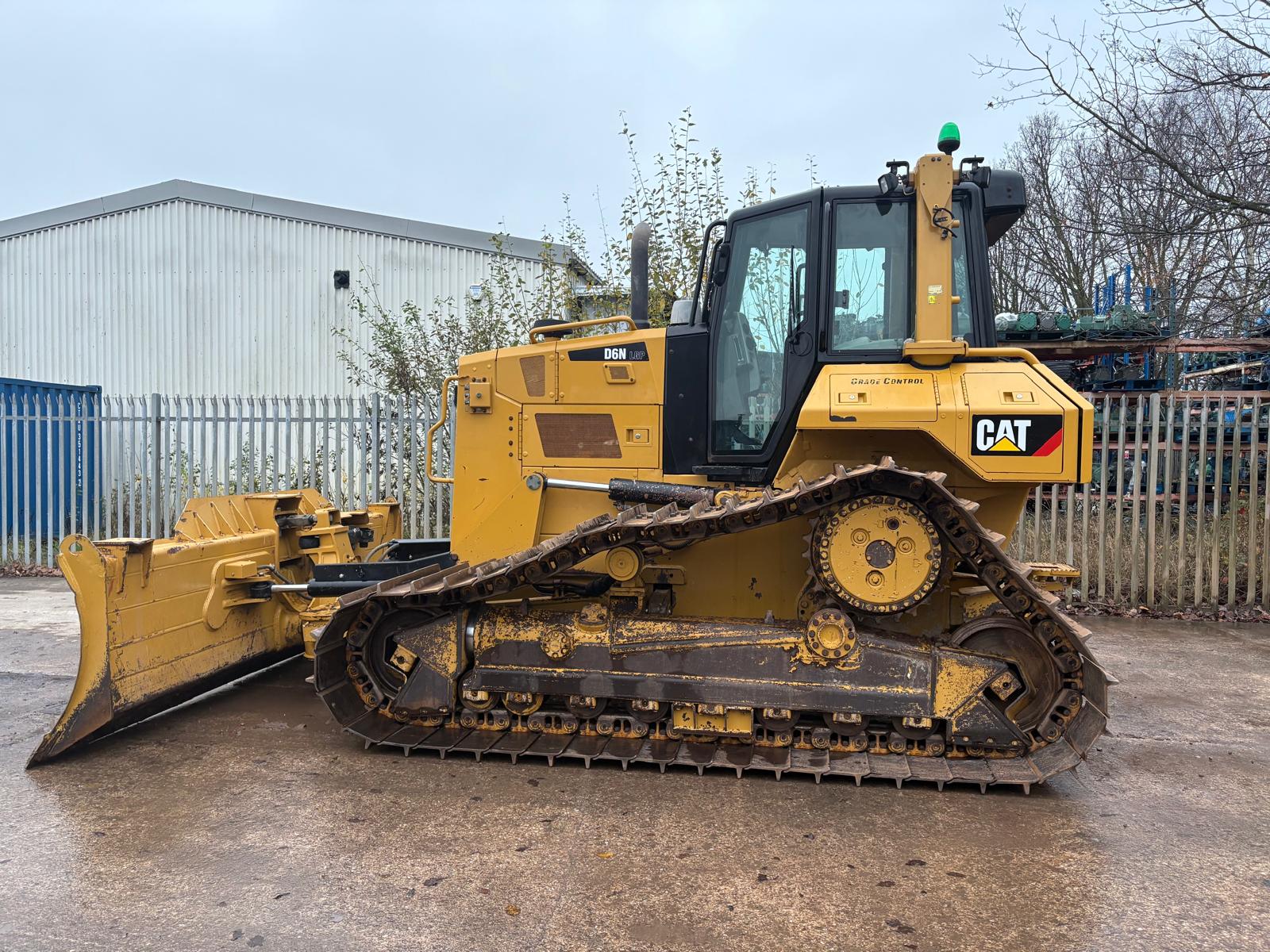

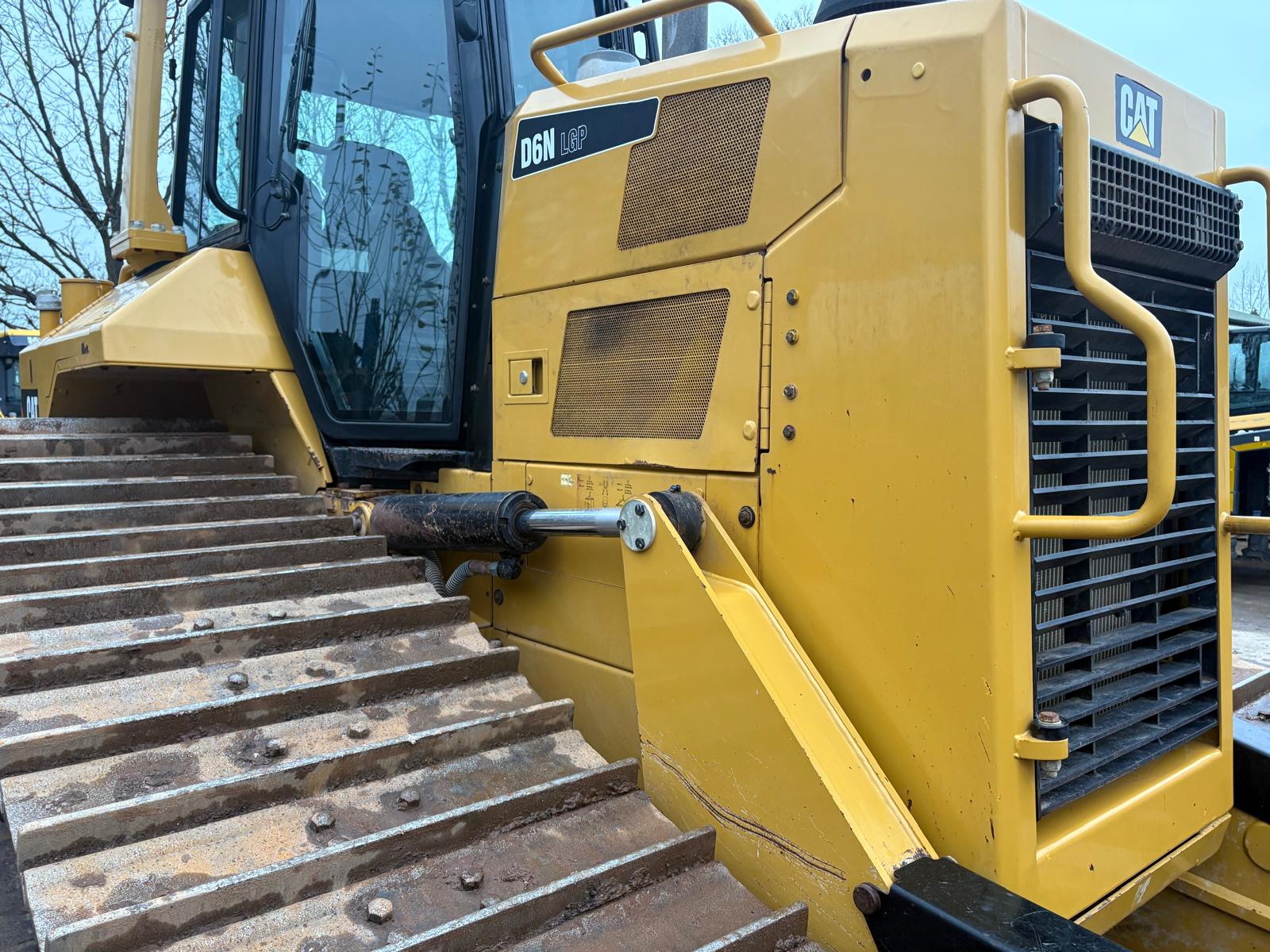

CAT D6N LGP 70913

SOLD
"

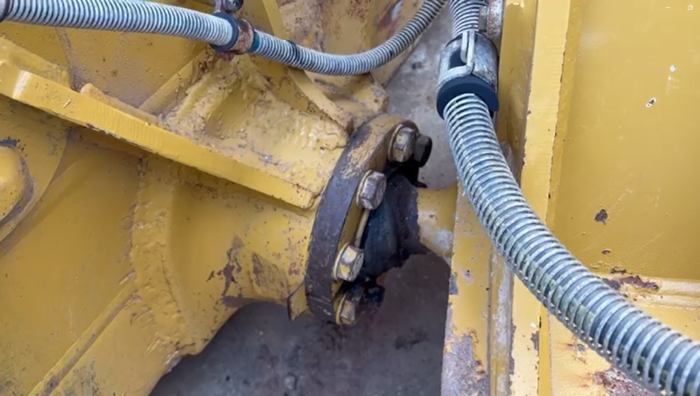

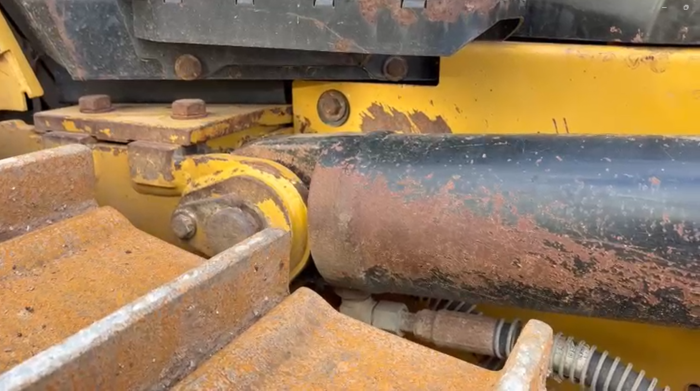

Video Gallery

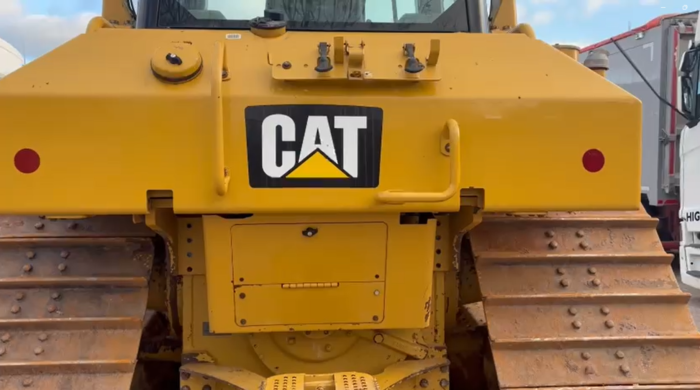

Video Thumbnail Video Thumbnail Video Thumbnail Video Thumbnail

MACHINE KEY DETAILS

Make:
Caterpillar
Model:
D6N LGP
Stock No:
70913
Year:
2019
Hours:
5451
Location:
Tamworth
Weight:
17,380 KGS
HP:
170 HP
Back to Current Stock
Download inspection Report Download Images Download Brochure Compare Machine

Pre wired for Grade Control. Rippers available at an additional cost.

View Full Inspection Report

ENGINE
Blow by
No blow by
Knocking
No kocking
Air cleaners
New
Any smoke
No smoke
Oil or fuel leaks
None visible
TRANSMISSION
Gear change
Changes and moves well
Steering
Good responsive steering
Oil leaks
None visible
Is the transmission Noisy?
No
Torque converter
No juddering ect
Controls
Good controls
General condition
Moves well
UNDERCARRIAGE
Shoe width
835mm
Shoe height
60mm, 80%
Shoes - any wear in trailing edge
Minimal
Rail height
120mm, 80%
Any signs of link failure
No
Average diameter of pins and bushings
64mm, 80%
Have pins been turned on chains?
No
Sprockets
76mm gape, 20mm tips, 90%
Left side front idler
55mm, 100%
Left side rear idler
55mm, 100%
Right side rear idler
55mm, 100%
Right side front idler
55mm, 100%
TOP ROLLERS - UNDERCARRIAGE
Left side top roller
New
Right side top roller
New
BOTTOM ROLLERS - UNDERCARRIAGE
Roller 1
New
Roller 2
New
Roller 3
182mm x 181mm, 80%
Roller 4
181mm x 181mm, 80%
Roller 5
Visual only, 80%
Roller 6
181mm x 182mm, 80%
Roller 7
181mm x 180mm, 80%
Roller 8
178mm x 179mm, 80%

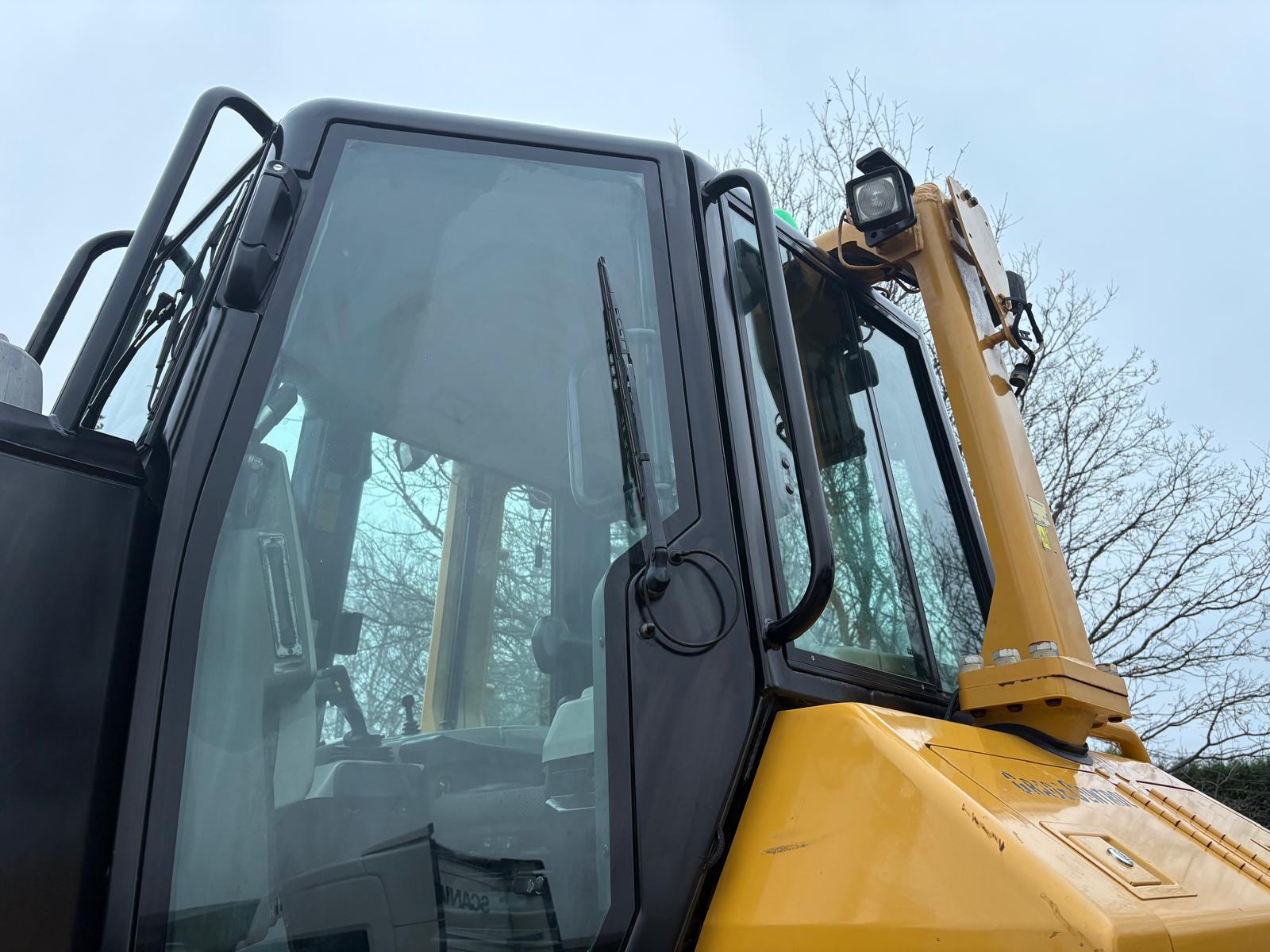

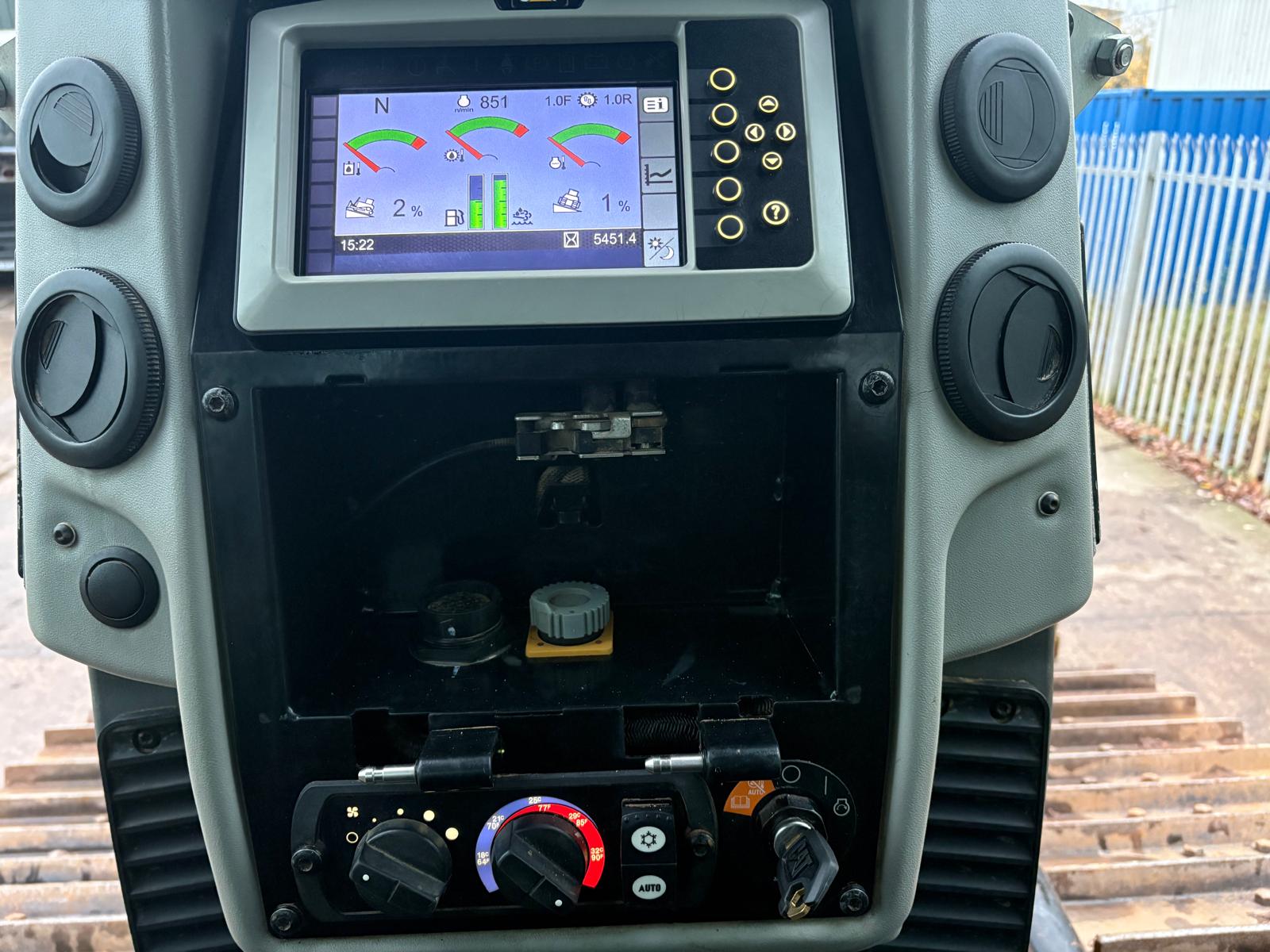

CAB
Cab mounts - any wear?
Good mounts
Any wiring for laser system?
Yes
Back up alarm
Loud and clear
Battery isolator switch
Manual fitted
Lights
All working
Wipers
All working
Heater
Good heat
A/C
Good

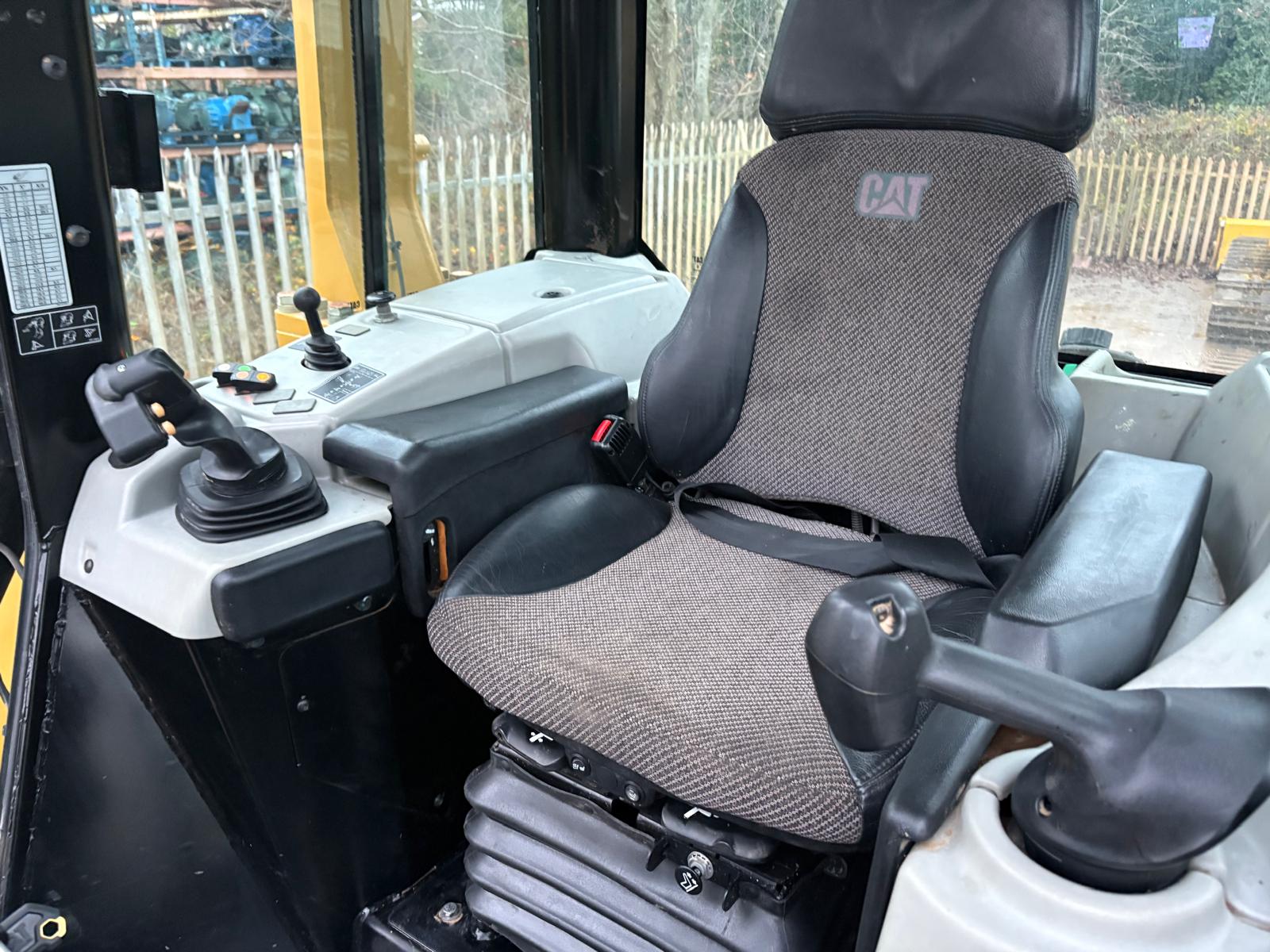

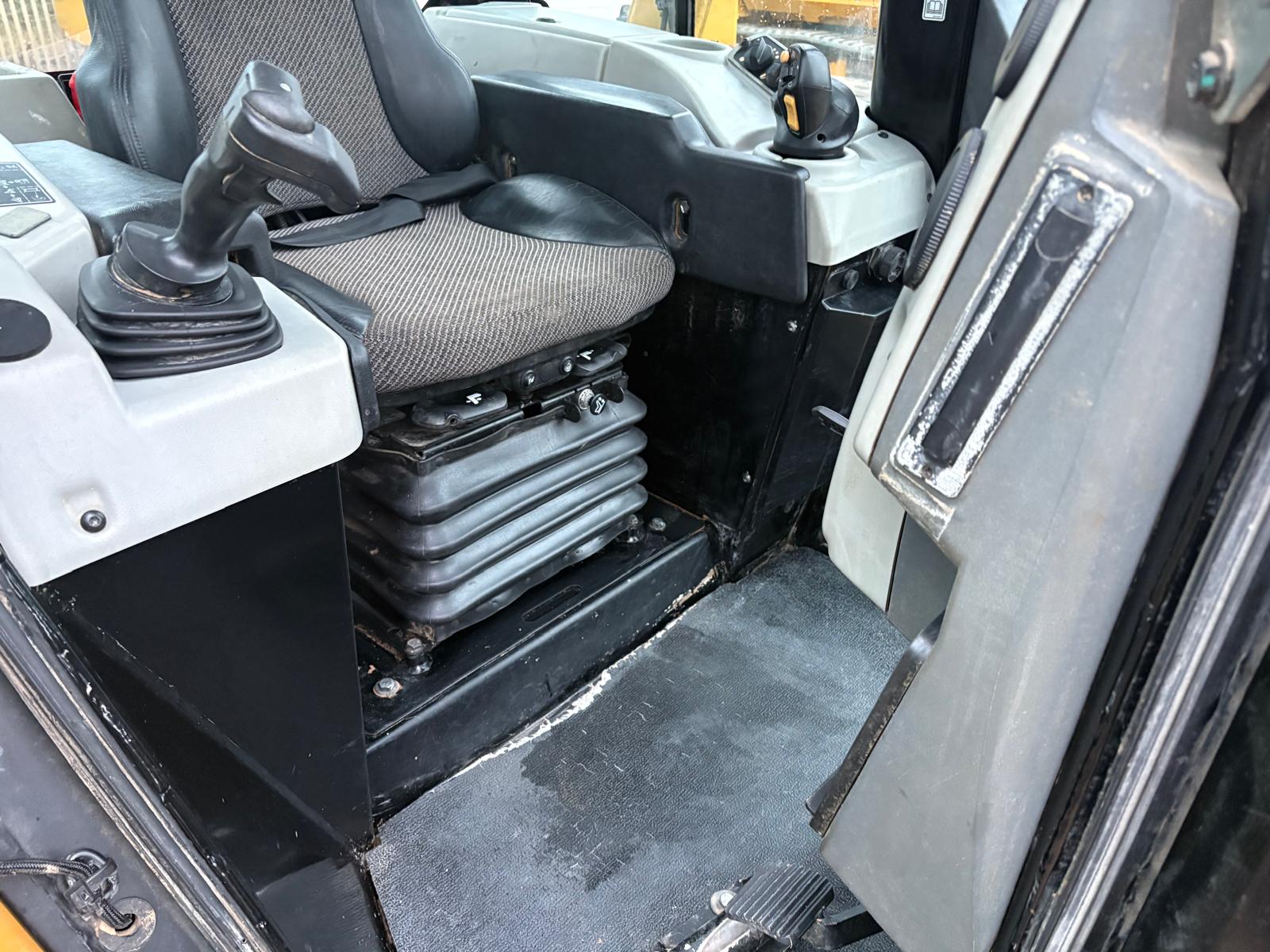

Seat condition
Damage to fabric by headrest
Cladding condition
Good
Floor mat condition
Damage to edges
Seat belt
Working as should
Mirrors
Rear view only, rubber suround
Cab glass condition
Good condition
Cab glass any cracks
No damage or cracks
Any perspex fitted
None fitted
Steps and grab handles secure?
Fitted, all undamaged

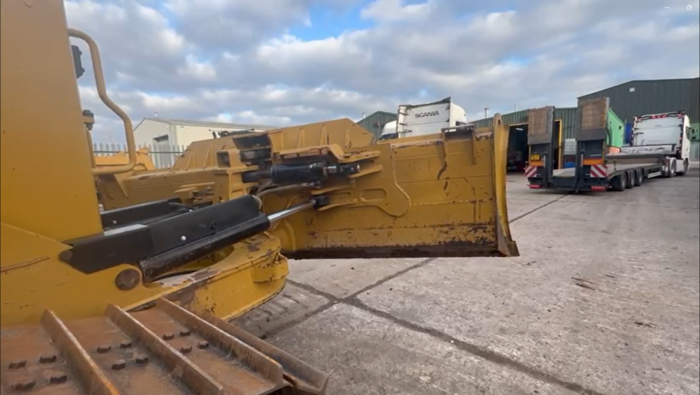

BLADE
Blade width
4070mm
Blade height
1270mm
Main lift rams, wear
L/H: 1mm x 2mm, R/H: 2-3mm x 2-3mm
Pitch ram wear
L/H: 2mm x 2mm, R/H: 1mm x 1mm
Tilt ram wear
5mm x 3mm
Link ram wear
3mm x 3mm
Ball joint wear
10mm
Spill rack condition
Good condition
Cutting edges condition
50mm
Have cutting edges been turned
No

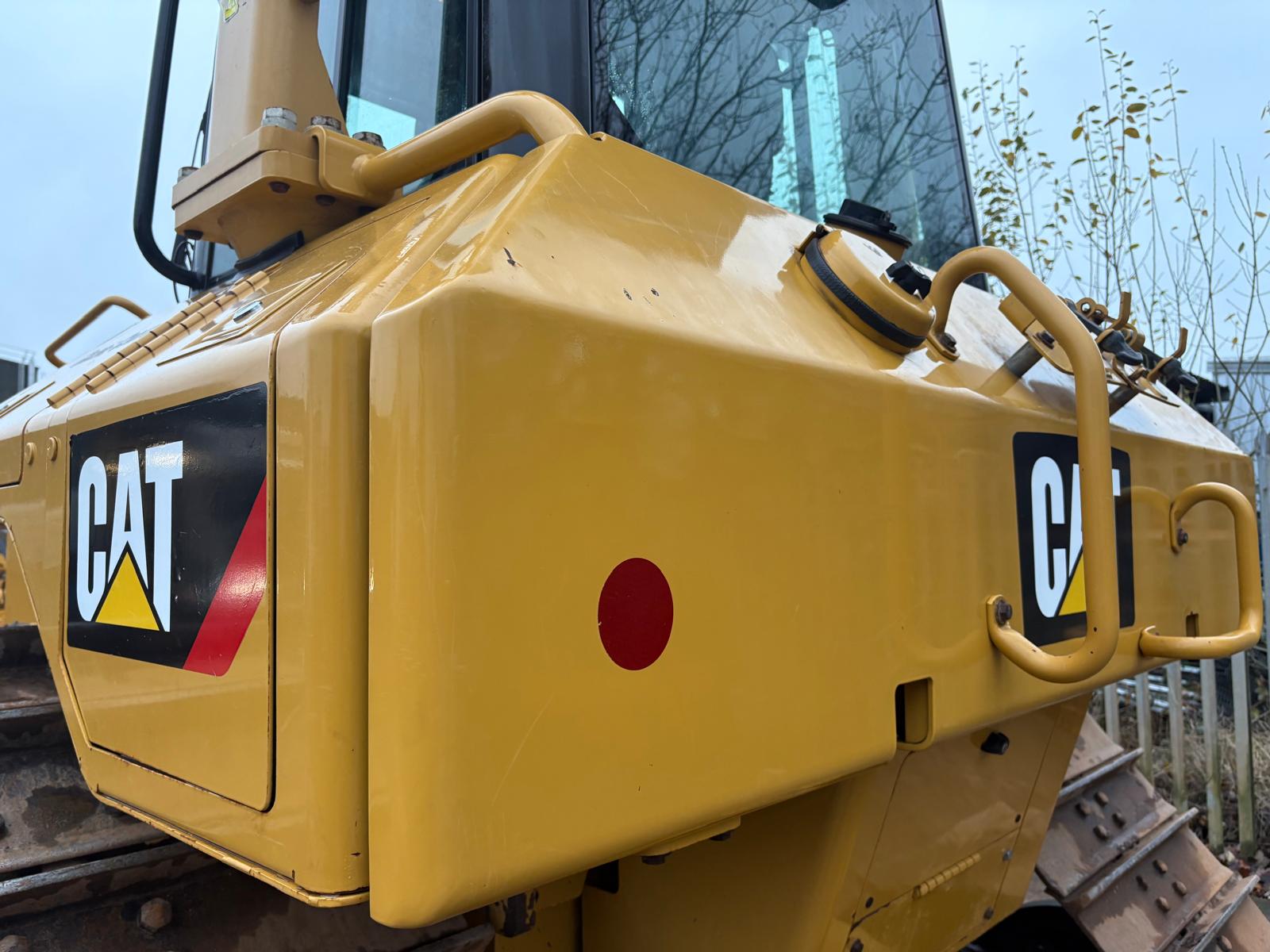

PAINT & DECALS
Any damage to panels
No damage
Paint condition
Average
Any rust patches
Usual areas
DIMENSIONS
Length
Width
Height
Measurements with blade straight
5300mm
4070mm
3220mm
Measurements with blade turned
6100mm
3700mm
3220mm
Measurement from outside to outside of tracks
3003mm
Measurements with blade straight
Length: 5300mm
Width: 4070mm
Height: 3220mm
Measurements with blade turned
Length: 6100mm
Width: 3700mm
Height: 3220mm
Measurement from outside to outside of tracks
Length:
Width: 3003mm
Height:
