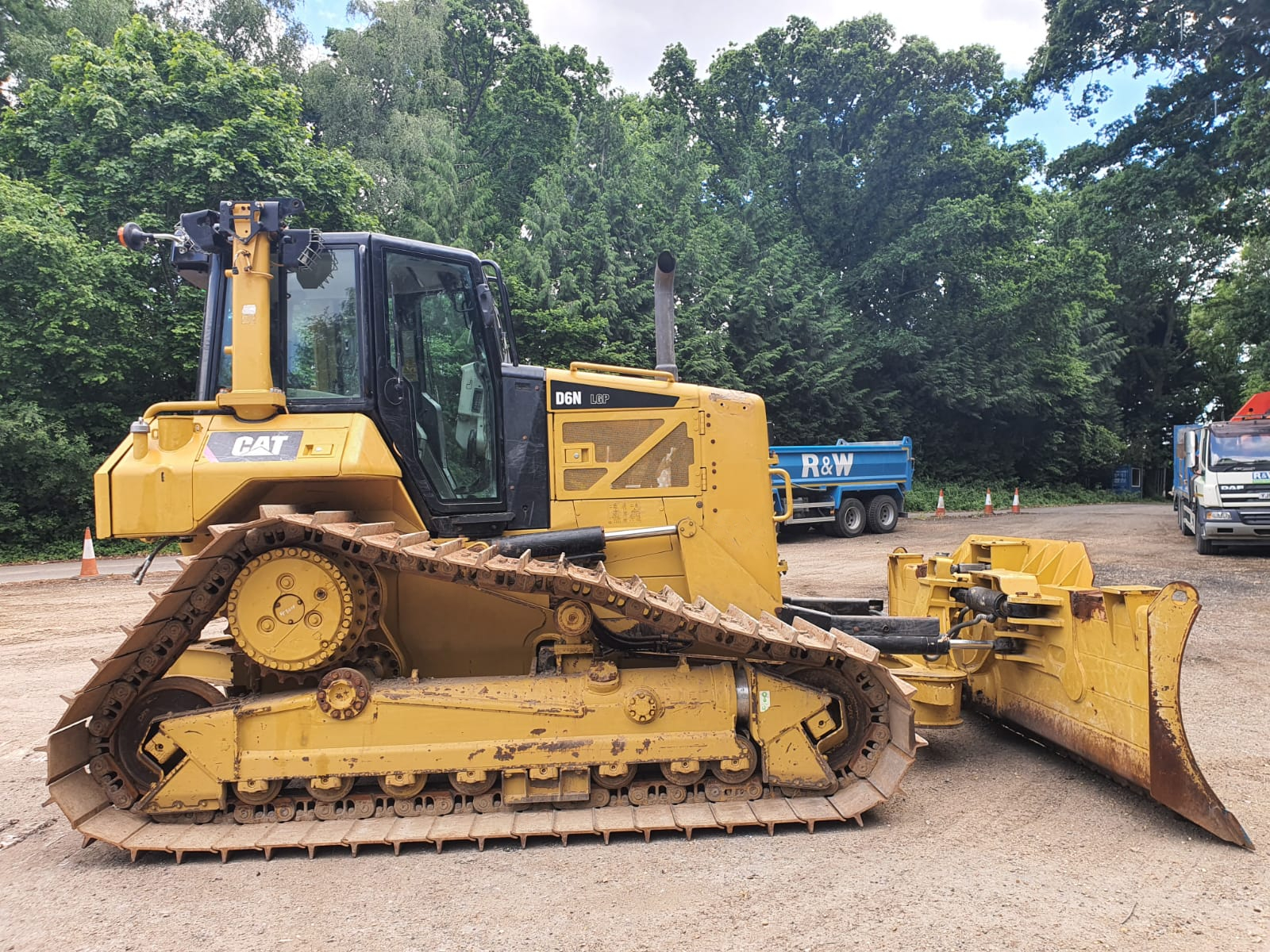

CAT D6N LGP 70531

SOLD
"

MACHINE KEY DETAILS

Make:
CATERPILLAR
Model:
D6N LGP
Stock No:
70531
Year:
2015
Hours:
3312
Location:
SOUTHAMPTON
Weight:
17,380 KG
HP:
170 HP
Back to Current Stock
Download inspection Report Download Images Download Brochure Compare Machine

Rippers available at an additional cost

View Full Inspection Report

Engine
Blow By
None
Knocking
No
Air Cleaners
Ok
Any Smoke
None
General Running Condition
Good
Transmission
Gear Change
Good
Steering
Good
Oil Leaks
None
Is The Transmission Noisy?
No
Torque Converter
Good
Controls
Good, all working
General Running Condition
Picks up well, steers well
U/C
Shoe Width (mm)
840mm
Shoe Height (mm)
62mm
Shoes - Any Wear In trailing Edge
Good no wear
Rail Height
120mm
Any Signs Of Link Failure
No
Average Diameter Of Pins And Bushings
64mm
Have Pins Been Turned On Chains?
System one chain
Sprockets
Good
IDLERS
Left Side Front Idler
28mm, 90%
Left Side Rear Idler
27mm, 90%
Right Side Rear Idler
26mm, 90%
Right Side Front Idler
27mm, 90%
Top Rollers
Left Side 1st Roller
176mm, 80%
Right Side 1st Roller
175mm, 80%
Bottom Rollers
Roller 1
L/H: 189mm, R/H: 189mm
Roller 2
L/H: 192mm, R/H: 192mm
Roller 3
L/H: 190mm, R/H: 190mm
Roller 4
L/H: 189mm, R/H: 190mm
Roller 5
L/H: 190mm, R/H: 190mm
Roller 6
L/H: 190mm, R/H: 190mm
Roller 7
L/H: 190mm, R/H: 190mm
Roller 8
L/H: 189mm, R/H: 190mm
CAB
Cab Mounts - Any Wear?
None
Any Wiring For Laser System?
Yes
Back Up Alarm
Working
Battery isolator Switch
Working
Lights
Working
Wipers
All working
Heater
Working
A/C
Good
Seat Condition
Very good
Cladding Condition
Very good
Floor Mat Condition
Good
Seat Belt
Good condition
Mirrors
Internal mirror good
Horn
Working
Cab Mounts
Good
Cab Glass Condition
All Good
Cab Glass Any Cracks?
None
Any Perspex Fitted
No
Steps And Grab Handles Secure
Good
BLADE
Blade Type
PAT Blade
Blade Width
4050mm
Blade Height
1260mm
Main Lift Rams, Wear in Pins?
Minimal
Swivel Rams, Wear In Pins?
Minimal
Tilt Ram, Wear?
Minimal
Ball Joint wear
Minimal
Trunions Wear and Shims
Minimal
Tilt Ram
Minimal
C Frame
Good
Centre Pin
Good
Face / Moldboard
Good
Spill rack Condition
Good
Have Cutting Edges been Turned?
No, need to be turned
General Blade Condition
Very good
Panels & Paint/Decals
Any damage To Panels
None
Paint Condition
Very good
Any Areas Repainted
Good
Any Rust Patches
No
Condition Of Decals
Fair to good
DIMENSIONS
Length
Width
Height
Measurement With Blade Straight
5330mm
4050mm
3240mm
Measurement With Blade Turned
6190mm
3600mm
3240mm
Measurement From Outside To Outside Of Tracks
3000mm
Measurement With Blade Straight
Length: 5330mm
Width: 4050mm
Height: 3240mm
Measurement With Blade Turned
Length: 6190mm
Width: 3600mm
Height: 3240mm
Measurement From Outside To Outside Of Tracks
Length:
Width: 3000mm
Height:
