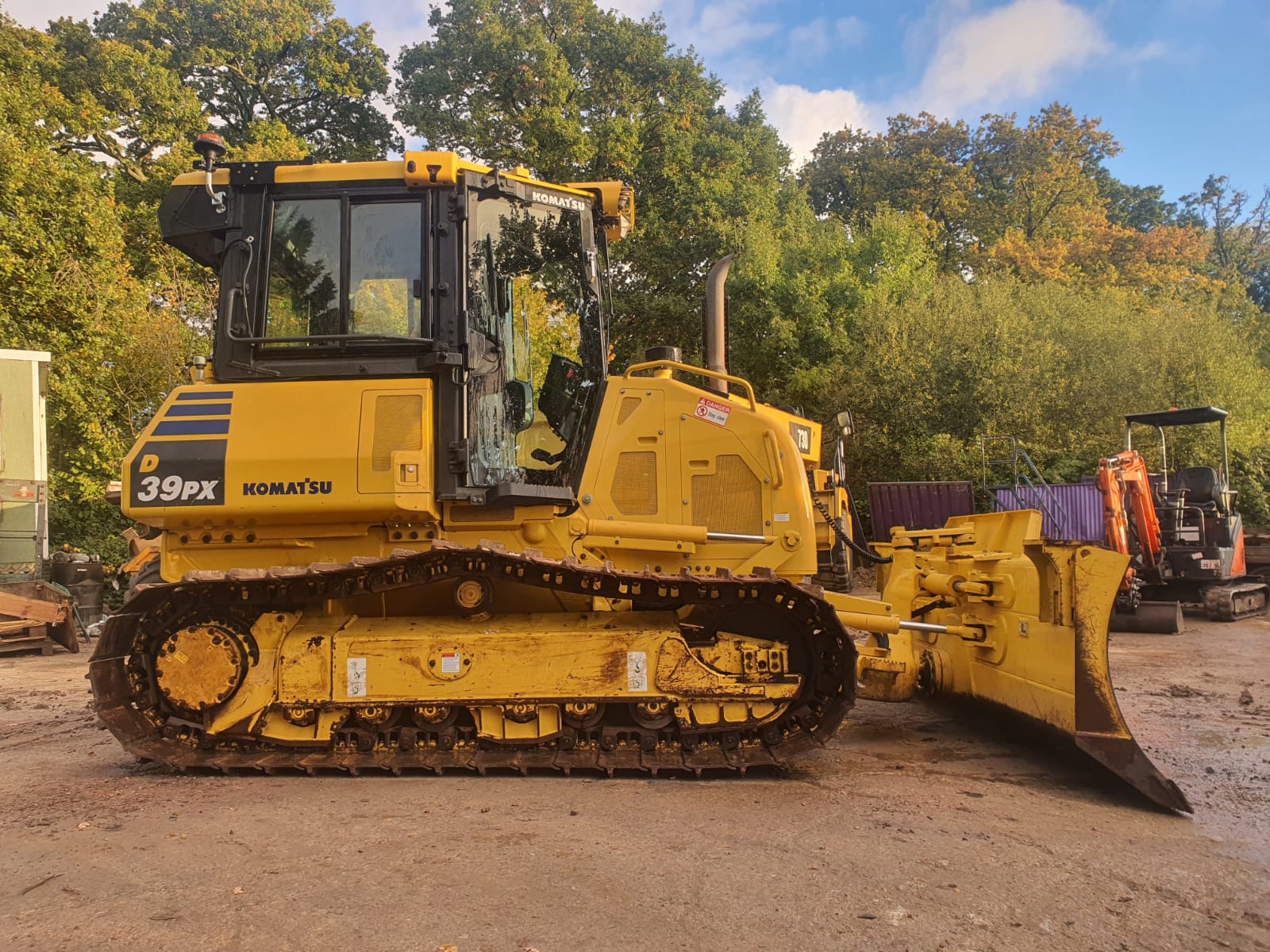

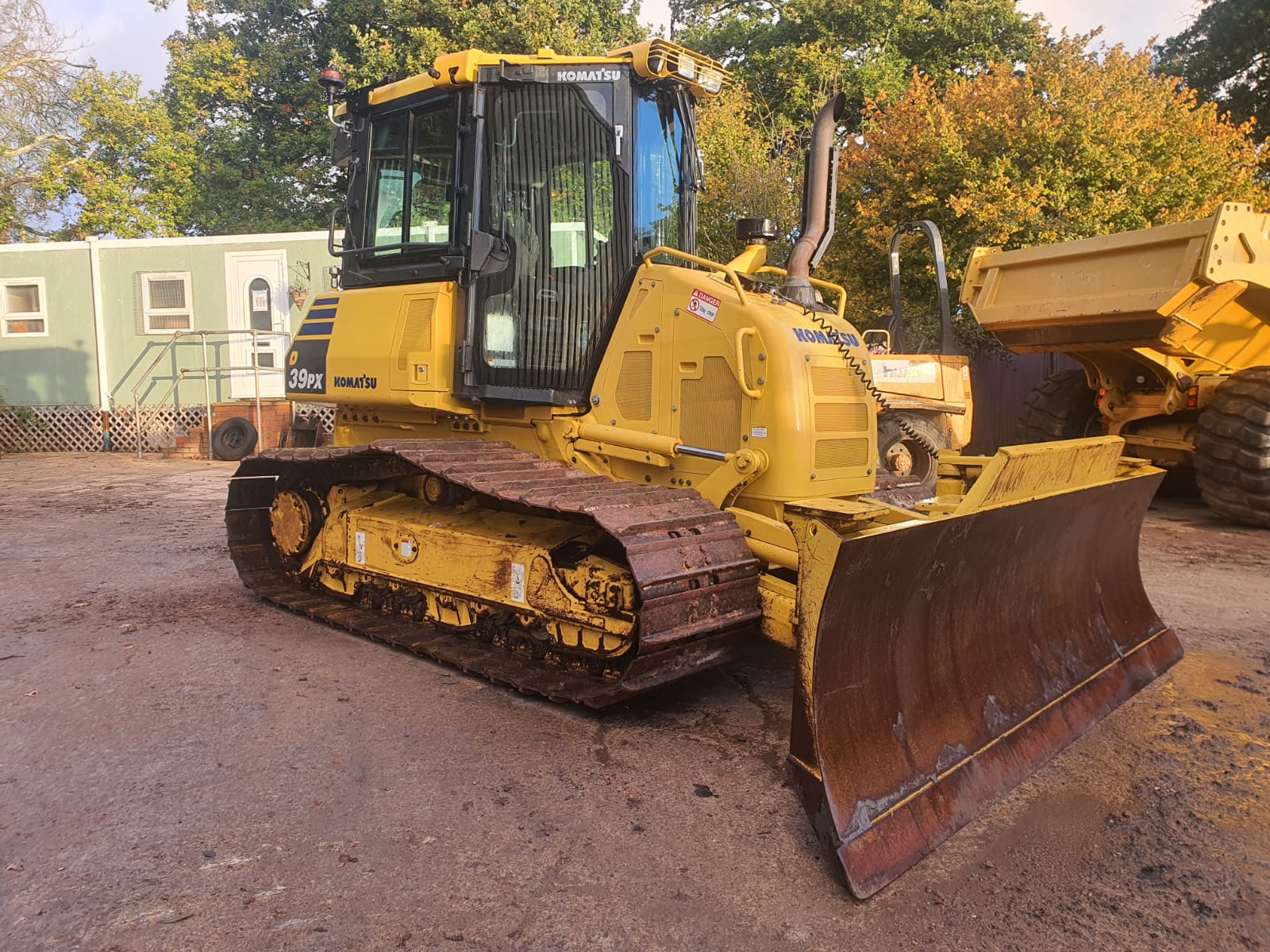

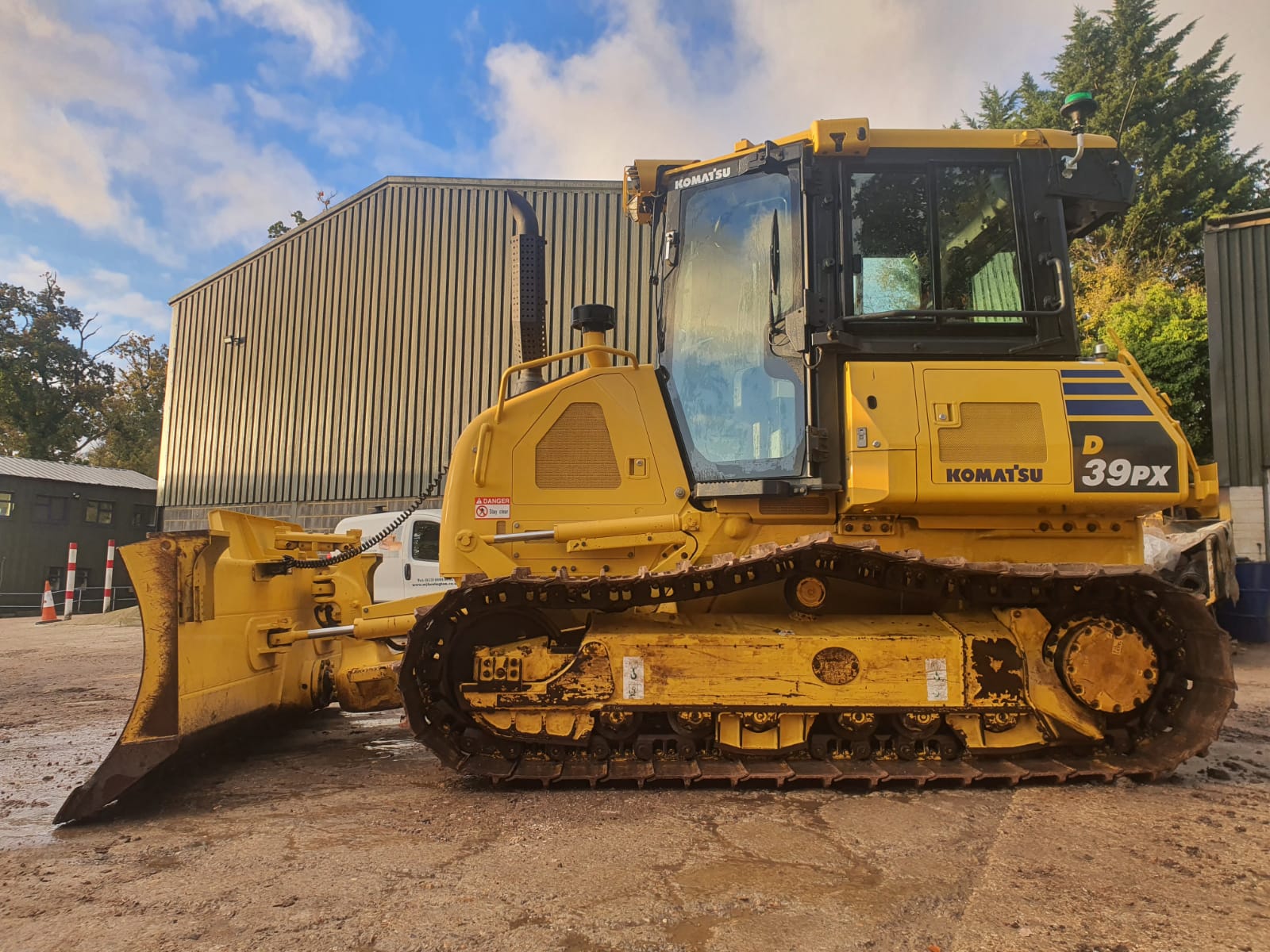

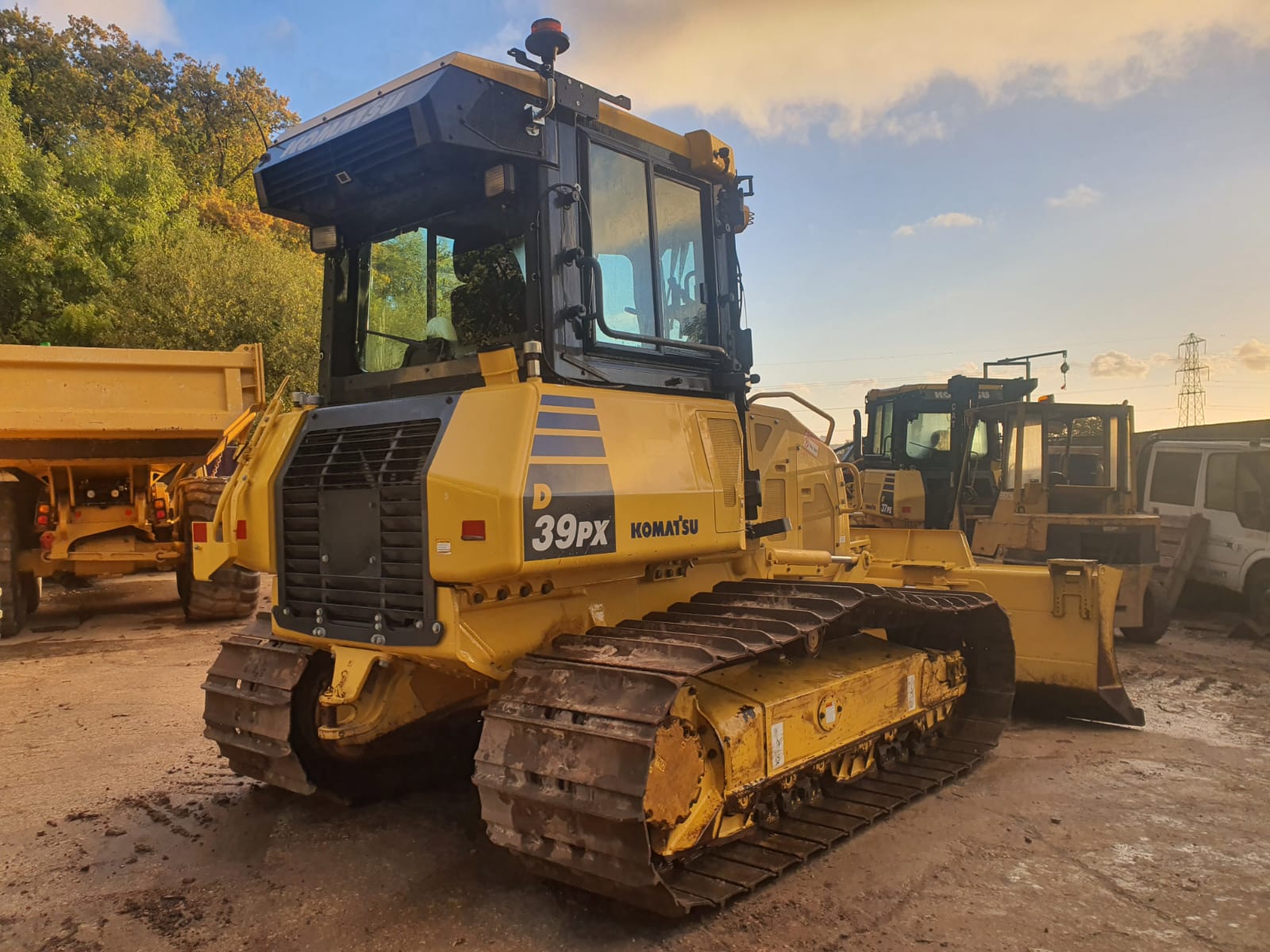

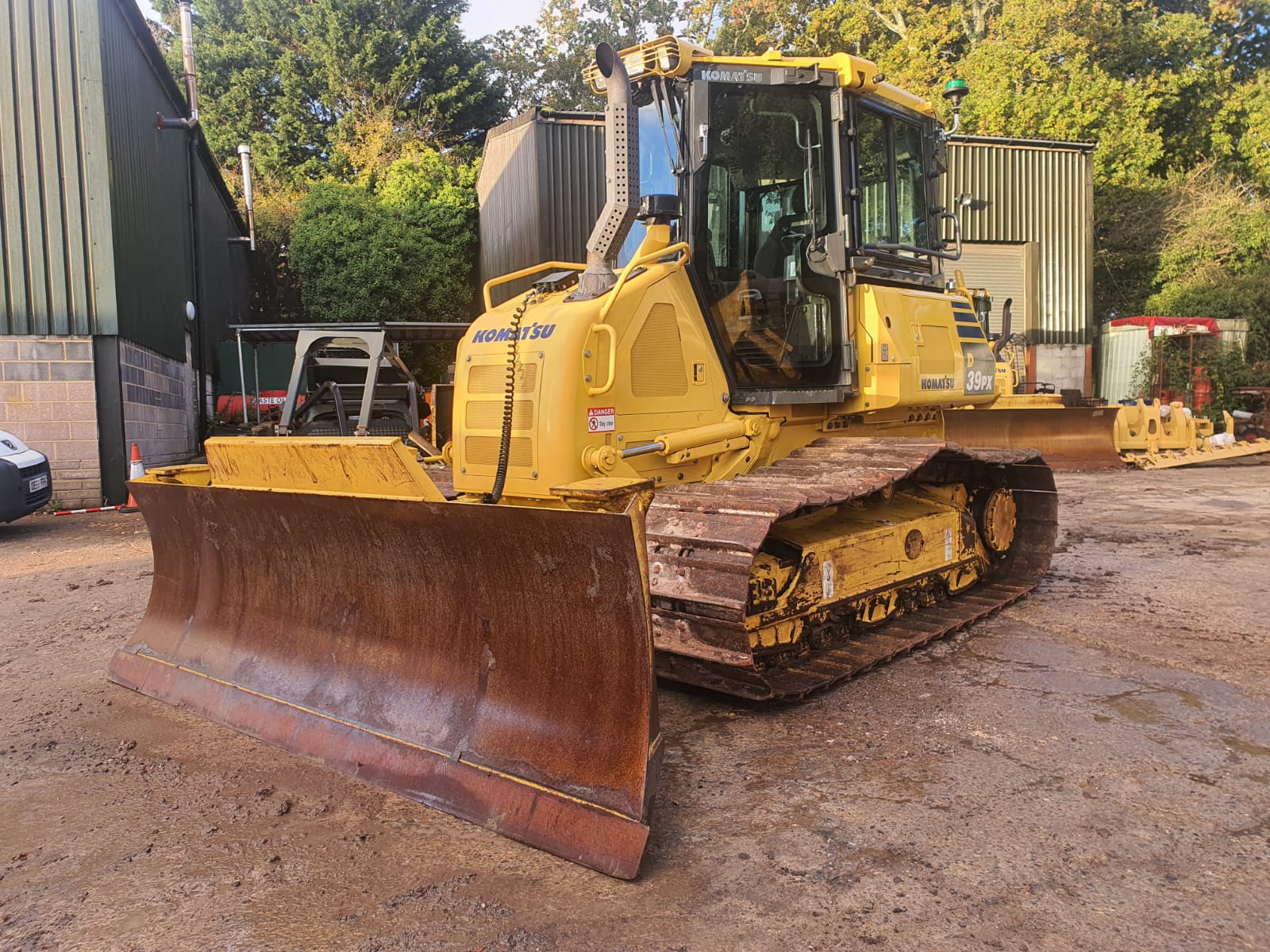

Komatsu D39PX-24 70558

SOLD
"

MACHINE KEY DETAILS

Make:
Komatsu
Model:
D39PX-24
Stock No:
70558
Year:
2019
Hours:
2055
Location:
Southampton
Weight:
10,350 KG
HP:
105 HP
Back to Previous Stock
Download inspection Report Download Images Download Brochure Compare Machine

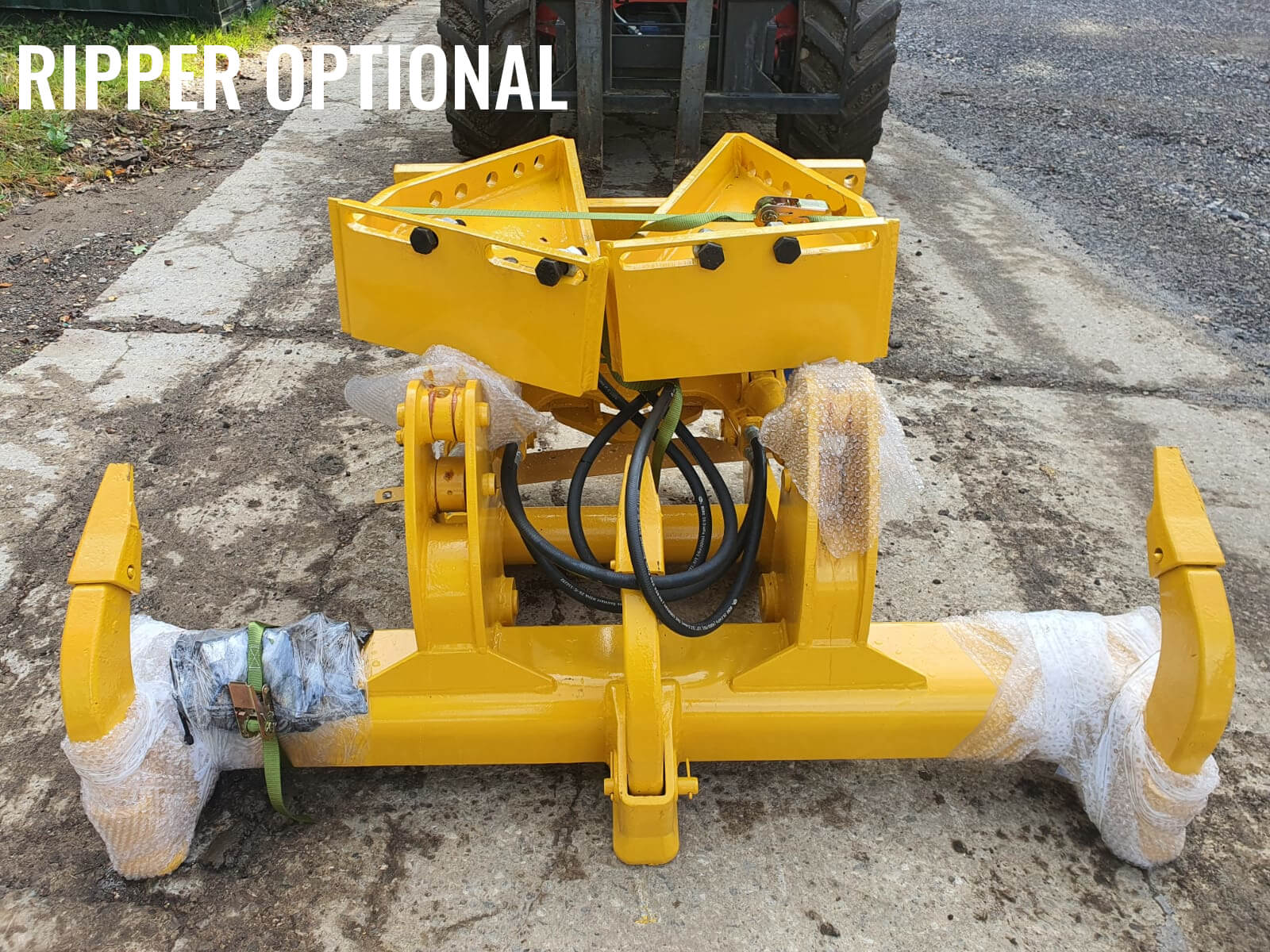

Rippers available at an additional cost. Trimble Wiring

Request a Video Call?

Why not request a video call with the qualified technician who carried out the full inspection, so they can run you through all the details of the machine.

Request a call

View Full Inspection Report

ENGINE
Blow by
Minimal
Knocking
No knocking
Air cleaners
Good
Any smoke
Minimal to none
Oil or fuel leaks
none visible
General running condition
Runs nicely
TRANSMISSION
Gear change
HST works fine
Steering
Responsive
Oil leaks
None visible
Is the transmission noisy?
No
Controls
Good controls
General running condition
Runs well
U/C
Shoe width
700mm
Shoe height
42mm, 80%
Shoes - any wear in trailing edge?
Minimal
Rail height
104mm, 75% wearing on edges.
Any signs of link failure
No
Average diameter of pins and bushings
51mm, 75 - 80%
Have pins been turned on chains?
No
Sprockets
Even wear, very good 80%
IDLERS
Left side front idler
15mm Running thickness, slight concave wear 65%
Right side front idler
15mm running thickness, slight concave wear 65%
TOP ROLLERS
Left side 1st roller
149mm, 146mm. 70%
Right side 1st roller
148mm, 146mm. 70%
BOTTOM ROLLERS
Roller 1
L/H: 153mm, 80%. R/H: 154mm, 80%
Roller 2
Visual only, 80%
Roller 3
Visual only, 80%
Roller 4
L/H: 155mm, 80%. R/H: 154mm, 80%
Roller 5
L/H: 155mm, 80%. R/H: 155mm, 80%
Roller 6
Visual only, 80%
CAB
Cab mounts - any wear?
No
Any wiring for laser system?
Yes
Back up alarm
Loud and clear
Battery isolator switch
Manual and electric
Lights
All working
Wipers
All working
A/C
Nice and cold
Seat condition
Good condition, works as should
Cladding condition
Dirty in areas
Floor mat condition
Undamaged but dirty
Seat belt
Works as should
Mirrors
Rear view only, undamaged
Horn
Loud and clear
Cab mounts
Good
Cab glass condition
Good condition
Cab glass any cracks
No damage
Any perspex
None fitted
Steps and grab handles secure?
All there and undamaged
BLADE
Blade type
6 Way
Blade width
3245 mm
Blade height
1100mm
Main lift rams, wear in pins?
1 - 2mm, 1mm, 1 - 2mm, 1mm
Swivel rams, wear in pins?
1mm, 0mm, 1mm, 0mm
Tilt ram, wear?
2mm, 2mm
Ball joint wear
3mm
Tilt ram
Good condition
Centre pin
3mm. 4mm
Face / moldboard
Very good condition
Spill rack condition
Straight, no damage
Cutting edges condition
25mm left
Have cutting edges been turned?
No
General blade condition
Really good overall
PANELS & PAINT / DECALS
Any damage to panels?
No damage
Paint condition
Faded but good
Any areas repainted
No
Any rust patches
Usual areas, around track frames
Condition of decals
To be replaced
DIMENSIONS
Length
Width
Height
Measurement with blade straight
4300mm
3245mm
2900mm
Measurement with blade turned
4900mm
2870mm
2900mm
Measurement from outside to outside of tracks
2525mm
Measurement with blade straight
Length: 4300mm
Width: 3245mm
Height: 2900mm
Measurement with blade turned
Length: 4900mm
Width: 2870mm
Height: 2900mm
Measurement from outside to outside of tracks
Length:
Width: 2525mm
Height:
