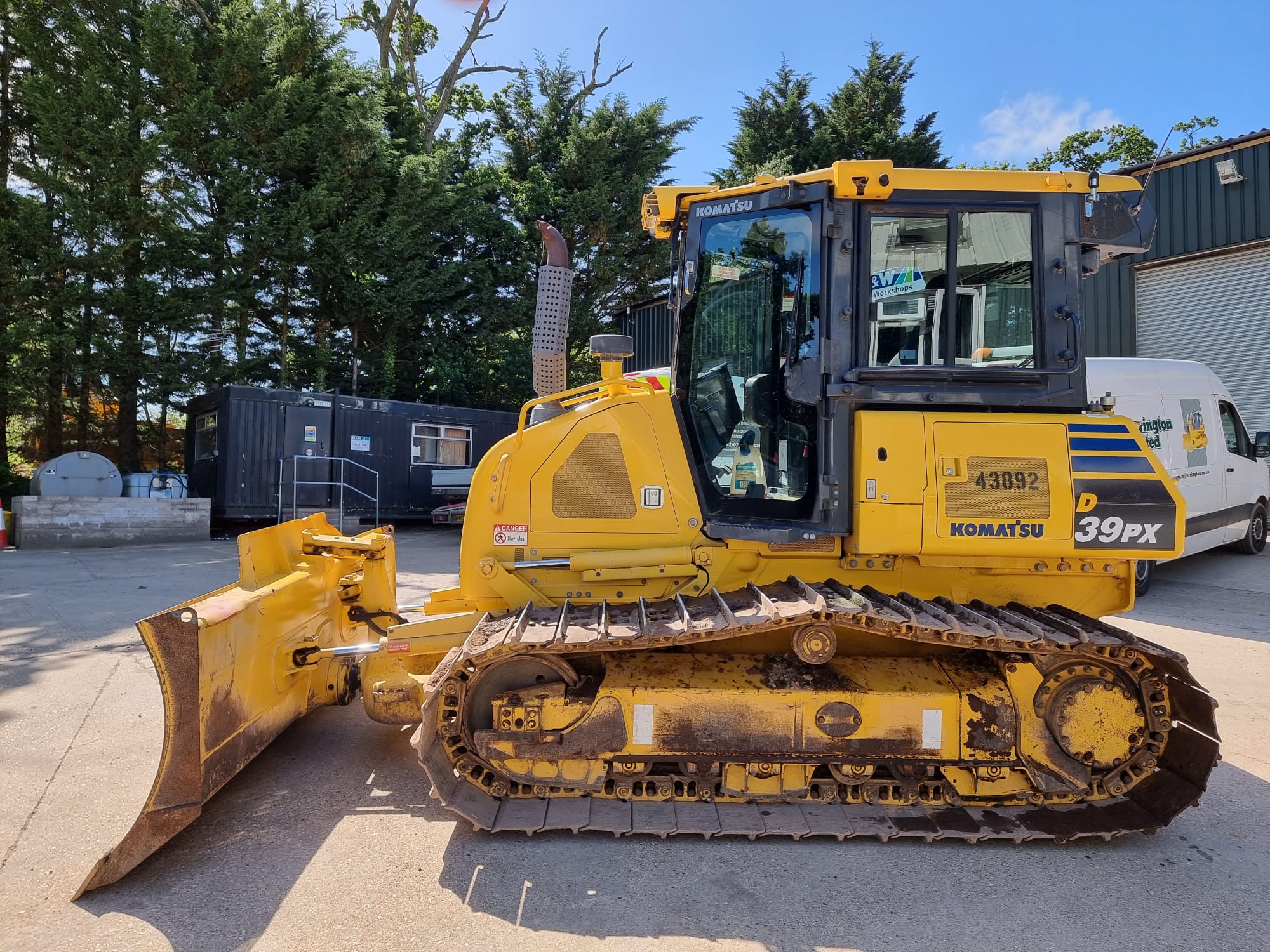

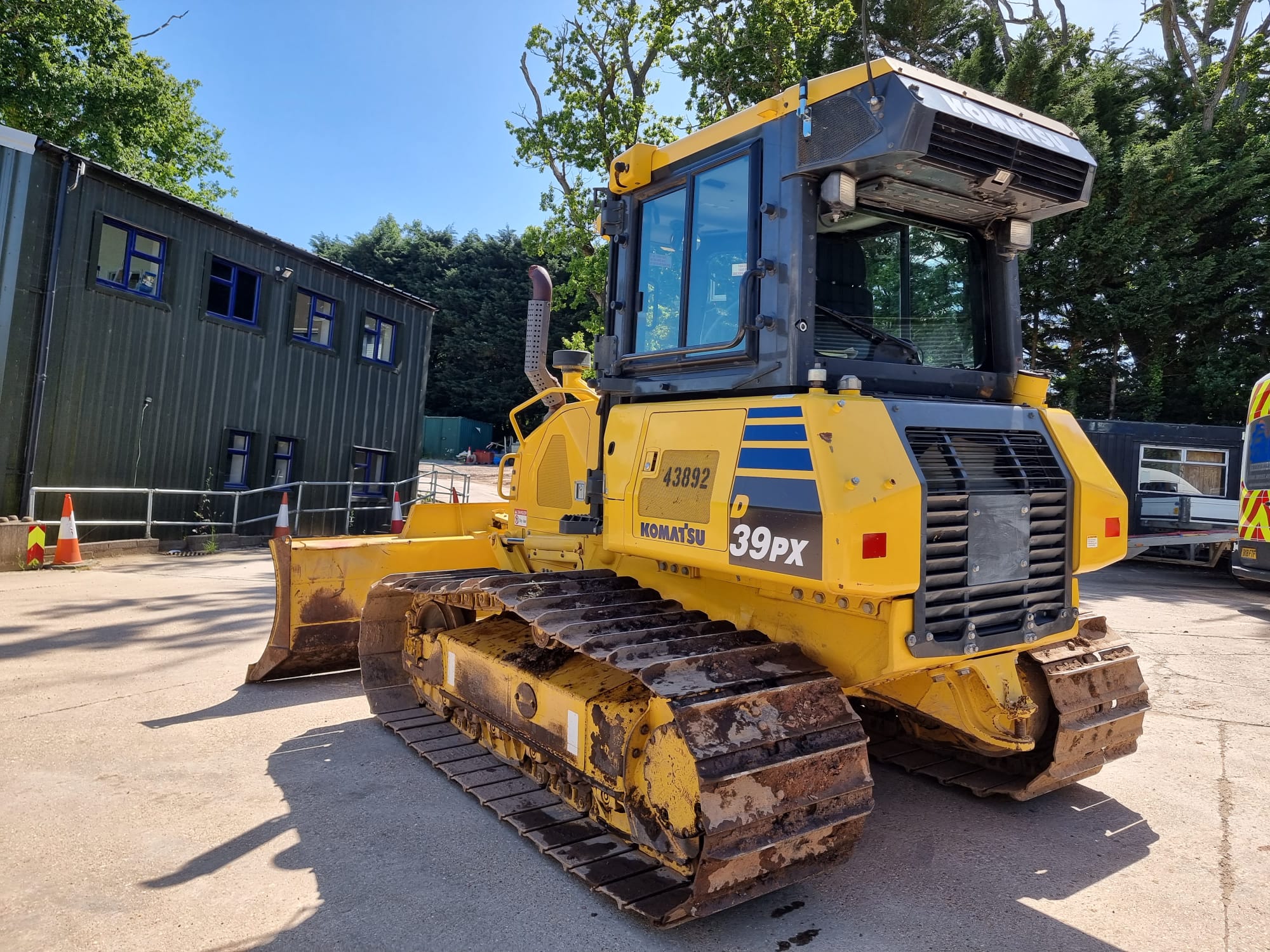

KOMATSU D39PX-24 70693

SOLD
"

MACHINE KEY DETAILS

Make:
Komatsu
Model:
D39PX-24
Stock No:
70693
Year:
2019
Hours:
5524
Location:
Southampton
Weight:
10,350 KG
HP:
105 HP
Back to Current Stock

Rippers available at an additional cost.

View Full Inspection Report

ENGINE
Blow by
Minimal blow by
Knocking
No knocking
Air cleaners
Good
Any smoke
Minimal
Oil or fuel leaks
None visible
TRANSMISSION
Gear change
HST works well
Steering
Good responsive steering
Oil leaks
No oil leaks present
Is the transmission noisy?
No
Controls
Good controls
General running condition
Moves well
UNDERCARRIAGE
Shoe width
700mm
Shoe height
45mm, 80%
Shoes - any wear in trailing edge
Some wear but minimal
Rail height
104mm, 85%
Any signs of link failure
No signs of failure
Average diameter of pins and bushings
54mm, 85%
Have pins been turned on chains?
No
Sprockets
70mm gape, 15mm tips. Good condition 85%
IDLERS
Left side front idler
55mm x 20mm x 40mm x 16mm. 16mm running thickness, 3mm concave wear, 70%
Right side front idler
55mm x 20mm x 40mm x 16mm. 16mm running thickness, 1mm concave wear,75%
TOP ROLLERS
Left side 1st roller
156mm x 154mm, 85%
Right side 1st roller
156mm x 156mm, 85%
BOTTOM ROLLERS
Roller 1
158mm x 157mm, 80%
Roller 2
165mm x 165mm, 80%
Roller 3
Visual only, 80%
Roller 4
163mm x 163mm, 80%
Roller 5
165mm x 165mm, 80%
Roller 6
Visual only, 80%
CAB
Cab mounts - any wear?
Good mounts
Back up alarm
Loud and clear
Battery isolator switch
Manual and electric fitted
Lights
All lights working
Wipers
All good
Heater
Good heat
A/C
Nice and cold
Seat condition
Fully working, no damage
Cladding condition
Good condition
Floor mat condition
Good condition, no wear or tears
Seat belt
Fully operational, no damage
Mirrors
Rear view only, no damage
Horn
Loud and clear
Cab mounts
Good mounts
Cab glass condition
Good condition, minimal scuffs
Cab glass any cracks
No cracks
Any perspex fitted
No perspex fitted
Steps and grab handles secure?
All fitted and undamaged
BLADE
Blade type
6Way PAT
Blade width
3245mm
Blade height
940mm
Swivel ram wear
L/H: 1mm x 1mm. R/H: 1mm x 1mm
Lift ram wear
L/H: 1mm x 2mm. R/H: 1mm x 2mm
Link ram wear
1mm x 1mm
Tilt ram wear
0mm x 0mm
Ball joint wear
7 - 8mm
C-Frame wear
5-7mm x 5-7mm
Equaliser bar
Fixed
Face / Moldboard
Good condition
Spill rack condition
Mainly straight, couple of dents
Cutting edges condition
New, 100%
Have cutting edges been turned
No, new edges fitted, 100%
General blade condition
Good overall condition
PAINT & DECALS
Any damage to panels
No damage to panels
Paint condition
Faded but fair
Any areas repainted
No
Any rust patches
Minimal, usual areas
Condition of decals
To be replaced
