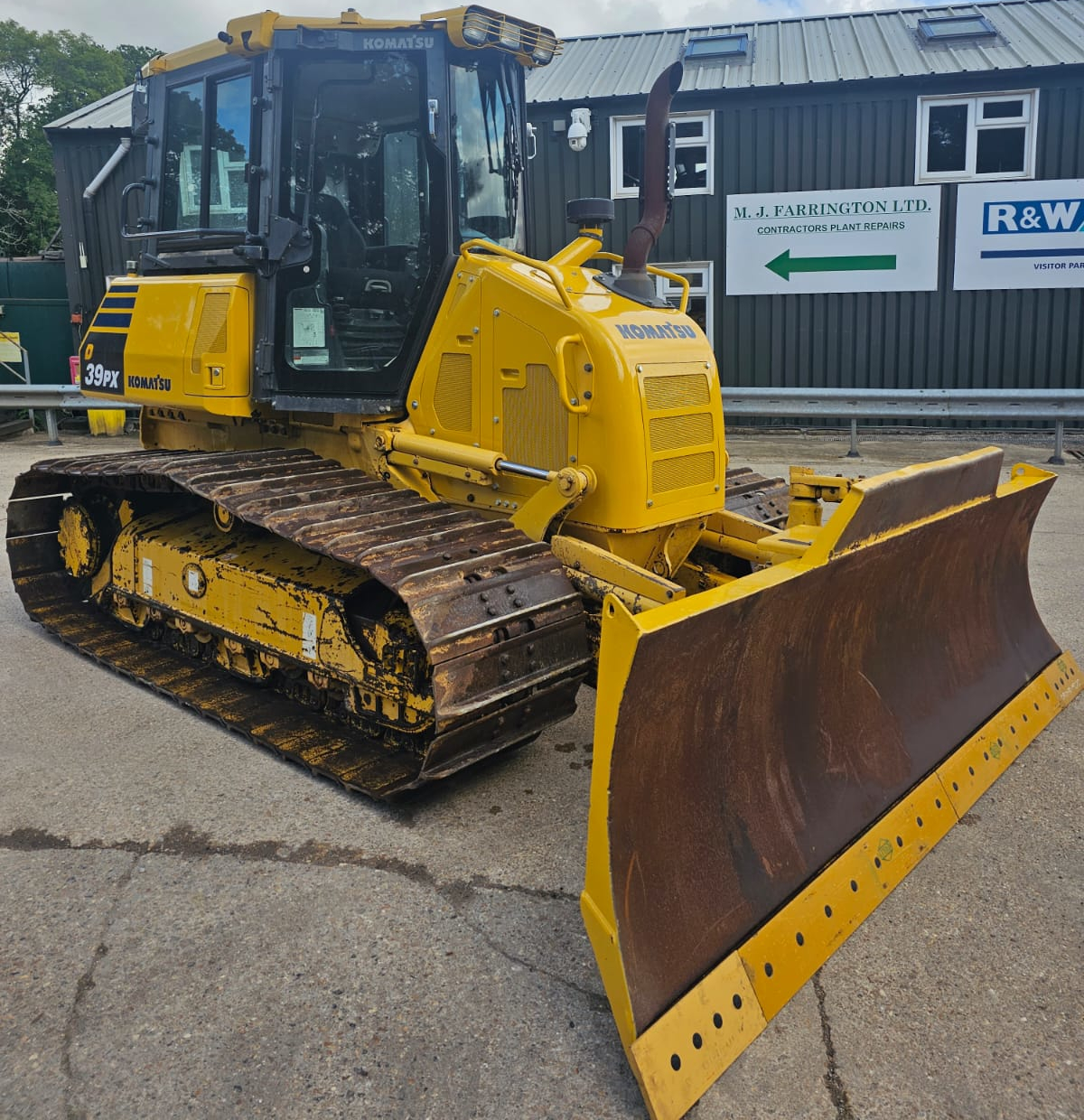

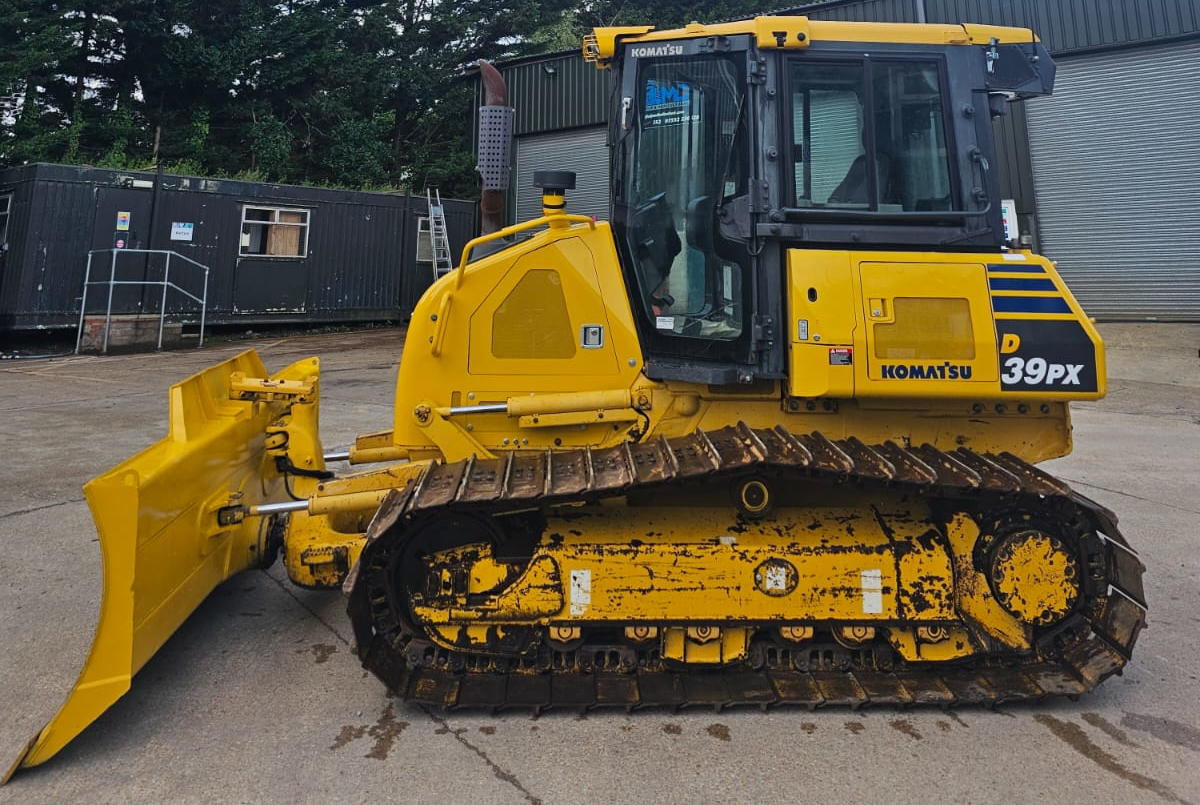

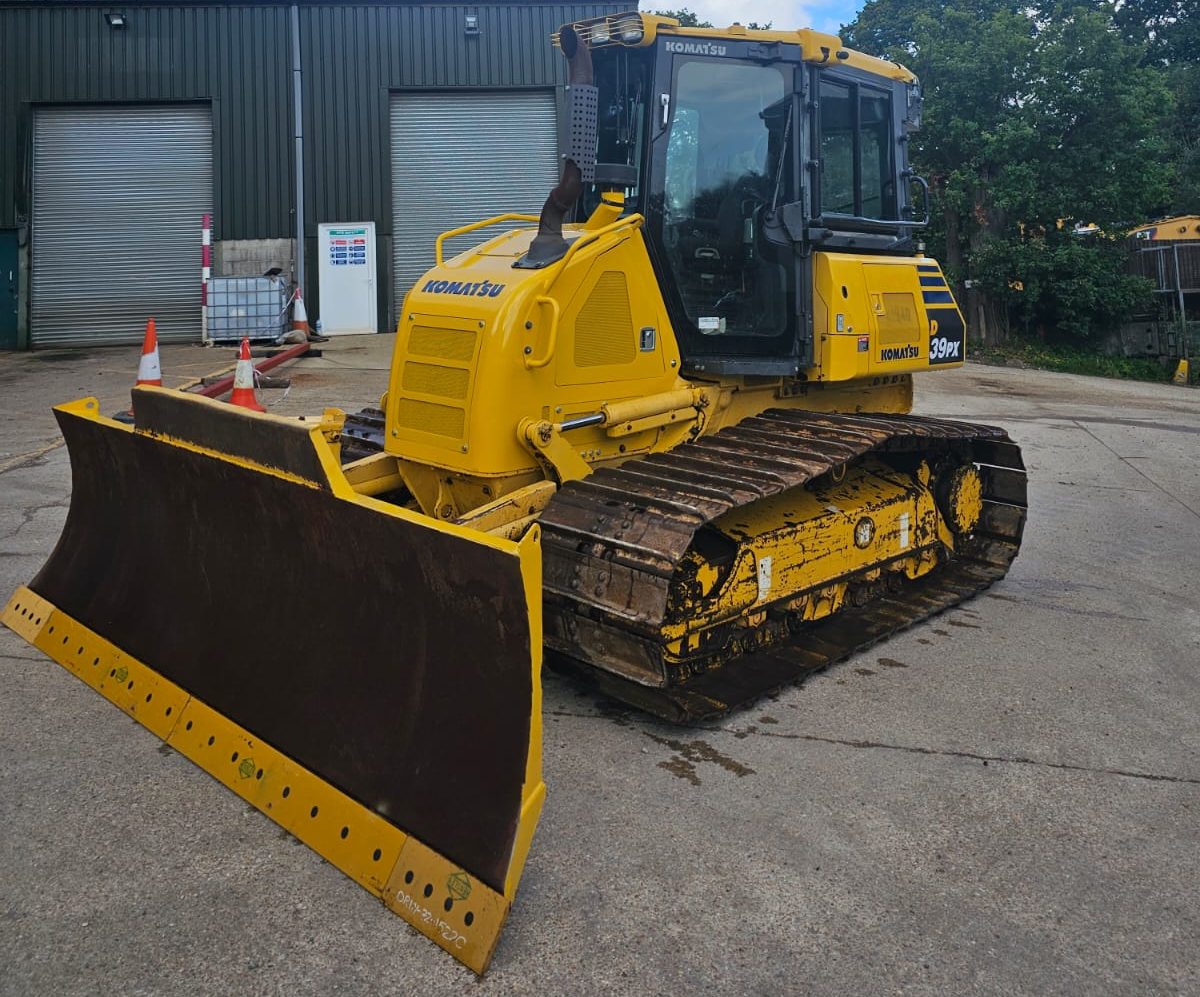

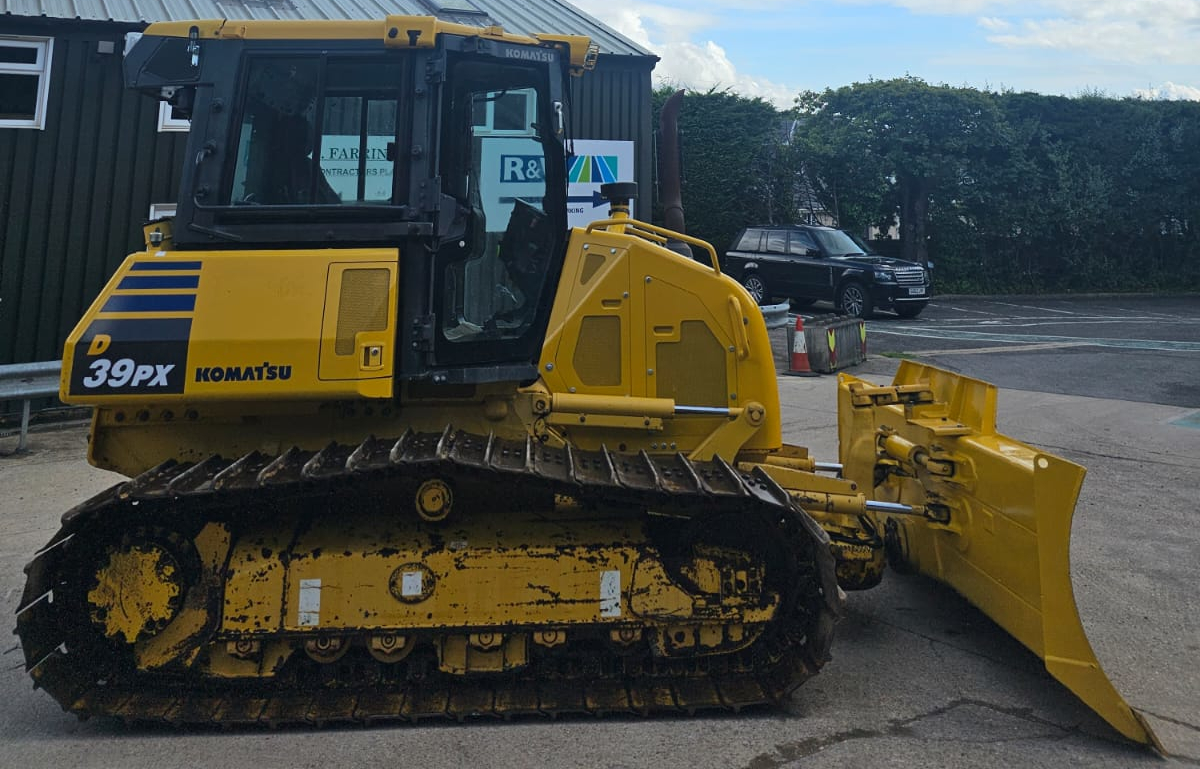

KOMATSU D39PX-24 70789

SOLD
"

MACHINE KEY DETAILS

Make:
Komatsu
Model:
D39PX-24
Stock No:
70789
Year:
2018
Hours:
2694
Location:
Southampton
Weight:
10,350 KGS
HP:
105 HP
Back to Current Stock

Rippers available at an additional cost.

View Full Inspection Report

UNDERCARRIAGE
Shoe Width
700mm
Shoe Height
42mm, 80%
Shoes - Any wear on the trailing edge?
Minimal wear in trailing edge
Rail Height
102mm, 70%
Average diameter of pins & bushings
53mm, Slight concave wear 80%
Have pins been turned on chains?
No
Sprockets
Good condition, Minimal wear, 70mm gape, 15mm tips. 80%
IDLERS
Left side front idler
Running thickness 15mm. 60mm x 25mm x 40mm x 15mm 75%
Right side front idler
Running thickness 15mm. 60mm x 25mm x 40mm x 15mm 75%
TOP ROLLERS
Left side roller
166mm, 90%
Right side roller
166mm, 90%
BOTTOM ROLLERS
Roller 1
L/H: 169mm, 90% R/H: 170mm, 90%
Roller 2
L/H: 171mm, 90% R/H: 170mm, 90%
Roller 3
L/H: 171mm, 90% R/H: 171mm, 90%
Roller 4
L/H: 171mm, 90% R/H: 170mm, 90%
Roller 5
L/H: 171mm, 905 R/H: 172mm, 90%
Roller 6
L/H: 172mm, 90% R/H: 172mm, 90%
