KOMATSU D51PX-24 70845

SOLD

MACHINE KEY DETAILS

Make:

Komatsu

Model:

D51PX-24

Stock No:

70845

Year:

2018

Hours:

3736

Location:

Southampton

Weight:

14,260 KGS

HP:

131 HP

Back to Current Stock

Download inspection Report Download Images Compare Machine

Pre-wired for grade control, PAT blade, 28 in single grouser track shoes, PLUS undercarriage, drawbar

View Full Inspection Report

ENGINE

Blow by

Minimal to none

Knocking

No knocking

Air cleaners

Good

Any smoke

Minimal to none

Oil or fuel leaks

None visible

General running condition

Runs well

TRANSMISSION

Gear change

HST changes well

Steering

Responsive

Oil leaks

None

Is the transmission noisy?

No

Torque converter

Good

Controls

Good controls

General running condition

Runs & moves well

UNDERCARRIAGE

Shoe width

710mm

Shoe height

50mm, 80%

Shoes - any wear in trailing edge

Minimal

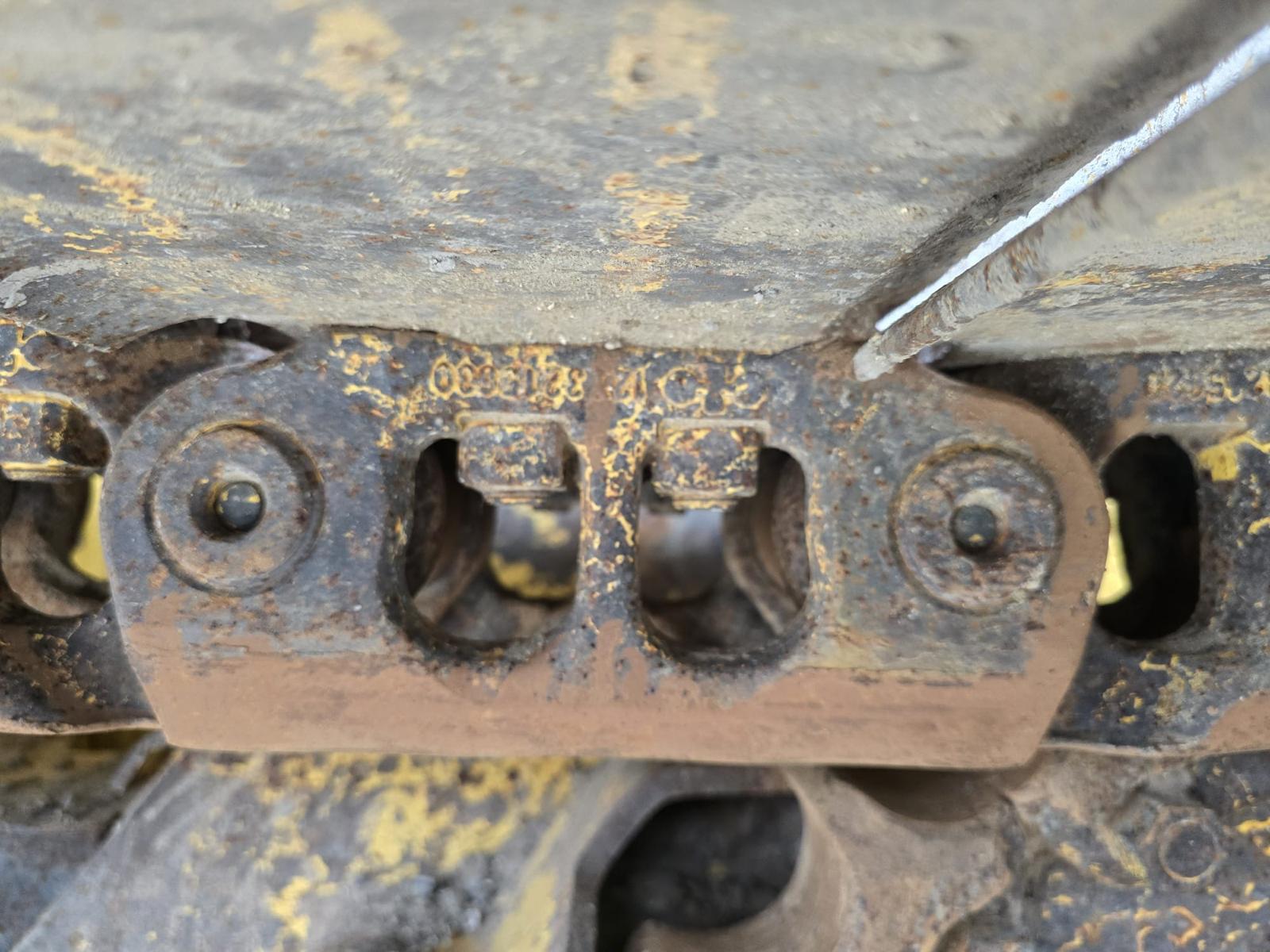

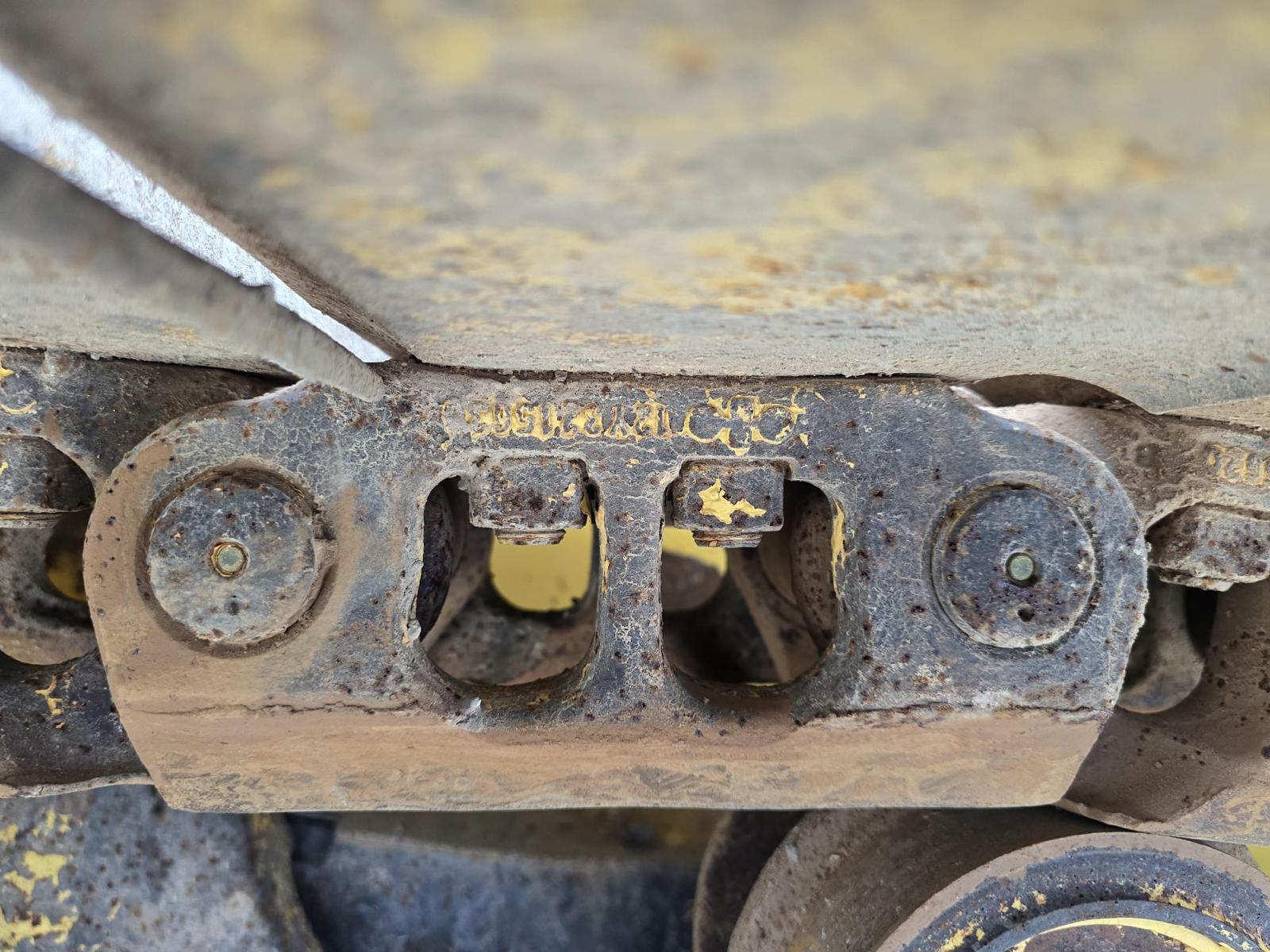

Rail height

104mm, 80%

Any signs of link failure

No

Average diameter of pins and bushings

62mm, 80&

Have pins been turned on chains

No

Sprockets

15mm tips, 72mm gape, 80%

UNDERCARRIAGE - IDLERS

Left side front idler

75mm x 25mm x 40mm x 16mm, 70%

Right side front idler

75mm x 25mm x 40mm x 16mm, 70%

UNDERCARRIAGE - TOP ROLLLERS

Left side 1st roller

159mm x 155mm, 60%

Left side 2nd roller

159mm x 156mm, 60%

Right side 1st roller

157mm x 157mm, 60%

Right side 2nd roller

157mm x 157mm, 60%

UNDERCARRIAGE - BOTTOM ROLLERS

Roller 1

Visual only, 70%

Roller 2

Visual only, 70%

Roller 3

Visual only, 70%

Roller 4

176mm x 179mm, 70%

Roller 5

177mm x 176mm, 70%

Roller 6

Visual only, 70%

Roller 7

Visual only, 70%

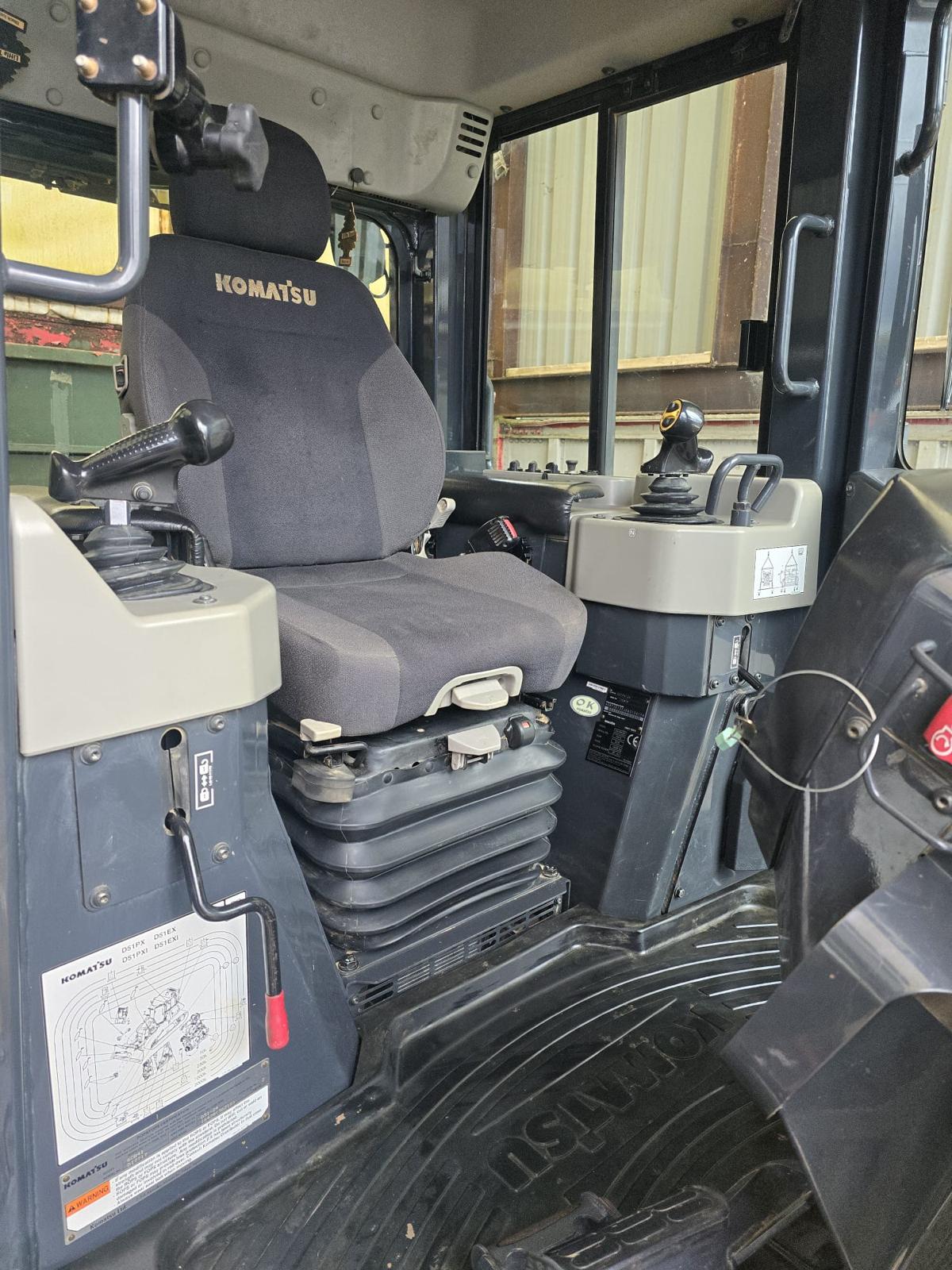

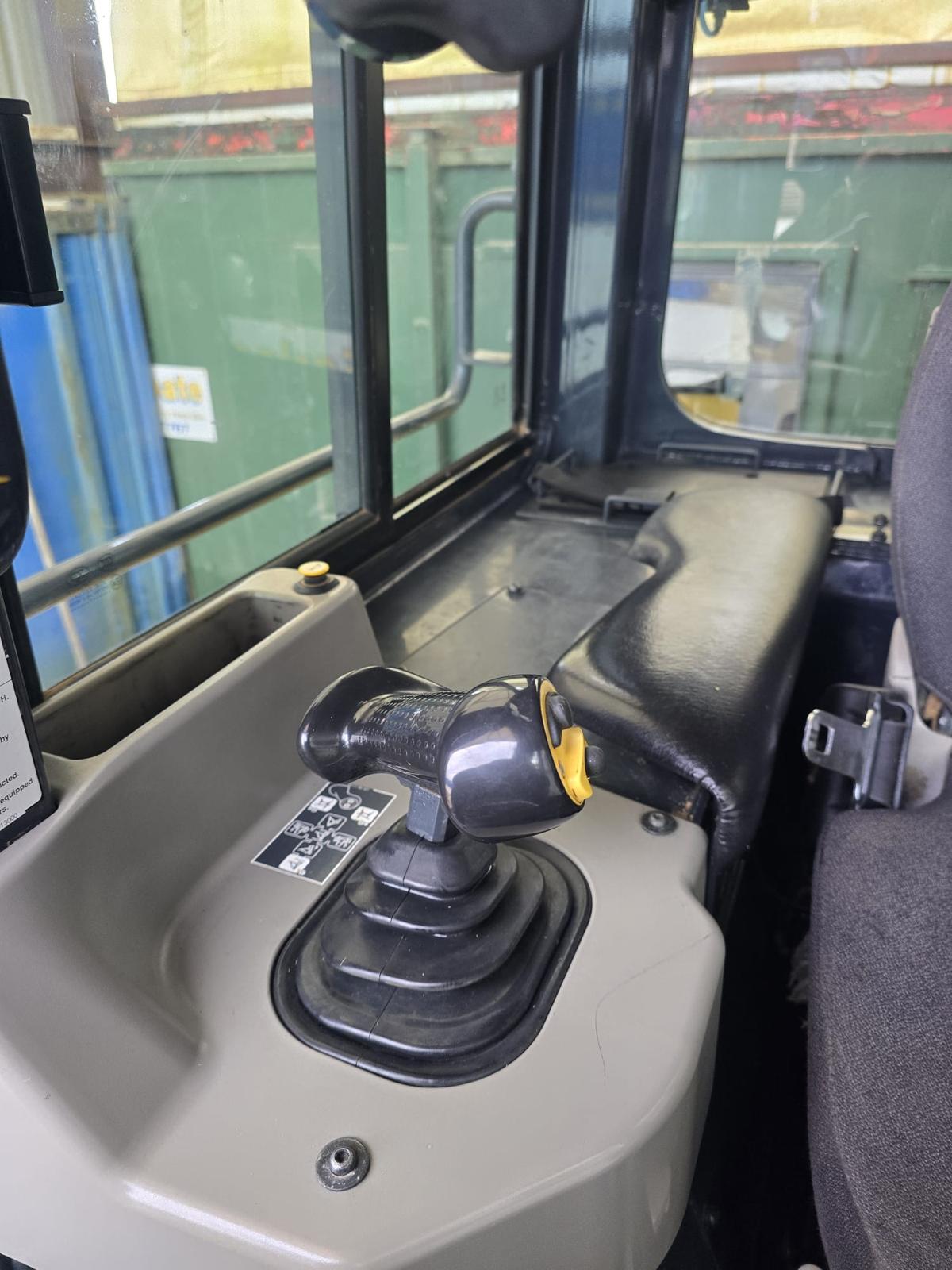

CAB

Cab mounts wear

Slight

Any wiring for laser system

Yes

Battery isolator switch

Manual and electric

Lights

All working

Wipers

All working

Heater

Good heat

A/C

Nice and cold

Seat condition

All functioning, good condition

Cladding condition

Good condition

Floor mat condition

No wear or tears

Seat belt

Working as should

Mirrors

Rear view only

Horn

Loud and clear

Cab glass condition

Good condition

Cab glass have any cracks

No cracks or damage

Any perspex fitted

None fitted

Steps and grab handles secure?

All secure, undamaged

BLADE

Blade width

3350mm

Lift ram wear

L/H: 1mm x 1mm, R/H: 0mm x 1mm

Pitch rams wear

top: 1mm, Bottom: 1mm

Tilt ram wear

L/H: 0mm, R/H: 1mm

Link ram wear

L/H: 1mm, R/H: 1mm

Ball joint wear

4mm

C frame wear

L/H: 1mm, R/H: 1-2mm

Equaliser bar wear

1mm x 1mm x 1mm

Cutting edges condition

Worn

PAINT & DECALS

Any damage to panels

No damage

Any areas repainted

No

4

Any rust patches

usual on track frames

Condition of decals

To be replaced

DIMENSIONS

Length

Width

Height

Measurements with blade straight

5080mm

3350mm

3050mm

Measurements with blade turned

5780mm

2900mm

3050mm

Measurement from outside to outside of tracks

2590mm

Measurements with blade straight

Length: 5080mm

Width: 3350mm

Height: 3050mm

Measurements with blade turned

Length: 5780mm

Width: 2900mm

Height: 3050mm

Measurement from outside to outside of tracks

Length:

Width: 2590mm

Height:
