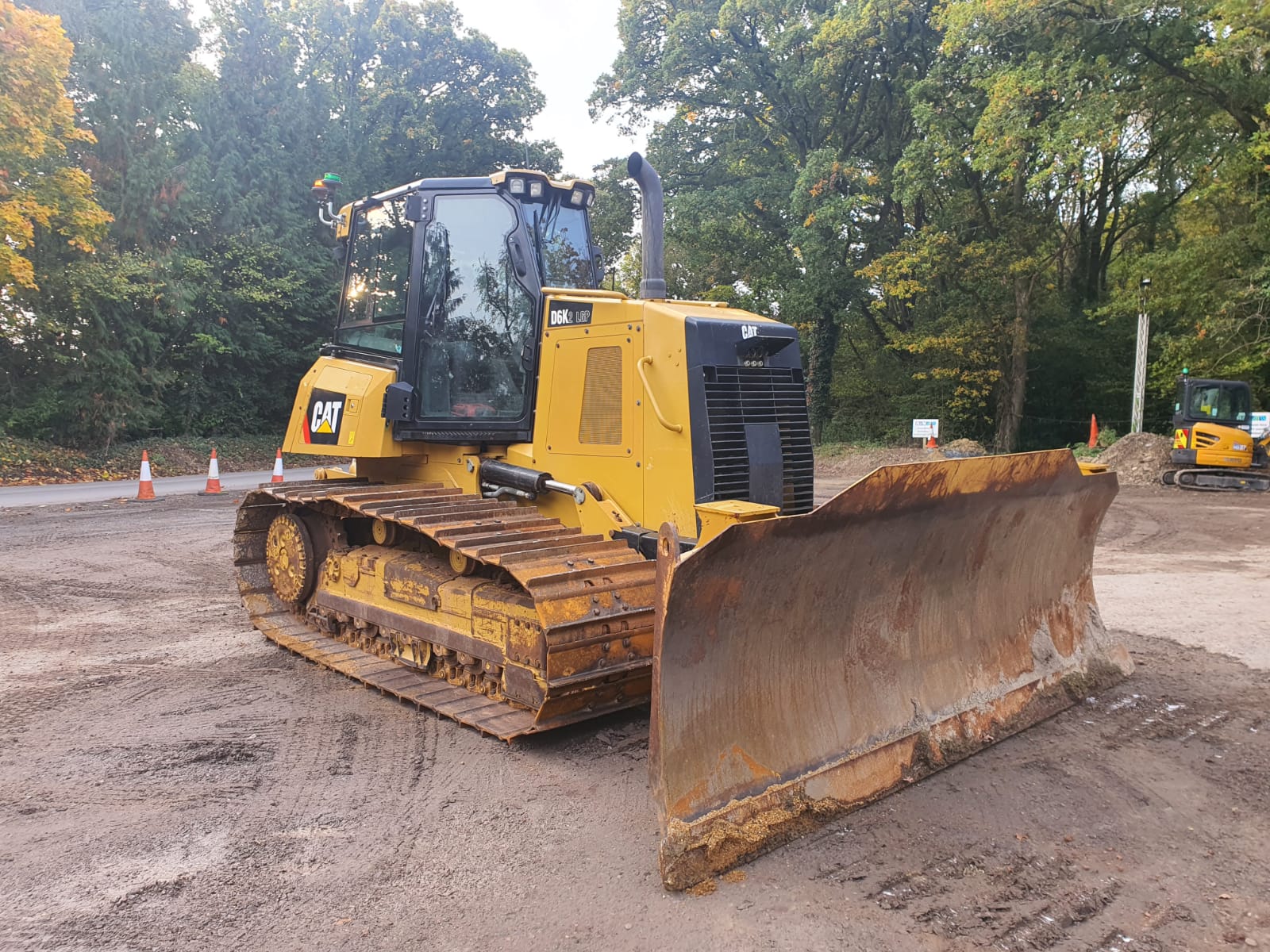

Cat D6K2 LGP

SOLD

MACHINE KEY DETAILS

Make:

Caterpillar

Model:

D6K2 LGP

Stock No:

70509

Year:

2015

Hours:

5920

Location:

Southampton

Weight:

13,909 KG

HP:

159 HP

Back to Current Stock

Download inspection Report Download Images Download Brochure Compare Machine

RIPPERS AVAILABLE

View Full Inspection Report

ENGINE

Blow By

Minimal

Knocking

Good

Air Cleaners

Good

Any Smoke

No

Oil Or Fuel Leaks

None Visible

General Running Condition

Sounds and runs well

TRANSMISSION

Gear Change

Smooth HST

Steering

Very responsive

Oil Leaks

None visible

Is The Transmission Noisy?

No

Controls

Good

General Running Condition

Really good

U/C

Shoe Width (mm)

760mm

Shoe Height (mm)

47mm

Shoes - Any Wear In Trailing Edge

yes

Rail Height

118mm, 95 - 100%

Any Signs Of Link Failure

No

Average Diameter Of Pins And Bushings

67mm, 95%

Have Pins Been Turned On Chains?

No

Sprockets

Really Good, 80 - 90%

IDLERS

Left Side Front Idler

Visual only, no wear. 95 - 100%

Right Side Front Idler

Visual only, no wear. 95 - 100%

TOP ROLLERS

Left Side 1st Top Roller

167mm and 167mm, 100%

Left Side 2nd Top Roller

167mm and 167mm, 100%

Right Side 1st Top Roller

167mm and 167mm, 100%

Right Side 2nd Top Roller

167mm and 167mm, 100%

BOTTOM ROLLERS

Bottom Roller 1

L/H: 174mm, 95%. R/H: 174mm, 95%

Bottom Roller 2

L/H: 174mm, 95%. R/H: 175mm, 95%

Bottom Roller 3

L/H: 174mm, 95%. R/H: 174mm, 95%

Bottom Roller 4

Visual only, 95%

Bottom Roller 5

L/H: 174mm, 95%. R/H: 174mm, 95%

Bottom Roller 6

L/H: 174mm, 95%. R/H: 174mm, 95%

Bottom Roller 7

L/H: 174mm, 95%. R/H: 174mm, 95%

Bottom Roller 8

Visual Only, 95%

CAB

Cab Mounts - Any Wear?

No

Any Wiring For Laser System?

Yes

Back Up Alarm

Loud and clear

Battery Isolator Switch

Manual fitted

Lights

All working

Wipers

All wipers work, no washers. to be repaired

A/C

Nice and cold

Seat Condition

Really good, all working

Cladding Condition

Really good

Floor Mat Condition

No damage, really good

Beacon

To Be Fitted

Seat Belt

Working

Mirrors

Rear View Only

Fire Extinguisher

To be fitted

Horn

Loud and clear

Cab Mounts

Good

Cab Glass Condition

Really good

Cab Glass Have Any Cracks

No cracks

Any Perspex Fitted

None

Steps And Grab Handles Secure?

All good, no damage

BLADE

Blade Width

3640mm

Blade Height

1290mm

Main Lift Rams, wear in pins?

L/H: Top: 3mm, Bottom: 2mm. R/H: Top: 4mm, Bottom: 1mm

Swivel Rams, Wear In Pins?

L/H: Top: Worn Out, Bottom: 10mm. R/H: Top: Worn Out, Bottom: 7mm

Tilt Ram, Wear?

L/H: 10mm, R/H: 10mm

Ball Joint Wear

3mm

C Frame Wear

L/H: 10 - 12mm, R/H: 8 - 10mm

Face / Moldboard

Good and straight

Spill Rack condition

Good and straight

Cutting Edges Condition (mm)

30mm Left

Have Cutting Edges Been Turned?

No

General Blade Condition

Pins and bushes worn, blade is good

Panels & Paint/Decals

Any Damage To Panels

No

Paint Condition

Really good

Any Areas Repainted

No

Any Rust Patches

Minimal

Condition Of Decals

Really Good, rip in rear only

DIMENSIONS

Length

Width

Height

Blade Straight

4750mm

3640mm

3000mm

Blade Turned

5740mm

3200mm

3000mm

Distance From Outside To Outside Of Tracks

2765mm

Blade Straight

Length: 4750mm

Width: 3640mm

Height: 3000mm

Blade Turned

Length: 5740mm

Width: 3200mm

Height: 3000mm

Distance From Outside To Outside Of Tracks

Length:

Width: 2765mm

Height:
