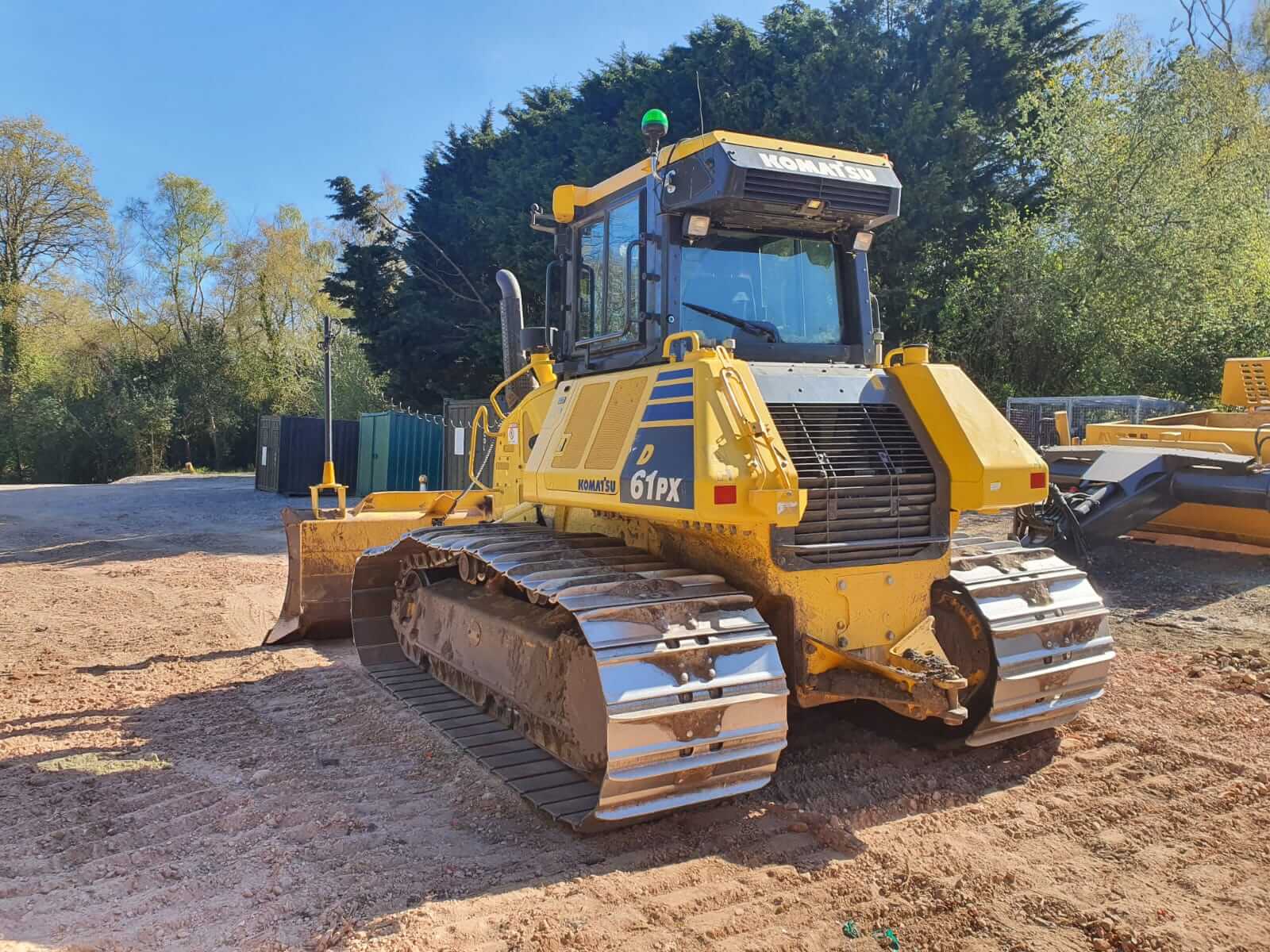

KOMATSU D61PX-24 70560

SOLD
"

MACHINE KEY DETAILS

Make:
Komatsu
Model:
D61PX-24
Stock No:
70560
Year:
2018
Hours:
3189
Location:
Coventry
Weight:
19,460 KG
HP:
169 HP
Back to Current Stock
Download inspection Report Download Images Download Brochure Compare Machine

Rippers available at an additional cost

View Full Inspection Report

ENGINE
Knocking
no knocking
Blow by
Minimal to none
Air cleaners
Good
Any smoke
Minimal to none
Oil or fuel leaks
None visible
General running condition
Really good
TRANSMISSION
Gear change
HST is good
Steering
Responsive
Oil leaks
None visible
Is the transmission noisy?
No
Controls
Good controls
General running condition
Really good
U/C
Shoe width (mm)
860mm
Shoe height (mm)
48mm, 80%
Shoes - any wear in trailing edge
Minimal
Rail height
120mm, 90%
Average diameter of pins and bushings
62mm, 85%
Have pins been turned on chains?
No
Sprockets
Even wear, good tips. segments loose. 75 - 80%
IDLERS
Left side front idler
19mm running thickness. No concave wear 85 - 90%
Right side front idler
19m running thickness. No concave wear 85 - 90%
TOP ROLLERS
Left side first roller
169mm, 170mm. 80%
Left side second roller
169mm, 170mm. 80%
Right side first roller
170mm, 170mm. 80 - 85%
Right side second roller
170mm, 169mm. 80 - 85%
BOTTOM ROLLERS
Roller 1
L/H: 193mm, 85%. R/H: 194mm, 85%
Roller 2
Visual only 85%
Roller 3
Visual only 85%
Roller 4
Visual only 85%
Roller 5
L/H: 194mm, 85%. R/H: 194mm, 85%
Roller 6
L/H: 194mm, 85%. R/H: 194mm, 85%
Roller 7
Visual only 85%
Roller 8
Visual only 85%
CAB
Cab mounts any wear
No wear
Back up alarm
Loud and clear
Battery isolator switch
Manual and electric fitted
Lights
All working
Wipers
All wipers and washers work
Heater
Good heat
A/C
Cold
Seat condition
Undamaged, seat drops
Cladding condition
Good condition
Floor mat condition
No wear or tears
Seat belt
Working as should
Horn
Loud and clear
Cab mounts
All good
Cab glass condition
Really good, all genuine komatsu
Cab glass any cracks
No cracks
Any perspex fitted
None fitted
Steps and grab handles secure?
All there and undamaged
BLADE
Blade type
6 Way
Blade width
3830mm
Blade height
1320mm
Main lift rams, wear in pins
1mm, 1mm, 1mm, 1mm
Swivel rams, wear in pins
0mm, 1mm, 1mm, 0mm
Tilt ram, wear
1mm, 1mm
Ball Joint wear
3 - 4mm
Tilt ram
Good condition
C Frame
C 3mm, 3mm
Face / moldboard
Good no damage
Spill rack condition
Dented but good
Cutting edges condition
25mm Left
Have cutting edges been turned
Yes
PANELS & PAINT / DECALS
Any damage to panels
No
Paint condition
good, some marks on paint
Any areas repainted
No
Any rust patches
Usual areas
Condition of decals
To be replaced
DIMENSIONS
Length
Width
Height
Measurent with blade straight
5600mm
3830mm
3300mm
Measurement with blade turned
6250mm
3500mm
3300mm
Measurement from outside to outside of tracks
2995mm
Measurent with blade straight
Length: 5600mm
Width: 3830mm
Height: 3300mm
Measurement with blade turned
Length: 6250mm
Width: 3500mm
Height: 3300mm
Measurement from outside to outside of tracks
Length:
Width: 2995mm
Height:
